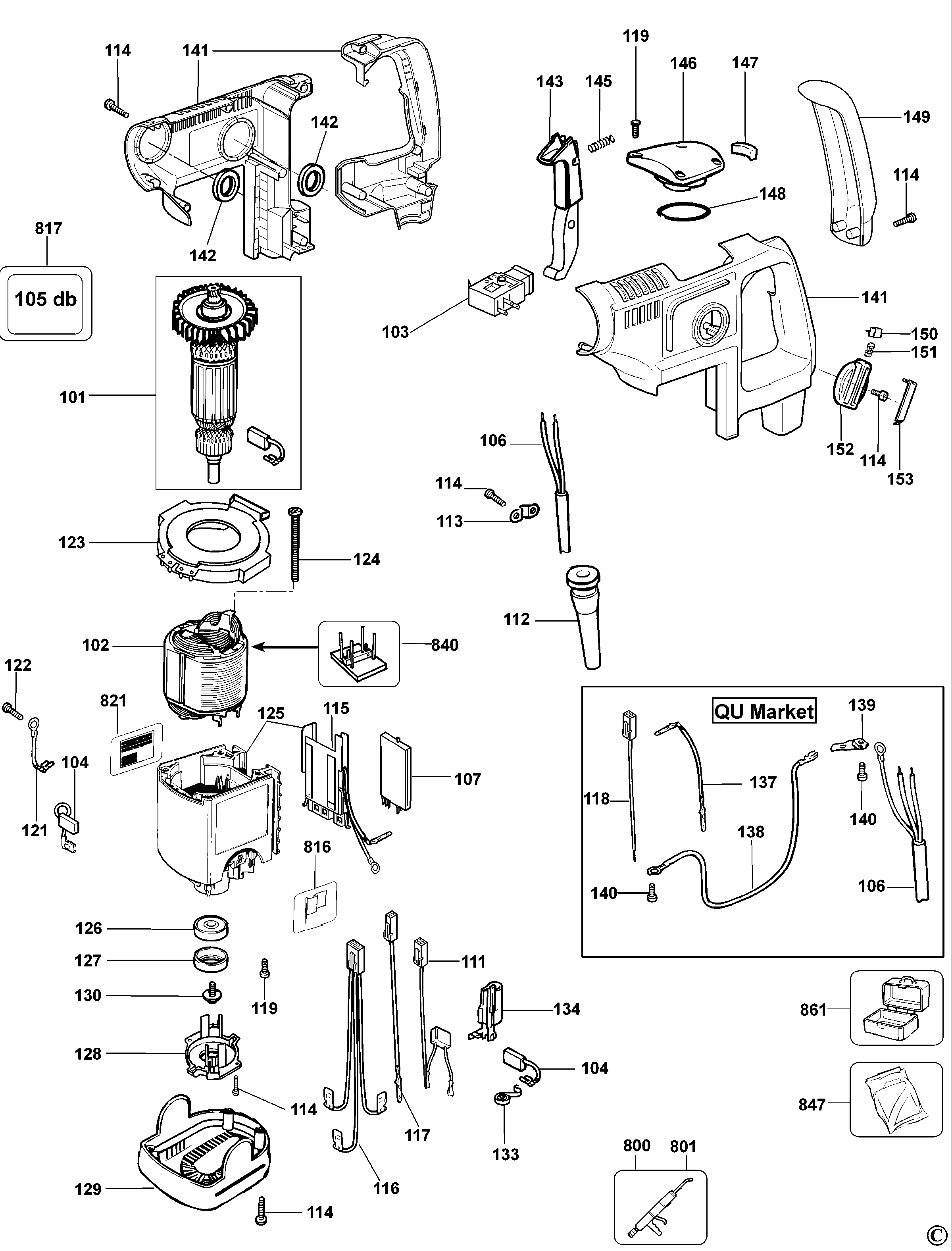

D25405K ROTARY HAMMER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | N030349 | 1 | MOTOR SA 230V | QS |  |
||
| 102 | 377653-08 | 1 | FIELD 230V | QS | |
||
| 103 | 487175-49 | 1 | SWITCH SA | QS | |
||
| 104 | 487131-00 | 1 | BRUSH KIT | QS | |
||
| 106 | 582319-08 | 1 | CORDSET | 3.2 Mts | QS | |
|
| 107 | 328649-20 | 1 | ELECTRONIC 230V | QS | |
||
| 111 | 487087-00 | 1 | CAPACITOR SA | QS | |
||
| 112 | 323091-01 | 1 | CORD PROTECTOR | QS |  |
||
| 113 | 821070 | 1 | CORD CLAMP | QS | |
||
| 114 | 330065-08 | 20 | SCREW | M4x18 T20 | QS | |
|
| 115 | 329845-00 | 1 | HOLDER | QS | |
||
| 116 | 329777-00 | 1 | LEAD SA | QS | |
||
| 117 | 329776-00 | 1 | LEAD SA | QS | |
||
| 119 | 324007-11 | 13 | SCREW | M5 X 18 | QS | |
|
| 121 | 328856-01 | 1 | LEAD | QS | |
||
| 122 | 330065-24 | 2 | SCREW | QS | |
||
| 123 | 327486-00 | 1 | GUIDE | QS | |
||
| 124 | 330065-21 | 2 | SCREW | QS | |
||
| 125 | 487073-01 | 1 | MOTOR HOUSING SA | QS | |
||
| 126 | 577745-00 | 1 | BEARING | QS | |
||
| 127 | 325279-00 | 1 | SLEEVE | QS | |
||
| 128 | 327487-00 | 1 | HOLDER BEARING | QS | |
||
| 129 | 327489-01 | 1 | END CAP | QS | |
||
| 130 | 324119-02 | 1 | SCREW | QS | |
||
| 133 | 326667-00 | 1 | BRUSH SPRING | QS | |
||
| 134 | 326933-01 | 2 | HOLDER | QS | |
||
| 141 | 327589-09 | 1 | CLAMSHELL | QS | |
||
| 142 | 327577-00 | 4 | RING | QS | |
||
| 143 | 487094-01 | 1 | TRIGGER | QS | |
||
| 145 | 326438-00 | 1 | SPRING | QS | |
||
| 146 | 327499-02 | 1 | COVER HOUSING | QS | |
||
| 147 | 327586-00 | 1 | FILTER | QS | |
||
| 148 | 323711-15 | 1 | O RING | QS | |
||
| 149 | 327500-00 | 1 | SWITCH COVER | QS | |
||
| 150 | 327503-02 | 1 | LOCK BUTTON | QS | |
||
| 151 | 323395-31 | 1 | SPRING | QS | |
||
| 152 | 327501-00 | 1 | LEVER | QS | |
||
| 153 | 327509-00 | 1 | CAP | QS | |
||
| 175 | 477168-00 | 1 | CLUTCH SA | QS | |
||
| 184 | 330003-39 | 1 | BEARING | QS | |
||
| 185 | 487074-49 | 1 | BEARING SA | QS | |
||
| 186 | 477169-00 | 1 | CRANKSHAFT | QS | |
||
| 187 | 328769-00 | 1 | SPRING | QS | |
||
| 188 | 327507-00 | 1 | SLEEVE | QS | |
||
| 189 | 477169-00 | 1 | CRANKSHAFT | QS | |
||
| 190 | 323872-05 | 1 | BEARING | QS | |
||
| 191 | 324822-05 | 1 | CIRCLIP | QS | |
||
| 192 | 327141-03 | 1 | SEAL | QS | |
||
| 193 | 327575-00 | 1 | SLEEVE | QS | |
||
| 194 | 327568-00 | 1 | CASTING SA | QS | |
||
| 200 | 323489-00 | 1 | CAP | QS | |
||
| 201 | 587291-00 | 1 | SLEEVE SA | QS | |
||
| 202 | 583890-00 | 4 | BALL | QS | |
||
| 203 | 588557-00 | 1 | WASHER SPECIAL | QS | |
||
| 204 | 588556-00 | 1 | SPRING | QS | |
||
| 205 | 588571-00 | 2 | CIRCLIP | QS | |
||
| 207 | 477178-00 | 1 | SPINDLE | QS | |
||
| 209 | 577795-00 | 1 | RING | QS | |
||
| 210 | 583480-00 | 1 | COVER GEARCASE | QS | |
||
| 213 | 586576-00 | 1 | SEAL | QS | |
||
| 214 | 324821-02 | 1 | CIRCLIP | QS | |
||
| 215 | 586762-00 | 1 | CIRCLIP | QS | |
||
| 216 | 583246-00 | 1 | WASHER | QS | |
||
| 217 | 477180-00 | 1 | SLEEVE BEARING | QS | |
||
| 218 | 586733-00 | 1 | BUSH | QS | |
||
| 219 | 477182-00 | 1 | SPINDLE | QS | |
||
| 220 | 323395-26 | 1 | SPRING | QS | |
||
| 221 | 577139-00 | 1 | SEAL | QS | |
||
| 222 | 323711-30 | 2 | O RING | QS | |
||
| 223 | 477188-00 | 1 | BEARING | QS | |
||
| 224 | 477189-00 | 1 | BEAT PIECE | QS | |
||
| 225 | 477190-00 | 1 | DAMPER | QS | |
||
| 227 | 580990-00 | 1 | O RING | QS | |
||
| 228 | 477191-00 | 1 | BUSH | QS | |
||
| 229 | 577793-00 | 1 | CLIP | QS | |
||
| 230 | 477192-00 | 1 | RAM | QS | |
||
| 231 | 487037-00 | 1 | O RING | QS | |
||
| 232 | 323711-10 | 1 | O RING | QS | |
||
| 233 | 325905-01 | 1 | PISTON RING | QS | |
||
| 234 | 327520-00 | 1 | PISTON | QS | |
||
| 235 | 329818-00 | 1 | PIN | QS | |
||
| 236 | 327519-00 | 1 | CON ROD | QS | |
||
| 237 | 327492-00 | 1 | RING | QS | |
||
| 238 | 327528-00 | 1 | BUSH | QS | |
||
| 239 | 327527-00 | 1 | SLEEVE | QS | |
||
| 240 | 329590-00 | 1 | WASHER | QS | |
||
| 241 | 323763-07 | 1 | RETAINER | QS | |
||
| 242 | 327553-00 | 1 | WASHER | QS | |
||
| 243 | 492165-00 | 1 | BEVEL GEAR | QS | |
||
| 244 | 327504-00 | 1 | FORK | QS | |
||
| 245 | 327574-00 | 1 | SPRING | QS | |
||
| 246 | 327505-00 | 1 | LEVER | QS | |
||
| 247 | 327518-00 | 1 | SEAL | QS | |
||
| 248 | 327502-00 | 1 | CAM | QS | |
||
| 250 | 477193-00 | 1 | HOUSING SA | QS | |
||
| 251 | 327493-00 | 1 | COLLAR | QS | |
||
| 252 | 327544-00 | 1 | BOLT | QS | |
||
| 254 | 487103-49 | 1 | CLAMP SA | QS | |
||
| 256 | 327545-00 | 1 | HANDLE | QS | |
||
| 260 | 326205-00 | 1 | DEPTH ROD | QS | |
||
| 300 | 477194-00 | 1 | HOLDER TOOL | QS | |
||
| 301 | 477195-00 | 1 | SPINDLE LOCK | QS | |
||
| 306 | 584676-00 | 1 | SPINDLE | QS | |
||
| 307 | N591847 | 1 | CHUCK & SPINDLE SA | Dewalt | QS | |
|
| 308 | 590339-00 | 1 | WASHER | QS | |
||
| 309 | 584924-00 | 1 | CHUCK | QS | |
||
| 310 | 605256-02 | 1 | SCREW | QS | |
||
| 400 | 589199-00 | 1 | CHUCK & SPINDLE SA | QS | |
||
| 500 | 575737-01 | 1 | SPINDLE SA | QS | |
||
| 800 | 586778-04 | 1 | GREASE 100 GMS | QS | |
||
| 801 | 328771-07 | 1 | GREASE | 50G, BIT GREASE | QS | |
|
| 816 | 578793-00 | 1 | BRAND LABEL | QS | |
||
| 817 | 487395-01 | 1 | LABEL | QS | |
||
| 821 | 584253-20 | 1 | RATING PLATE | QS | |
||
| 836 | 559613-99 | 1 | SERVICE TOOL | Mandrel Seal | QS | |
|
| 837 | 559611-99 | 1 | SERVICE TOOL | Mandrel Circlip | QS | |
|
| 840 | 559670-99 | 1 | S.T.FIELD ALLIGNMENT | QS | |
||
| 847 | 477198-03 | 1 | SERVICE KIT 230V | QS | |
||
| 861 | 381297-58 | 1 | KITBOX | QS | |
