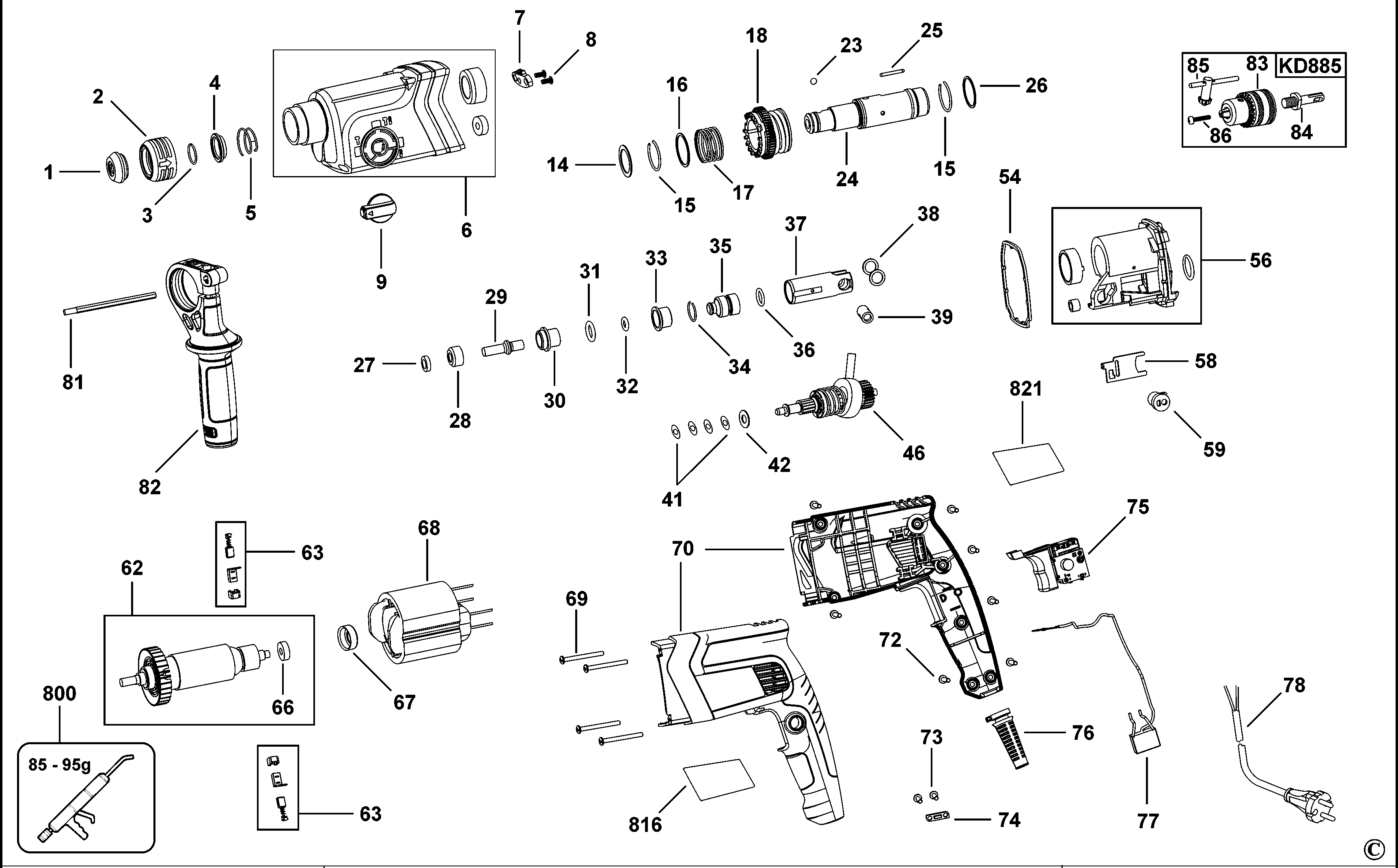

KD885 ROTARY HAMMER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90524563 | 1 | TIP | QS |  |
||
| 2 | 90524565 | 1 | COLLAR | QS | |
||
| 3 | 90558298 | 1 | CIRCLIP | QS | |
||
| 4 | 90549795 | 1 | HOLDER | QS | |
||
| 5 | 90549908 | 1 | SPRING | QS | |
||
| 6 | 90567043 | 1 | GEARCASE SA | QS |  |
||
| 7 | 90549588 | 1 | BRAKE | QS | |
||
| 8 | 90550523 | 2 | SCREW | QS | |
||
| 9 | 90550357 | 1 | SELECTOR SA | QS | |||
| 14 | 90558481 | 1 | GASKET | QS | |
||
| 15 | 90558296 | 2 | CIRCLIP | QS | |
||
| 16 | 90549885 | 1 | WASHER | QS | |
||
| 17 | 90550375 | 1 | SPRING | QS | |
||
| 18 | 90567045 | 1 | CLUTCH SA | QS | |
||
| 23 | 90550363 | 1 | BALL STEEL | QS | |
||
| 24 | 90549105 | 1 | SHAFT | QS | |
||
| 25 | 90550377 | 1 | PIN | QS | |
||
| 26 | 90549888 | 1 | WASHER | QS | |
||
| 27 | 90553674 | 1 | SEAL | QS | |
||
| 28 | 90549947 | 1 | BLOCK | QS | |
||
| 29 | 90549569 | 1 | IMPACTOR | QS | |
||
| 30 | 90549948 | 1 | SLEEVE | QS | |
||
| 31 | 90558560 | 1 | O RING | QS | |
||
| 32 | 90558559 | 1 | O RING | QS | |
||
| 33 | 90549654 | 1 | SLEEVE | QS | |
||
| 34 | 90558294 | 1 | CIRCLIP | QS | |
||
| 35 | 90549635 | 1 | RAM | QS | |
||
| 36 | 90558558 | 1 | O RING | QS | |
||
| 37 | 90549489 | 1 | CYLINDER | QS | |
||
| 38 | 90549884 | 2 | WASHER | QS | |
||
| 39 | 90549488 | 1 | PIN | QS | |
||
| 41 | 90549946 | 4 | WASHER SPRING | QS | |
||
| 42 | 90558300 | 1 | GASKET | QS | |
||
| 46 | 90567049 | 1 | INTERSHAFT SA | QS | |
||
| 54 | 90550379 | 1 | GASKET | QS | |
||
| 56 | 90567050 | 1 | SUPPORT PLATE | QS | |
||
| 58 | 90549820 | 1 | SELECTOR | QS | |
||
| 59 | 90549812 | 1 | KNOB | QS | |
||
| 62 | 90609698 | 1 | SERVICE KIT | Motor + Housing | QS | |
|
| 63 | 90567052 | 1 | BRUSH HOLDER PAIR | QS | |
||
| 66 | 90530454 | 1 | BEARING | QS | |
||
| 67 | 90549817 | 1 | SLEEVE BEARING | QS | |
||
| 68 | 90549941 | 1 | FIELD SA | QS | |
||
| 69 | 330065-16 | 4 | SCREW | QS | |
||
| 70 | 90550394 | 1 | HOUSING SA | QS | |||
| 72 | 330065-07 | 7 | SCREW | QS | |
||
| 73 | 330065-05 | 2 | SCREW | QS | |
||
| 74 | 329301-00 | 1 | CORD CLAMP | QS | |
||
| 75 | 90550361 | 1 | SWITCH | QS | |
||
| 76 | 629648-00 | 1 | CORD PROTECTOR | QS | |
||
| 77 | 90550485 | 1 | CAPACITOR | QS | |
||
| 78 | N615231 | 1 | CORDSET | QS | |
||
| 81 | 372814-00 | 1 | DEPTH STOP | QS | |
||
| 82 | 90547752 | 1 | HANDLE SA | QS | |
||
| 800 | 870889-02 | 1 | GREASE | QS | |
||
| 816 | 90550401 | 1 | BRAND LABEL | QS | |
||
| 821 | 90563213 | 1 | RATING PLATE | QS | |
