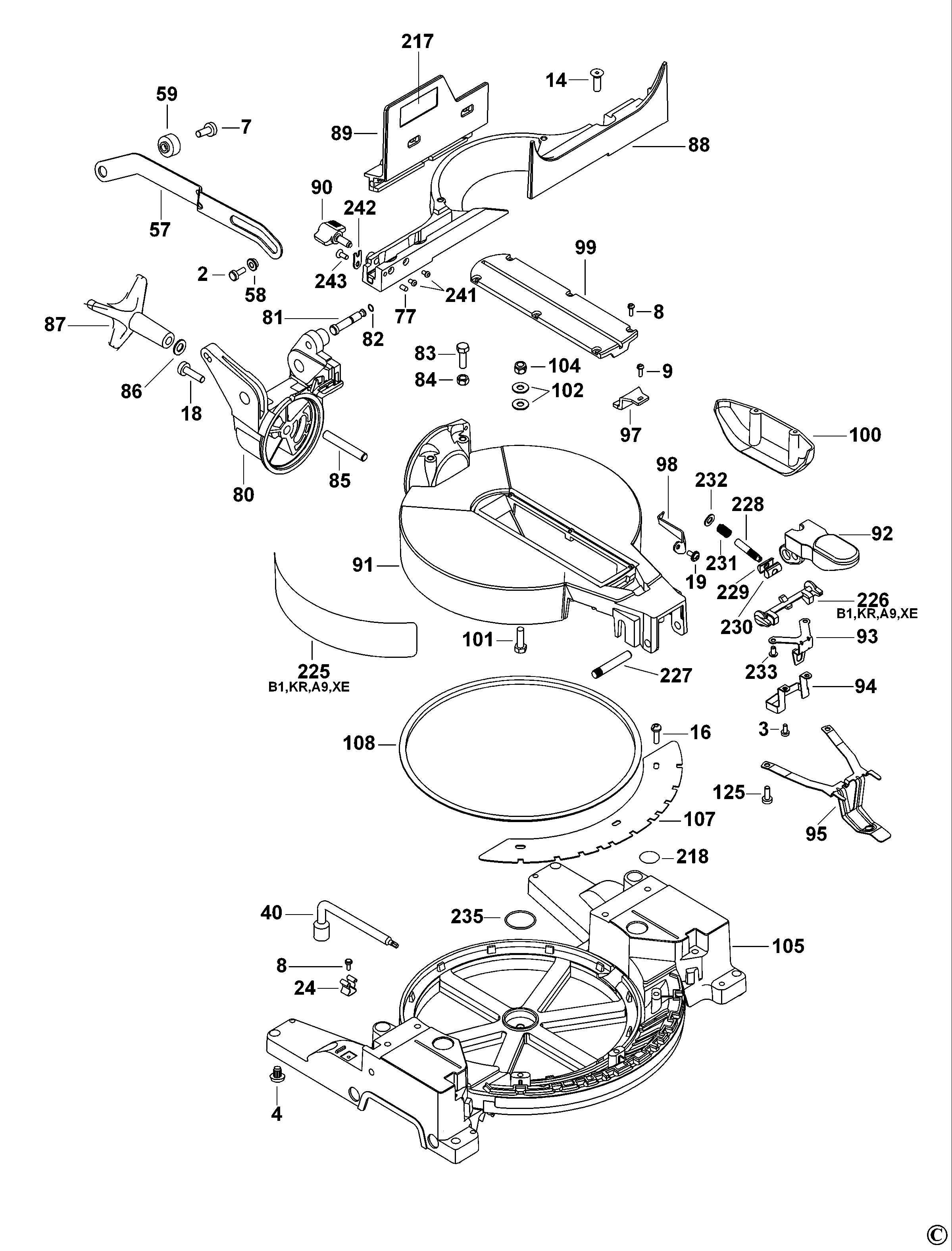

DW713 MITRE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-14 | 3 | SCREW | LX |  |
||
| 2 | 330045-23 | 4 | SCREW | LX |  |
||
| 3 | 330045-13 | 6 | SCREW | LX | |
||
| 4 | 153612-00 | 4 | FOOT | LX | |
||
| 5 | 385915-01 | 4 | SCREW | LX | |
||
| 6 | 151891-00 | 1 | SCREW | LX | |
||
| 7 | 330045-32 | 1 | SCREW | LX | |
||
| 8 | 330045-05 | 12 | SCREW | LX | |
||
| 9 | 153460-05 | 1 | SCREW | LX | |
||
| 10 | 330019-02 | 2 | SCREW | LX | |
||
| 11 | 330019-32 | 5 | SCREW | LX | |
||
| 12 | 330045-08 | 4 | SCREW | LX | |
||
| 13 | 330019-22 | 2 | SCREW | M5.74x32 | LX | |
|
| 14 | 098105-03 | 5 | SCREW | LX | |||
| 15 | 393868-00 | 1 | ADAPTOR | LX | |
||
| 16 | 604410-00 | 3 | SCREW | LX | |
||
| 17 | 641470-00 | 2 | SCREW | LX | |
||
| 18 | 330045-33 | 1 | SCREW | LX | |
||
| 19 | 153460-00 | 1 | SCREW | LX | |||
| 20 | 614375-00 | 4 | SCREW | LX | |
||
| 21 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | LX | |
|
| 22 | 650680-00 | 1 | WASHER OUTER CLAMP | LX | |
||
| 23 | 141987-06 | 1 | WASHER INNER CLAMP | LX | |
||
| 24 | 391358-01 | 1 | HOLDER | LX | |
||
| 25 | N026930 | 1 | COVER | LASER CAVITY | LX | |
|
| 27 | 385915-02 | 4 | SCREW | LX | |
||
| 28 | 391632-00 | 1 | GASKET | LX | |
||
| 29 | 701297-00 | 1 | SEAL | LX | |
||
| 30 | 330004-06 | 1 | BEARING NEEDLE | LX | |
||
| 31 | 145350-03 | 1 | BUTTON | LX | |||
| 32 | 398736-00 | 1 | SPRING | LX | |
||
| 33 | 146714-00 | 1 | LOCK | LX | |
||
| 34 | 146710-00 | 1 | WIPER | LX | |
||
| 35 | 642122-01 | 1 | ARM | INCL 30,36,109 | LX | |
|
| 36 | 148608-03 | 2 | INSERT | LX | |
||
| 37 | 394496-00 | 1 | CHUTE | LX | |
||
| 39 | 393731-00 | 1 | GUARD | LX | |
||
| 40 | 608563-02 | 1 | WRENCH SPECIAL | T30 x 13mm | LX | |
|
| 41 | 003618-00 | 1 | CORD CLAMP | LX | |
||
| 42 | 146751-00 | 1 | SHAFT | LX | |
||
| 43 | 398251-00 | 2 | SPACER | LX | |||
| 44 | 391606-00 | 1 | SPRING | LX | |
||
| 45 | 148296-00 | 2 | WASHER | LX | |
||
| 46 | 150075-00 | 2 | SCREW | LX | |
||
| 47 | 641072-01 | 1 | GUARD LOWER | LX | |
||
| 48 | 641326-00 | 1 | GUARD PLATE | LX | |
||
| 49 | 146774-00 | 1 | ROLLER | LX | |
||
| 50 | 603232-00 | 1 | CIRCLIP | EXTERNAL | LX | |
|
| 51 | 399139-00 | 1 | PIVOT | LX | |
||
| 52 | 146768-00 | 1 | BUMPER | LX | |
||
| 53 | 655325-00 | 1 | SPRING | LX | |
||
| 54 | 148295-00 | 1 | SLEEVE | LX | |
||
| 55 | 146750-01 | 1 | RETAINING PLATE | LX | |
||
| 57 | 391630-00 | 1 | LINK | LX | |
||
| 58 | 146740-01 | 1 | BUSH | LX | |
||
| 59 | 399042-00 | 1 | BUSHING | LX | |
||
| 60 | 640596-01 | 1 | HANDLE SA | LX | |
||
| 61 | 391926-01 | 1 | SWITCH | LX | |
||
| 62 | 647255-02 | 1 | CORDSET | INCL 64,275 | LX | |
|
| 64 | 330005-02 | 1 | CORD PROTECTOR | LX | |
||
| 66 | 654179-00 | 1 | CAPACITOR | LX | |
||
| 68 | 640885-00 | 1 | COVER | LX | |
||
| 69 | N467585 | 1 | CABLE SA | CORD, LASER | LX | ||
| 71 | 618270-00 | 1 | COVER | HANDLE CAVITY | LX | |
|
| 76 | 396375-01 | 1 | Handle | LX | |
||
| 77 | 330022-18 | 1 | SCREW | LX | |
||
| 80 | 391578-01 | 1 | TRUNNION | LX | |
||
| 81 | 387130-00 | 1 | LOCKING PIN | LX | |
||
| 82 | 34158-00 | 1 | SEAL | LX | |
||
| 83 | 149368-00 | 2 | SCREW | LX | |
||
| 84 | 99368-04 | 2 | NUT | LX | |
||
| 85 | 146760-02 | 1 | STUD | LX | |
||
| 86 | 330016-04 | 1 | WASHER | LX | |
||
| 87 | N126150 | 1 | Handle | LX | |
||
| 88 | 642126-01 | 1 | FENCE | LX | |
||
| 89 | 648857-01 | 1 | FENCE LH | INCL 217 | LX | |
|
| 90 | 147107-07 | 1 | KNOB LOWER | LX | |
||
| 91 | 640456-01 | 1 | ROTARY TABLE | LX | |
||
| 92 | 649430-00 | 1 | LEVER LOCK | MITER | LX | |
|
| 93 | 650051-00 | 1 | PLATE | MITER GUIDE | LX | |
|
| 94 | 650052-00 | 1 | CLAMPING BAR | LX | |
||
| 95 | 650130-00 | 1 | SPRING | LX | |
||
| 97 | 391634-00 | 1 | POINTER | LX | |
||
| 98 | 391631-00 | 1 | POINTER | LX | |
||
| 99 | 146726-02 | 1 | PLATE | LX | |
||
| 100 | 391994-00 | 1 | GUARD | LX | |
||
| 101 | 98025-25 | 1 | SCREW | LX | |
||
| 102 | 153792-00 | 2 | WASHER | LX | |
||
| 104 | 330021-02 | 1 | NUT | LX | |
||
| 105 | 640457-00 | 1 | BASE | LX | |
||
| 107 | 630233-00 | 1 | DETENT | LX | |
||
| 108 | 391635-00 | 1 | RING | LX | |
||
| 109 | 395021-00 | 1 | LABEL | LX | |
||
| 110 | 391325-00 | 1 | IDENTITY LABEL | LX | |
||
| 112 | 648708-00 | 1 | RATING PLATE | LX | LX | |
|
| 113 | 330019-03 | 3 | SCREW | LX | |
||
| 118 | 90611830 | 1 | SCREW | LX | |
||
| 125 | 330045-22 | 2 | SCREW | LX | |||
| 204 | 614367-00 | 2 | BRUSH & LEAD | LX | |
||
| 206 | 651766-00 | 1 | FIELDCASE SA | INCL FIELD | LX | |
|
| 207 | 614366-00 | 1 | BAFFLE FAN | LX | |
||
| 208 | 614373-00 | 1 | END CAP | LX | |
||
| 209 | 614364-00 | 1 | ARMATURE 115V | LX | |
||
| 213 | 391573-00 | 1 | GEARCASE COVER | LX | |
||
| 214 | 392628-00 | 1 | SPINDLE & GEAR | LX | |
||
| 215 | 330003-29 | 1 | BEARING,BALL | LX | |
||
| 217 | 395301-00 | 1 | LABEL | LX | |
||
| 218 | 394976-00 | 2 | LABEL | WARNING | LX | |
|
| 219 | 147734-06 | 1 | DUSTBAG | LX | |
||
| 220 | 330003-13 | 1 | BEARING | LX | |
||
| 221 | 605040-06 | 1 | BEARING,BALL | LX | |
||
| 227 | 626611-00 | 1 | PIN | LX | |
||
| 228 | 626610-00 | 1 | ROD | LX | |
||
| 229 | 621321-00 | 1 | NUT | MITER LOCK | LX | |
|
| 230 | 621322-00 | 1 | NUT | LX | |
||
| 231 | 58698-00 | 1 | SPRING | LX | |
||
| 232 | 330016-03 | 1 | WASHER | LX | |
||
| 233 | 650142-00 | 2 | SCREW | LX | |
||
| 235 | 49787-00 | 1 | O RING | LX | |
||
| 237 | 393520-00 | 1 | TERMINAL BLOCK | LX | |
||
| 238 | 152852-00 | 1 | BOLT | LX | |
||
| 239 | 386196-00 | 1 | SPRING | LX | |
||
| 240 | 648729-00 | 1 | LEVER LOCK | LX | |
||
| 241 | 330024-50 | 2 | SCREW | LX | |
||
| 242 | 641484-00 | 1 | PLATE | LX | |
||
| 243 | 098103-18 | 1 | SCREW | LX | |
||
| 245 | 388414-01 | 1 | BUSH | LX | |
||
| 800 | 5140061-28 | 1 | GREASE | LX | |
||
| 800 | 93488-00 | 1 | GREASE | LX | |
||
| 836 | 559606-99 | 1 | S.T.SQUARE | Small square | LX | |
