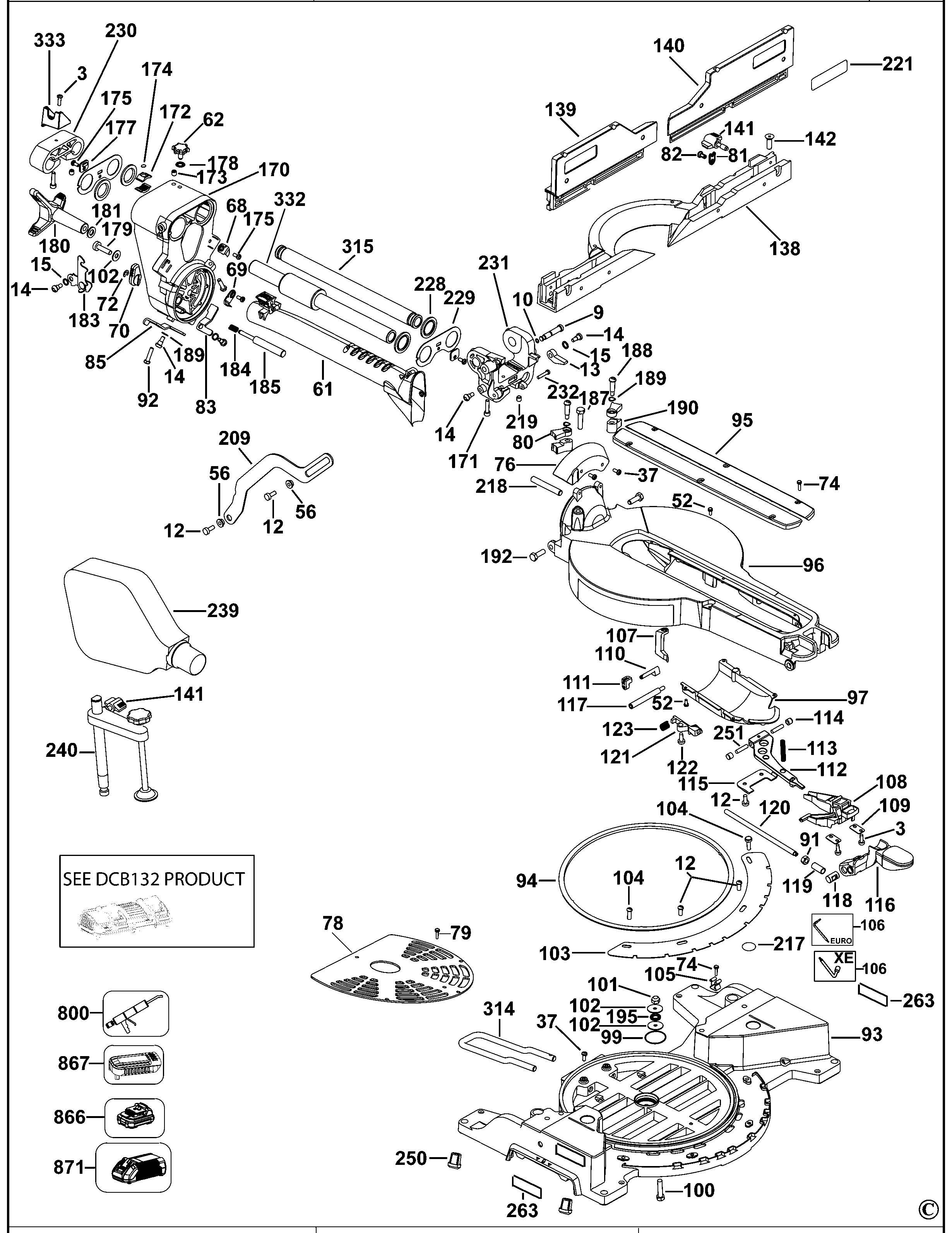

DHS780 MITRE SAW Type 20 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | N459235 | 1 | COVER | LX |  |
||
| 3 | 330045-14 | 7 | SCREW | LX | |
||
| 4 | 146751-00 | 1 | SHAFT | LX | |
||
| 5 | 146732-00 | 2 | SPACER | LX | |
||
| 6 | N039404 | 1 | SPRING | LX | |
||
| 7 | 150075-00 | 2 | SCREW | LX | |
||
| 8 | N377514 | 2 | BUSHING | LX | |
||
| 9 | 387130-00 | 1 | LOCKING PIN | LX | |
||
| 10 | 34158-00 | 1 | SEAL | LX | |
||
| 11 | N058304 | 1 | GUARD REAR | LX | |
||
| 12 | 330045-23 | 8 | SCREW | LX |  |
||
| 13 | 153603-01 | 1 | PAWL | LX | |
||
| 14 | 153639-00 | 5 | SCREW | LX | |
||
| 15 | 153655-00 | 2 | WASHER | LX | |
||
| 16 | N185664 | 1 | SCREW | LX | |
||
| 17 | 150718-00 | 1 | NUT WING | LX | |
||
| 18 | N439376 | 1 | LED LIGHT | LX | |
||
| 20 | 618198-00 | 1 | SCREW | LX | |
||
| 24 | N199395 | 1 | CLAMP OUTER | LX | |
||
| 26 | 645000-00 | 1 | WASHER INNER CLAMP | LX | |
||
| 28 | N141275 | 1 | SPINDLE & GEAR SA | LX | |
||
| 29 | 330003-66 | 1 | BEARING,BALL | LX | |
||
| 30 | 391616-00 | 1 | BEARING NEEDLE | LX | |
||
| 31 | N139533 | 1 | GEAR SA | LX | |
||
| 32 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | LX | |
|
| 33 | 605040-33 | 1 | BEARING | LX | |
||
| 34 | N203541 | 1 | SHAFT SA | LX | |
||
| 35 | 153752-00 | 2 | RETAINER | LX | |
||
| 36 | 618244-00 | 1 | RETAINING PLATE | LX | |
||
| 37 | 330045-49 | 11 | SCREW | LX | |
||
| 38 | 391310-00 | 1 | BEARING PLATE | LX | |
||
| 40 | N004511 | 1 | DRIVE PULLEY | LX | |
||
| 44 | N272402 | 1 | GEARCASE COVER SA | LX | |
||
| 45 | N510450 | 1 | GASKET | LX | |
||
| 47 | N464473 | 1 | BELT | LX | |
||
| 49 | 153561-00 | 1 | LOCKING PIN | LX | |
||
| 50 | 448176-00 | 1 | SPRING | LX | |
||
| 51 | 393071-00 | 1 | PLATE | LX | |
||
| 52 | 330045-45 | 8 | SCREW | LX | |
||
| 53 | 153559-00 | 1 | WASHER | LX | |
||
| 56 | 146740-00 | 2 | SLEEVE | LX | |
||
| 57 | 394589-01 | 2 | SCREW | LX | |
||
| 60 | 330045-15 | 11 | SCREW | LX | |
||
| 61 | N142121 | 1 | DUST PORT | LX | |
||
| 62 | N080677 | 1 | KNOB | M8x1.0 THD | LX | |
|
| 68 | N058308 | 1 | POINTER | LX | |
||
| 69 | N058309 | 1 | POINTER | LX | |
||
| 70 | N080199 | 1 | KNOB | LX | |
||
| 72 | 60325-01 | 1 | RING | LX | |||
| 74 | 330045-06 | 7 | SCREW | LX | |
||
| 76 | N090294 | 1 | BEVEL SCALE | LX | |
||
| 78 | N482412 | 1 | PLATE | LX | |
||
| 79 | 330045-49 | 1 | SCREW | LX | |
||
| 80 | N043045 | 2 | PAWL | LX | |
||
| 83 | N049689 | 1 | STOP RH | LX | |
||
| 85 | N051519 | 1 | STOP LH | LX | |
||
| 91 | 330015-03 | 1 | NUT | M8x1.25 | LX | |
|
| 92 | N058312 | 2 | SCREW | LX | |
||
| 93 | N450450 | 1 | BASE SA | LX | |
||
| 94 | N528183 | 1 | PLATE | LX | |
||
| 95 | N057391 | 2 | PLATE | LX | |
||
| 96 | N450345 | 1 | TABLE SA | LX | |||
| 97 | N401778 | 1 | COVER | LX | |
||
| 99 | 49787-00 | 1 | O RING | LX | |
||
| 100 | N058318 | 1 | SCREW | LX | |
||
| 101 | N044739 | 1 | LOCK NUT | LX | |
||
| 102 | 153792-00 | 4 | WASHER | LX | |
||
| 103 | N059784 | 1 | PLATE | LX | |
||
| 104 | 604410-00 | 2 | SCREW | LX | |
||
| 105 | 391358-01 | 1 | HOLDER | LX | |
||
| 107 | N057963 | 1 | POINTER | LX | |
||
| 108 | N050755 | 1 | ACTUATOR | LX | |
||
| 109 | N066280 | 2 | PLATE | LX | |||
| 110 | 622396-00 | 1 | SHAFT | LX | |
||
| 111 | 622395-00 | 1 | LEVER LOCK-OFF | LX | |
||
| 112 | N488468 | 1 | DETENT | LX | |
||
| 113 | 618176-00 | 1 | SPRING COMPRESSION | COMPRESSION | LX | |
|
| 114 | 093128-00 | 2 | BEARING NEEDLE | LX | |
||
| 115 | 618254-00 | 1 | RETAINER | LX | |
||
| 116 | N082785 | 1 | LEVER | LX | |
||
| 117 | N057386 | 1 | PIN | LX | |
||
| 118 | 624460-00 | 1 | PIN | LX | |
||
| 119 | 624461-00 | 1 | SLEEVE | LX | |
||
| 120 | 618186-00 | 1 | ROD | LX | |
||
| 121 | 618185-00 | 1 | BLOCK | LX | |
||
| 122 | 385915-03 | 1 | SCREW | LX | |
||
| 123 | 618253-00 | 1 | SPRING COMPRESSION | LX | |
||
| 125 | 330045-18 | 4 | SCREW | LX | |
||
| 126 | 330019-32 | 3 | SCREW | LX | |
||
| 127 | N494159 | 1 | PCB SA | LX | |
||
| 128 | N447769 | 1 | SWITCH | LX | |
||
| 129 | N458834 | 4 | SCREW | 6-32 x 5.55mm | LX | ||
| 131 | 330019-12 | 1 | SCREW | LX | |
||
| 133 | N083060 | 1 | HANDLE | LX | |
||
| 134 | 330019-22 | 1 | SCREW | M5.74x32 | LX | |
|
| 135 | 398443-00 | 1 | CABLE CLAMP | LX | |
||
| 137 | N030322 | 1 | COVER | LX | |
||
| 142 | 098105-03 | 4 | SCREW | LX | |||
| 143 | N631879 | 1 | MOTOR SA | EMI | LX | |
|
| 144 | N448791 | 1 | COVER | LX | |
||
| 145 | N480342 | 1 | SCREW | M3x1.5 TorxT-10 Pan | LX | ||
| 146 | N493970 | 1 | LEAD | SIGNAL | LX | |
|
| 147 | N443879 | 1 | LEAD | Power | LX | |
|
| 148 | N449481 | 1 | BUSHING | SR-5L-1 | LX | |
|
| 149 | 48822-00 | 1 | CABLE CLAMP | LX | |||
| 150 | N004510 | 1 | DRIVE PULLEY | LX | |
||
| 151 | N426940 | 1 | HOUSING | LX | |
||
| 152 | 323924-08 | 4 | SCREW | LX | |||
| 153 | N426941 | 1 | HOUSING | Center | LX | |
|
| 154 | N449474 | 1 | SCREW | M5x20 T25 | LX | ||
| 155 | N461735 | 2 | SPRING | LX | |
||
| 157 | N426942 | 1 | HOUSING | LX | |
||
| 158 | 330019-16 | 10 | SCREW | LX | |
||
| 161 | N599680 | 1 | SPACER | FROM WK23-2018 | LX | |
|
| 162 | N592867 | 1 | LEAD SA | FROM WK23-2018 | LX | |
|
| 163 | N594146 | 1 | LIFTER | FROM WK23-2018 | LX | ||
| 164 | 330019-02 | 1 | SCREW | FROM WK23-2018 | LX | |
|
| 165 | 330045-15 | 1 | SCREW | LX | |
||
| 165 | 330045-18 | 1 | SCREW | FROM WK23-2018 | LX | |
|
| 170 | N450353 | 1 | HOUSING | LX | |
||
| 171 | 603390-00 | 8 | SCREW | LX | |
||
| 172 | 397118-00 | 2 | GUIDE | LX | |
||
| 173 | 153576-04 | 1 | SCREW | LX | |
||
| 174 | 613497-00 | 1 | THRUST PLATE | LX | |
||
| 175 | N058314 | 4 | SCREW | LX | |
||
| 177 | N051244 | 2 | BUMPER | LX | |
||
| 178 | 659919-00 | 1 | SPRING | LX | |
||
| 179 | 612008-00 | 1 | SCREW | LX | |
||
| 180 | N459410 | 1 | LOCK HANDLE | LX | |||
| 181 | 330016-04 | 1 | WASHER | LX | |
||
| 183 | N095579 | 1 | LEVER SA | LX | |
||
| 184 | 167785-00 | 2 | SPRING | LX | |
||
| 185 | N834068 | 1 | PIN | LX | |
||
| 187 | 153797-00 | 1 | BOLT | 5/16-18 x 35mm | LX | |
|
| 188 | N058315 | 2 | SCREW.SPECIAL | LX | |
||
| 189 | 385946-00 | 4 | WASHER SPRING | LX | |
||
| 190 | N043046 | 2 | PAWL | LX | |
||
| 192 | 153797-04 | 2 | SCREW | HEX HEAD | LX | |
|
| 194 | N505548 | 1 | DUST DEFLECTOR | LX | |
||
| 195 | 153451-00 | 1 | BEARING THRUST | LX | |
||
| 200 | N457634 | 1 | BRAND LABEL | LX | |
||
| 203 | 386780-00 | 2 | BEARING | LX | |
||
| 204 | N599317 | 1 | GUARD LOWER | LX | |
||
| 205 | N450456 | 1 | GUARD PLATE | LX | |
||
| 206 | 385915-01 | 4 | SCREW | LX | |
||
| 208 | 146768-00 | 1 | BUMPER | LX | |
||
| 209 | N142523 | 1 | LINK | LX | |
||
| 212 | 146750-01 | 1 | RETAINING PLATE | LX | |
||
| 214 | 148295-00 | 1 | SLEEVE | LX | |
||
| 215 | 625825-00 | 2 | ROLLER | LX | |
||
| 216 | 142273-00 | 2 | RING | LX | |
||
| 217 | 394976-00 | 2 | LABEL | WARNING | LX | |
|
| 218 | 146760-02 | 1 | STUD | LX | |
||
| 219 | 153666-00 | 2 | SCREW | set screw M8 x 8mm long | LX | |
|
| 228 | 397117-00 | 4 | SEAL | LX | |
||
| 229 | N049684 | 2 | COVERPLATE | LX | |
||
| 230 | N455343 | 1 | HOUSING | LX | |
||
| 231 | N443949 | 1 | TRUNNION | LX | |
||
| 232 | 330019-14 | 1 | SCREW | LX | |
||
| 233 | N066282 | 1 | LEVER LOCK | LX | |
||
| 234 | 386196-00 | 1 | SPRING | LX | |
||
| 235 | 152852-00 | 1 | BOLT | LX | |
||
| 239 | N126162 | 1 | DUST BAG SA | LX | |
||
| 240 | N142123 | 1 | CLAMP SA | LX | |
||
| 250 | 868777-00 | 4 | FOOT | LX | |
||
| 251 | 618170-00 | 2 | PIN | LX | |
||
| 260 | N457632 | 1 | LABEL | FLEXVOLT | LX | |
|
| 263 | N458771 | 2 | LABEL | FLEXVOLT | LX | |
|
| 280 | N599679 | 1 | PARTS PACK(KIT) | REWORK KIT ESD | TO WK23-2018 | LX | |
| 290 | 394034-00 | 1 | SCREW | belt tensioner | LX | |
|
| 314 | N441566 | 1 | BAR FENCE | LX | |
||
| 315 | N058319 | 1 | RAIL | LX | |
||
| 332 | N104494 | 1 | RAIL | LX | |
||
| 333 | N450867 | 1 | BRACKET | CORDSET | LX | |
|
| 533 | N595757 | 1 | SWITCH | FROM WK23-2018 | LX | |
|
| 533 | N443880 | 1 | SWITCH | WORKLIGHT | TO WK23-2018 | LX | |
| 534 | N300152 | 1 | CAP | LX | |
||
| 535 | N631525 | 1 | HEATSHIELD | 4.75 DIA X 35MM LONG | LX | |
|
| 800 | 5140061-28 | 1 | GREASE | LX | |
||
| 800 | 93488-00 | 1 | GREASE | LX | |
||
| 857 | N500270 | 1 | ADAPTOR SA | DCB500-LX | SEE DCB500 | LX | |
| 866 | N491552 | 2 | BATTERY 3 X18V-9.0AH-162WH | DCB547-XJ | LX | |
|
| 867 | N462141 | 1 | SAFETY CAP | LX | |
