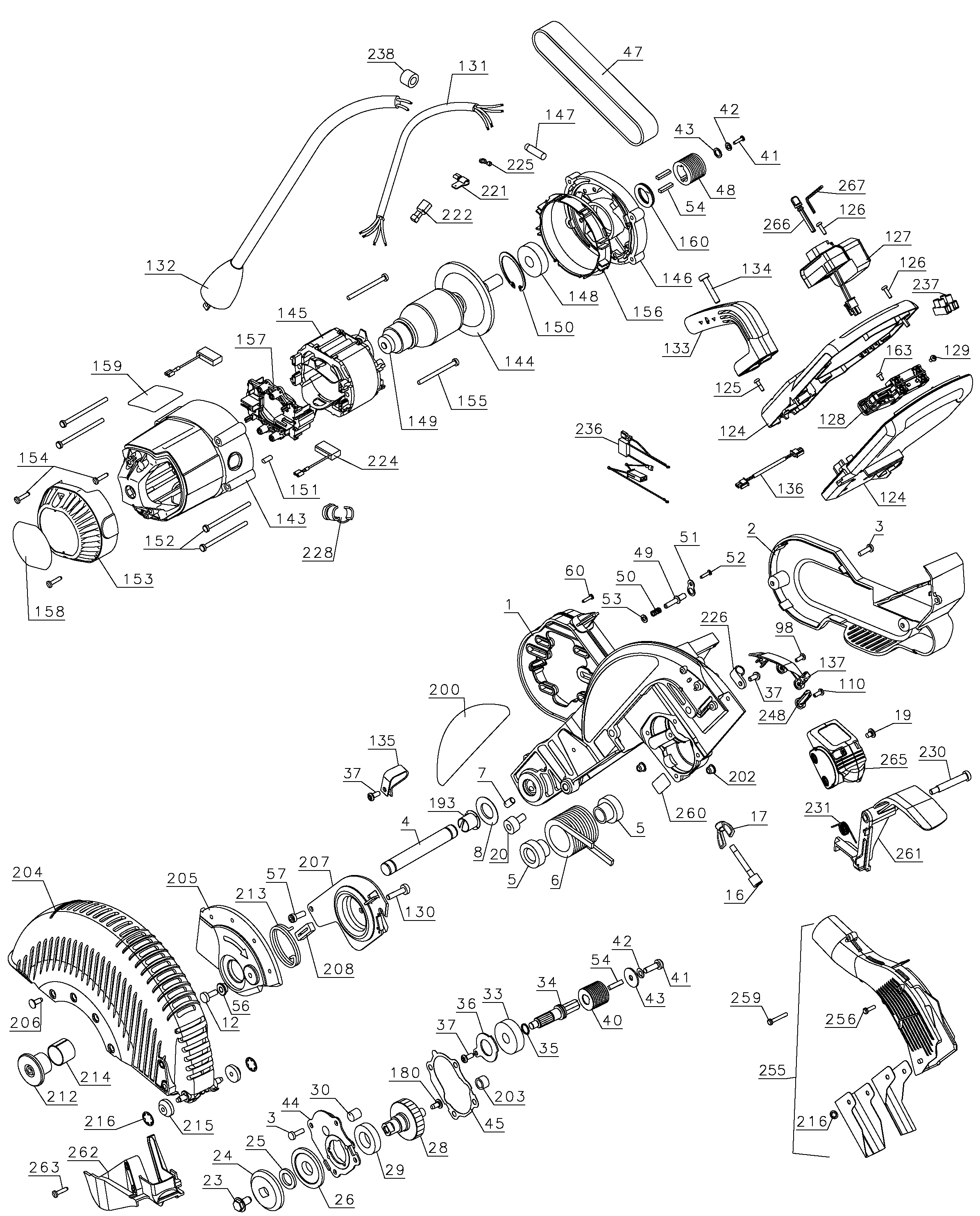

DW717XPS MITRE SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 641494-01SV | 1 | ARM | LX |  |
||
| 2 | 641445-00 | 1 | BELT COVER | LX | |||
| 3 | 330045-14 | 9 | SCREW | LX |  |
||
| 4 | 146751-00 | 1 | SHAFT | LX | |
||
| 5 | 146732-00 | 2 | SPACER | LX | |
||
| 6 | N039404 | 1 | SPRING | LX | |
||
| 7 | 150075-00 | 2 | SCREW | LX | |
||
| 8 | 148296-00 | 2 | WASHER | LX | |
||
| 9 | 387130-00 | 1 | LOCKING PIN | LX | |
||
| 10 | 034158-00 | 1 | O RING | LX | |
||
| 12 | 330045-23 | 5 | SCREW | LX | |
||
| 13 | 153603-01 | 1 | PAWL | LX | |
||
| 14 | 153639-00 | 1 | SCREW | LX | |
||
| 15 | 153655-00 | 2 | WASHER | LX | |
||
| 16 | N185664 | 1 | SCREW | LX | |
||
| 17 | 150718-00 | 1 | NUT WING | LX | |
||
| 19 | 385915-02 | 4 | SCREW | LX | |
||
| 20 | 618198-00 | 1 | SCREW | LX | |
||
| 22 | 615851-00 | 1 | BUSHING | LX | |
||
| 23 | 647776-00 | 1 | BLADE BOLT | M8 X 20 LH T40 | LX | |
|
| 24 | 151962-01 | 1 | CLAMP OUTER | LX | |
||
| 25 | 604770-00 | 1 | ADAPTOR | LX | |
||
| 26 | 644999-00 | 1 | WASHER INNER CLAMP | LX | |
||
| 26 | 644999-00 | 1 | WASHER INNER CLAMP | LX | |
||
| 28 | 641465-00SV | 1 | GEAR & SPINDLE SA | LX | |||
| 29 | 330003-66 | 1 | BEARING,BALL | LX | |
||
| 30 | 391616-00 | 1 | BEARING NEEDLE | LX | |
||
| 33 | 605040-69 | 1 | BEARING | LX | |
||
| 34 | 641454-00 | 1 | PINION | LX | |
||
| 35 | 153752-00 | 1 | RETAINER | LX | |
||
| 36 | 618244-01 | 1 | RETAINING PLATE | LX | |
||
| 37 | 330045-49 | 4 | SCREW | LX | |
||
| 40 | 641477-00 | 1 | PULLEY | DRIVEN | LX | |
|
| 41 | 153778-00 | 2 | SCREW | M6x20, NYLON PATCH | LX | |
|
| 42 | 098198-05 | 2 | WASHER | LOCK, M6 | LX | |
|
| 43 | 153782-00 | 2 | WASHER | LX | |
||
| 44 | 641495-00SV | 1 | GEARCASE COVER SA | LX | |
||
| 45 | 641459-00 | 1 | GASKET | LX | |
||
| 47 | 641463-00 | 1 | BELT | LX | |
||
| 48 | 153554-00 | 1 | DRIVE PULLEY | LX | |||
| 49 | 153561-00 | 1 | LOCKING PIN | LX | |
||
| 50 | 448176-00 | 1 | SPRING | LX | |
||
| 51 | 393071-00 | 1 | PLATE | LX | |
||
| 52 | 330045-45 | 5 | SCREW | LX | |
||
| 53 | 153559-00 | 1 | WASHER | LX | |
||
| 54 | 153638-00 | 3 | KEY | LX | |||
| 56 | 146740-00 | 2 | SLEEVE | LX | |
||
| 57 | 641470-00 | 2 | SCREW | LX | |
||
| 60 | 330045-15 | 5 | SCREW | LX | |
||
| 62 | 618156-00 | 1 | LOCK KNOB | LX | |
||
| 63 | 641455-00 | 1 | SUPPORT PLATE | SUPPORT HOUSING | LX | |
|
| 64 | 618145-00 | 2 | BUSHING | TAPERED | LX | ||
| 65 | 153769-01 | 2 | WASHER THRUST | LX | |
||
| 66 | 153451-00 | 1 | BEARING THRUST | LX | |
||
| 67 | 625393-00 | 1 | LOCK NUT | PREVAILING TORQUE | LX | ||
| 68 | 641425-00 | 1 | POINTER | LX | |
||
| 70 | 618236-00 | 1 | Handle | BEVEL LOCK | LX | ||
| 71 | 330016-03 | 3 | WASHER | LX | |
||
| 72 | 618148-00 | 1 | ROD | BEVEL | LX | |
|
| 73 | 603636-00 | 1 | WASHER THRUST | LX | |||
| 74 | 330045-06 | 11 | SCREW | LX | |
||
| 75 | 618160-00 | 1 | BLOCK | BEVEL CLAMP | LX | ||
| 76 | 626440-00 | 1 | SPRING | LX | |||
| 77 | 098103-18 | 6 | SCREW | LX | |
||
| 78 | 330045-23 | 1 | SCREW | LX | |
||
| 79 | 641466-00 | 1 | SPRING | LX | |
||
| 80 | 641467-00 | 1 | PAWL | BEVEL DETENT | LX | ||
| 81 | 641484-00 | 2 | PLATE | LX | |
||
| 83 | N019349 | 2 | LEVER SA | BEVEL DETENT | LX | |
|
| 84 | 618153-00 | 1 | ROD | DETENT ACTUATION | LX | ||
| 85 | 618259-00 | 1 | SPRING TORSION | LX | |||
| 86 | N059591 | 1 | CAM | BEVEL ACTUATION | LX | |
|
| 88 | 641471-00 | 2 | PLATE | BEVEL | LX | |
|
| 89 | 641468-00 | 1 | PLATE | BEVEL | LX | |
|
| 90 | 98130-25 | 3 | CARRIAGE BOLT | LX | |||
| 91 | 330015-03 | 4 | NUT | M8x1.25 | LX | |
|
| 92 | 391346-00 | 2 | SCREW | LX | |
||
| 93 | 641486-00SV | 1 | BASE SA | LX | |||
| 94 | 641416-00 | 3 | PLATE | LX | |
||
| 95 | 641453-00 | 2 | PLATE | LX | |
||
| 96 | 641498-01SV | 1 | TABLE ASSY | LX | |||
| 97 | 147107-07 | 2 | KNOB LOWER | LX | |
||
| 98 | 330045-05 | 8 | SCREW | LX | |
||
| 99 | 049787-00 | 1 | O RING | LX | |||
| 100 | 098025-35 | 1 | SCREW | M8x1.25x35 HEX | LX | |
|
| 101 | N044739 | 1 | LOCK NUT | LX | |
||
| 102 | 153792-00 | 2 | WASHER | LX | |
||
| 103 | 641443-00 | 1 | DETENT | LX | |
||
| 104 | 604410-00 | 4 | SCREW | LX | |
||
| 105 | 391358-01 | 1 | HOLDER | LX | |
||
| 106 | 608563-01 | 1 | WRENCH SPECIAL | M13 - T30 | LX | |
|
| 107 | 641452-00 | 1 | POINTER | MITER | LX | |
|
| 108 | 641446-00 | 1 | ACTUATOR | DETENT | LX | ||
| 110 | 330045-44 | 4 | SCREW | LX | |
||
| 112 | 397070-00 | 1 | SPRING | LX | |
||
| 115 | 641448-00 | 1 | RETAINER | LX | |||
| 116 | 641456-00 | 1 | LEVER | MITER LOCK | LX | |
|
| 117 | 659090-00 | 1 | PIN | MITER DRIVE | LX | |
|
| 118 | 624460-00 | 1 | PIN | LX | |
||
| 119 | 624461-00 | 1 | SLEEVE | LX | |
||
| 120 | 641447-00 | 1 | ROD | MITER LOCK | LX | |
|
| 121 | 641424-00 | 1 | BLOCK | MITER CLAMP | LX | ||
| 123 | 618253-00 | 1 | SPRING COMPRESSION | LX | |
||
| 124 | 624730-00 | 1 | HANDLE SA | LX | |
||
| 125 | 330045-18 | 4 | SCREW | LX | |
||
| 126 | 330019-32 | 5 | SCREW | LX | |
||
| 127 | N075468 | 1 | SA POWER SUPPLY | WORKLIGHT | LX | |
|
| 128 | 606056-00 | 1 | SWITCH | LX | |
||
| 129 | 384127-01 | 4 | SCREW | LX | |
||
| 130 | 330045-23 | 1 | SCREW | LX | |
||
| 131 | 618276-00 | 1 | MOTOR CABLE | LX | |
||
| 132 | 330120-23 | 1 | CORDSET (EURO) | LX | |
||
| 133 | 641438-00 | 1 | Handle | LX | |||
| 134 | 330019-22 | 1 | SCREW | M5.74x32 | LX | |
|
| 135 | 659008-00 | 1 | CABLE CLAMP | LX | |
||
| 136 | N467585 | 1 | CABLE SA | CORD, LASER | LX | ||
| 137 | 641430-00 | 1 | COVER | LASER WIRE | LX | ||
| 138 | 641411-01 | 1 | FENCE | LX | |||
| 139 | 641474-01SV | 1 | LEFT FENCE | LX | |||
| 140 | 641475-01SV | 1 | FENCE RH | LX | |||
| 141 | 147107-07 | 1 | KNOB LOWER | LX | |
||
| 142 | 098105-03 | 4 | SCREW | LX | |||
| 143 | 391317-00 | 1 | FIELDCASE | LX | |
||
| 144 | N065988SV | 1 | ARMATURE SA | 230V | LX | |
|
| 145 | 391318-01SV | 1 | FIELD | 230V | LX | ||
| 146 | 394036-00 | 1 | PLATE | LX | |
||
| 147 | 394034-00 | 1 | SCREW | LX | |
||
| 148 | N127530 | 1 | BEARING BALL | LX | |
||
| 149 | N110359 | 1 | BEARING | LX | |
||
| 150 | 144803-00 | 1 | CIRCLIP | LX | |
||
| 151 | 145312-00 | 1 | PLUG | LX | |
||
| 152 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | LX | |
|
| 153 | 391933-01 | 1 | END CAP | DATE CODE LOCATION | LX | |
|
| 154 | 330019-13 | 4 | SCREW | M4X19 T20 | LX | |
|
| 155 | 330019-19 | 2 | SCREW | LX | |
||
| 156 | 391375-00 | 1 | BAFFLE FAN | LX | |
||
| 157 | 389512-01 | 1 | BRUSH PLATE | LX | |
||
| 158 | 391325-00 | 1 | IDENTITY LABEL | LX | |
||
| 159 | N051268 | 1 | RATING PLATE | LX | |
||
| 160 | 153783-00 | 1 | RING | LX | |
||
| 162 | 330045-13 | 1 | SCREW | LX | |
||
| 163 | 330019-12 | 1 | SCREW | LX | |
||
| 170 | 641496-00SV | 1 | TRUNION | LX | |
||
| 171 | 603390-00 | 8 | SCREW | LX | |
||
| 172 | 397118-00 | 3 | GUIDE | LX | |
||
| 173 | 153576-04 | 1 | SCREW | LX | |
||
| 174 | 613497-00 | 1 | THRUST PLATE | LX | |
||
| 175 | 153586-00 | 2 | WASHER | LX | |
||
| 176 | 863259-00 | 1 | PROTECTOR | LX | |
||
| 178 | 641444-00 | 1 | SLEEVE | LX | |
||
| 179 | 330045-24 | 2 | SCREW | LX | |
||
| 180 | 385915-04 | 2 | SCREW | LX | |
||
| 183 | 659919-00 | 1 | SPRING | LX | |
||
| 193 | N377514 | 2 | BUSHING | LX | |
||
| 200 | 395021-00 | 1 | LABEL | LX | |
||
| 202 | 148608-00 | 2 | INSERT | LX | |
||
| 203 | 386780-00 | 1 | BEARING | LX | |
||
| 204 | 641434-01 | 1 | GUARD LOWER | LX | |
||
| 205 | 641433-00 | 1 | GUARD PLATE | GUARD | LX | ||
| 206 | 385915-04 | 4 | SCREW | LX | |
||
| 207 | N041988 | 1 | PLATE | LX | |||
| 208 | 146768-00 | 1 | BUMPER | LX | |
||
| 209 | 641436-00 | 1 | LINK | LX | |
||
| 212 | 146750-03 | 1 | RETAINING PLATE | LX | |
||
| 213 | N040005 | 1 | SPRING | LX | |
||
| 214 | 148295-00 | 1 | SLEEVE | LX | |
||
| 215 | 625825-00 | 2 | ROLLER | LX | |
||
| 216 | 142273-00 | 5 | RING | LX | |
||
| 217 | 394976-00 | 2 | LABEL | WARNING | LX | |
|
| 218 | 618234-00 | 1 | STUD | LX | |||
| 219 | 153666-00 | 4 | SCREW | set screw M8 x 8mm long | LX | |
|
| 221 | 145332-00 | 4 | TERMINAL | LX | |
||
| 222 | 450212-00 | 1 | TERMINAL | LX | |
||
| 223 | 395301-00 | 2 | LABEL | LX | |
||
| 224 | 381028-08 | 2 | BRUSH & LEAD | LX | |
||
| 225 | 395716-00 | 4 | TERMINAL | LX | |
||
| 226 | 660029-00 | 2 | CORD CLAMP | LX | |||
| 228 | 682149-00 | 1 | BUSH | LX | |
||
| 230 | 152852-00 | 1 | BOLT | LX | |
||
| 231 | 386196-00 | 1 | SPRING | LX | |
||
| 236 | 618159-01 | 1 | LEAD SA | LASER POWER SUPPLY | LX | |
|
| 237 | 393520-00 | 1 | TERMINAL BLOCK | LX | |
||
| 238 | 388414-01 | 1 | BUSH | LX | |
||
| 239 | 147734-06 | 1 | DUSTBAG | OPTIONAL NOT INCLUDED | LX | |
|
| 240 | 630065-00 | 1 | CLAMP SA | OPTIONAL NOT INCLUDED | LX | |
|
| 241 | 641442-00 | 2 | SCREW | THREAD FORMING | BACK FENCE | LX | |
| 242 | 641426-00 | 1 | BEVEL SCALE | LX | |||
| 243 | 618277-00 | 1 | LABEL PIVOT | RIGHT | LX | |
|
| 244 | 618278-00 | 1 | LABEL PIVOT | LEFT | LX | |
|
| 245 | 641427-00 | 1 | LINK | SLIDE LOCK | LX | |
|
| 247 | 616001-00 | 2 | SCREW | LX | |||
| 248 | 641482-00 | 1 | DEFLECTOR | RIGHT | LX | ||
| 250 | 641483-00 | 1 | LABEL | SLIDE LOCK | LX | ||
| 255 | N175841 | 1 | DUST PORT | LX | |
||
| 256 | 330019-02 | 3 | SCREW | LX | |
||
| 259 | 330019-05 | 2 | SCREW | LX | |
||
| 260 | 662575-00 | 1 | WARNING LABEL | LED Radiation | LX | |
|
| 261 | 661663-00 | 1 | PADDLE | LX | |||
| 262 | 661662-00 | 1 | GUARD | Euro Compliance | LX | |
|
| 263 | 330019-11 | 2 | SCREW | M4.55x13 T20 | LX | |
|
| 265 | 5140117-90 | 1 | LED & POWER SUPPLY KIT | LX | |
||
| 266 | 627271-00 | 1 | SWITCH LOCK OFF | LX | |||
| 267 | 604407-01 | 1 | HEX KEY 2.5 MM | LX | |||
| 800 | 5140061-28 | 1 | GREASE | LX | |
||
| 800 | 93488-00 | 1 | GREASE | LX | |
||
| 856 | DWS7085 | 1 | WORK LIGHT | ACCESSORY | Incl. 127, 265 OPTIONAL | LX | |
