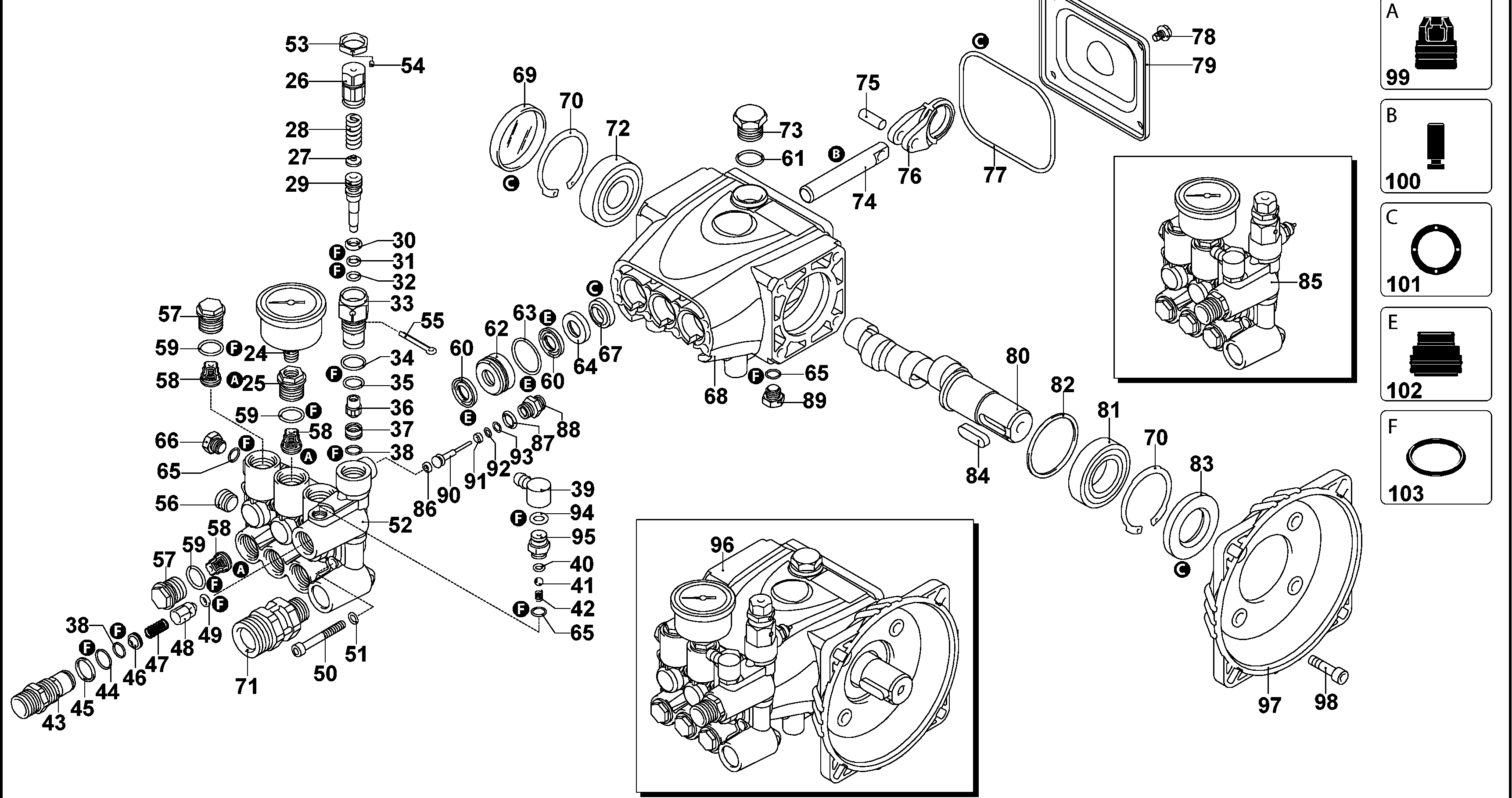

DXPW002CE PRESSURE WASHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004743-72 | 1 | SCREW | QS |  |
||
| 2 | 1004743-85 | 1 | KNOB | QS | |
||
| 3 | 1004712-13 | 11 | SCREW | QS | |
||
| 4 | 1004743-86 | 1 | GUARD | QS | |
||
| 5 | 1004743-75 | 1 | COVER-TOP | QS | |
||
| 6 | 1004714-01 | 1 | GUARD | QS | |
||
| 7 | 1004743-84 | 1 | CLAMP | QS | |
||
| 8 | 1004743-77 | 1 | SUPPORT | QS | |
||
| 9 | 1004743-83 | 1 | SUPPORT | QS | |
||
| 10 | 1004743-81 | 1 | GUARD | QS | |
||
| 11 | 1004714-17 | 4 | SCREW | QS | |
||
| 12 | 1004710-60 | 4 | SCREW | QS | |
||
| 13 | 1004710-70 | 1 | HOSE | QS | |
||
| 14 | 1004710-89 | 1 | FILTER | QS | |
||
| 15 | 1004743-76 | 1 | BASE SA | QS | |
||
| 16 | 1004714-16 | 2 | FOOT | QS | |
||
| 17 | 1004710-12 | 8 | SCREW | QS | |
||
| 18 | 1004713-73 | 1 | KNOB | QS | |
||
| 19 | 1004743-78 | 1 | GUARD | QS | |
||
| 20 | 1004743-82 | 1 | GUARD | QS | |
||
| 21 | 1004743-80 | 1 | GUARD | QS | |
||
| 22 | 1004743-79 | 1 | HANDLE | QS | |
||
| 23 | 1004700-77 | 1 | COUPLING SA | QS | |
||
| 24 | 1004730-85 | 1 | PRESSURE GAUGE | QS | |
||
| 25 | 1004744-22 | 1 | PLUG | QS | |
||
| 26 | 1004743-73 | 1 | SCREW | QS | |
||
| 27 | 1004711-87 | 1 | PLATE | QS | |
||
| 28 | 1004744-07 | 1 | SPRING | QS | |
||
| 29 | 1004743-98 | 1 | PISTON | QS | |
||
| 30 | 1004712-21 | 1 | O RING | QS | |
||
| 31 | 1004709-88 | 1 | O RING | QS | |
||
| 32 | 1004712-52 | 1 | RING | QS | |
||
| 33 | 1004743-74 | 1 | GUIDE | QS | |
||
| 34 | 1004709-90 | 1 | O RING | QS | |
||
| 35 | 1004710-05 | 1 | O RING | QS | |
||
| 36 | 1004743-70 | 1 | PISTON | QS | |
||
| 37 | 1004744-35 | 1 | Seat | QS | |
||
| 38 | 1004711-57 | 2 | O RING | QS | |
||
| 39 | 1004712-33 | 1 | CONNECTOR | QS | |
||
| 40 | 1004709-78 | 1 | O RING | QS | |
||
| 41 | 1004710-50 | 1 | BALL | QS | |
||
| 42 | 1004711-70 | 1 | SPRING | QS | |
||
| 43 | 1004743-66 | 1 | COUPLING | QS | |
||
| 44 | 1004712-56 | 1 | O RING | QS | |
||
| 45 | 1004709-75 | 1 | O RING | QS | |
||
| 46 | 1004712-49 | 1 | INSERT | QS | |
||
| 47 | 1004712-51 | 1 | SPRING | QS | |
||
| 48 | 1004744-23 | 1 | SHUTTER | QS | |
||
| 49 | 1004712-14 | 1 | O RING | QS | |
||
| 50 | 1004711-14 | 8 | SCREW | QS | |
||
| 51 | 1004743-96 | 8 | WASHER | QS | |
||
| 52 | 1004743-88 | 1 | HEAD | QS | |
||
| 53 | 1004744-30 | 1 | NUT | QS | |
||
| 54 | 1004743-71 | 1 | SCREW | QS | |
||
| 55 | 1004712-46 | 1 | PIN | QS | |
||
| 56 | 1004744-34 | 2 | PLUG | QS | |
||
| 57 | 1004712-65 | 6 | PLUG | QS | |
||
| 58 | 1004712-74 | 6 | VALVE | COMPLETE VALVE | QS | |
|
| 59 | 2841520 | 6 | O RING | QS | |
||
| 60 | 1004712-18 | 6 | SEAL | QS | |
||
| 61 | 1004709-90 | 1 | O RING | QS | |
||
| 62 | 1004712-69 | 3 | BUSHING | QS | |
||
| 63 | 1004709-93 | 3 | O RING | QS | |
||
| 64 | 1004743-67 | 3 | BUSH | QS | |
||
| 65 | 1004744-43 | 3 | O RING | QS | |
||
| 66 | 1004743-68 | 1 | PLUG | QS | |
||
| 67 | 1004711-74 | 3 | SEAL | QS | |
||
| 68 | 1004743-87 | 1 | PUMP SA | QS | |
||
| 69 | 1004743-97 | 1 | COVER | QS | |
||
| 70 | 1004744-04 | 2 | RING | QS | |
||
| 71 | 1004744-06 | 1 | COUPLING | QS | |
||
| 72 | 1004743-95 | 1 | BEARING | QS | |
||
| 73 | 1004711-91 | 1 | PLUG | QS | |
||
| 74 | 1004743-90 | 3 | PISTON | QS | |
||
| 75 | 1004743-91 | 3 | PIN | QS | |
||
| 76 | 1004743-92 | 3 | CON ROD | QS | |
||
| 77 | 1004743-93 | 1 | O RING | QS | |
||
| 78 | 1004744-01 | 4 | SCREW | QS | |
||
| 79 | 1004743-89 | 1 | COVER | QS | |
||
| 80 | 1004744-03 | 1 | SHAFT | QS | |
||
| 81 | 1004743-94 | 1 | BEARING | QS | |
||
| 82 | 1004743-99 | 1 | RING | QS | |
||
| 83 | 1004744-00 | 1 | SEAL | QS | |
||
| 84 | 1004711-28 | 1 | KEY | QS | |
||
| 85 | 1004744-09 | 1 | HEAD SA | QS | |||
| 86 | 1004710-44 | 1 | O RING | QS | |
||
| 87 | 1004709-81 | 1 | O RING | QS | |
||
| 88 | 1004744-08 | 1 | PLUG | QS | |
||
| 89 | 1004743-68 | 1 | PLUG | QS | |
||
| 90 | 1004744-05 | 1 | PIN | QS | |
||
| 91 | 1004712-06 | 1 | WASHER | QS | |
||
| 92 | 1004710-62 | 1 | O RING | QS | |
||
| 93 | 1004713-50 | 1 | RING | QS | |
||
| 94 | 1004709-79 | 1 | O RING | QS | |
||
| 95 | 1004711-02 | 1 | CONNECTOR | QS | |
||
| 96 | 1004743-58 | 1 | PUMP SA | QS | |
||
| 97 | 1004743-69 | 1 | FLANGE | QS | |
||
| 98 | 1004710-12 | 4 | SCREW | QS | |
||
| 99 | 1004744-27 | 1 | VALVES & SEALS KIT | QS | |
||
| 100 | 1004744-15 | 1 | PISTON KIT | QS | |
||
| 101 | 1004743-59 | 1 | SEALS KIT | QS | |
||
| 102 | 1004744-26 | 1 | SEALS KIT | QS | |
||
| 103 | 1004744-28 | 1 | GASKET SET | QS | |
||
| 104 | 1004710-55 | 1 | FAN | QS | |
||
| 105 | 1004710-85 | 1 | SEAL | QS | |
||
| 106 | 1004711-14 | 4 | SCREW | QS | |
||
| 107 | 1004711-12 | 1 | SHIELD | QS | |
||
| 108 | 1004710-84 | 1 | BEARING | QS | |
||
| 109 | 1004710-67 | 1 | CLAMP | QS | |
||
| 110 | 1004710-86 | 1 | GASKET | QS | |
||
| 111 | 1004712-01 | 2 | SCREW | QS | |
||
| 112 | 1004712-80 | 1 | SWITCH | QS | |
||
| 113 | 1004713-52 | 1 | BOX | QS | |
||
| 114 | 1004710-64 | 4 | SCREW | QS | |
||
| 115 | 1004711-95 | 1 | CAPACITOR | QS | |
||
| 116 | 1004711-97 | 1 | CLAMP | QS | |
||
| 117 | 1004712-04 | 2 | GLAND | QS | |
||
| 118 | 1004743-65 | 1 | BOX | QS | |
||
| 119 | 1004744-38 | 1 | FORK | QS | |
||
| 120 | 1004714-18 | 1 | CORDSET | QS | |
||
| 121 | 1004743-64 | 1 | MOTOR SA | QS | |
||
| 122 | 1004711-55 | 1 | GLAND | QS | |
||
| 123 | 1004709-16 | 1 | HANDLE SA | MV2008 | QS | |
|
| 124 | 1004743-61 | 1 | EXTENSION | QS | |
||
| 125 | 1004712-02 | 2 | O RING | QS | |
||
| 126 | 1004714-04 | 1 | HOSE | 8M - High Pressure | QS | |
|
| 127 | 1004709-73 | 1 | O RING | QS | |
||
| 128 | 1345370 | 1 | BRACKET | QS | |
||
| 129 | 3580180 | 1 | KNOB | QS | |
||
| 130 | 1004712-13 | 2 | SCREW | QS | |
||
| 131 | 3580090 | 1 | KNOB | QS | |
||
| 132 | 1345360 | 1 | BUTTON | QS | |
||
| 133 | 1004712-12 | 3 | SCREW | QS | |
||
| 134 | 4320050 | 1 | CARRIER | QS | |
||
| 135 | 1004774-14 | 2 | KNOB | QS | |
||
| 136 | 4320331 | 1 | Frame | QS | |
||
| 137 | 1004774-15 | 1 | SCREW | QS | |
||
| 138 | 1345470 | 1 | SPRING | QS | |
||
| 139 | 4320041 | 1 | PIPE | QS | |
||
| 140 | 1004711-14 | 6 | SCREW | QS | |
||
| 141 | 3600070 | 1 | CARRIER | QS | |
||
| 142 | 4320011 | 1 | Frame | QS | |||
| 143 | 2480310 | 2 | SCREW | QS | |
||
| 144 | 4320031 | 1 | PLATE | QS | |
||
| 145 | 3000170 | 2 | NUT | QS | |
||
| 146 | 2480320 | 8 | NUT | QS | |
||
| 147 | 380620 | 1 | WASHER | QS | |
||
| 148 | 4320272 | 2 | GUARD | QS | |
||
| 150 | 4320220 | 2 | DAMPER | QS | |
