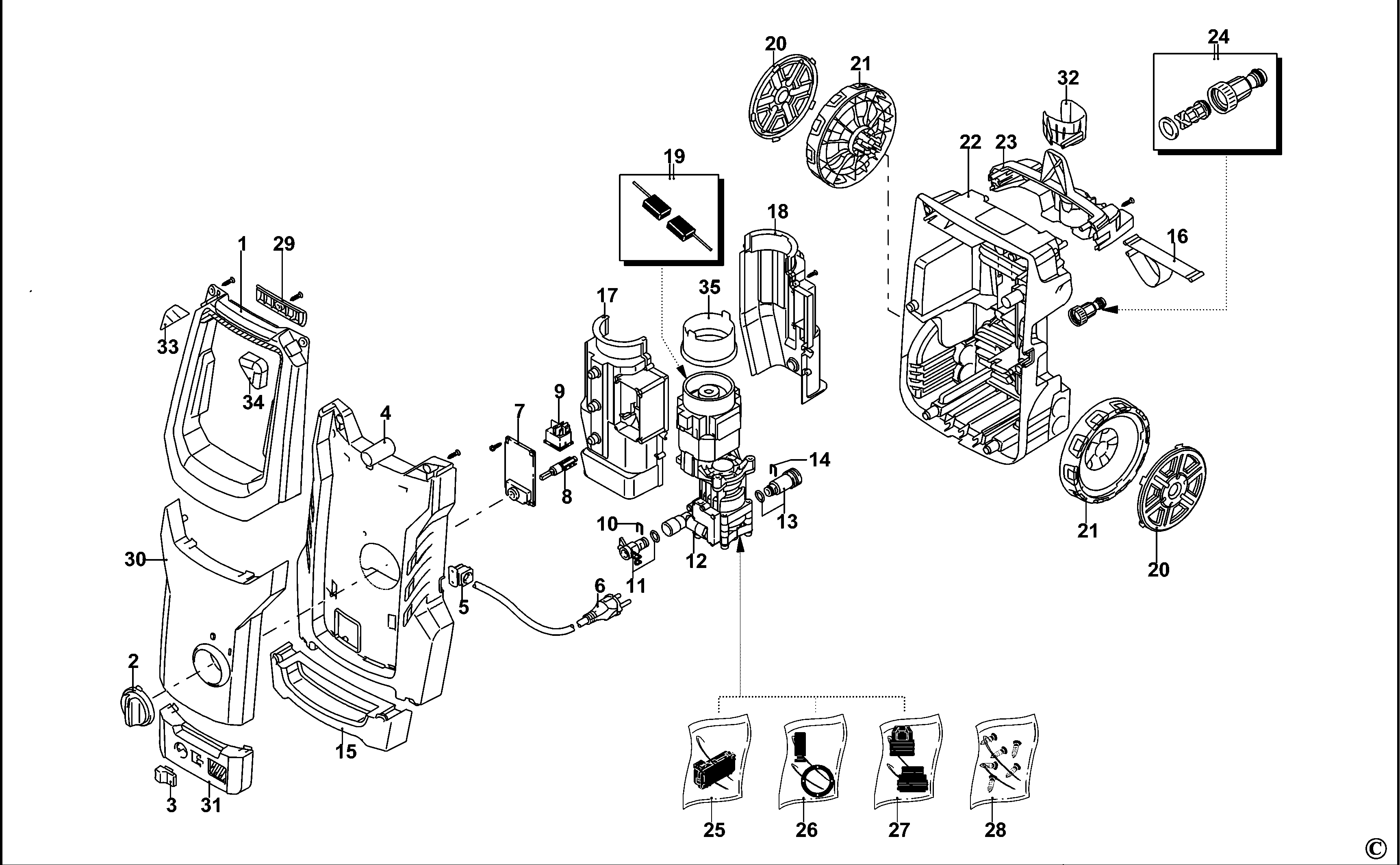

SXPW14E PRESSURE WASHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 4380930 | 1 | HANDLE SA | QS |  |
||
| 2 | 4380251 | 1 | KNOB | QS | |
||
| 3 | 4380391 | 1 | LEVER | QS |  |
||
| 4 | 4380900 | 1 | CASING | QS | |
||
| 5 | 1004455-07 | 1 | GLAND | QS | |
||
| 6 | 1004700-91 | 1 | CORDSET | QS | |
||
| 7 | 1004700-65 | 1 | COVER | QS | |
||
| 8 | 1004700-66 | 1 | PIN | QS | |
||
| 9 | 1004700-67 | 1 | SWITCH SA | QS | |
||
| 10 | 1004512-08 | 1 | FORK | QS | |
||
| 11 | 4382480 | 1 | COUPLING | QS | |
||
| 12 | 4381650 | 1 | PUMP SA | QS | |
||
| 13 | 1004512-17 | 1 | SUCTION GROUP | QS | |
||
| 14 | 1004512-19 | 1 | FORK | QS | |
||
| 15 | 4380870 | 1 | FOOT SA | QS | |
||
| 16 | 4380810 | 1 | HOOK SA | QS | |
||
| 17 | 4380160 | 1 | CONVEYOR | QS | |
||
| 18 | 4380170 | 1 | CONVEYOR | QS | |
||
| 19 | 1004512-06 | 1 | BRUSH KIT | QS | |
||
| 20 | 4380860 | 2 | GUARD | QS | |
||
| 21 | 4380340 | 2 | WHEEL | QS | |
||
| 22 | 4380960 | 1 | BASE SA | QS | |
||
| 23 | 4380230 | 1 | CARRIER | QS | |
||
| 24 | 1004700-77 | 1 | COUPLING SA | QS | |
||
| 25 | 1004700-78 | 1 | SERVICE KIT | TSS KIT | QS | |
|
| 26 | 1004512-11 | 1 | PISTONS & SEALS KIT | QS | |
||
| 27 | 1004512-12 | 1 | VALVES & SEALS KIT | QS | |
||
| 28 | 4381470 | 1 | SCREW KIT | QS | |
||
| 29 | 4381300 | 1 | KNOB | QS | |
||
| 30 | 4380910 | 1 | GUARD FRONT | QS | |
||
| 31 | 4380880 | 1 | GUARD LOWER | QS | |
||
| 32 | 4381280 | 1 | CLIP SA | QS | |
||
| 33 | 4380940 | 1 | COVER | QS | |
||
| 34 | 4380950 | 1 | COVER | QS | |
||
| 35 | 4380180 | 1 | GUARD | QS | |
||
| 36 | 4381480 | 1 | HANDLE SA | QS | |
||
| 37 | 4381490 | 1 | EXTENSION | QS | |
||
| 38 | 4100800 | 1 | HEAD SA | QS | |
||
| 39 | 4381800 | 1 | HEAD SA | Lance | QS | |
|
| 40 | 4381500 | 1 | TANK | QS | |
||
| 41 | 4381670 | 1 | HOSE SA | High Pressure | QS | |
|
| 42 | 3083700 | 2 | O RING | QS | |
||
| 43 | 3083370 | 2 | O RING | QS | |
||
| 44 | 3083400 | 2 | O RING | QS | |
||
| 48 | 1004746-17 | 1 | BRUSH | Mini Patio | QS | |
|
| 49 | 1004746-19 | 1 | BRUSH | FIXED | QS | |
|
| 50 | 1004746-20 | 1 | BRUSH | Rotary | QS | |
|
| 51 | 1004746-21 | 1 | SUCTION PIPE | WATER -KIT | QS | |
|
| 52 | 1004746-22 | 1 | HOSE | 10m | QS | |
|
| 53 | 1004746-23 | 1 | HOSE | 16m | QS | |
|
| 54 | 1004746-24 | 1 | EXTENSION | KIT | QS | |
|
| 55 | 1004746-26 | 1 | KIT | Sand Blasting | QS | |
|
| 56 | 1004746-27 | 1 | HOSE | 8m | QS | |
|
| 57 | 1004746-29 | 1 | COUPLING | Click Fast | QS | |
|
| 58 | 1004746-30 | 1 | FILTER | Water x3 | QS | |
|
| 59 | 1004746-31 | 1 | FILTER | Water | QS | |
|
| 60 | 1004746-32 | 1 | COUPLING | QS | |
||
| 61 | 1004746-33 | 1 | COUPLING | QS | |
||
| 62 | 1004746-34 | 1 | CLEANING FLUID | Bike/Motorbike | QS | |
|
| 63 | 1004746-35 | 1 | CLEANING FLUID | Boats/Cars | QS | |
|
| 64 | 1004746-36 | 1 | CLEANING FLUID | Heavy duty | QS | |
