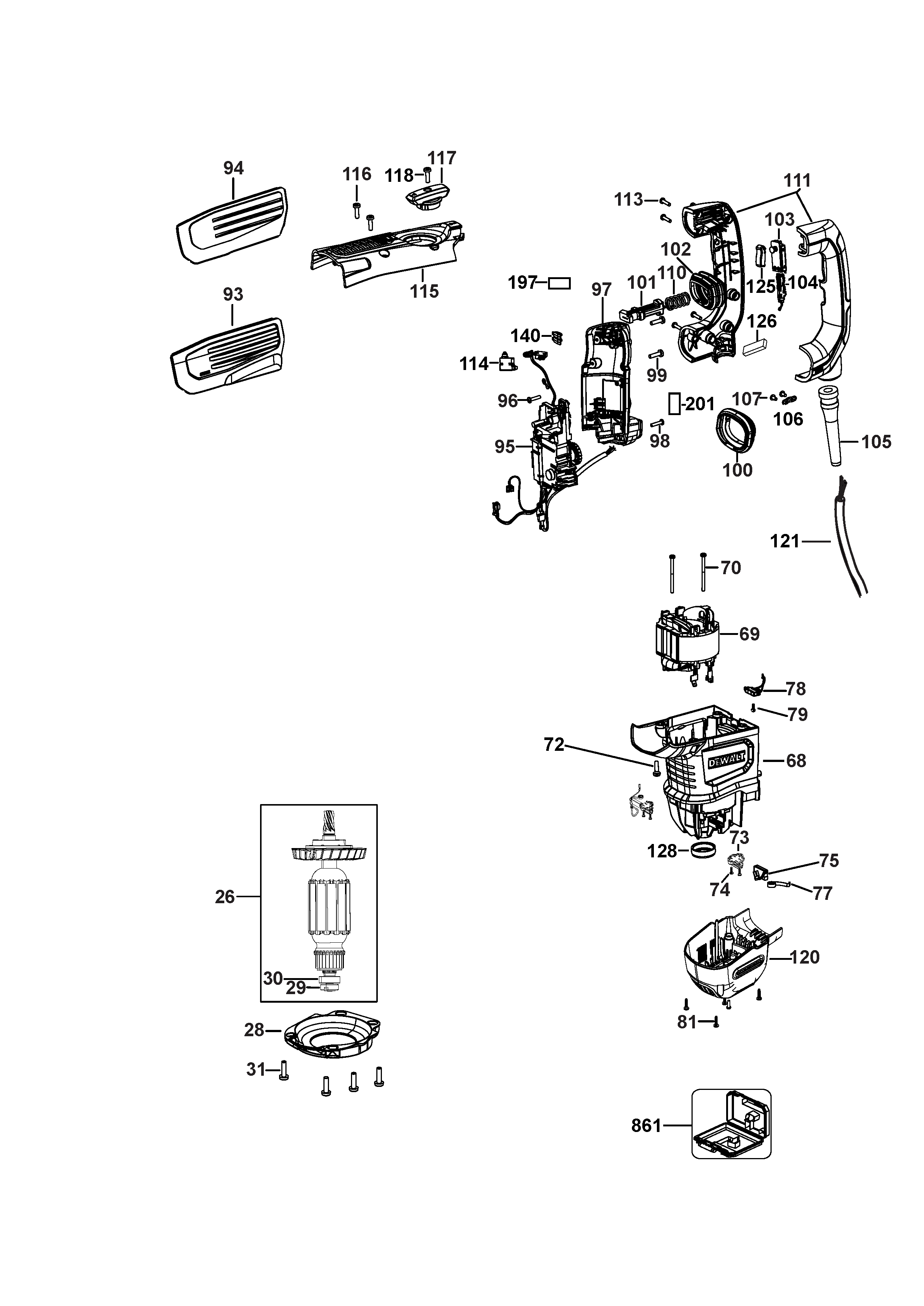

D25614K 6KG 45MM SDS MAX COMBI HA Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N770433 | 1 | HOUSING SA | BR | |||
| 2 | N447147 | 1 | SEAL | 8-10KG | BR | ||
| 3 | N773361 | 1 | CLUTCH SA | 6KG | BR | ||
| 4 | N773364 | 1 | CRANKSHAFT | BR | |||
| 5 | N127530 | 1 | BEARING BALL | BR | |||
| 6 | N526266 | 1 | CIRCLIP | BR | |||
| 8 | N773365 | 1 | GEAR | BR | |||
| 9 | 323711-26 | 1 | O RING | BR | |||
| 10 | 330003-05 | 1 | BEARING | BR | |||
| 11 | N537938 | 1 | SLIDER | BR | |||
| 12 | N540705 | 1 | CONNECTOR | BR | |||
| 13 | N520791 | 2 | SPRING | BR | |||
| 14 | N515556 | 1 | O RING | 8 X 2.2 | BR | ||
| 15 | N539769 | 1 | ECCENTRIC | 6KG | BR | ||
| 16 | N538422 | 1 | SEAL | BR | |||
| 17 | N537843 | 1 | COVER | BR | |||
| 18 | N583061 | 1 | FELT | BR | |||
| 19 | N520790 | 1 | DETENT | BR | |||
| 20 | 324007-11 | 4 | SCREW | M5 X 18 | BR | ||
| 21 | 327575-00 | 1 | SLEEVE | BR | |||
| 22 | N495599 | 1 | SEAL | BR | |||
| 23 | 577745-01 | 1 | BEARING,BALL | BR | |||
| 24 | 488147-01 | 1 | CIRCLIP | BR | |||
| 25 | N773366 | 1 | HOUSING SA | BR | |||
| 26 | N773620 | 1 | ARMATURE SA | 115V | BR | ||
| 27 | 324007-11 | 6 | SCREW | M5 X 18 | BR | ||
| 28 | N628759 | 1 | BAFFLE FAN | BR | |||
| 29 | N466979 | 1 | MAGNET | BR | |||
| 30 | N110359 | 1 | BEARING | BR | |||
| 31 | 324007-11 | 4 | SCREW | M5 X 18 | BR | ||
| 33 | N528347 | 1 | CON ROD | 6KG | BR | ||
| 34 | N526045 | 1 | PISTON | BR | |||
| 35 | N550706 | 1 | PIN | BR | |||
| 36 | N550147 | 1 | PISTON RING | BR | |||
| 37 | N550196 | 1 | O RING | 23.7 X 4 | BR | ||
| 38 | N773624 | 1 | RAM SA | BR | |||
| 39 | N550196 | 1 | O RING | 23.7 X 4 | BR | ||
| 40 | N773631 | 1 | CYLINDER SA | BR | |||
| 41 | N773632 | 1 | PISTON SA | BR | |||
| 42 | 577744-00 | 2 | O RING | 25.5 X 2 | BR | ||
| 43 | N528300 | 1 | FORK | BR | |||
| 44 | N773634 | 1 | BEVEL GEAR | BR | |||
| 45 | N773642 | 1 | SLEEVE | BR | |||
| 46 | N533753 | 1 | SPRING | BR | |||
| 47 | N549690 | 1 | BUSH | BR | |||
| 48 | N549912 | 1 | O RING | 31 X 2.6 | BR | ||
| 49 | N529936 | 1 | BUSH | BR | |||
| 50 | N529844 | 1 | DAMPER | BR | |||
| 51 | N715616 | 1 | SLEEVE | BR | |||
| 52 | N529841 | 1 | WASHER | BR | |||
| 53 | N537701 | 1 | SEAL | BR | |||
| 54 | N446544 | 1 | O RING | BR | |||
| 55 | N773643 | 1 | BEAT PIECE | 6KG | BR | ||
| 56 | N773644 | 1 | SPINDLE | 6KG | BR | ||
| 57 | N536519 | 1 | SLEEVE | BR | |||
| 58 | N535959 | 1 | DAMPER | BR | |||
| 59 | N440708 | 1 | WASHER | SPINDLE, 35x45x2.2mm | BR | ||
| 60 | N538127 | 1 | BEARING | 41 X 35 X 16 | BR | ||
| 62 | N534851 | 1 | SPINDLE LOCK | BR | |||
| 63 | N526258 | 1 | GASKET | BR | |||
| 64 | N538669 | 1 | SEAL | BR | |||
| 65 | N538725 | 1 | CIRCLIP | J47 | BR | ||
| 66 | N773646 | 1 | HOUSING SA | BR | |||
| 67 | 918825-02 | 4 | SCREW | BR | |||
| 68 | N655414 | 1 | HOUSING MOTOR | BR | |||
| 69 | N773648 | 1 | FIELD SA 115V | BR | |||
| 70 | 330065-12 | 2 | SCREW | BR | |||
| 72 | N605427 | 1 | SCREW | M4 X 12 T20 | BR | ||
| 73 | N765202 | 2 | BRUSHBOX | BR | |||
| 74 | N086775 | 4 | SCREW | BR | |||
| 75 | N773650 | 1 | BRUSH PAIR 115V | BR | |||
| 77 | N444425 | 2 | BRUSH SPRING | BR | |||
| 78 | N448156 | 1 | COIL | BR | |||
| 79 | N086775 | 1 | SCREW | BR | |||
| 81 | 330065-08 | 4 | SCREW | M4x18 T20 | BR | ||
| 82 | N550186 | 1 | COVER | BR | |||
| 83 | N810029 | 1 | FELT | BR | |||
| 84 | N465749 | 1 | WASHER | BR | |||
| 85 | 487118-00 | 1 | SPRING | BR | |||
| 86 | 323395-06 | 1 | SPRING | BR | |||
| 87 | N464690 | 1 | GUIDE | BR | |||
| 88 | N468172 | 1 | LOCKING PIN | BR | |||
| 89 | 325878-00 | 2 | ROLLER | BR | |||
| 90 | N464913 | 1 | SLEEVE | BR | |||
| 91 | 326575-01 | 1 | COLLAR | BR | |||
| 92 | N465586 | 1 | LIP SEAL | BR | |||
| 93 | N653043 | 1 | SIDE LH | SILVER | BR | ||
| 94 | N653057 | 1 | SIDE RH | SILVER | BR | ||
| 95 | N777543 | 1 | CONTROL MODULE SA | 120V COMBI | BR | ||
| 96 | 330065-08 | 2 | SCREW | M4x18 T20 | BR | ||
| 97 | N655552 | 1 | HOUSING | BR | |||
| 98 | 330065-08 | 2 | SCREW | M4x18 T20 | BR | ||
| 99 | 324007-11 | 4 | SCREW | M5 X 18 | BR | ||
| 100 | N662827 | 1 | BELLOWS | LOWER | BR | ||
| 101 | N512623 | 1 | STOP | BR | |||
| 102 | N497943 | 1 | BELLOWS | UPPER | BR | ||
| 103 | N467530 | 1 | SWITCH | BR | |||
| 104 | N518647 | 1 | SWITCH LOCK-ON | BR | |||
| 105 | 323091-01 | 1 | CORD PROTECTOR | BR | |||
| 106 | 821070 | 1 | CORD CLAMP | BR | |||
| 107 | 330065-08 | 2 | SCREW | M4x18 T20 | BR | ||
| 110 | N106188 | 1 | SPRING COMPRESSION | BR | |||
| 111 | N659370 | 1 | HANDLE SA | BR | |||
| 113 | 330065-08 | 7 | SCREW | M4x18 T20 | BR | ||
| 114 | N516505 | 1 | MICRO SWITCH | BR | |||
| 115 | N550188 | 1 | COVER-TOP | BR | |||
| 116 | 324007-11 | 2 | SCREW | M5 X 18 | BR | ||
| 117 | N550235 | 1 | SELECTOR | MODE 6KG | BR | ||
| 118 | 330065-08 | 1 | SCREW | M4x18 T20 | BR | ||
| 120 | N655550 | 1 | END CAP | BR | |||
| 121 | 1005758-00 | 1 | CORDSET | BR | |||
| 125 | 587114-01 | 1 | TRIGGER | BR | |||
| 126 | N738161 | 1 | FOAM | BR | |||
| 128 | N449094 | 1 | COVER BEARING | BR | |||
| 130 | N609696 | 1 | HANDLE SIDE SA | BR | |||
| 131 | N552104 | 1 | BOLT | M8 X 75 | BR | ||
| 132 | N609796 | 1 | CLAMP | 6KG | BR | ||
| 133 | N610193 | 1 | WASHER CLAMP | 6KG | BR | ||
| 134 | N609760 | 1 | CLAMP | 6KG | BR | ||
| 135 | N499183 | 1 | HANDLE SA | BR | |||
| 140 | N633441 | 1 | LENS | BR | |||
| 197 | N208653 | 1 | LABEL | PERFORM & PROTECT | BR | ||
| 201 | N747409 | 1 | RATING LABEL | D25614-BR TY1 | BR | ||
| 300 | N773656 | 1 | SERVICE KIT 115V | BR | |||
| 800 | 578970-06 | 1 | GREASE 150 GMS | BR | |||
| 801 | 870889-02 | 1 | GREASE | BR | |||
| 837 | 1003981-99 | 1 | S.T.PULLER | BR | |||
| 839 | 1003984-99 | 1 | S.T.SEAL FITTING TOOL | BR | |||
| 861 | N657876 | 1 | KITBOX | 6KG | BR |
