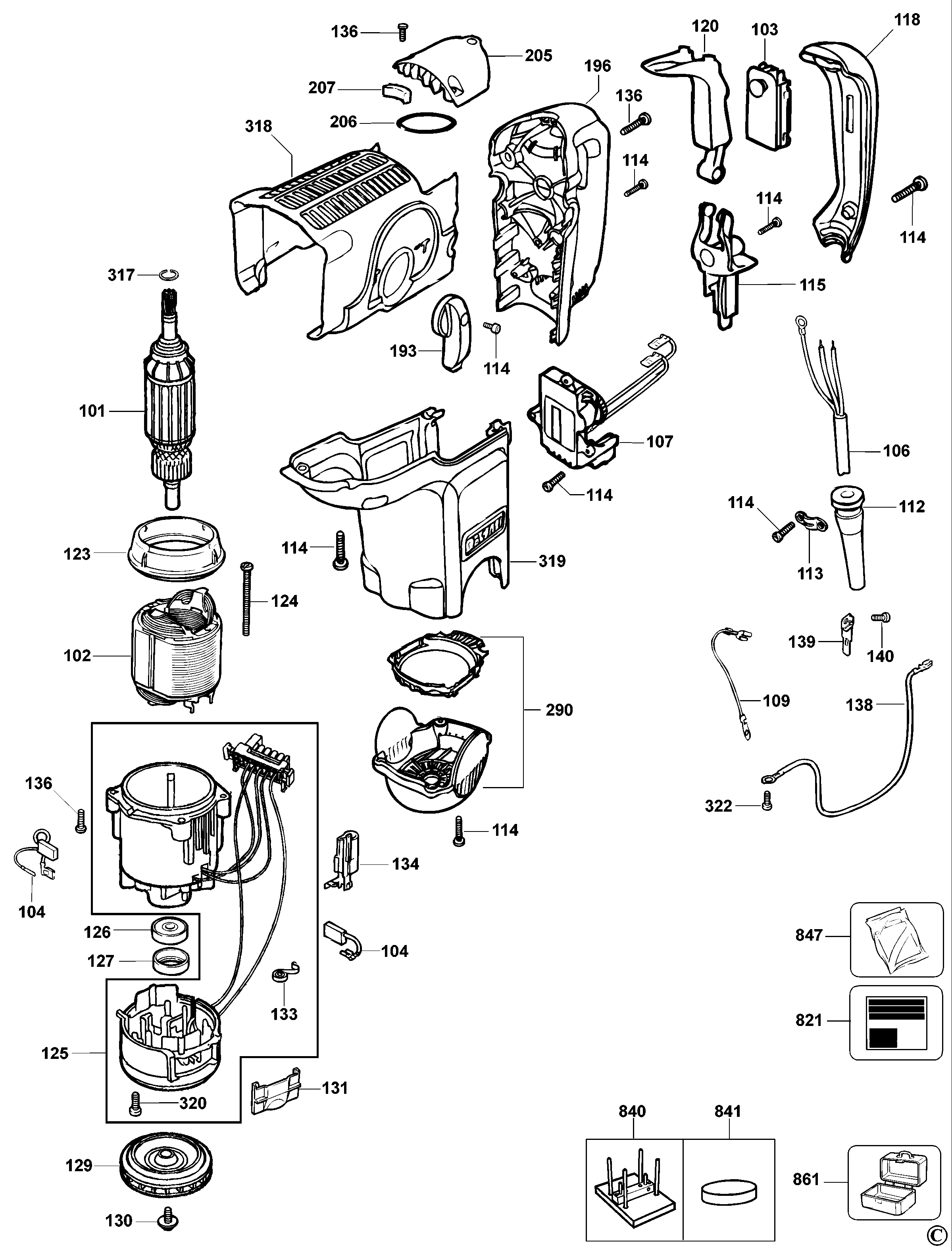

D25500K ROTARY HAMMER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | N079385 | 1 | ARMATURE 230V | AR | |||
| 102 | 327430-04 | 1 | FIELD 230V | AR | |||
| 103 | 581070-00 | 1 | SWITCH | AR | |||
| 104 | 582621-00 | 1 | BRUSH KIT | 230V | AR | ||
| 106 | 573379-08 | 1 | CORDSET | AR | |||
| 107 | 582574-01 | 1 | ELECTRONIC 230V | AR | |||
| 112 | 323091-01 | 1 | CORD PROTECTOR | AR | |||
| 113 | 821070 | 1 | CORD CLAMP | AR | |||
| 114 | 330065-08 | 18 | SCREW | M4x18 T20 | AR | ||
| 115 | 577716-00 | 1 | CABLE GUIDE | AR | |||
| 118 | 577712-00 | 1 | HANDLE COVER | AR | |||
| 120 | 325919-00 | 1 | TRIGGER | AR | |||
| 123 | 492073-00 | 1 | BAFFLE | AR | |||
| 124 | 330065-11 | 2 | SCREW | AR | |||
| 125 | 582577-02 | 1 | FIELDCASE SA | AR | |||
| 126 | 577745-00 | 1 | BEARING | AR | |||
| 127 | 325279-00 | 1 | SLEEVE | AR | |||
| 129 | 577736-00 | 1 | FAN | AR | |||
| 130 | 324119-02 | 1 | SCREW | AR | |||
| 131 | 326579-00 | 2 | SHUTTER | AR | |||
| 133 | 326667-00 | 2 | BRUSH SPRING | AR | |||
| 134 | 326933-01 | 2 | HOLDER | AR | |||
| 136 | 324007-11 | 8 | SCREW | M5 X 18 | M5 X 18 | AR | |
| 137 | 324007-11 | 4 | SCREW | M5 X 18 | M5 X 18 | AR | |
| 150 | 578487-02 | 1 | GEARCASE SA | AR | |||
| 151 | 577745-01 | 1 | BEARING,BALL | AR | |||
| 152 | 330004-33 | 1 | BEARING | AR | |||
| 153 | 578486-01 | 1 | GEARCASE COVER SA | AR | |||
| 154 | 325936-00 | 1 | SEAL | AR | |||
| 163 | 496440-00 | 1 | REPAIR KIT | AR | |||
| 163 | 496367-00 | 1 | CLUTCH SA | AR | |||
| 164 | 492618-00 | 1 | GEAR | AR | |||
| 165 | 327141-05 | 1 | SEAL | AR | |||
| 166 | 325616-00 | 1 | BUSH | AR | |||
| 167 | 918825-02 | 6 | SCREW | M6 X 40 | AR | ||
| 169 | 582431-00 | 1 | CRANKSHAFT | AR | |||
| 170 | 323711-26 | 1 | O RING | 5 X 1.2 | AR | ||
| 171 | 325002-00 | 1 | CON ROD | AR | |||
| 172 | 488669-00 | 1 | PISTON | AR | |||
| 173 | 330041-22 | 1 | PIN | AR | |||
| 174 | 325905-00 | 1 | RETAINER | AR | |||
| 175 | 576232-01 | 1 | O RING | 23 X 4 | 23 X 4 | AR | |
| 176 | 582576-00 | 1 | CYLINDER | AR | |||
| 177 | 577744-00 | 1 | O RING | 25.5 X 2 | 23 X 2 | AR | |
| 180 | 582575-00 | 1 | RAM | AR | |||
| 181 | 496440-00 | 1 | REPAIR KIT | AR | |||
| 182 | 326085-00 | 1 | WASHER LARGE | AR | |||
| 183 | 323763-03 | 1 | CIRCLIP | AR | |||
| 184 | 1005697-00 | 1 | SPINDLE LOCK | AR | |||
| 185 | 325880-02 | 1 | SHAFT | AR | |||
| 186 | 325160-00 | 1 | SELECTOR FORK | AR | |||
| 187 | 323395-08 | 1 | SPRING | AR | |||
| 188 | 323395-09 | 2 | SPRING | AR | |||
| 189 | 326093-00 | 2 | SPACER | AR | |||
| 190 | 577731-00 | 1 | LINK | AR | |||
| 191 | 577718-00 | 1 | ECCENTRIC SA | AR | |||
| 192 | 323711-07 | 1 | O RING | 11.5 X 2.4 | AR | ||
| 193 | 578494-00 | 1 | LEVER SA | AR | |||
| 196 | 577711-01 | 1 | HANDLE | AR | |||
| 200 | N021271 | 1 | HANDLE SA | AR | |||
| 205 | 585379-00 | 1 | COVER-TOP | Yellow | For 2005 & above date codes. | AR | |
| 205 | 577710-00 | 1 | COVER | Yellow | For 2004 & below date codes. | AR | |
| 206 | 323711-22 | 1 | O RING | 56 X 3 | AR | ||
| 207 | 581578-00 | 1 | FILTER | For 2004 & below date codes. | AR | ||
| 207 | 487229-00 | 1 | FILTER | For 2005 & above date codes. | AR | ||
| 208 | 491348-01 | 1 | COVER & SEAL | For 2005 & above date codes. | AR | ||
| 251 | 326555-00 | 1 | COLLAR | AR | |||
| 252 | 326552-01 | 1 | BUSH | AR | |||
| 253 | N079374 | 1 | PIN | AR | |||
| 254 | N021108 | 1 | CLAMP | AR | |||
| 255 | 326553-00 | 1 | LOCKING RING | AR | |||
| 256 | N021121 | 1 | HANDLE | AR | |||
| 257 | 326573-00 | 1 | SCREW WING | AR | |||
| 258 | 326556-00 | 1 | NUT | AR | |||
| 259 | 330021-01 | 1 | NUT | M6 | AR | ||
| 260 | 326205-00 | 1 | DEPTH ROD | AR | |||
| 261 | 323753-11 | 2 | WASHER | AR | |||
| 262 | 577744-05 | 1 | O RING | 40.6x4 | AR | ||
| 263 | 323753-14 | 1 | WASHER | AR | |||
| 264 | 323395-07 | 1 | SPRING | AR | |||
| 265 | 582432-01 | 1 | BEAT PIECE | AR | |||
| 266 | N244259 | 1 | SEAL | AR | |||
| 267 | 582381-00 | 1 | WASHER | AR | |||
| 268 | 577744-02 | 1 | O RING | 23 X 6 | AR | ||
| 269 | 323753-16 | 1 | WASHER | AR | |||
| 270 | N210233 | 1 | O RING | AR | |||
| 271 | 326044-01 | 1 | CAP | Black | BLACK | AR | |
| 272 | 493133-00 | 1 | SPINDLE | AR | |||
| 273 | 325878-00 | 2 | ROLLER | AR | |||
| 274 | 329816-00 | 1 | LIP SEAL | AR | |||
| 275 | 326575-02 | 1 | COLLAR | Black | BLACK | AR | |
| 276 | 479247-00 | 1 | SLEEVE SA | AR | |||
| 277 | 479247-00 | 1 | SLEEVE SA | AR | |||
| 278 | 479247-00 | 1 | SLEEVE SA | AR | |||
| 279 | 323395-06 | 1 | SPRING | AR | |||
| 280 | 325929-00 | 2 | HALF WASHER | AR | |||
| 281 | 487118-00 | 1 | SPRING | AR | |||
| 282 | 325930-00 | 1 | SPRING GUIDE | AR | |||
| 283 | 327141-00 | 1 | SEAL | AR | |||
| 284 | 578489-00 | 1 | HOUSING SA | AR | |||
| 285 | 577727-01 | 1 | GASKET | AR | |||
| 286 | 588560-00 | 1 | SPINDLE LOCK | AR | |||
| 287 | 323763-04 | 1 | RING | AR | |||
| 288 | 327208-00 | 1 | GUIDE | AR | |||
| 290 | 578493-00 | 1 | END CAP | AR | |||
| 317 | 577746-00 | 1 | RING | AR | |||
| 318 | 577708-00 | 1 | COVER-TOP | AR | |||
| 319 | 577709-00 | 1 | HOUSING LOWER | DeWALT | AR | ||
| 320 | 323924-08 | 2 | SCREW | AR | |||
| 322 | 326619-00 | 1 | SCREW | AR | |||
| 800 | 328771-07 | 1 | GREASE | 50G, BIT GREASE | AR | ||
| 801 | 328771-07 | 1 | GREASE | 50G, BIT GREASE | AR | ||
| 821 | 585252-25 | 1 | RATING PLATE | AR | |||
| 836 | 559632-99 | 1 | S.T.PULLER | Bearing Puller | Bearing Puller | AR | |
| 837 | 559633-99 | 1 | S.T.MANDREL | Bearing Mandrel | Bearing Mandrel | AR | |
| 838 | 559631-99 | 1 | S.T.PULLER | Cylinder removal | Cylinder Removal | AR | |
| 839 | 559656-99 | 1 | S.T.SUPPORT JIG | Stand | AR | ||
| 840 | 559597-99 | 1 | S.T.ASSEMBLY JIG | Support Jig | Support Jig | AR | |
| 841 | 559598-99 | 1 | S.T.BLOCK | Block | AR | ||
| 847 | 582622-02 | 1 | SERVICE KIT 230V | AR |
