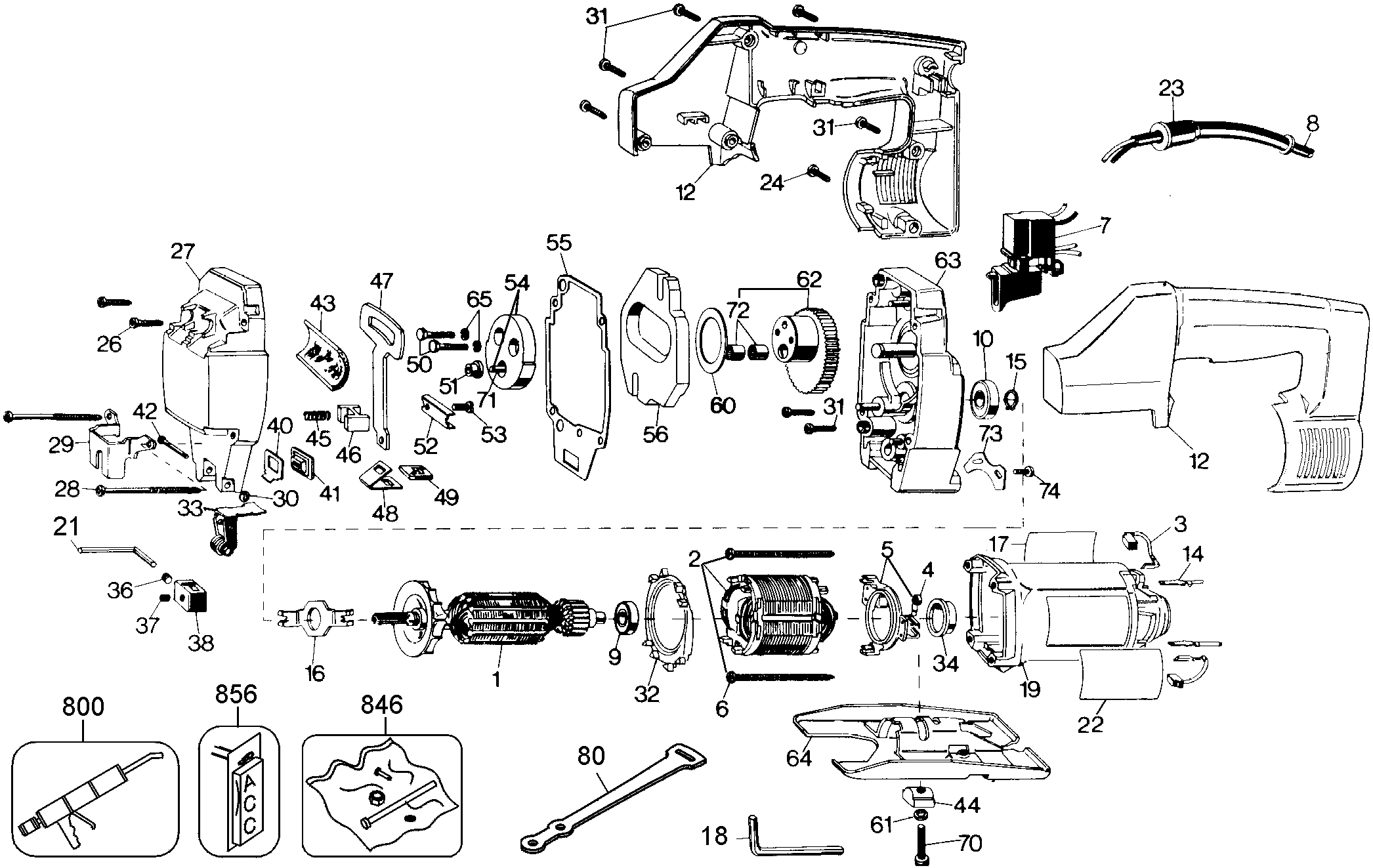

DW313 JIGSAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140006-41 | 1 | MOTOR SA 230V | 220V / SG57 | B2 | ||
| 2 | 5140006-41 | 1 | MOTOR SA 230V | 220V / SG57 | B2 | ||
| 3 | 445861-30 | 2 | BRUSH 220V | B2 | |||
| 4 | 445860-00 | 2 | BRUSH SPRING | B2 | |||
| 5 | 449899-05 | 1 | RING | B2 | |||
| 6 | 445880-00 | 2 | SCREW | B2 | |||
| 7 | 380763-00 | 1 | SWITCH 220V | B2 | |||
| 8 | 330122-06 | 1 | CORD & PLUG | B2 | |||
| 9 | 330003-04 | 1 | BEARING | B2 | |||
| 10 | 605040-15 | 1 | BEARING,BALL | NPP | B2 | ||
| 12 | 449177-04 | 1 | HANDLE & COVER | B2 | |||
| 14 | 449192-00 | 2 | TERMINAL | B2 | |||
| 15 | 444793-00 | 1 | CIRCLIP | B2 | |||
| 16 | 445874-00 | 1 | RETAINER | B2 | |||
| 17 | 395047-00 | 1 | BRAND LABEL | B2 | |||
| 18 | 098000-11 | 1 | HEX KEY | B2 | |||
| 19 | 445857-03 | 1 | FIELDCASE | B2 | |||
| 21 | 099056-04 | 1 | HEX WRENCH | 1/8" (3 mm) | B2 | ||
| 22 | 605330-00 | 1 | NAMEPLATE | DW313-AR/B2 T2 | B2 | ||
| 23 | 330005-01 | 1 | CORD PROTECTOR | B2 | |||
| 24 | 330019-13 | 1 | SCREW | M4X19 T20 | B2 | ||
| 26 | 330045-08 | 2 | SCREW | B2 | |||
| 27 | 133775-03 | 1 | GEARCASE COVER | B2 | |||
| 28 | 330019-27 | 2 | SCREW | B2 | |||
| 29 | 400765-00 | 1 | GUIDE | B2 | |||
| 30 | 133825-00 | 1 | CLIP | B2 | |||
| 31 | 330019-14 | 7 | SCREW | B2 | |||
| 32 | 445876-00 | 1 | BAFFLE | B2 | |||
| 33 | 608389-00 | 1 | BRACKET | INC GUIDE & ROLL PIN | B2 | ||
| 34 | 445217-01 | 1 | SLEEVE | B2 | |||
| 36 | 445405-00 | 1 | SCREW | B2 | |||
| 37 | 330022-16 | 1 | SCREW | B2 | |||
| 38 | 444520-00 | 1 | BLADE CLAMP | B2 | |||
| 40 | 133751-00 | 1 | SHIELD | B2 | |||
| 41 | 133755-00 | 1 | SEAL | B2 | |||
| 42 | 133820-00 | 1 | PIN | B2 | |||
| 43 | 133847-00 | 1 | OILER | B2 | |||
| 44 | 133750-00 | 1 | CLAMP | B2 | |||
| 45 | 049161-00 | 1 | SPRING | B2 | |||
| 46 | 133756-00 | 1 | BEARING | B2 | |||
| 47 | 445387-00 | 1 | BAR | B2 | |||
| 48 | 450285-00 | 1 | PLATE | B2 | |||
| 49 | 133807-00 | 1 | SEAL | B2 | |||
| 50 | 098022-26 | 2 | SCREW | B2 | |||
| 51 | 620203-00 | 1 | ROLLER | B2 | |||
| 52 | 133844-00 | 1 | BEARING | B2 | |||
| 53 | 330045-05 | 1 | SCREW | B2 | |||
| 54 | 133828-01SV | 1 | PLATE | INC 71 | B2 | ||
| 55 | 133765-00 | 1 | GASKET | B2 | |||
| 56 | 133761-00 | 1 | WEIGHT | B2 | |||
| 60 | 133818-00 | 1 | WASHER | B2 | |||
| 61 | 098198-05 | 1 | WASHER | LOCK, M6 | B2 | ||
| 62 | 133827-02SV | 1 | GEAR SA | INC 72 | B2 | ||
| 63 | 448817-01 | 1 | GEARCASE | B2 | |||
| 64 | 133770-00 | 1 | SHOE | B2 | |||
| 65 | 445687-00 | 2 | WASHER | B2 | |||
| 70 | 098121-31 | 1 | SCREW | B2 | |||
| 71 | 386700-00 | 1 | PIN | B2 | |||
| 72 | 330004-06 | 2 | BEARING NEEDLE | B2 | |||
| 73 | 449977-00 | 1 | QUADRANT | B2 | |||
| 74 | 080164-00 | 1 | SCREW | B2 | |||
| 80 | 065288-02 | 2 | HOLDER | B2 | |||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | 6 OZ | CVJ GREASE | B2 | |
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | B2 | ||
| 846 | 133833-14SV | 1 | BAG-HARDWARE | WRNCHS/KEY HLDR/BLDS | B2 | ||
| 856 | DW3681L | 1 | J.S. RIP FENCE | ACC | B2 |
