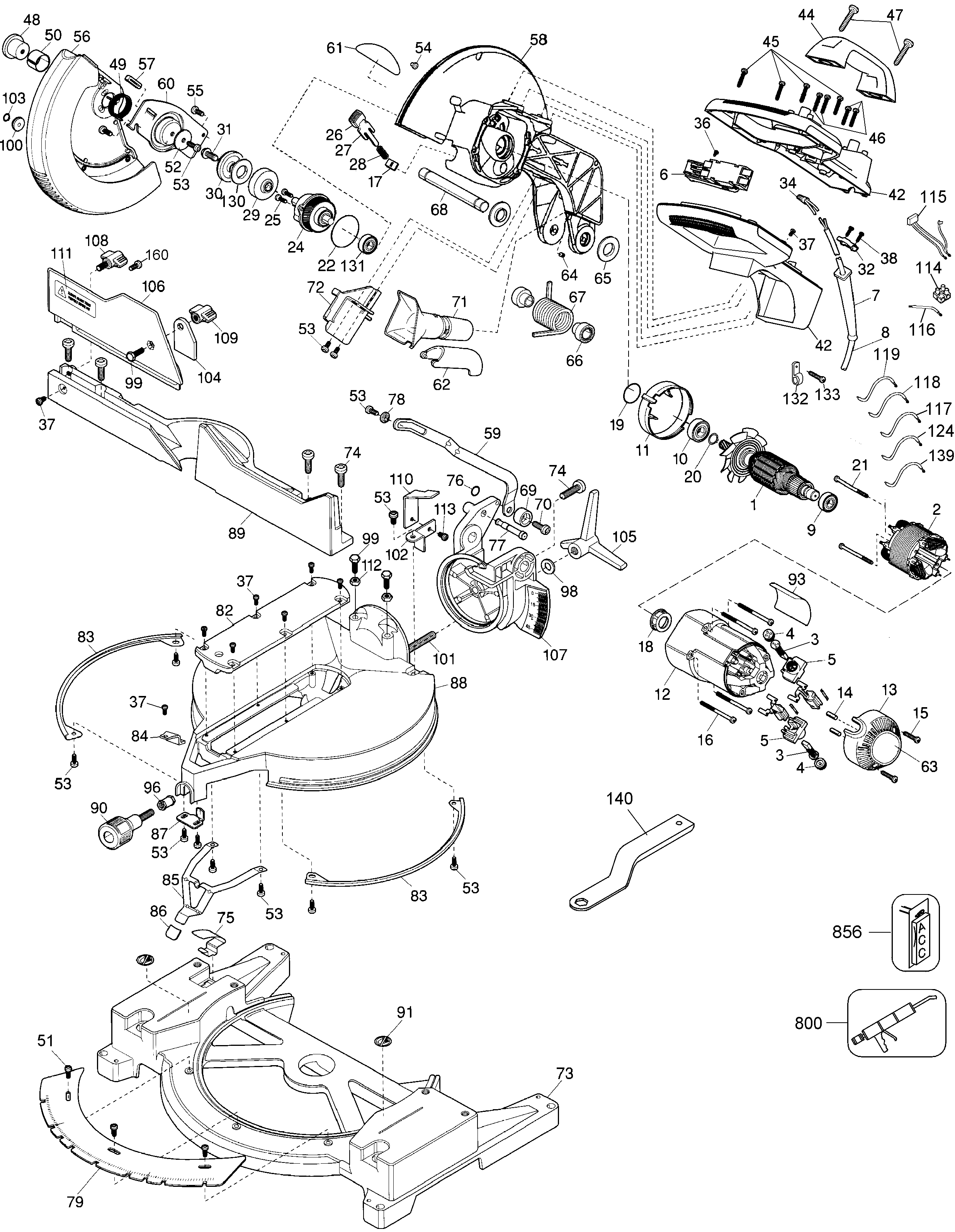

DW705 MITRE SAW Type 5 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140021-94 | 1 | ARMATURE KIT | 240V/9T/ INCL. FIELD | B2 | ||
| 2 | N078041SV | 1 | FIELD | 230/240V | B2 | ||
| 3 | 145323-06 | 2 | BRUSH SA | B2 | |||
| 4 | 448084-01 | 2 | BRUSH CAP | B2 | |||
| 5 | 147097-09 | 2 | BRUSH HOLDER SA | B2 | |||
| 6 | 383965-03 | 1 | SWITCH | Tyco | B2 | ||
| 7 | 445338-00 | 1 | CORD PROTECTOR | B2 | |||
| 8 | 330080-71 | 1 | CORDSET | CH | B2 | ||
| 9 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | B2 | ||
| 10 | 605040-27 | 1 | BEARING | B2 | |||
| 11 | 146723-01 | 1 | BAFFLE | B2 | |||
| 12 | 5140021-94 | 1 | ARMATURE KIT | 240V/9T/ INCL. FIELD | B2 | ||
| 12 | 5140021-94 | 1 | ARMATURE KIT | 240V/9T/ INCL. FIELD | B2 | ||
| 13 | 387678-00 | 1 | END CAP | INC 14 | B2 | ||
| 14 | 87205-00 | 2 | PLUG | B2 | |||
| 15 | 330019-20 | 2 | SCREW | B2 | |||
| 16 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | B2 | ||
| 17 | 387732-00 | 1 | FELT | B2 | |||
| 18 | 137382-01 | 1 | SLEEVE | B2 | |||
| 19 | 701297-00 | 1 | SEAL | B2 | |||
| 20 | 144803-00 | 1 | CIRCLIP | B2 | |||
| 21 | 330019-19 | 2 | SCREW | B2 | |||
| 22 | 383470-00 | 1 | GASKET | B2 | |||
| 24 | 386824-03SV | 1 | GEAR & SPINDLE SA | 51T | B2 | ||
| 25 | 330045-14 | 3 | SCREW | B2 | |||
| 26 | 145350-00 | 1 | BUTTON | B2 | |||
| 27 | 146714-00 | 1 | LOCK | B2 | |||
| 28 | 058698-00 | 1 | SPRING | B2 | |||
| 29 | 141987-04 | 1 | WASHER INNER CLAMP | B2 | |||
| 30 | 151962-01 | 1 | CLAMP OUTER | B2 | |||
| 31 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | B2 | ||
| 32 | 003618-00 | 1 | CORD CLAMP | B2 | |||
| 34 | 32114-01 | 1 | CONNECTOR | B2 | |||
| 36 | 330019-12 | 1 | SCREW | B2 | |||
| 37 | 330045-05 | 9 | SCREW | B2 | |||
| 38 | 330019-03 | 2 | SCREW | B2 | |||
| 42 | 395674-02 | 1 | HANDLE & COVER | B2 | |||
| 44 | 396375-00 | 1 | HANDLE | B2 | |||
| 45 | 330019-32 | 1 | SCREW | B2 | |||
| 46 | 330045-08 | 4 | SCREW | B2 | |||
| 47 | 330019-22 | 2 | SCREW | M5.74x32 | B2 | ||
| 48 | 146750-03 | 1 | RETAINING PLATE | B2 | |||
| 49 | N034013 | 1 | SPRING | B2 | |||
| 50 | 148295-00 | 1 | SLEEVE | B2 | |||
| 51 | 153778-02 | 3 | SCREW | B2 | |||
| 52 | 148612-00 | 1 | WASHER | B2 | |||
| 53 | 151891-00 | 13 | SCREW | B2 | |||
| 54 | 148608-00 | 2 | INSERT | B2 | |||
| 55 | 394589-01 | 2 | SCREW | B2 | |||
| 56 | 5140159-88 | 1 | LOWER GUARD KIT | B2 | |||
| 57 | 146768-00 | 1 | BUMPER | B2 | |||
| 58 | 387695-02SV | 1 | ARM | INCL. 54,131 | B2 | ||
| 59 | 146752-02 | 1 | LINK | B2 | |||
| 60 | 429986-00 | 1 | PLATE | B2 | |||
| 61 | 149365-01 | 1 | IDENTITY LABEL | B2 | |||
| 62 | 148520-00 | 1 | DEFLECTOR | B2 | |||
| 63 | 149521-01 | 1 | NAMEPLATE | B2 | |||
| 64 | 150075-00 | 2 | SCREW | B2 | |||
| 65 | 148296-00 | 2 | WASHER | B2 | |||
| 66 | 146732-00 | 2 | SPACER | B2 | |||
| 67 | N039404 | 1 | SPRING | B2 | |||
| 68 | 146751-00 | 1 | SHAFT | B2 | |||
| 69 | 146753-00 | 1 | BUSHING | B2 | |||
| 70 | 330045-32 | 1 | SCREW | M8x1.25x20 MTLTHDFMG | B2 | ||
| 71 | 146717-00 | 1 | DUCT | B2 | |||
| 72 | 146772-03 | 1 | GUARD REAR | B2 | |||
| 73 | 152036-00 | 1 | BASE | B2 | |||
| 74 | 330045-33 | 5 | SCREW | B2 | |||
| 75 | 146758-00 | 1 | SPRING | B2 | |||
| 76 | 034158-00 | 1 | O RING | B2 | |||
| 77 | 387130-00 | 1 | LOCKING PIN | B2 | |||
| 78 | 146740-01 | 1 | BUSH | B2 | |||
| 79 | 390876-00 | 1 | DETENT PLATE | B2 | |||
| 82 | 146726-02 | 1 | PLATE | B2 | |||
| 83 | 146773-01 | 1 | PLATE | B2 | |||
| 84 | 398693-00 | 1 | POINTER | B2 | |||
| 85 | 146745-01 | 1 | DETENT | SPRING | B2 | ||
| 86 | 148611-00 | 1 | COVER | B2 | |||
| 87 | 148297-00 | 1 | CLAMP | B2 | |||
| 88 | 429987-00 | 1 | TABLE KIT | B2 | |||
| 89 | 5140030-20 | 1 | FENCE SA | B2 | |||
| 90 | 145439-09 | 1 | KNOB | B2 | |||
| 91 | 394976-00 | 2 | LABEL | WARNING | B2 | ||
| 93 | 149367-18 | 1 | NAMEPLATE | B2 | |||
| 96 | 146733-00 | 1 | CLAMP | B2 | |||
| 98 | 330016-04 | 1 | WASHER | B2 | |||
| 99 | 149368-00 | 3 | SCREW | B2 | |||
| 100 | 146774-00 | 1 | ROLLER | B2 | |||
| 101 | 146760-01 | 1 | STUD | B2 | |||
| 102 | 148292-00 | 1 | BRACKET | B2 | |||
| 103 | 142273-00 | 1 | RING | B2 | |||
| 104 | 146737-00 | 1 | CLAMP | B2 | |||
| 105 | 392422-00 | 1 | HANDLE | B2 | |||
| 106 | 605259-02 | 1 | FENCE LEFT | B2 | |||
| 106 | 146739-00 | 1 | FENCE | B2 | |||
| 107 | 146731-01 | 1 | TRUNNION | B2 | |||
| 108 | 147107-02 | 1 | KNOB LOWER | B2 | |||
| 109 | 147107-01 | 1 | KNOB UPPER | B2 | |||
| 110 | 148299-00 | 1 | POINTER | B2 | |||
| 111 | 630416-00 | 1 | WARNING LABEL | B2 | |||
| 112 | 99368-04 | 2 | NUT | B2 | |||
| 113 | 151895-00 | 1 | SCREW | B2 | |||
| 114 | 320078-00 | 1 | TERMINAL BLOCK | B2 | |||
| 118 | 398581-00 | 1 | TERMINAL & LEAD | B2 | |||
| 124 | 398565-00 | 1 | LEAD WHITE | WHITE | B2 | ||
| 130 | 152636-00 | 1 | BLADE HOLDER | B2 | |||
| 131 | 386780-00 | 1 | BEARING | B2 | |||
| 132 | 153669-00 | 1 | CORD CLAMP | B2 | |||
| 133 | 330045-13 | 1 | SCREW | M5x0.8x10 MTL THDFMG | B2 | ||
| 139 | 398568-00 | 1 | LEAD WHITE | B2 | |||
| 140 | 145378-01 | 1 | WRENCH | B2 | |||
| 800 | 93488-00 | 1 | GREASE | B2 | |||
| 856 | DE7051 | 1 | LENGTH STOP | NOT SUPPLIED W/UNIT | B2 | ||
| 856 | DE7052 | 1 | MATERIAL CLAMP | NOT SUPPLIED W/UNIT | B2 | ||
| 856 | DE7050 | 1 | EXTENSION KIT | NOT SUPPLIED W/UNIT | B2 | ||
| 856 | DE7053 | 1 | DUST BAG | NOT SUPPLIED W/UNIT | B2 | ||
| 856 | DW3123 | 1 | 32T SAW BLADE | B2 |
