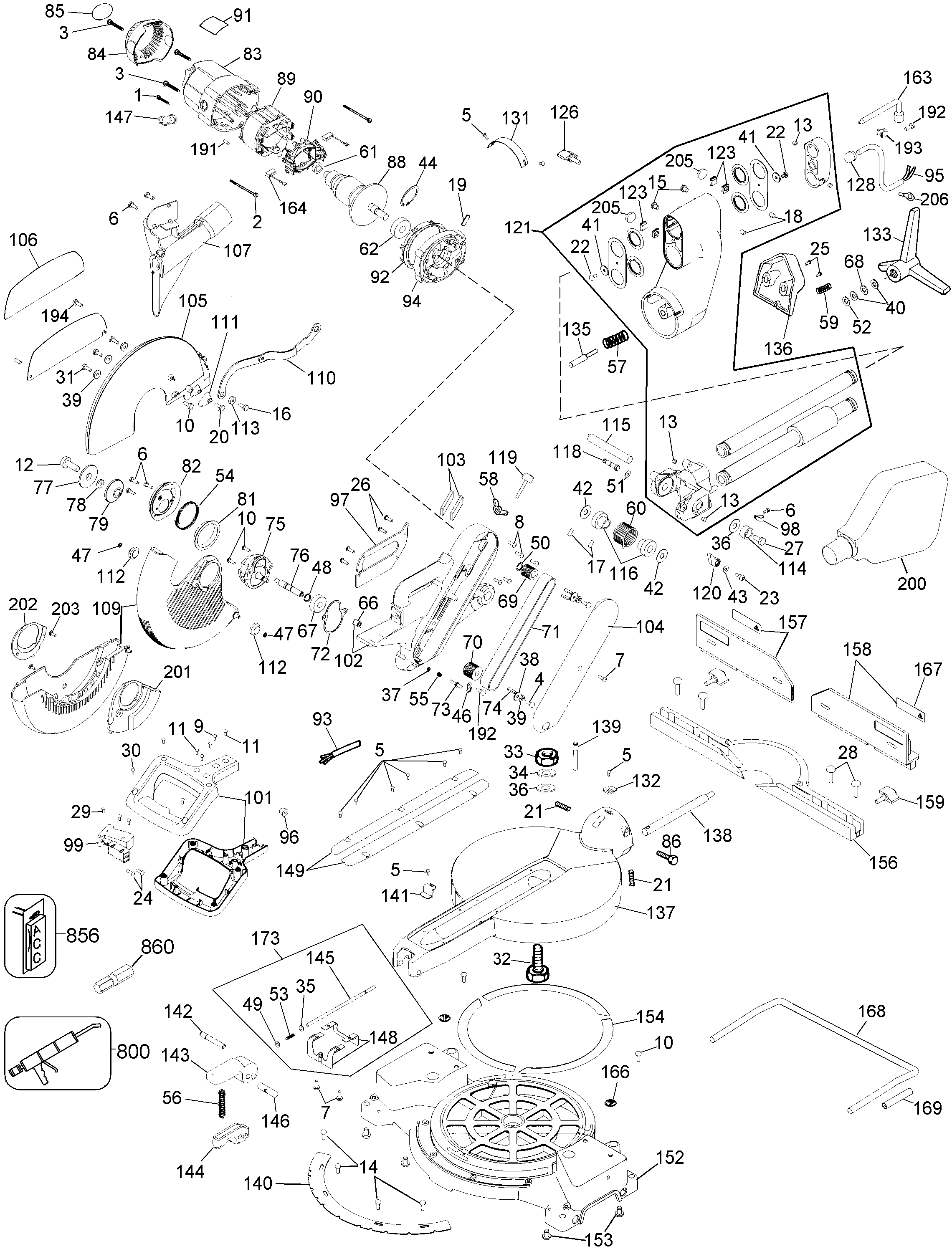

DW708 MITRE SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | B2 | ||
| 2 | 330019-19 | 2 | SCREW | B2 | |||
| 3 | 330019-13 | 4 | SCREW | M4X19 T20 | B2 | ||
| 4 | 153778-00 | 2 | SCREW | M6x20, NYLON PATCH | B2 | ||
| 5 | 330045-05 | 8 | SCREW | B2 | |||
| 6 | 330045-13 | 6 | SCREW | M5x0.8x10 MTL THDFMG | B2 | ||
| 7 | 330045-14 | 3 | SCREW | B2 | |||
| 8 | 330045-15 | 6 | SCREW | B2 | |||
| 9 | 330045-18 | 1 | SCREW | B2 | |||
| 10 | 330045-23 | 5 | SCREW | B2 | |||
| 11 | 330045-20 | 3 | SCREW | M5*45 T25 | B2 | ||
| 12 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | B2 | ||
| 13 | 153666-00 | 4 | SCREW | set screw M8 x 8mm long | B2 | ||
| 14 | 604410-01 | 4 | SCREW | M6, 1.0 X16, MACHINE | B2 | ||
| 15 | 153637-02 | 1 | SCREW | B2 | |||
| 16 | 330045-23 | 1 | SCREW | D/C 200241 AND LATER | B2 | ||
| 17 | 150075-00 | 2 | SCREW | B2 | |||
| 18 | 153576-00 | 2 | SCREW | B2 | |||
| 19 | 394034-00 | 1 | SCREW | B2 | |||
| 20 | 144949-00 | 1 | SCREW.SPECIAL | B2 | |||
| 21 | 386112-00 | 2 | SCREW | B2 | |||
| 22 | 151799-00 | 2 | SCREW | B2 | |||
| 23 | 153639-00 | 1 | SCREW | B2 | |||
| 24 | 384127-01 | 4 | SCREW | B2 | |||
| 25 | 147791-00 | 2 | SCREW | B2 | |||
| 26 | 330045-06 | 4 | SCREW | B2 | |||
| 27 | 330045-47 | 1 | SCREW | B2 | |||
| 28 | 330045-33 | 4 | SCREW | B2 | |||
| 29 | 330019-03 | 1 | SCREW | B2 | |||
| 30 | 330019-14 | 4 | SCREW | B2 | |||
| 31 | 330045-24 | 3 | SCREW | B2 | |||
| 32 | 5140117-87 | 1 | SCREW | 5/16-24x2.0in | B2 | ||
| 33 | 153794-00 | 1 | NUT | B2 | |||
| 34 | 153792-00 | 1 | WASHER | B2 | |||
| 35 | 062487-00 | 1 | WASHER | B2 | |||
| 36 | 153781-00 | 2 | WASHER | B2 | |||
| 37 | 153559-00 | 1 | WASHER | B2 | |||
| 38 | 153782-00 | 2 | WASHER | B2 | |||
| 39 | 098198-05 | 5 | WASHER | LOCK, M6 | B2 | ||
| 40 | 153769-01 | 2 | WASHER THRUST | B2 | |||
| 41 | 153586-00 | 2 | WASHER | B2 | |||
| 42 | 148296-00 | 2 | WASHER | B2 | |||
| 43 | 153655-00 | 1 | WASHER | B2 | |||
| 44 | 144803-00 | 1 | CIRCLIP | B2 | |||
| 46 | 393071-00 | 1 | PLATE | B2 | |||
| 47 | 142273-00 | 2 | RING | B2 | |||
| 48 | 153752-00 | 1 | RETAINER | B2 | |||
| 49 | 153763-00 | 1 | RING | B2 | |||
| 50 | 153783-00 | 1 | RING | B2 | |||
| 51 | 034158-00 | 1 | O RING | B2 | |||
| 52 | 39945-00 | 1 | RING | B2 | |||
| 53 | 140733-00 | 1 | SPRING | B2 | |||
| 54 | 606888-00 | 1 | SPRING | B2 | |||
| 55 | 448176-00 | 1 | SPRING | B2 | |||
| 56 | 096723-00 | 1 | SPRING | B2 | |||
| 57 | 88165-00 | 1 | SPRING | B2 | |||
| 58 | 150718-00 | 1 | NUT WING | B2 | |||
| 59 | 167785-00 | 1 | SPRING | B2 | |||
| 60 | 153596-01 | 1 | SPRING | B2 | |||
| 61 | N110359 | 1 | BEARING | B2 | |||
| 62 | N127530 | 1 | BEARING BALL | B2 | |||
| 66 | 330004-02 | 1 | BEARING NEEDLE | B2 | |||
| 67 | 330003-47 | 1 | BEARING | 12 x 37 x 12 - 6301 | B2 | ||
| 68 | 065786-00 | 1 | BEARING | B2 | |||
| 69 | 153554-00 | 1 | DRIVE PULLEY | B2 | |||
| 70 | 153796-00 | 1 | PULLEY | B2 | |||
| 71 | 153555-00 | 1 | BELT | B2 | |||
| 72 | 153560-00 | 1 | GASKET | B2 | |||
| 73 | 153561-00 | 1 | LOCKING PIN | B2 | |||
| 74 | 153638-00 | 3 | KEY | B2 | |||
| 75 | 5140000-28 | 1 | GEARCASE SA | INCL. GR CS / BRG | B2 | ||
| 76 | 5140000-28 | 1 | GEARCASE SA | INCL. GR CS / BRG | B2 | ||
| 77 | 604765-00 | 1 | CLAMP OUTER | B2 | |||
| 78 | 152636-00 | 1 | BLADE HOLDER | B2 | |||
| 79 | 604768-00 | 1 | BLADE CLAMP | B2 | |||
| 81 | 153649-00 | 1 | SLEEVE | B2 | |||
| 82 | 153563-00 | 1 | COVER | B2 | |||
| 83 | 391317-00 | 1 | FIELDCASE | B2 | |||
| 84 | 391933-01 | 1 | END CAP | B2 | |||
| 85 | 391325-00 | 1 | IDENTITY LABEL | B2 | |||
| 86 | 153797-00 | 1 | BOLT | 5/16-18 x 35mm | B2 | ||
| 88 | N065988SV | 1 | ARMATURE SA | 230V | B2 | ||
| 89 | 391318-01SV | 1 | FIELD | 230V | B2 | ||
| 90 | 389512-01 | 1 | BRUSH PLATE | B2 | |||
| 91 | 616466-00 | 1 | NAME PLATE | DW708-B2 TY.2 | B2 | ||
| 92 | 391375-00 | 1 | BAFFLE FAN | B2 | |||
| 93 | 397932-00 | 1 | MOTOR CABLE | B2 | |||
| 94 | 394036-00 | 1 | PLATE | B2 | |||
| 95 | 615828-02 | 1 | CORDSET | B2 | |||
| 96 | 5140125-81 | 1 | CONNECTOR | B2 | |||
| 97 | 395624-00 | 1 | COVERPLATE | B2 | |||
| 98 | 153669-00 | 1 | CORD CLAMP | B2 | |||
| 99 | 153609-00 | 1 | SWITCH | Tyco | B2 | ||
| 101 | 153755-01 | 1 | CLAMSHELL PAIR | B2 | |||
| 102 | 429932-00 | 1 | ARM LINK | B2 | |||
| 103 | 153721-00 | 2 | FOAM | B2 | |||
| 104 | 153562-00 | 1 | BELT COVER | B2 | |||
| 105 | 153648-06 | 1 | UPPER GUARD ASY | B2 | |||
| 106 | 605188-00 | 1 | LABEL, IDENT | B2 | |||
| 107 | 605408-00 | 1 | DUST PORT | B2 | |||
| 109 | 606883-02 | 1 | GUARD | LOWER | B2 | ||
| 110 | 153719-01 | 1 | LINK | B2 | |||
| 111 | 145318-00 | 1 | BUMPER | B2 | |||
| 112 | 146774-00 | 2 | ROLLER | B2 | |||
| 113 | 146740-00 | 1 | SLEEVE | B2 | |||
| 114 | 385756-00 | 1 | BUSH | B2 | |||
| 115 | 146751-00 | 1 | SHAFT | B2 | |||
| 116 | 153593-01 | 2 | SPACER | B2 | |||
| 118 | 387131-00 | 1 | LOCKING PIN | B2 | |||
| 119 | 397000-00 | 1 | SCREW.SPECIAL | B2 | |||
| 120 | 153603-01 | 1 | PAWL | B2 | |||
| 121 | 429941-00 | 1 | TRUNNION | B2 | |||
| 123 | 153582-00 | 4 | GUIDE | B2 | |||
| 126 | 147107-03 | 1 | KNOB | B2 | |||
| 128 | 605155-00 | 1 | BUSHING | B2 | |||
| 131 | 153578-00 | 1 | SCALE | B2 | |||
| 132 | 153575-00 | 1 | POINTER | B2 | |||
| 133 | 392422-00 | 1 | HANDLE | B2 | |||
| 135 | 386757-01 | 1 | PIN | B2 | |||
| 136 | 153574-00 | 1 | BUTTON RELEASE | B2 | |||
| 137 | 615045-00 | 1 | TABLE | B2 | |||
| 138 | 5140006-45 | 1 | PIVOT SHAFT | B2 | |||
| 139 | 153640-00 | 1 | PIN | B2 | |||
| 140 | 153620-04 | 1 | PLATE,MITER DET | B2 | |||
| 141 | 153624-00 | 1 | POINTER | B2 | |||
| 142 | 153632-00 | 1 | PIN | B2 | |||
| 143 | 153621-00 | 1 | HANDLE | B2 | |||
| 144 | 153722-01 | 1 | TRIGGER | B2 | |||
| 145 | 153622-00 | 1 | LOCKING PIN | B2 | |||
| 146 | 153626-00 | 1 | LEVER | B2 | |||
| 147 | 605155-00 | 1 | BUSHING | B2 | |||
| 148 | 153768-00 | 1 | SPRING SA | B2 | |||
| 149 | 395672-00 | 2 | PLATE SA | B2 | |||
| 152 | 153765-03 | 1 | BASE | B2 | |||
| 153 | 153612-00 | 4 | FOOT | B2 | |||
| 154 | 153614-01 | 3 | THRUST PLATE | B2 | |||
| 156 | 153627-00 | 1 | FENCE SA | B2 | |||
| 157 | 153766-06 | 1 | FENCE, LEFT | INC. 167 | B2 | ||
| 158 | 153767-07 | 1 | FENCE,RIGHT | B2 | |||
| 159 | 147107-02 | 1 | KNOB LOWER | B2 | |||
| 163 | 608563-01 | 1 | WRENCH SPECIAL | M13 - T30 | B2 | ||
| 164 | 381028-08 | 2 | BRUSH & LEAD | B2 | |||
| 166 | 394976-00 | 2 | LABEL | WARNING | B2 | ||
| 167 | 606512-00 | 1 | WARNING LABEL | B2 | |||
| 168 | 390905-00 | 1 | SUPPORT BRACKET | B2 | |||
| 169 | 609003-00 | 1 | WARNING LABEL | B2 | |||
| 173 | 385652-00SV | 1 | LOCK SA | B2 | |||
| 191 | 145312-00 | 1 | PLUG | B2 | |||
| 192 | 330045-45 | 2 | SCREW | B2 | |||
| 193 | 391358-01 | 1 | HOLDER | B2 | |||
| 194 | 398367-00 | 1 | SCREW | M6 x 16 Patchlock | B2 | ||
| 200 | 147734-06 | 1 | DUSTBAG | B2 | |||
| 201 | 606886-00 | 1 | GUARD PLATE | D/C 200241 AND LATER | B2 | ||
| 202 | 607137-00 | 1 | COVER | D/C 200241 AND LATER | B2 | ||
| 203 | 385915-01 | 2 | SCREW | B2 | |||
| 205 | 613497-00 | 2 | THRUST PLATE | B2 | |||
| 206 | 395716-00 | 1 | TERMINAL | RING | B2 | ||
| 800 | 5140061-28 | 1 | GREASE | B2 | |||
| 800 | 93488-00 | 1 | GREASE | B2 | |||
| 856 | 624616-00 | 1 | BLADE | 12 IN / 60T (DW3126) | B2 | ||
| 860 | 340992-08 | 1 | BIT | T40 | B2 |
