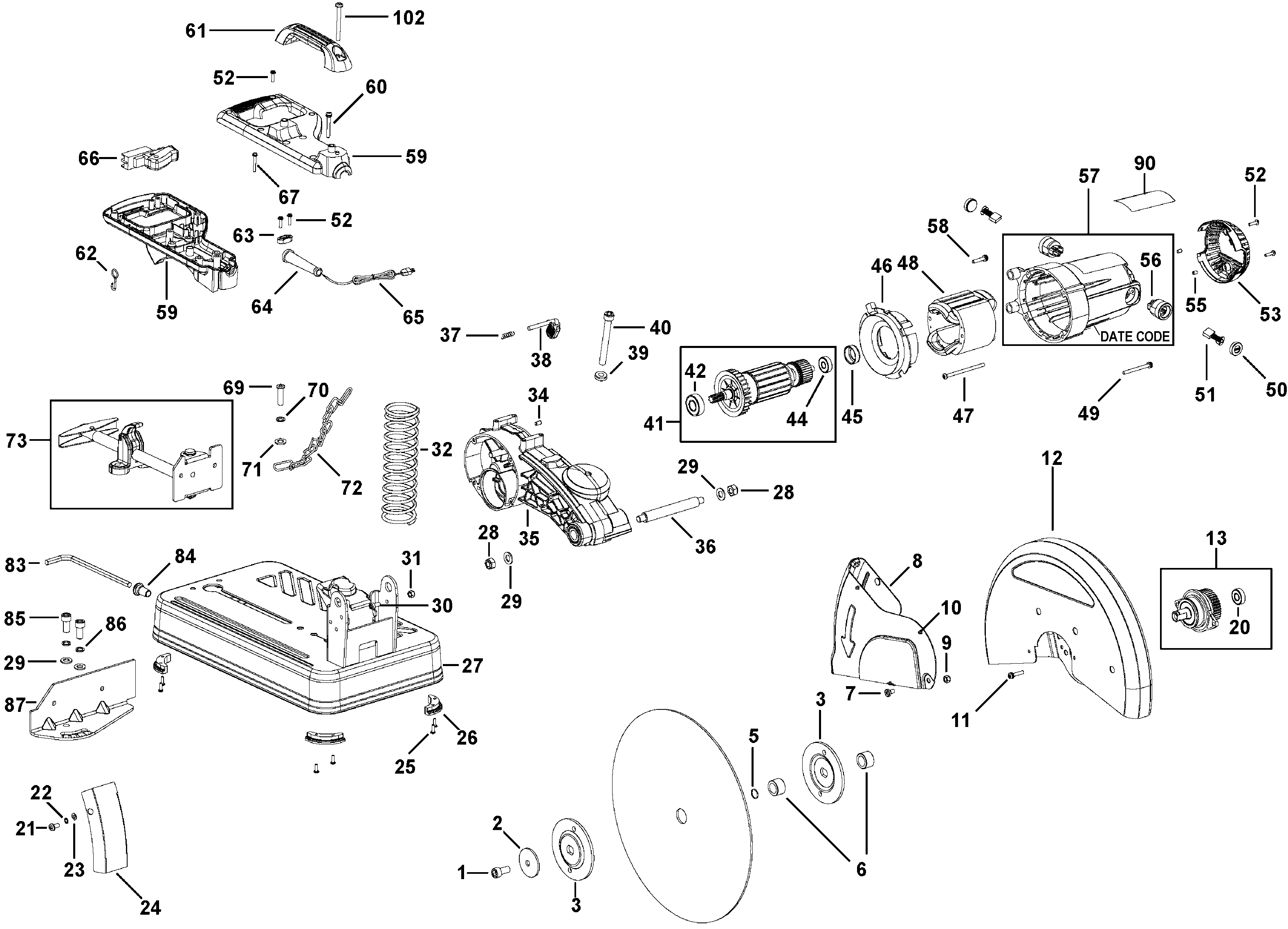

D28710 CHOP SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N085909 | 1 | SCREW | B2 | |||
| 2 | N085898 | 1 | WASHER | B2 | |||
| 3 | N085893 | 2 | FLANGE | B2 | |||
| 5 | N085972 | 1 | O RING | B2 | |||
| 6 | N085971 | 2 | ADAPTOR | B2 | |||
| 7 | N085903 | 1 | SCREW | B2 | |||
| 8 | N085884 | 1 | GUARD LOWER | B2 | |||
| 9 | N017088 | 1 | NUT M5 | B2 | |||
| 10 | N085888 | 3 | RUBBER | B2 | |||
| 11 | N085889 | 4 | SCREW | B2 | |||
| 12 | N085878 | 1 | GUARD UPPER | B2 | |||
| 13 | N085924 | 1 | GEAR & SPINDLE SA | B2 | |||
| 20 | N085923 | 1 | BEARING | B2 | |||
| 21 | 5140120-54 | 1 | SCREW.SPECIAL | M6x12 MTL THD FMG | B2 | ||
| 22 | 5140120-54 | 1 | SCREW.SPECIAL | M6x12 MTL THD FMG | B2 | ||
| 23 | N016660 | 1 | WASHER | B2 | |||
| 24 | N085906 | 1 | GUARD REAR | B2 | |||
| 25 | N085948 | 4 | SCREW | B2 | |||
| 26 | N085949 | 1 | FOOT | B2 | |||
| 27 | N110960 | 1 | BASE SA | EURO | B2 | ||
| 28 | N085952 | 2 | NUT | B2 | |||
| 29 | N085955 | 4 | WASHER | B2 | |||
| 30 | N085947 | 1 | SCREW | B2 | |||
| 31 | N085954 | 1 | NUT | B2 | |||
| 32 | N085890 | 1 | SPRING COMPRESSION | B2 | |||
| 34 | N085880 | 1 | PLUG | B2 | |||
| 35 | N085891 | 1 | ARM | B2 | |||
| 36 | N085950 | 1 | PIN | B2 | |||
| 37 | N085881 | 1 | SPRING | B2 | |||
| 38 | N085879 | 1 | LOCKING PIN | B2 | |||
| 39 | N085897 | 1 | NUT | B2 | |||
| 40 | N085896 | 1 | SCREW | B2 | |||
| 41 | N085931 | 1 | ARMATURE SA | B2 | |||
| 42 | N085930 | 1 | BEARING | B2 | |||
| 44 | N085929 | 1 | BEARING | B2 | |||
| 45 | N085933 | 1 | RUBBER BOOT | B2 | |||
| 46 | N085941 | 1 | BAFFLE FAN | B2 | |||
| 47 | N085939 | 2 | SCREW | B2 | |||
| 48 | N085944 | 1 | FIELD SA 230V | B2 | |||
| 49 | N085936 | 4 | SCREW | B2 | |||
| 50 | N085940 | 2 | BRUSH CAP | B2 | |||
| 51 | N097996 | 1 | BRUSH PAIR 230V | B2 | |||
| 52 | N017632 | 1 | SCREW | B2 | |||
| 53 | N085937 | 1 | END CAP | B2 | |||
| 55 | N085946 | 2 | SCREW | B2 | |||
| 56 | N085935 | 2 | BRUSH HOLDER | B2 | |||
| 57 | N097999 | 1 | FIELDCASE SA | B2 | |||
| 58 | N085945 | 2 | SCREW | B2 | |||
| 59 | N098000 | 1 | HANDLE COVER | B2 | |||
| 60 | N085956 | 2 | SCREW | M5 x 40 | B2 | ||
| 61 | N085960 | 1 | HANDLE UPPER | B2 | |||
| 62 | N085967 | 1 | LOCK HOOK | B2 | |||
| 63 | N018151 | 1 | CORD CLAMP | B2 | |||
| 64 | N085957 | 1 | CORD PROTECTOR | B2 | |||
| 65 | N095265 | 1 | CORD SET | B2 | |||
| 66 | N110957 | 1 | SWITCH SA | MARQUARDT | B2 | ||
| 67 | N085966 | 2 | SCREW | B2 | |||
| 69 | 5140120-52 | 2 | SCREW.SPECIAL | M8x30 THD FMG | B2 | ||
| 70 | 5140120-52 | 2 | SCREW.SPECIAL | M8x30 THD FMG | B2 | ||
| 71 | N085895 | 2 | WASHER | B2 | |||
| 72 | N085907 | 1 | CHAIN | B2 | |||
| 73 | N085916 | 1 | VICE JAW MOVEABLE | B2 | |||
| 83 | N085914 | 1 | HEX KEY | B2 | |||
| 84 | N085919 | 1 | HOLDER TOOL | B2 | |||
| 85 | 5140120-53 | 2 | SCREW.SPECIAL | M10x20 MTL THD FMG | B2 | ||
| 86 | 5140120-53 | 2 | SCREW.SPECIAL | M10x20 MTL THD FMG | B2 | ||
| 87 | N085886 | 1 | FENCE | B2 | |||
| 90 | N096675 | 1 | NAMEPLATE | D28710-B2 TY1 | B2 | ||
| 102 | N085963 | 2 | SCREW | M6 x 60 | B2 |
