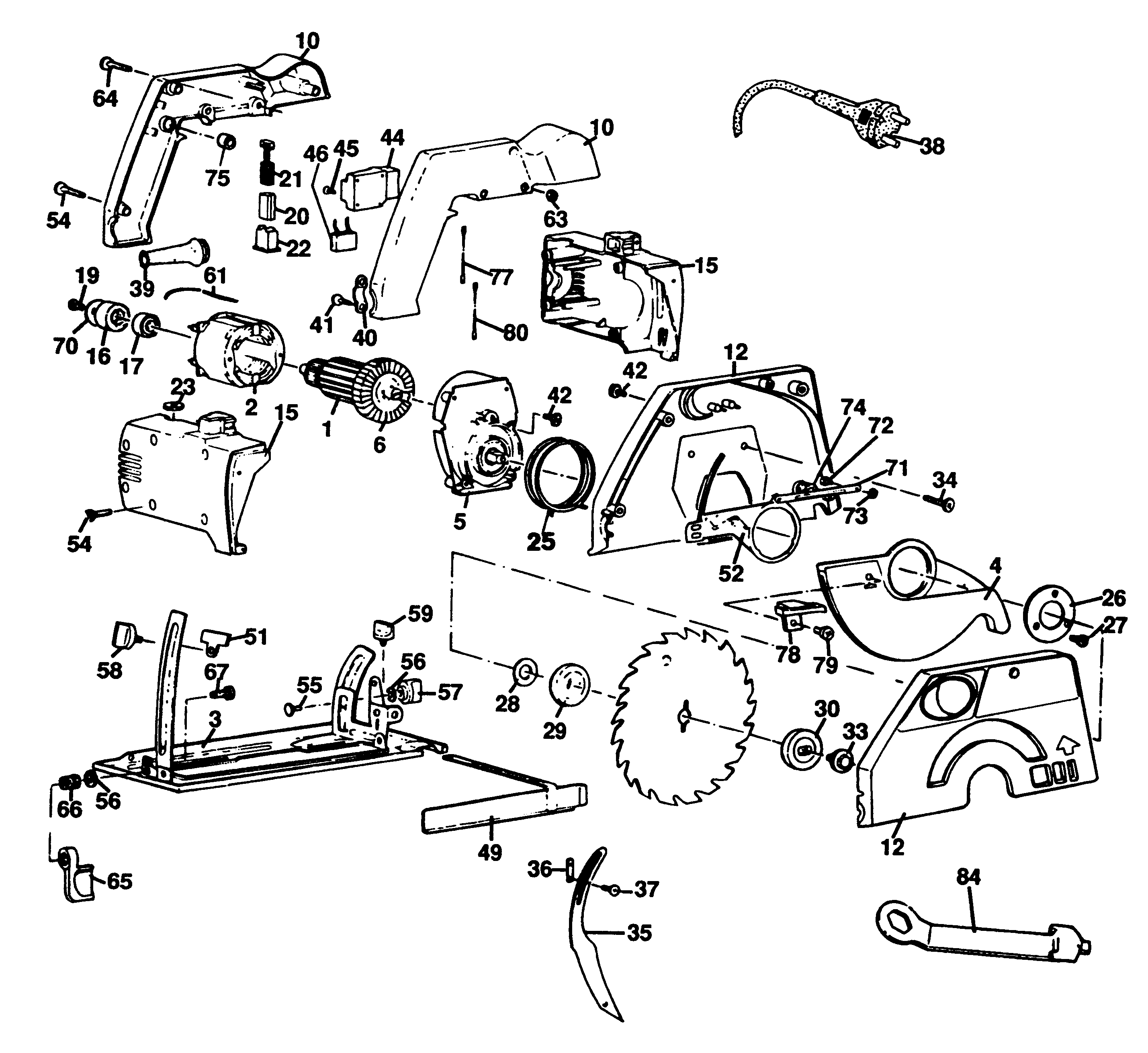

BD229 CIRC. SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 368877-02 | 1 | ARMATURE SA | GR | |||
| 2 | 373008-03 | 1 | FIELD 230V | GR |  |
||
| 3 | 323096 | 1 | SHOE | GR | |||
| 4 | 323032 | 1 | GUARD | TYPE D5 | GR | ||
| 5 | 879348 | 1 | GEAR SA | GR | |||
| 6 | 918909 | 1 | FAN | GR | |||
| 10 | 572283-00 | 1 | HANDLE | Jade Green | GR | ||
| 12 | 323033-01 | 1 | GUARD | TYPE D5 | GR | ||
| 15 | 322841-00 | 1 | CLAMSHELL | GR | |
||
| 16 | 870052 | 1 | SLEEVE | GR |  |
||
| 17 | 330003-31 | 1 | BEARING | GR | |
||
| 19 | 911276 | 1 | SCREW | GR | |
||
| 20 | 321337 | 2 | BRUSH HOLDER | GR | |
||
| 21 | 321338 | 2 | BRUSH SA 230V | GR | |
||
| 22 | 321328 | 2 | INSERT | GR | |
||
| 23 | 321345 | 2 | BRUSH CAP | GR | |||
| 25 | 914816 | 1 | SPRING | GR | |
||
| 26 | 914632 | 1 | COVERPLATE | GR | |||
| 27 | 911246 | 3 | SCREW | GR | |||
| 28 | 910623 | 1 | WASHER | GR | |
||
| 29 | 911627 | 1 | FLANGE | GR | |||
| 30 | 911795 | 1 | FLANGE | GR | |
||
| 33 | 911760 | 1 | SCREW | GR | |||
| 34 | 324006-02 | 4 | SCREW | GR | |
||
| 35 | 911653 | 1 | RIVING KNIFE | GR | |||
| 36 | 874651 | 1 | PLATE | GR | |||
| 37 | 873320 | 2 | SCREW | GR | |||
| 38 | 324438-07 | 1 | CORDSET (EURO) | GR | |||
| 39 | 916969 | 1 | PROTECTOR | GR | |
||
| 40 | 910556 | 1 | CABLE CLAMP | GR | |
||
| 41 | 894748 | 2 | O RING | GR | |
||
| 42 | 324006-00 | 5 | SCREW | GR | |
||
| 44 | 322001 | 1 | SWITCH | GR | |
||
| 45 | 911026 | 4 | SCREW | GR | |
||
| 46 | 321384 | 1 | CAPACITOR | GR | |
||
| 49 | 321561 | 1 | FENCE | GR | |
||
| 51 | 911682 | 1 | INSERT | GR | |||
| 52 | 325366-00 | 1 | HOLDER | GR | |||
| 54 | 911325 | 6 | SCREW | GR | |
||
| 55 | 911353 | 1 | SCREW | GR | |||
| 56 | 330016-07 | 2 | WASHER | GR | |
||
| 57 | 322322 | 1 | NUT WING | GR | |||
| 58 | 322321 | 1 | KNOB | GR | |||
| 59 | 322320 | 1 | KNOB | GR | |||
| 61 | 879476 | 1 | LEAD 360MM | GR | |||
| 63 | 322319 | 2 | NUT | GR | |
||
| 64 | 322318 | 2 | SCREW | GR | |||
| 65 | 322275 | 1 | KNOB | GR | |||
| 66 | 870465 | 1 | BUSH | GR | |||
| 67 | 911762 | 1 | SCREW | GR | |||
| 70 | 870405 | 1 | WASHER | GR | |||
| 71 | 911635 | 1 | LEVER | GR | |||
| 72 | 916077 | 2 | RIVET | GR | |||
| 73 | 918871 | 2 | WASHER LOCK | GR | |||
| 74 | 918366 | 1 | RUBBER | GR | |
||
| 75 | 917650-01 | 1 | BLANK | GR | |
||
| 77 | 321354 | 2 | LEAD 70MM | GR | |
||
| 78 | 322462 | 1 | LATCH | TYPE D5 | GR | ||
| 79 | 323253 | 1 | SCREW | TYPE D5 | GR | ||
| 80 | 879604 | 1 | LEAD 250MM | GR | |||
| 84 | 913155 | 1 | SPANNER RING | GR |
