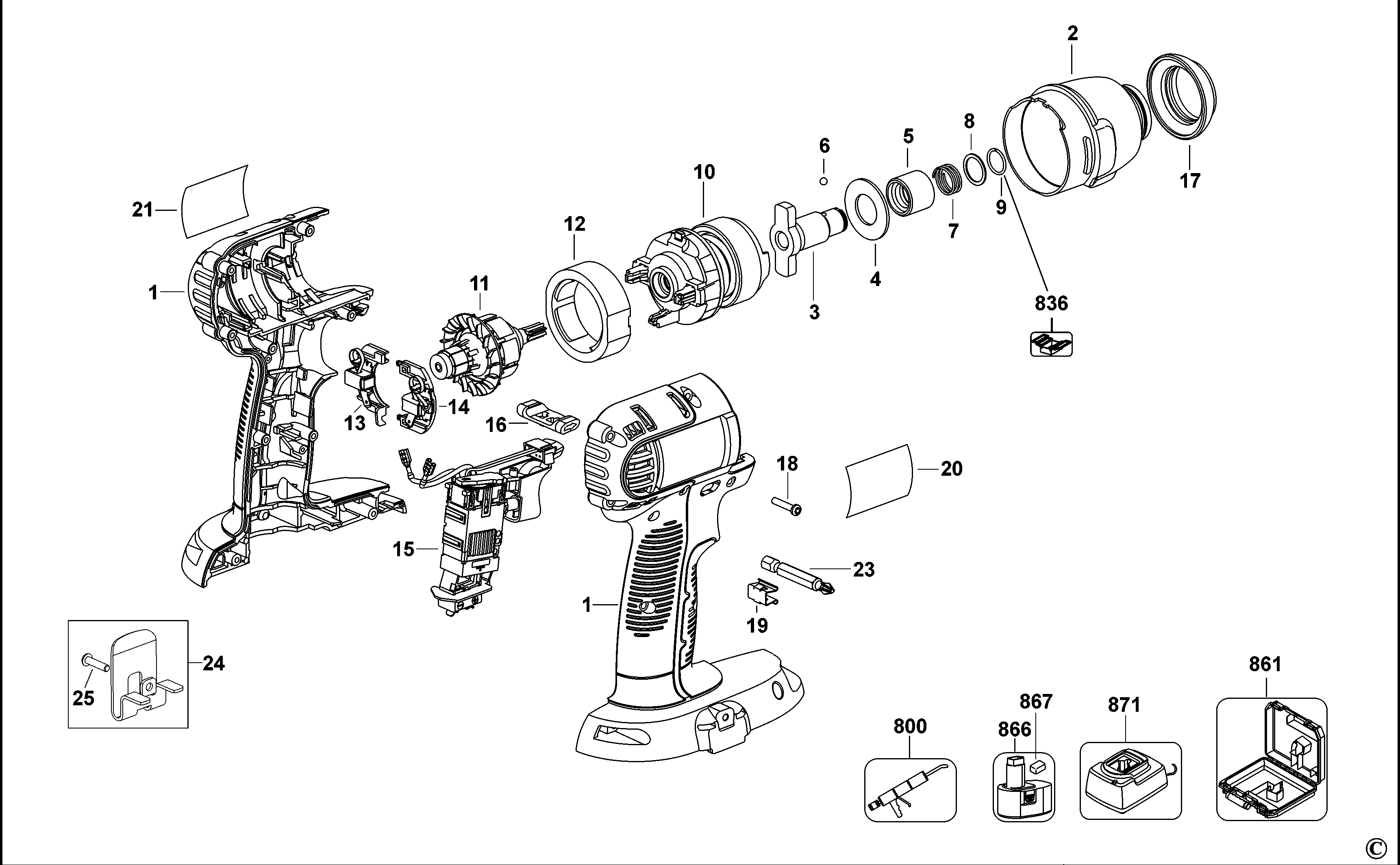

DC825 IMPACT DRIVER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 658395-04 | 1 | CLAMSHELL SET | 18 V, Li-Ion | XJ | ||
| 2 | 646693-00SV | 1 | NOSE RING | XJ |  |
||
| 3 | 642875-00 | 1 | ANVIL ASSEMBLY | XJ | |
||
| 4 | 642883-00C | 1 | WASHER | XJ |  |
||
| 5 | 642879-00 | 1 | SLEEVE | XJ | |
||
| 6 | 696631-00 | 1 | BALL | XJ | |
||
| 7 | 151359-00 | 1 | SPRING | XJ | |
||
| 8 | 617784-00 | 1 | WASHER | XJ | |
||
| 9 | 610298-00 | 1 | LOCKING RING | XJ | |
||
| 10 | N040122SV | 1 | CLUTCH | XJ | |
||
| 11 | 646694-03SV | 1 | ARMATURE | XJ | |
||
| 12 | 640537-00 | 1 | MAGNET | XJ | |
||
| 16 | 659201-00 | 1 | REVERSER | XJ | |
||
| 17 | 642886-00 | 1 | NOSE RING | Rubber | XJ | |
|
| 18 | 682211-00 | 9 | SCREW | XJ | |
||
| 19 | 148354-03 | 1 | HOLDER | XJ | |
||
| 21 | 646763-00 | 1 | BRAND LABEL | XJ | |
||
| 23 | 607906-22 | 1 | BIT PHILLIPS | Phillips #2 | XJ | |
|
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | XJ | |
|
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | XJ | ||
| 836 | 1003940-99 | 1 | S.T.CIRCLIP INSERTER | XJ | |
||
| 861 | 652211-00 | 1 | KITBOX | XJ | |
||
| 867 | 645221-00 | 1 | CAP | XJ | |
