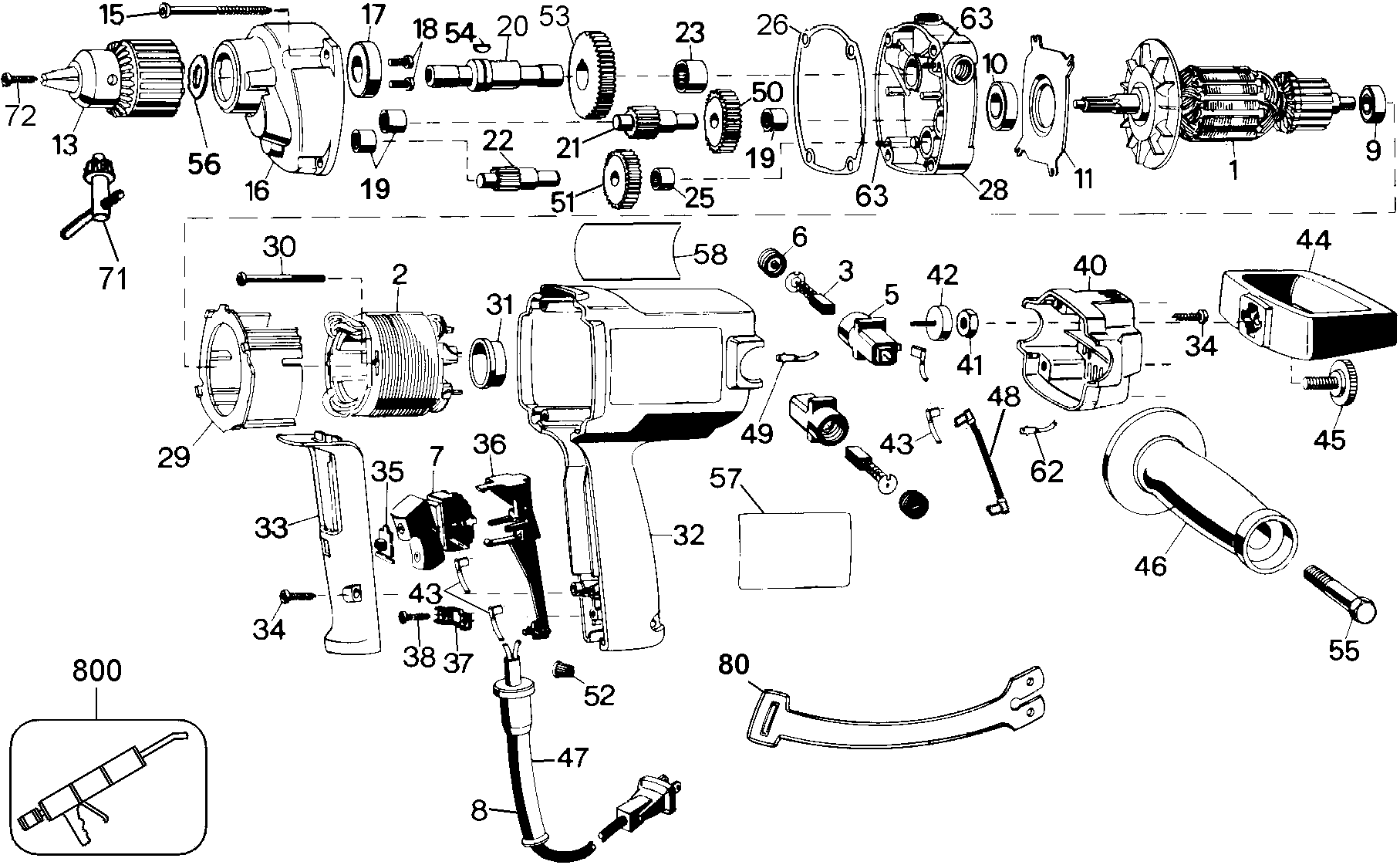

DW130 MIXER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 450130-02 | 1 | ARMATURE | incl 9,10,11 | XD |  |
|
| 2 | 450379-00SV | 1 | FIELD | XD | |
||
| 3 | 450374-12 | 2 | BRUSH & SPRING | XD |  |
||
| 5 | 448083-01 | 2 | BRUSHBOX SA | XD | |
||
| 6 | 448084-01 | 2 | BRUSH CAP | XD | |
||
| 7 | 449524-00 | 1 | SWITCH | NPP | XD | |
|
| 8 | 380589-00 | 1 | CORDSET | XD | |
||
| 9 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | XD | |
|
| 10 | 330003-04 | 1 | BEARING | XD | |||
| 11 | 448079-00 | 1 | PLATE | XD | |||
| 13 | 135514-00 | 1 | CHUCK | NPP | XD | ||
| 15 | 330019-30 | 4 | SCREW | XD | |
||
| 16 | N763396 | 1 | GEARCASE SA | incl. 19 | XD | |
|
| 17 | 700964-00 | 1 | BEARING | XD | |
||
| 18 | 052819-00 | 2 | SCREW | XD | |||
| 19 | 330004-02 | 3 | BEARING NEEDLE | XD | |
||
| 20 | 147195-00 | 1 | SPINDLE | XD | |
||
| 21 | 449489-00SV | 1 | GEAR & SPINDLE | incl 50 (17/37 teeth) | XD | |
|
| 22 | 449486-00SV | 1 | GEAR & PINION | incl 51 (13/39 teeth) | XD | |
|
| 23 | 135937-00 | 1 | BEARING | XD | |
||
| 25 | 330004-27 | 1 | BEARING,NEEDLE | XD | |
||
| 26 | 450485-00 | 1 | GASKET | XD | |
||
| 28 | 449483-00SV | 1 | COVER-GEAR CASE | incl 19,23,25,63 | XD | ||
| 29 | 447786-00 | 1 | BAFFLE FAN | XD | |
||
| 30 | 330019-18 | 2 | SCREW | M4.55 x 50 PLASTIC THD FMG | XD | ||
| 31 | 445217-02 | 1 | SLEEVE | XD | |
||
| 32 | 392275-02 | 1 | FIELD CASE | XD | |
||
| 33 | 5140004-78 | 1 | HANDLE COVER | Date Code 0019 and earlier | XD | ||
| 33 | 5140004-78 | 1 | HANDLE COVER | Date Code 0020 and later | XD | ||
| 34 | 330019-13 | 6 | SCREW | M4X19 T20 | XD | |
|
| 35 | 449523-00 | 1 | LOCK BUTTON | XD | |
||
| 36 | 449472-00 | 1 | SWITCH SUPPORT | XD | |
||
| 37 | 86634-00 | 1 | CORD CLAMP | XD | |
||
| 38 | 330019-03 | 2 | SCREW | XD | |
||
| 40 | 449492-02 | 1 | END CAP | XD | |
||
| 41 | 99371-06 | 1 | NUT | XD | |
||
| 42 | 449700-00 | 1 | CAP | XD | |
||
| 43 | 135110-00 | 7 | TERMINAL | XD | |||
| 44 | 628037-00 | 1 | HANDLE | XD | |
||
| 45 | 382531-00 | 1 | KNOB | XD | |
||
| 46 | 625712-00 | 1 | SIDE HANDLE | XD | |
||
| 47 | 330005-01 | 1 | CORD PROTECTOR | XD | |
||
| 48 | 158491-00 | 1 | LEAD | 6-3/4 INCH BLACK | XD | ||
| 49 | 448172-00 | 2 | TERMINAL | XD | |||
| 50 | 449490-00 | 1 | GEAR | 37 teeth | XD | |
|
| 51 | 449487-00 | 1 | GEAR | 39 teeth | XD | ||
| 52 | 32114-00 | 1 | CONNECTOR | XD | |||
| 53 | 400147-00 | 1 | GEAR | 50 teeth | XD | |
|
| 54 | 007027-00 | 1 | KEY | XD | |
||
| 55 | 99173-36 | 1 | SCREW | XD | |
||
| 56 | 147196-00 | 1 | WASHER | XD | |
||
| 57 | 627212-00 | 1 | BRAND LABEL | DEWALT | XD | ||
| 58 | 387847-00 | 1 | NAMEPLATE | XD | |
||
| 62 | 146459-00 | 2 | TERMINAL | XD | |
||
| 63 | 091286-00 | 2 | PIN | XD | |||
| 71 | 330034-03 | 1 | CHUCK KEY | XD | |
||
| 72 | 447735-02 | 1 | SCREW | XD | |
||
| 80 | 065288-01 | 1 | HOLDER CHUCK KEY | XD | |
||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | XD | |
