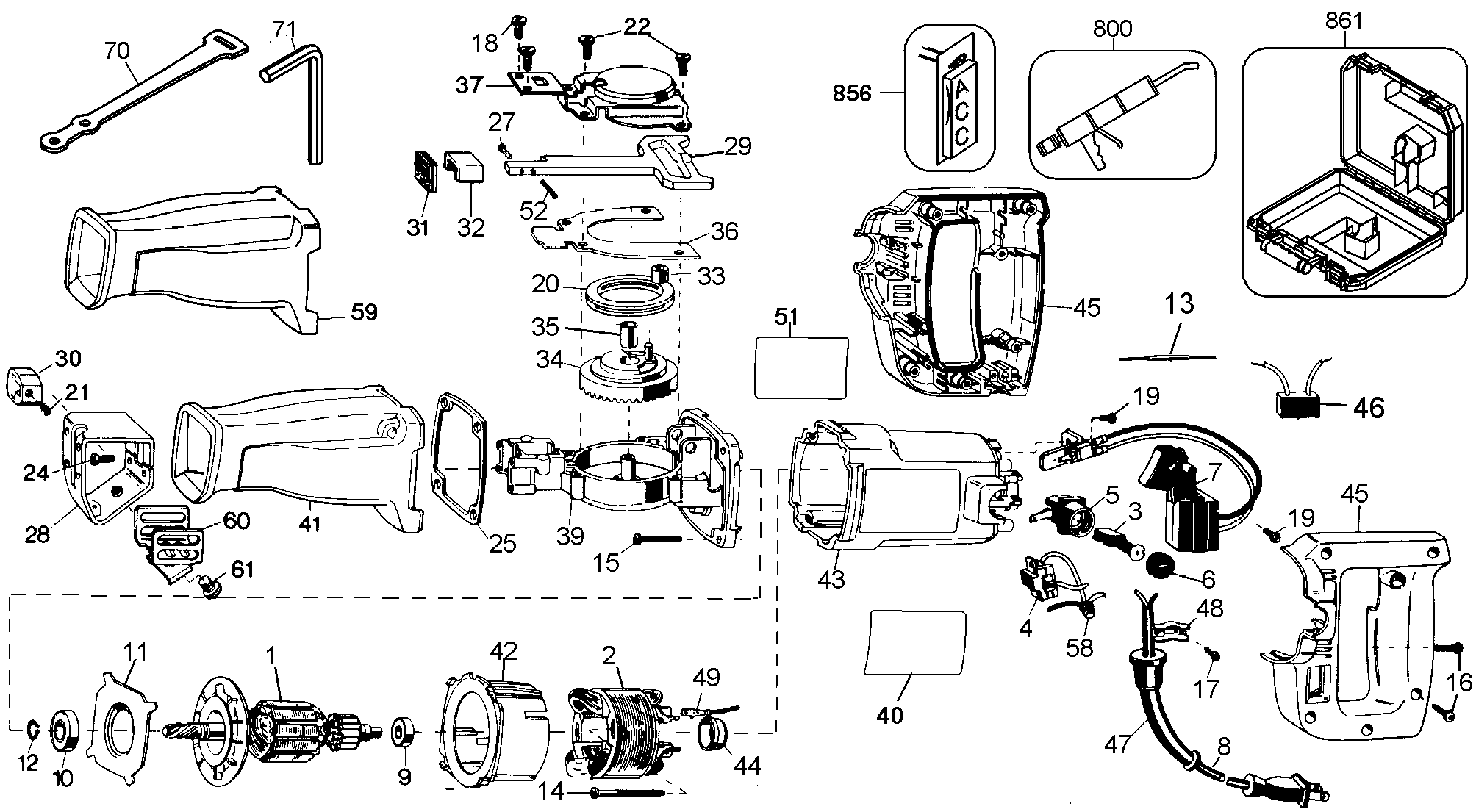

DW304K CUTSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 448716-00 | 1 | ARMATURE 115V | 6TEETHINCL9,10,11,12 | B4 |  |
|
| 2 | 448719-71SV | 1 | FIELD | B4 | |||
| 3 | 450374-12 | 2 | BRUSH & SPRING | B4 |  |
||
| 4 | 144478-04 | 1 | SWITCH | SLIDE | B4 | |
|
| 5 | 448083-01 | 2 | BRUSHBOX SA | B4 | |
||
| 6 | 448084-01 | 2 | BRUSH CAP | B4 | |
||
| 7 | 150677-00 | 1 | SWITCH SA | B4 | |
||
| 8 | 330064-08 | 1 | CORDSET | B4 | |
||
| 9 | 330003-04 | 1 | BEARING | B4 | |||
| 10 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | B4 | |
|
| 11 | 448079-00 | 1 | PLATE | B4 | |||
| 12 | 696060-00 | 1 | RETAINER | B4 | |
||
| 14 | 330019-18 | 2 | SCREW | M4.55 x 50 PLASTIC THD FMG | B4 | ||
| 15 | 330019-15 | 4 | SCREW | B4 | |
||
| 16 | 330019-13 | 9 | SCREW | M4X19 T20 | B4 | |
|
| 17 | 330019-03 | 2 | SCREW | B4 | |
||
| 18 | 158472-00 | 2 | SCREW | B4 | |
||
| 19 | 330019-02 | 2 | SCREW | B4 | |
||
| 20 | 90540337 | 1 | RING | B4 | |
||
| 21 | 099164-06 | 1 | SCREW.TEMP | B4 | |||
| 22 | 144457-02 | 4 | SCREW | B4 | |
||
| 24 | 142940-00 | 4 | SCREW | B4 | |
||
| 25 | 146576-00 | 1 | GASKET | B4 | |
||
| 27 | 158466-00 | 1 | PIN | B4 | |
||
| 28 | 399725-00 | 1 | SHOE | B4 | |
||
| 29 | 679869-00 | 1 | SHAFT | INCL. 27, 52 | B4 | |
|
| 30 | 679868-00 | 1 | BLADE CLAMP | INCL. 21 | B4 | ||
| 31 | 386698-00 | 1 | SEAL SA | B4 | |
||
| 32 | 450865-00 | 1 | BEARING | B4 | |
||
| 33 | 385238-00 | 1 | BEARING NEEDLE | B4 | |
||
| 34 | 448503-15 | 1 | GEAR | 55 TEETH INCL.35 | B4 | |
|
| 35 | 135531-00 | 1 | BEARING | B4 | |
||
| 36 | 143462-02 | 1 | PLATE | B4 | |||
| 37 | 448489-03 | 1 | PLATE | B4 | |
||
| 39 | 449824-07 | 1 | GEARCASE | B4 | |
||
| 40 | 627212-00 | 1 | BRAND LABEL | DEWALT | B4 | ||
| 41 | 621608-00 | 1 | COVER SA | INCL. 59 | B4 | ||
| 42 | 447786-00 | 1 | BAFFLE FAN | B4 | |
||
| 43 | 447799-07 | 1 | FIELDCASE | B4 | |||
| 44 | 445217-02 | 1 | SLEEVE | B4 | |
||
| 45 | 448722-06 | 1 | HANDLE & COVER | B4 | |
||
| 47 | 330005-01 | 1 | CORD PROTECTOR | B4 | |
||
| 48 | 86634-00 | 1 | CORD CLAMP | B4 | |
||
| 49 | 448172-00 | 1 | TERMINAL | B4 | |||
| 51 | 380681-03 | 1 | NAMEPLATE | B4 | |||
| 52 | 144434-00 | 1 | ROLLPIN | B4 | |
||
| 58 | 32114-01 | 1 | CONNECTOR | B4 | |
||
| 59 | N028019 | 1 | COVER | B4 | |
||
| 60 | 157325-00 | 1 | GUARD | B4 | |
||
| 61 | 099279-08 | 1 | SCREW | B4 | |
||
| 70 | 449817-00 | 1 | HOLDER | B4 | |||
| 71 | 099056-08 | 1 | WRENCH SPECIAL | 3/16 IN. | B4 | |
|
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | B4 | |
|
| 856 | 380951-01 | 1 | PACK,BLADE | B4 | |||
| 861 | 380865-02 | 1 | HANDLE FRAME KIT | B4 | |||
| 861 | 637475-00 | 2 | LATCH ASSEMBLY | B4 | |||
| 861 | 637475-00 | 2 | LATCH ASSEMBLY | B4 | |||
| 861 | 381189-00 | 1 | KITBOX | B4 | |
