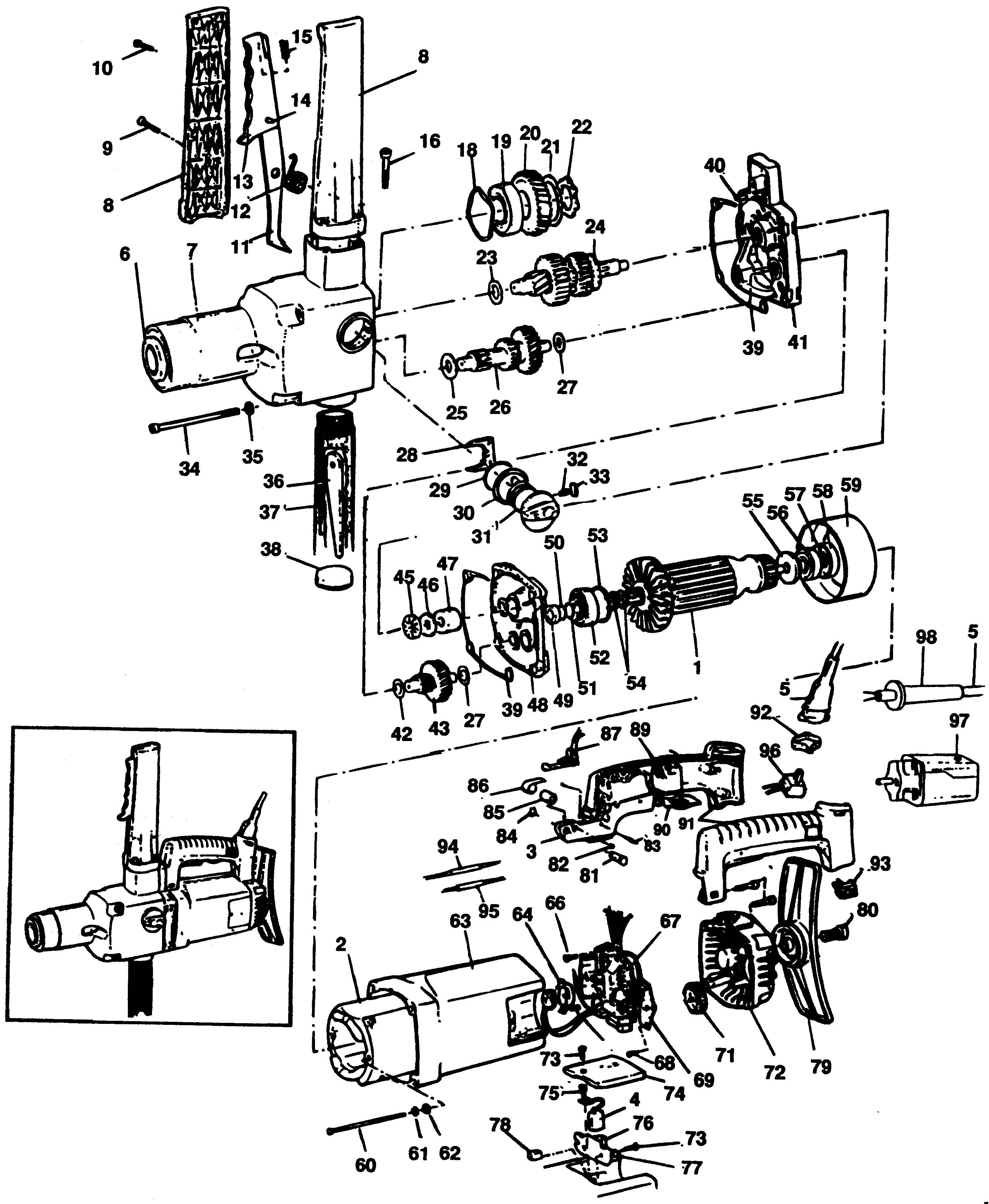

P1724 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 932485 | 1 | ARMATURE | AE |  |
||
| 2 | 868503-03 | 1 | FIELD 230V | AE | |
||
| 3 | 932401-00 | 1 | SWITCH | AE | |
||
| 4 | 932497-00 | 2 | BRUSH | AE | |
||
| 5 | 949843-20 | 1 | CABLE | AE | |
||
| 6 | 932292-00 | 1 | TAPER HOLDER | AE | |
||
| 7 | 932222-00 | 1 | GEARCASE SA | AE | |
||
| 8 | 935833 | 1 | HANDLE SA | AE | |
||
| 9 | 860084-09 | 1 | SCREW | AE | |
||
| 10 | 930554-00 | 2 | SCREW | AE | |
||
| 11 | 932315-00 | 1 | LEVER | AE | |
||
| 12 | 932313-00 | 1 | SPRING | AE | |
||
| 13 | 932317-00 | 1 | COVER | Black | AE | |
|
| 14 | 932314-00 | 1 | PIN | AE | |
||
| 15 | 931013-00 | 1 | SPRING | AE | |
||
| 16 | 860093-11 | 6 | SCREW | AE | |
||
| 18 | 932293-00 | 1 | WASHER | AE | |
||
| 19 | 932294-00 | 1 | BEARING | AE | |
||
| 20 | 932295-00 | 1 | GEAR | AE | |
||
| 21 | 932296-00 | 1 | WASHER | AE | |
||
| 22 | 932298-00 | 1 | RING | AE | |
||
| 23 | 932287-00 | 1 | WASHER | AE | |
||
| 24 | 869219-00 | 1 | SPINDLE & GEAR SA | AE | |
||
| 25 | 932286-00 | 1 | WASHER | AE | |
||
| 26 | 869219-02 | 1 | SPINDLE & GEAR SA | AE | |
||
| 27 | 932285-00 | 2 | WASHER | AE | |
||
| 28 | 932288-00 | 1 | PLATE | AE | |
||
| 29 | 930039 | 1 | SEAL | AE | |
||
| 30 | 932289-00 | 1 | WASHER | AE | |
||
| 31 | 932265-00 | 1 | LEVER SA | AE | |
||
| 32 | 932290-00 | 1 | SPRING | AE | |
||
| 33 | 932291-00 | 1 | SPRING | AE | |
||
| 34 | 932407-00 | 4 | SCREW | AE | |
||
| 35 | 931429-00 | 4 | WASHER | AE | |
||
| 36 | 932303-00 | 1 | DRIFT | AE | |
||
| 37 | 948539-01 | 1 | HANDLE SIDE SA | AE | |
||
| 38 | 932308-01 | 1 | CAP | AE | |
||
| 39 | 932312-00 | 2 | GASKET | AE | |
||
| 40 | 932301-00 | 2 | PIN | AE | |
||
| 41 | 932250-00 | 1 | COVER SA | AE | |
||
| 42 | 932302-00 | 1 | WASHER | AE |  |
||
| 43 | 932245-00 | 1 | SPINDLE & GEAR SA | AE | |
||
| 45 | 930017-00 | 1 | WASHER | AE | |
||
| 46 | 943733-00 | 1 | WASHER | AE | |
||
| 47 | 943959-00 | 1 | SPACER | AE | |
||
| 48 | 943961-00 | 1 | GEARCASE COVER SA | AE | |
||
| 49 | 932311-00 | 1 | SEAL | AE | |
||
| 50 | 931052-00 | 1 | RING | AE | |
||
| 51 | 930940-00 | 1 | RING | AE | |
||
| 52 | 330003-11 | 1 | BEARING | AE | |
||
| 53 | 949729-02 | 1 | CIRCLIP | AE | |
||
| 54 | 932309-00 | 2 | WASHER | AE | |
||
| 55 | 930073-00 | 1 | SPACER | AE | |
||
| 56 | 577745-00 | 1 | BEARING | AE | |
||
| 57 | 930126 | 1 | SUPPORT | AE | |
||
| 58 | 934409-00 | 1 | SLEEVE | AE | |
||
| 59 | 930072-00 | 1 | BAFFLE | AE | |
||
| 60 | 930246-00 | 2 | SCREW | AE | |
||
| 61 | 761035-00 | 2 | WASHER | AE | |
||
| 62 | 949876-08 | 2 | WASHER | AE | |
||
| 64 | 930070 | 1 | SUPPORT | AE | |
||
| 65 | 930085 | 2 | SCREW | AE | |||
| 66 | 932449 | 3 | SCREW | AE | |||
| 67 | 932442 | 1 | ELECTRONIC SA | AE | |
||
| 68 | 931254-00 | 2 | SCREW | AE | |
||
| 69 | 932433 | 1 | PLATE | AE | |
||
| 71 | 932431 | 1 | BUTTON | AE | |
||
| 72 | 932443 | 1 | CAP SA | AE | |
||
| 73 | 930251-00 | 6 | SCREW | AE | |
||
| 74 | 932306 | 2 | COVER BRUSH | AE | |
||
| 75 | 930242-00 | 2 | SCREW | AE | |
||
| 76 | 930269-00 | 2 | BASEPLATE SA | AE | |
||
| 77 | 930099-00 | 2 | SPRING | AE | |
||
| 78 | 932307-00 | 2 | BLOCK | AE | |
||
| 79 | 932320-00 | 1 | PLATE | AE | |
||
| 80 | 932430 | 1 | SCREW | AE | |
||
| 81 | 932406-00 | 1 | PIN | AE | |
||
| 82 | 932450 | 1 | RIVET | AE | |||
| 83 | 932499 | 1 | ROLLER | AE | |
||
| 84 | 932268-00 | 1 | RING | AE | |
||
| 85 | 932405-00 | 1 | ROLLER | AE | |
||
| 86 | 932445 | 1 | SPRING | AE | |
||
| 87 | 932439 | 1 | SWITCH | AE | |||
| 89 | 932403-00 | 1 | SWITCH REVERSE | AE | |
||
| 90 | 932402 | 1 | COVER | AE | |
||
| 91 | 935609 | 1 | HANDLE SA | AE | |||
| 92 | 930331-00 | 1 | RING | AE | |
||
| 93 | 932446 | 1 | SWITCH | AE | |
||
| 96 | 930330-00 | 1 | PLUG | AE | |
