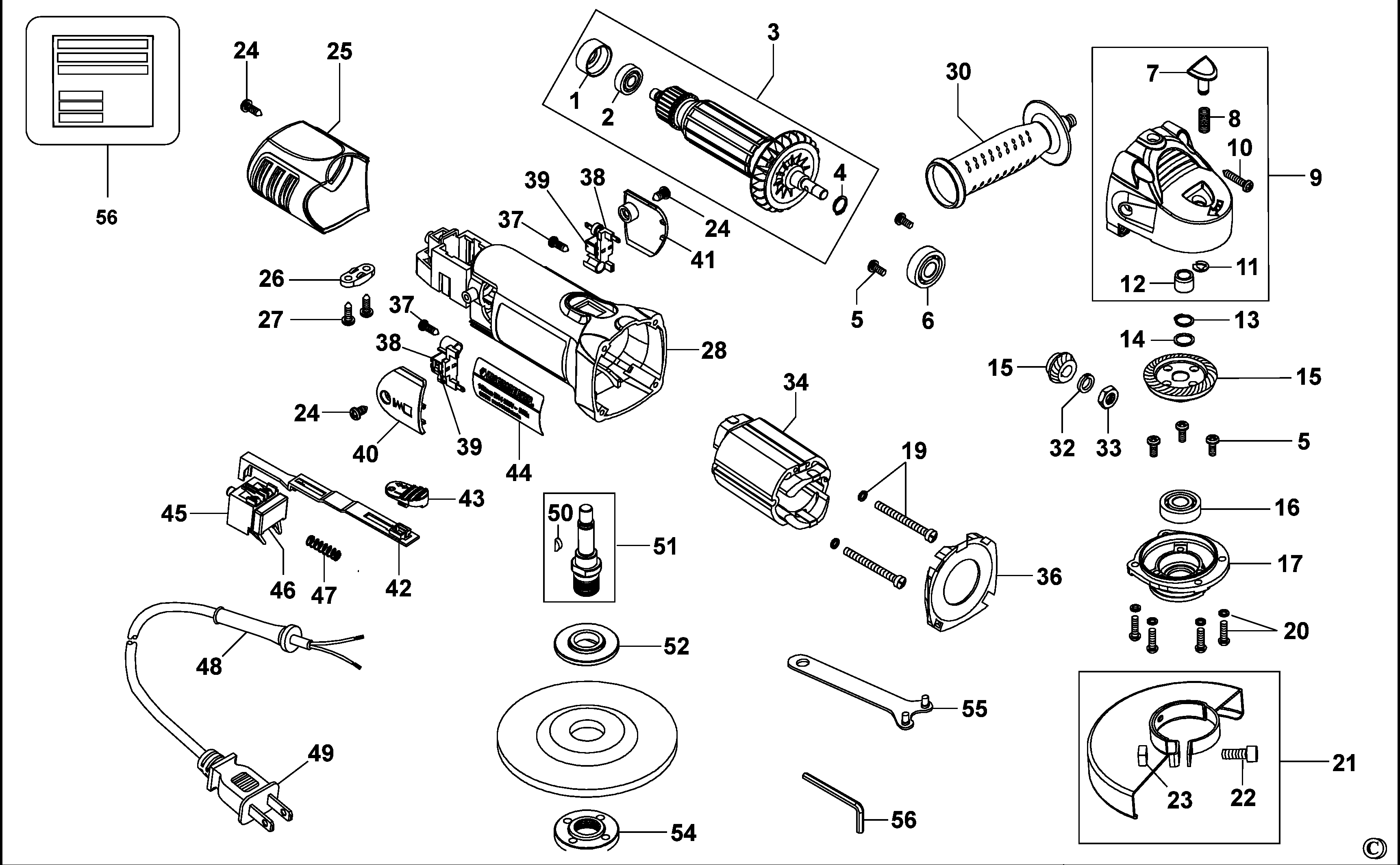

STEL810 SMALL ANGLE GRINDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004438-00 | 1 | BEARING SET | B1 | |||
| 2 | 1004438-01 | 1 | BEARING | 75 x 19 x 6 | B1 | ||
| 3 | 1004479-07 | 1 | ARMATURE KIT 220 | B1 | |||
| 4 | 1004438-04 | 1 | RING | Ø 9mm | B1 | ||
| 5 | 1004438-05 | 5 | SCREW | M4 x 10mm | B1 | ||
| 6 | 1004438-06 | 1 | BEARING | 26 x 10 x 8 | B1 | ||
| 7 | 1004438-07 | 1 | PIN | B1 | |||
| 8 | 1004438-08 | 1 | SPRING | B1 | |||
| 9 | 1004438-09 | 1 | GEARBOX SA | B1 |  |
||
| 10 | 1004438-10 | 4 | SCREW | ST4.2X22 | B1 | ||
| 11 | 1004438-11 | 1 | RING | Ø 5mm | B1 | ||
| 12 | 1004438-12 | 1 | BEARING | B1 | |||
| 13 | 1004438-13 | 1 | RING | Ø 10mm | B1 | ||
| 14 | 1004438-14 | 1 | WASHER SPRING | Ø 10mm | B1 | ||
| 15 | 1004479-06 | 1 | GEAR & PINION | B1 | |||
| 16 | 1004438-16 | 1 | BEARING | 12 x 32 x 10mm | B1 | ||
| 17 | 1004438-17 | 1 | GEARCASE COVER | B1 | |
||
| 19 | 1004438-19 | 2 | SCREW | B1 | |||
| 20 | 1004438-20 | 4 | SCREW | M4 x 12mm | B1 | ||
| 21 | 1004438-21 | 1 | GUARD | B1 | |||
| 22 | 1004438-22 | 1 | SCREW | M6 x 16mm | B1 | ||
| 23 | 1004438-23 | 1 | NUT | M6 | B1 | ||
| 24 | 1004438-24 | 3 | SCREW | ST4.2X9.5 | B1 | ||
| 25 | 1004438-71 | 1 | END CAP | B1 | |||
| 26 | 1004438-26 | 1 | CORD CLAMP | B1 | |||
| 27 | 1004438-28 | 2 | SCREW | ST4.2X13 | B1 | ||
| 28 | 5170006-81 | 1 | HOUSING | B1 | |||
| 30 | 1004479-10 | 1 | SIDE HANDLE | B1 | |||
| 32 | 1004438-33 | 1 | WASHER SPRING | B1 | |||
| 33 | 1004438-34 | 1 | NUT | M6 | B1 | ||
| 34 | 1004438-35 | 1 | STATOR | 220V | B1 | |
|
| 36 | 1004438-37 | 1 | BAFFLE FAN | B1 | |
||
| 37 | 1004438-38 | 2 | SCREW | ST2.9X13 | B1 | ||
| 38 | 1004438-39 | 2 | BRUSH HOLDER | B1 | |
||
| 39 | 1004438-40 | 1 | BRUSH PAIR 230V | B1 | |
||
| 40 | 1004438-73 | 1 | BRUSH COVER | RH | B1 | ||
| 41 | 1004438-74 | 1 | BRUSH COVER | LH | B1 | ||
| 42 | 1004438-44 | 1 | TRIGGER | B1 | |
||
| 43 | 5170006-82 | 1 | BUTTON | B1 | |||
| 44 | 5170006-84 | 1 | RATING PLATE | B1 | |||
| 45 | 1004438-51 | 1 | SWITCH | B1 | |||
| 46 | 1004438-53 | 1 | PAD | B1 | |||
| 47 | 1004438-54 | 1 | SPRING | B1 | |||
| 48 | 1004438-55 | 1 | CORD PROTECTOR | B1 | |
||
| 49 | 1004438-58 | 1 | CORDSET | B1 | |||
| 50 | 1004438-62 | 1 | WOODRUFF KEY | B1 | |
||
| 51 | 1004438-63 | 1 | SPINDLE | B1 | |
||
| 52 | 1004438-64 | 1 | INNER FLANGE | B1 | |||
| 54 | 1004438-67 | 1 | OUTER FLANGE | 16mm | B1 | ||
| 55 | 1004438-69 | 1 | SPANNER | B1 |
