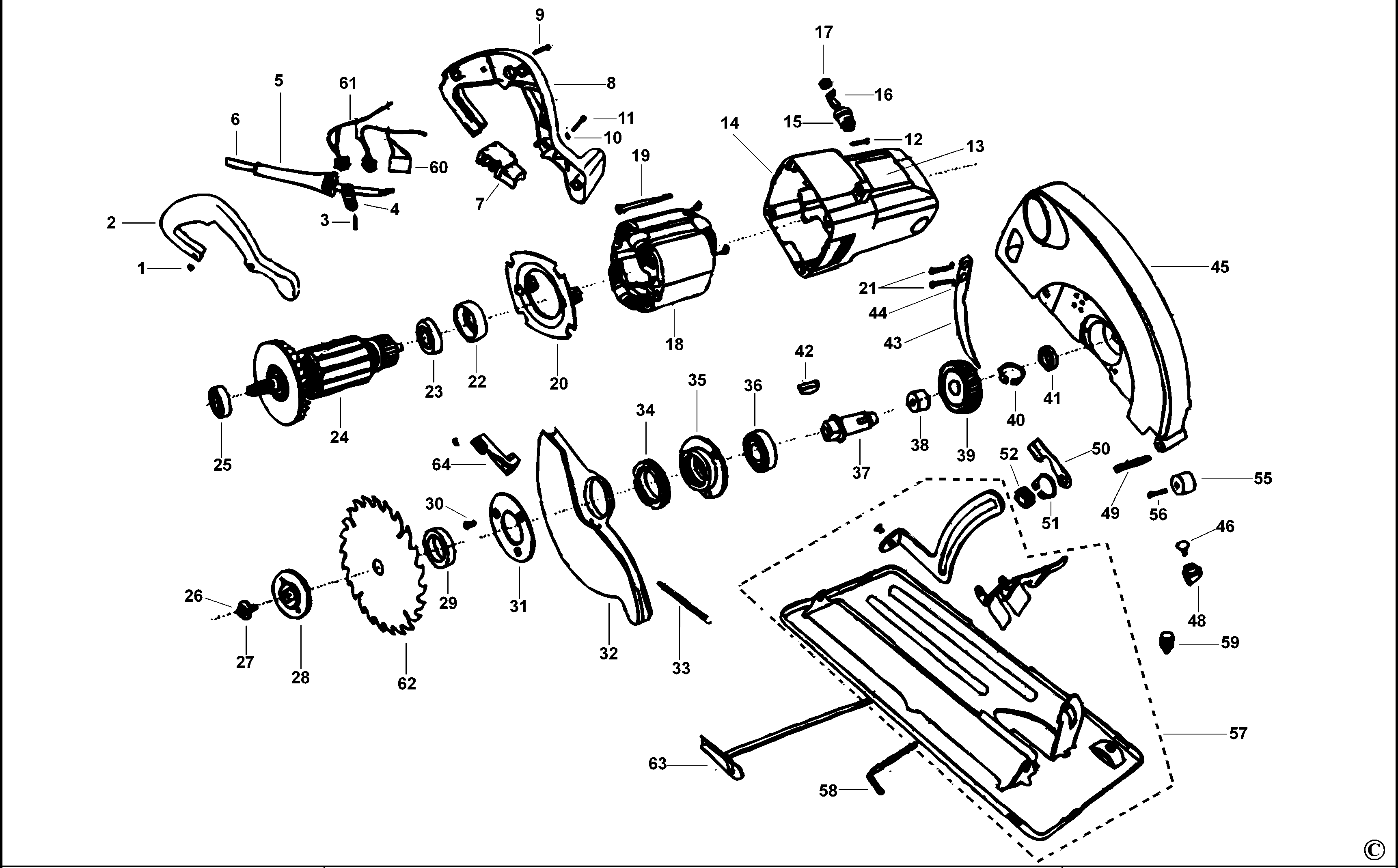

CS714 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010117-01 | 1 | NUT | 763-201 | B5 |  |
|
| 2 | 6010117-02 | 1 | HANDLE HALF | 763941 | B5 | |
|
| 3 | 6010117-03 | 1 | SCREW | 763-202 | B5 | |
|
| 4 | 6010117-04 | 1 | CORD CLAMP | 763-203 | B5 | |
|
| 5 | 6010117-05 | 1 | PROTECTOR | 763944 | B5 | |
|
| 6 | 6010117-06 | 1 | CORDSET | 763945 | B5 | |
|
| 7 | 6010117-07 | 1 | SWITCH | 763-204 | B5 | |
|
| 8 | 6010117-08 | 1 | HANDLE HALF | 763947 | B5 | |
|
| 9 | 6010117-09 | 1 | SCREW | 763-205 | B5 | |
|
| 10 | 6010117-10 | 1 | NUT | 763-206 | B5 | |
|
| 11 | 6010117-11 | 1 | SCREW | 763950 | B5 | |
|
| 12 | 6010117-12 | 1 | SCREW | 763951 | B5 | |
|
| 13 | 6010117-13 | 1 | RATING PLATE | DECAL (RATING) | 763952 | B5 | |
| 14 | 6010117-14 | 1 | FIELDCASE | 763953 | B5 | |
|
| 15 | 6010117-15 | 2 | HOLDER | BRUSH | 763954 | B5 | |
| 16 | 6010117-16 | 2 | BRUSH | 763955 | B5 | |
|
| 17 | 6010117-17 | 2 | BRUSH CAP | CAP (BRUSH) | 763956 | B5 | |
| 18 | 6010117-18 | 1 | FIELD | 763957 | B5 | |
|
| 19 | 6010117-19 | 1 | SCREW | 763958 | B5 | |
|
| 20 | 6010117-20 | 1 | BAFFLE | 763959 | B5 | |
|
| 22 | 6010117-22 | 1 | SLEEVE BEARING | 763961 | B5 | |
|
| 23 | 6010117-23 | 1 | SPACER | 763962 | B5 | |
|
| 24 | 6010117-24 | 1 | ARMATURE | 763963 | B5 | |
|
| 25 | 577745-00 | 1 | BEARING | B5 | |
||
| 26 | 6010117-26 | 1 | SCREW | 763965 | B5 | |
|
| 27 | 6010117-27 | 1 | WASHER | 763966 | B5 | |
|
| 28 | 6010117-28 | 1 | OUTER FLANGE | 763967 | B5 | |
|
| 29 | 6010117-29 | 1 | INNER FLANGE | 763968 | B5 | |
|
| 30 | 6010117-30 | 1 | SCREW | 763969 | B5 | |
|
| 31 | 6010117-31 | 1 | PLATE | 763970 | B5 | |
|
| 32 | 6010117-32 | 1 | GUARD | 763971 | B5 | |
|
| 33 | 6010117-33 | 1 | SPRING | 763972 | B5 | |
|
| 34 | 6010117-34 | 1 | RING | 763973 | B5 | |
|
| 35 | 6010117-35 | 1 | GEARCASE COVER | 763974 | B5 | |
|
| 36 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | B5 |  |
|
| 37 | 6010117-37 | 1 | SPINDLE | 763976 | B5 | |
|
| 38 | 6010117-38 | 1 | SLEEVE | 763977 | B5 | |
|
| 39 | 6010117-39 | 1 | GEAR | 763978 | B5 | |
|
| 40 | 6010117-40 | 1 | CIRCLIP | 763979 | B5 | |
|
| 41 | 6010117-41 | 1 | BEARING | NEEDLE | 763980 | B5 | |
| 42 | 6010117-42 | 1 | KEY | WOODRUFF | 763981 | B5 | |
| 45 | 6010117-45 | 1 | GEARCASE SA | 763984 | B5 | |
|
| 46 | 6010117-46 | 1 | SCREW | 763985 | B5 | |
|
| 48 | 6010117-48 | 1 | NUT | WING | 763987 | B5 | |
| 49 | 6010117-49 | 1 | PIN | PIVOT PIN | 763988 | B5 | |
| 50 | 6010117-50 | 1 | LOCKING KNOB | 763989 | B5 | |
|
| 51 | 6010117-51 | 1 | WASHER | 763990 | B5 | |
|
| 52 | 6010117-52 | 1 | NUT | 763991 | B5 | |
|
| 55 | 6010117-55 | 1 | BUMPER | RUBBER BUMPER | 763994 | B5 | |
| 56 | 6010117-56 | 1 | NUT | NUT FOR BUMPER | 763-207 | B5 | |
| 57 | 6010117-57 | 1 | SHOE SA | 763995 | B5 | |
|
| 58 | 6010117-58 | 1 | WRENCH | 763997 | B5 | |
|
| 59 | 6010117-59 | 1 | SCREW | WING | 763998 | B5 | |
| 60 | 6010117-60 | 1 | CAPACITOR | 763999 | B5 | |
|
| 61 | 6010117-61 | 1 | SPARE PART | TERROID | 764000 | B5 | |
| 62 | 6010117-62 | 1 | BLADE | 763-208 | B5 | |
|
| 63 | 6010117-63 | 1 | FENCE | RIP | 763996 | B5 | |
