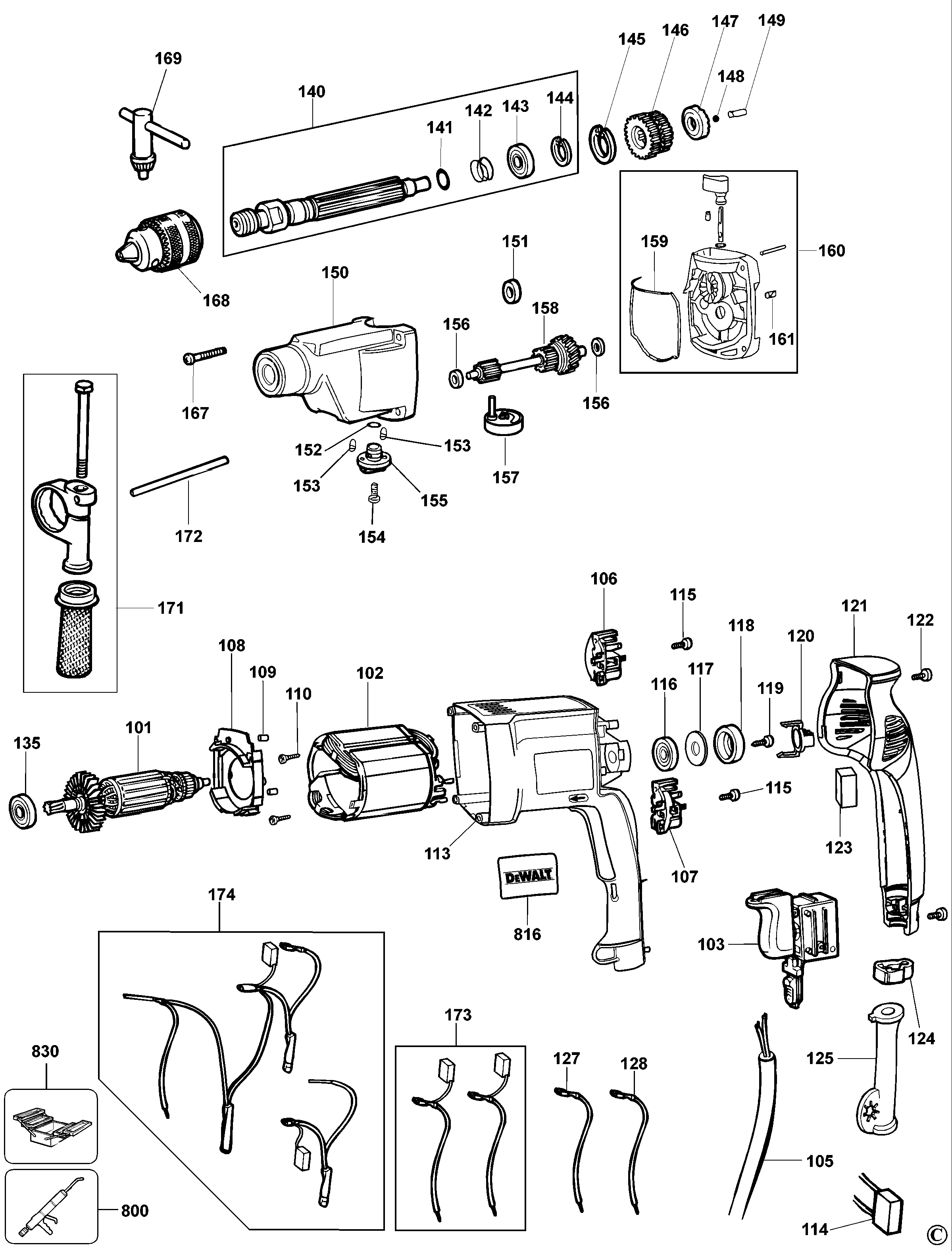

DW518 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 327471-02 | 1 | ARMATURE 230V | Upto date code 02-01 | XD |  |
|
| 101 | 327471-06 | 1 | ARMATURE 230V | From date code 03-01 | XD | |
|
| 102 | 328961-17 | 1 | FIELD 230V | Upto date code 02-01 | XD |  |
|
| 102 | 328961-16 | 1 | FIELD 230V | From date code 03-01 | XD | |
|
| 103 | 176830-13 | 1 | SWITCH SA | XD | |
||
| 105 | 330060-65 | 1 | CORDSET | XD | |
||
| 106 | 401878-00 | 1 | BRUSH HOLDER SA | XD | |
||
| 107 | 401877-00 | 1 | BRUSH HOLDER SA | XD | |
||
| 108 | 327293-00 | 1 | BAFFLE FAN | XD | |
||
| 109 | 949638-01 | 2 | BUFFER | XD | |
||
| 110 | 747329 | 4 | SCREW | XD | |
||
| 113 | 327290-05 | 1 | HOUSING SA | Yellow | XD | |
|
| 115 | 330065-06 | 2 | SCREW | XD | |
||
| 116 | 330003-19 | 1 | BEARING | XD | |
||
| 117 | 949876-25 | 1 | WASHER | XD | |
||
| 118 | 870052 | 1 | SLEEVE | XD | |
||
| 119 | 329794-00 | 1 | SCREW | XD | |
||
| 120 | 327296-00 | 1 | CAP | XD | |
||
| 121 | 327297-01 | 1 | SWITCH COVER | XD | |
||
| 122 | 330065-08 | 3 | SCREW | M4x18 T20 | XD | |
|
| 123 | 930026-01 | 1 | BUMPER | XD | |
||
| 124 | 402648-00 | 1 | CORD CLAMP | XD | |
||
| 125 | 401751-00 | 1 | CORD PROTECTOR | XD | |
||
| 127 | 949801-70 | 1 | LEAD BLUE | XD | |
||
| 128 | 573310-00 | 1 | LEAD SA | From date code 03-01 | XD | |
|
| 135 | 605040-05 | 1 | BEARING | XD | |
||
| 140 | 327313-02 | 1 | SPINDLE SA | XD | |
||
| 141 | 930028-00 | 1 | O RING | XD | |
||
| 142 | 931890 | 1 | SPRING | XD | |
||
| 143 | 605040-25 | 1 | BEARING,BALL | XD | |
||
| 144 | 944137-00 | 1 | CIRCLIP | XD | |
||
| 145 | 931398 | 1 | RING | XD | |
||
| 146 | 1008288-00 | 1 | GEAR | XD | |
||
| 147 | 945706-00 | 1 | RATCHET | XD | |
||
| 148 | 917725 | 1 | BALL | 3.5mm | XD | |
|
| 149 | 330041-25 | 1 | PIN | XD | |
||
| 150 | 327311-00 | 1 | GEARCASE SA | XD | |
||
| 151 | 1006305-00 | 1 | SEAL | XD | |
||
| 152 | 323711-34 | 1 | O RING | XD | |
||
| 153 | 326467-00 | 2 | DETENT | XD | |
||
| 154 | 330065-22 | 1 | SCREW | XD | |
||
| 155 | 327309-01 | 1 | KNOB | XD | |
||
| 156 | 930102-00 | 2 | WASHER | XD | |
||
| 157 | 327314-00 | 1 | ACTUATOR | XD | |
||
| 158 | 577850-01 | 1 | INTERSHAFT SA | XD | |
||
| 159 | 327291-00 | 1 | SEAL | XD | |
||
| 160 | 583999-00 | 1 | GEARCASE COVER SA | XD | |
||
| 161 | 916010 | 1 | BUMPER | XD | |
||
| 167 | 580095-00 | 4 | SCREW | XD | |
||
| 168 | 930837 | 1 | CHUCK | XD | |
||
| 169 | 932850 | 1 | CHUCK KEY | XD | |
||
| 171 | 939794-02 | 1 | HANDLE SIDE SA | XD | |
||
| 172 | 580787-00 | 1 | DEPTH STOP | XD | |
||
| 173 | 329604-02 | 1 | BRUSH PAIR 230V SA | From date code 03-01 | XD | |
|
| 174 | 329604-04 | 1 | BRUSH PAIR 230V SA | Upto date code 02-01 | XD | |
|
| 800 | 870889-02 | 1 | GREASE | XD | |
||
| 816 | 395047-00 | 1 | BRAND LABEL | XD | |
||
| 830 | 559596-99 | 1 | S.T.PULLER | XD | |
