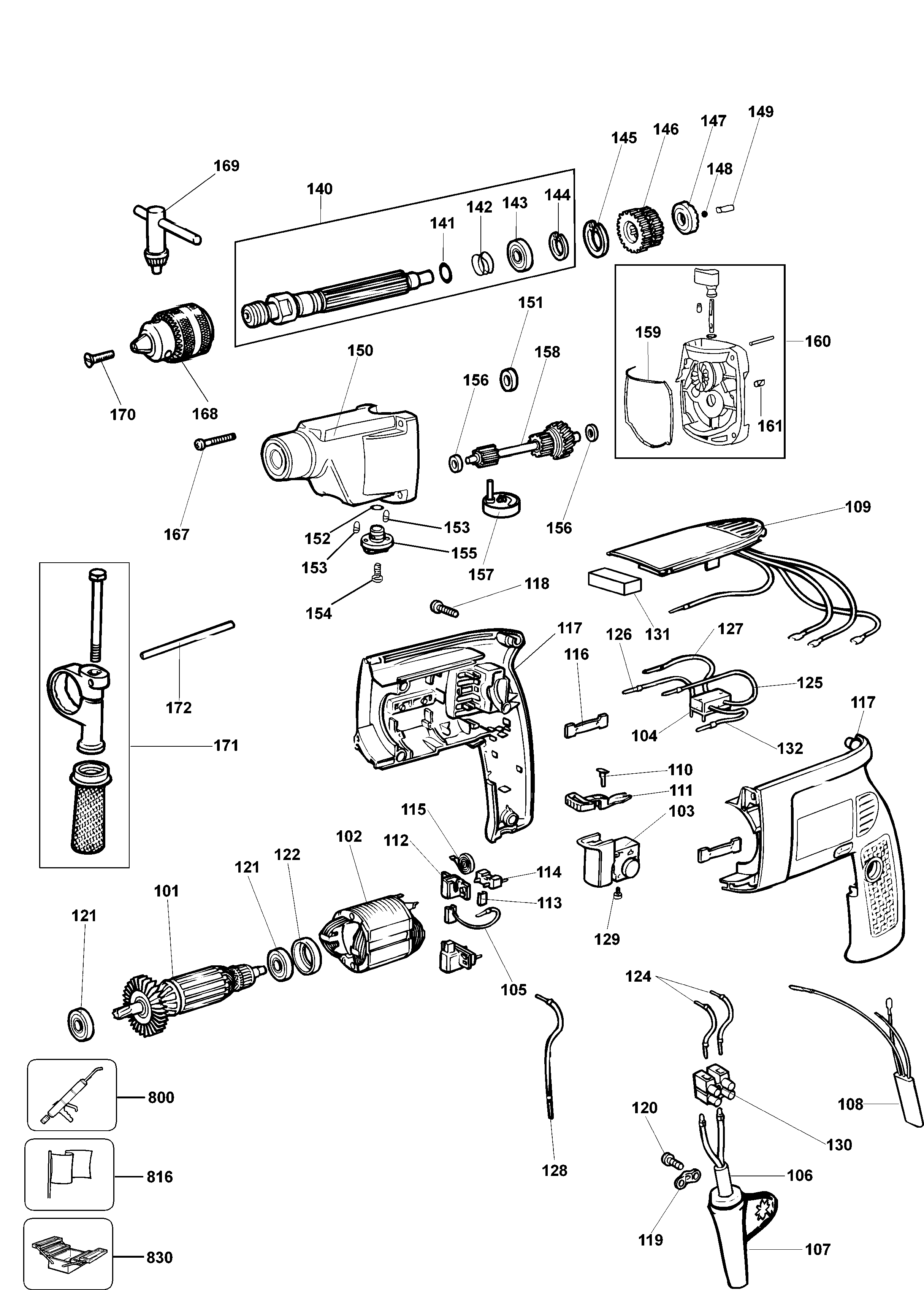

DW158 DRILL Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 326152-00 | 1 | ARMATURE | B1 |  |
||
| 102 | 323983-02 | 1 | FIELD | B1 | |
||
| 103 | 324556-49 | 1 | SWITCH | B1 | |
||
| 104 | 324400-00 | 1 | SWITCH REVERSE | B1 | |
||
| 105 | 323660-04 | 2 | BRUSH | B1 | |
||
| 106 | 330080-26 | 1 | CORDSET | B1 | |
||
| 107 | 320785 | 1 | CORD PROTECTOR | B1 | |
||
| 109 | 324486-17 | 1 | ELECTRONIC 240V | B1 | |
||
| 110 | 324165-04 | 1 | INSERT | B1 | |
||
| 111 | 323490-08 | 1 | LEVER | B1 | |
||
| 112 | 323496-02 | 2 | BRUSH HOLDER | B1 | |
||
| 113 | 326226-00 | 4 | DAMPER | B1 | |
||
| 114 | 491366-00 | 2 | BRUSH KIT | B1 | |
||
| 115 | 872843 | 2 | SPRING | B1 | |
||
| 116 | 917713 | 2 | BLOCK | B1 | |
||
| 117 | 328874-01 | 1 | CLAMSHELL PAIR | B1 | |
||
| 118 | 323924-02 | 5 | SCREW | B1 | |
||
| 119 | 821070 | 1 | CORD CLAMP | B1 |  |
||
| 120 | 323924-08 | 2 | SCREW | B1 | |||
| 121 | 605040-63 | 2 | BEARING | B1 | |
||
| 122 | 323481-00 | 1 | CAP | B1 | |
||
| 124 | 323635-10 | 2 | LEAD 70MM | B1 | |
||
| 125 | 323768-02 | 1 | LEAD 120MM BLACK | B1 | |
||
| 126 | 877356 | 1 | LEAD 90MM BLACK | B1 | |
||
| 127 | 323768-03 | 1 | LEAD 75MM BLACK | B1 | |
||
| 127 | 323768-03 | 1 | LEAD 75MM BLACK | B1 | |
||
| 128 | 878756 | 1 | LEAD 200MM BLACK | B1 | |
||
| 129 | 911026 | 3 | SCREW | B1 | |
||
| 130 | 323534-00 | 1 | CONNECTOR | B1 | |||
| 131 | 326793-04 | 1 | PAD | B1 | |
||
| 132 | 323768-02 | 1 | LEAD 120MM BLACK | B1 | |
||
| 140 | 327313-02 | 1 | SPINDLE SA | B1 | |
||
| 141 | 930028-00 | 1 | O RING | B1 | |
||
| 142 | 931890 | 1 | SPRING | B1 | |
||
| 143 | 605040-25 | 1 | BEARING,BALL | B1 | |
||
| 144 | 944137-00 | 1 | CIRCLIP | B1 | |
||
| 145 | 931398 | 1 | RING | B1 | |
||
| 146 | 1008288-00 | 1 | GEAR | B1 | |
||
| 147 | 945706-00 | 1 | RATCHET | B1 | |
||
| 148 | 917725 | 1 | BALL | 3.5mm | B1 | |
|
| 149 | 330041-25 | 1 | PIN | B1 | |
||
| 150 | 327311-00 | 1 | GEARCASE SA | B1 | |
||
| 151 | 1006305-00 | 1 | SEAL | B1 | |
||
| 152 | 323711-34 | 1 | O RING | B1 | |
||
| 153 | 326467-00 | 2 | DETENT | B1 | |
||
| 154 | 330065-22 | 1 | SCREW | B1 | |
||
| 155 | 327309-01 | 1 | KNOB | B1 | |
||
| 156 | 930102-00 | 2 | WASHER | B1 | |
||
| 157 | 327314-00 | 1 | ACTUATOR | B1 | |
||
| 158 | 577850-01 | 1 | INTERSHAFT SA | B1 | |
||
| 159 | 327291-00 | 1 | SEAL | B1 | |
||
| 160 | 583999-01 | 1 | GEARCASE COVER SA | B1 | |
||
| 161 | 916010 | 1 | BUMPER | B1 | |
||
| 167 | 580095-00 | 4 | SCREW | B1 | |
||
| 168 | 5140071-68 | 1 | CHUCK 13MM | B1 | |
||
| 169 | 330034-07 | 1 | CHUCK KEY | B1 | |
||
| 170 | 575237-00 | 1 | SCREW | B1 | |
||
| 171 | 939794-02 | 1 | HANDLE SIDE SA | B1 | |
||
| 172 | 580787-00 | 1 | DEPTH STOP | B1 | |
||
| 800 | 870889-02 | 1 | GREASE | B1 | |
||
| 816 | 325559-00 | 1 | BRAND LABEL | B1 | |
||
| 830 | 559596-99 | 1 | S.T.PULLER | B1 | |
