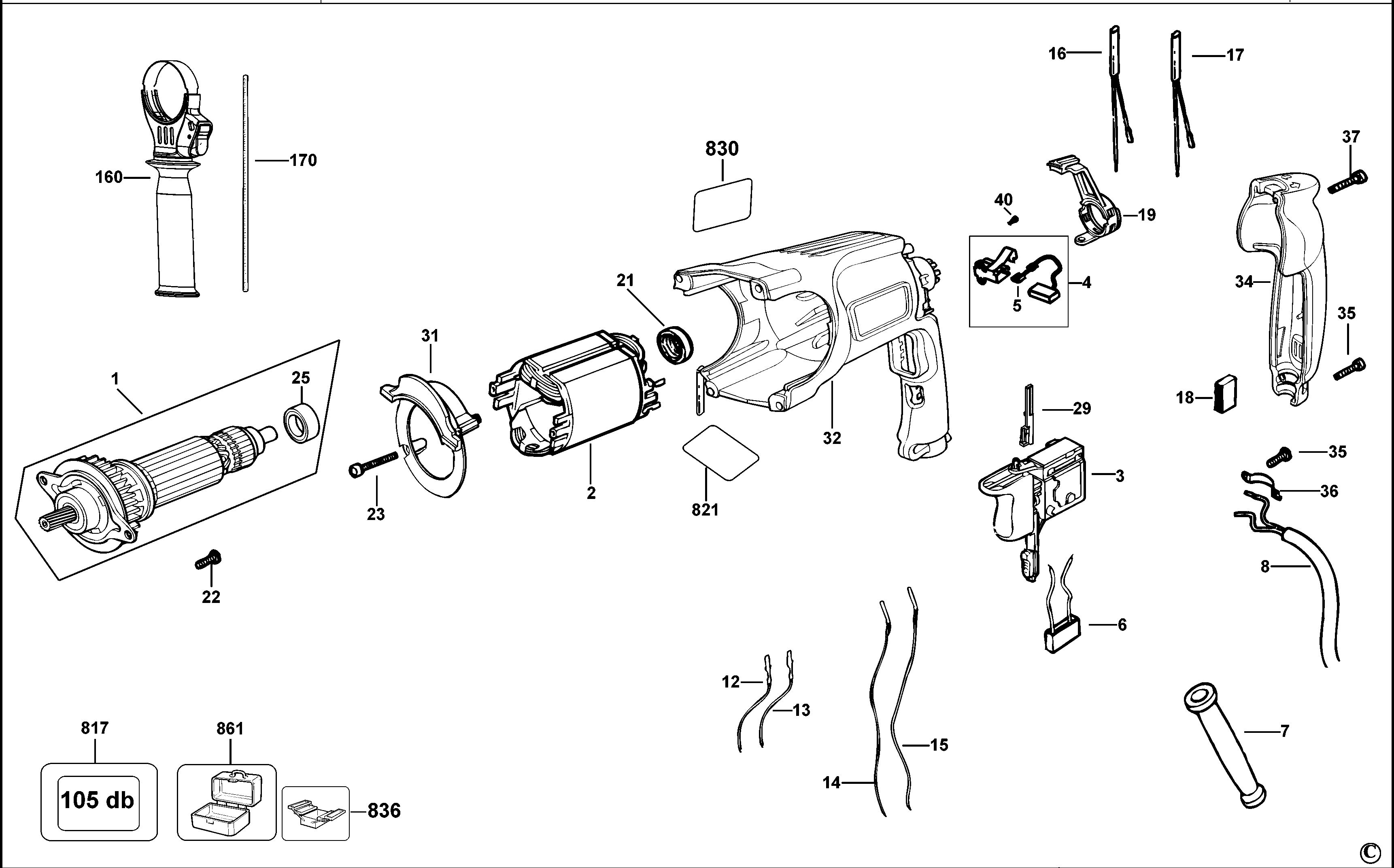

D25124K ROTARY HAMMER Type 10 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N081737 | 1 | ARMATURE 230V | B5 |  |
||
| 2 | N081739 | 1 | FIELD 230V | B5 |  |
||
| 3 | 583748-09 | 1 | SWITCH | B5 | |
||
| 4 | N028619 | 2 | BRUSH HOLDER SA | B5 | |
||
| 5 | N058083 | 1 | BRUSH PAIR 230V | 230V | B5 | |
|
| 6 | 320842-19 | 1 | CAPACITOR | B5 | |
||
| 7 | 403395-00 | 1 | CORD PROTECTOR | B5 | |
||
| 8 | 582319-32 | 1 | CORDSET | B5 | |
||
| 12 | 584304-00 | 1 | LEAD WHITE | B5 | |
||
| 13 | 584304-10 | 1 | LEAD BLUE | B5 | |
||
| 14 | 584304-04 | 1 | LEAD BLACK | B5 | |
||
| 15 | 584304-05 | 1 | LEAD VIOLET | B5 | |
||
| 16 | 584304-02 | 1 | CHOKE LEAD RED | B5 | |
||
| 17 | 584304-03 | 1 | CHOKE LEAD | B5 | |
||
| 18 | 930026-01 | 1 | BUMPER | B5 | |
||
| 19 | 479818-00 | 1 | LEVER | B5 | |
||
| 21 | 870052 | 1 | SLEEVE | B5 | |
||
| 22 | 324006-14 | 2 | SCREW | B5 | |
||
| 23 | 326519-05 | 4 | SCREW | B5 | |
||
| 25 | 1005895-00 | 1 | BEARING | B5 | |
||
| 29 | 584551-00 | 1 | INSERT | B5 | |
||
| 31 | 577826-00 | 1 | BAFFLE FAN | B5 | |
||
| 32 | 577810-03 | 1 | FIELDCASE | B5 | |
||
| 34 | 479817-00 | 1 | HANDLE COVER | B5 | |
||
| 35 | 330065-06 | 4 | SCREW | B5 | |
||
| 36 | 821070 | 1 | CORD CLAMP | B5 | |
||
| 37 | 330065-09 | 1 | SCREW | B5 | |
||
| 40 | 330065-25 | 2 | SCREW | B5 | |
||
| 50 | N076098 | 1 | INTERSHAFT SA | B5 | |
||
| 52 | N029727 | 1 | PLATE | B5 | |
||
| 53 | N042799 | 1 | SPRING | B5 | |
||
| 55 | N093371 | 1 | LEVER SA | Inc 55 + 56 | B5 | |
|
| 56 | N093371 | 1 | LEVER SA | Inc 55 + 56 | B5 | |
|
| 57 | 330065-05 | 1 | SCREW | B5 | |
||
| 58 | N034136 | 1 | LOCK BUTTON | B5 | |
||
| 59 | N074923 | 1 | SPRING | B5 | |
||
| 60 | 1005811-00 | 1 | SEAL | B5 | |
||
| 61 | N034134 | 1 | COVER | B5 | |
||
| 62 | 324006-14 | 2 | SCREW | B5 | |
||
| 63 | 581836-00 | 1 | LOCKING RING | B5 | |
||
| 64 | N081742 | 1 | RING | B5 | |
||
| 65 | N081984 | 1 | GEAR | B5 | |
||
| 66 | N029717 | 1 | SPRING | B5 | |
||
| 67 | 577814-00 | 1 | WASHER | B5 | |
||
| 68 | N081515 | 1 | FELT | B5 | |
||
| 70 | N081983 | 1 | HOUSING SA | B5 | |
||
| 72 | 578229-00 | 1 | SEAL | B5 | |
||
| 73 | 577801-00 | 1 | BEARING BLOCK | B5 | |
||
| 74 | N074454 | 1 | WASHER | B5 | |
||
| 75 | N081750 | 1 | PISTON | B5 | |
||
| 76 | 579699-00 | 1 | O RING | B5 | |
||
| 77 | N081751 | 1 | RAM SA | B5 | |
||
| 78 | N029731 | 1 | BEARING BUSH | B5 | |
||
| 79 | 324006-15 | 3 | SCREW | B5 | |
||
| 80 | N038257 | 1 | FELT | B5 | |
||
| 81 | N042496 | 1 | O RING | B5 | |
||
| 90 | 577793-00 | 1 | CLIP | B5 | |
||
| 91 | N082141 | 1 | BUSH | B5 | |
||
| 92 | 580990-00 | 1 | O RING | B5 | |
||
| 93 | 577135-00 | 2 | O RING | B5 | |
||
| 94 | N082144 | 1 | DAMPER | B5 | |||
| 95 | N403105 | 1 | BEAT PIECE | B5 | |
||
| 96 | N403107 | 1 | BEARING & SEAL | B5 | |
||
| 97 | 577139-00 | 1 | SEAL | B5 | |
||
| 100 | N093350 | 1 | LEVER KIT | B5 | |
||
| 101 | 1005844-00 | 1 | WASHER | B5 | |
||
| 103 | N029726 | 1 | PINION GEAR | B5 | |||
| 104 | N029725 | 1 | COLLAR | B5 | |||
| 105 | 329794-00 | 1 | SCREW | B5 | |
||
| 110 | N059509 | 1 | WASHER | B5 | |
||
| 114 | N403108 | 1 | SPINDLE SA | B5 | |
||
| 115 | 577814-00 | 1 | WASHER | B5 | |
||
| 116 | N082143 | 1 | BEARING NEEDLE | B5 | |||
| 117 | 577812-00 | 1 | SEAL | B5 | |
||
| 118 | N402303 | 1 | GEARCASE SA | B5 | |
||
| 119 | 577795-00 | 1 | RING | B5 | |
||
| 121 | 330019-81 | 4 | SCREW | B5 | |
||
| 130 | N416335 | 1 | SPINDLE | B5 | |
||
| 131 | N403110 | 1 | SPINDLE LOCK | B5 | |
||
| 132 | 871690 | 1 | SPRING | B5 | |
||
| 133 | 578387-00 | 1 | WASHER | B5 | |
||
| 134 | 583890-00 | 5 | BALL | B5 | |
||
| 135 | N850185 | 1 | TUBE | B5 | |
||
| 136 | 323489-00 | 1 | CAP | B5 | |
||
| 137 | 579212-00 | 2 | RING | B5 | |
||
| 138 | 579212-00 | 1 | RING | B5 | |
||
| 140 | N403111 | 1 | HOLDER TOOL | B5 | |
||
| 145 | N403112 | 1 | SPINDLE | B5 | |
||
| 146 | N403284 | 1 | SPINDLE SA | B5 | |
||
| 147 | 582512-02 | 1 | CHUCK KEYLESS | B5 | |
||
| 148 | 605256-02 | 1 | SCREW | B5 | |
||
| 150 | N403113 | 1 | CHUCK & SPINDLE SA | B5 | |
||
| 160 | 1008956-00 | 1 | HANDLE SIDE SA | B5 | |
||
| 170 | 495699-00 | 1 | DEPTH STOP | B5 | |
||
| 800 | 870889-02 | 1 | GREASE | B5 | |
||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | B5 | |
|
| 817 | 496620-00 | 1 | LABEL | B5 | |||
| 821 | N381850 | 1 | RATING PLATE | B5 | B5 | |
|
| 830 | N074584 | 2 | BRAND LABEL | B5 | |||
| 836 | 596005-99 | 1 | S.T.CIRCLIP REMOVER | B5 | |
||
| 836 | 1003924-99 | 1 | S.T.CIRCLIP REMOVER | B5 | |
||
| 836 | 559662-99 | 1 | S.T.CHUCK REMOVAL JIG | B5 | |
||
| 836 | 1003925-99 | 1 | S.T.CIRCLIP INSERTER | B5 | |
||
| 836 | 1003926-99 | 1 | S.T.INSERT | B5 | |
||
| 846 | N093352 | 1 | SERVICE KIT 230V | B5 | |
||
| 861 | 577646-07 | 1 | KITBOX | B5 |
