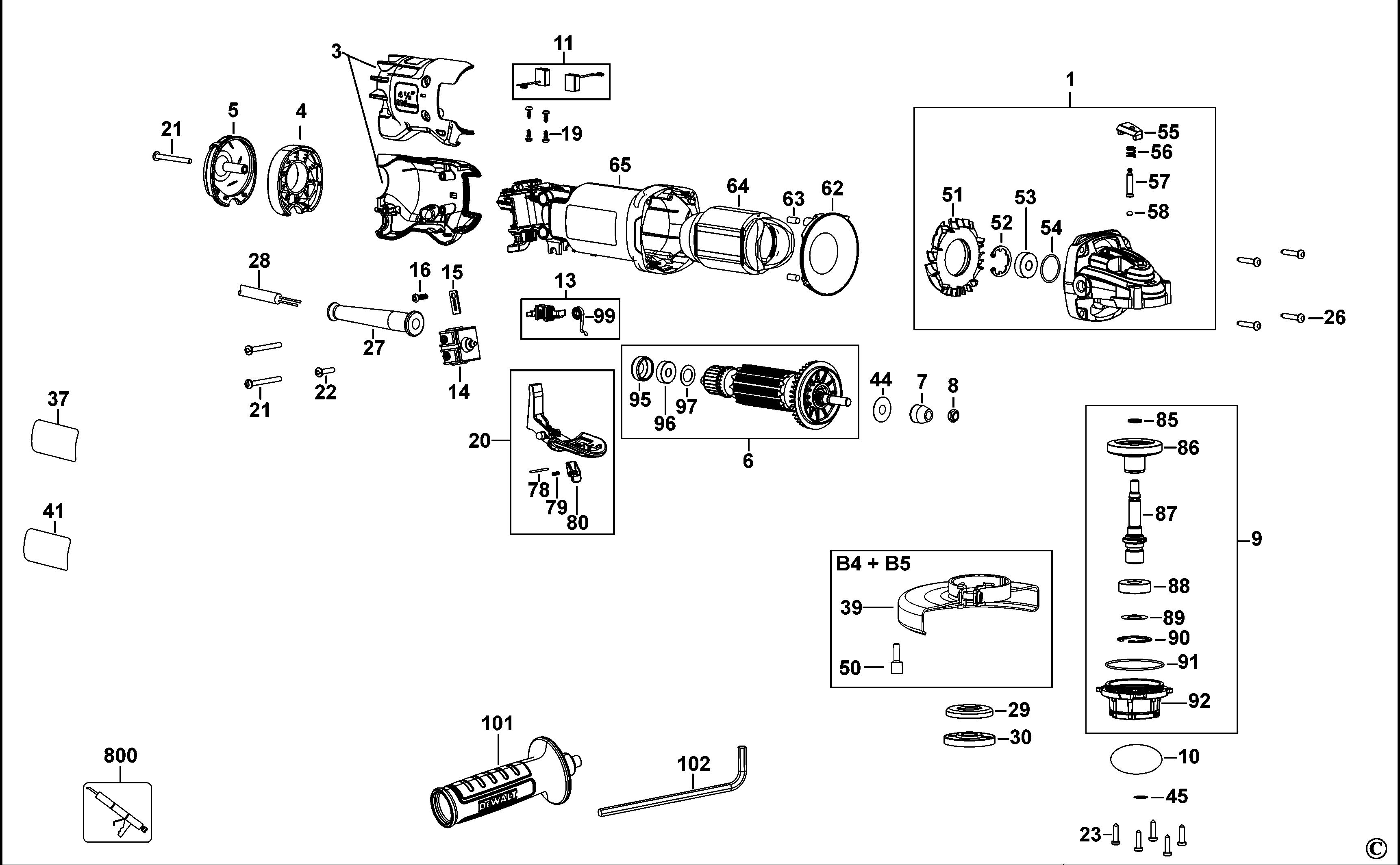

DWE4212 SMALL ANGLE GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N483617 | 1 | GEARCASE SA | B4 |  |
||
| 3 | N419584 | 1 | HANDLE SA | B4 |  |
||
| 4 | N563707 | 1 | DUST PORT | B4 | |
||
| 5 | N400902 | 1 | END CAP | B4 | |
||
| 6 | N409482 | 1 | ARMATURE 115/120V | 120V PKGD N398315 | B4 | ||
| 7 | N375339 | 1 | PINION | 10T | B4 | |
|
| 8 | N372039 | 1 | NUT | M7 | B4 | |
|
| 9 | N475902 | 1 | GEARCASE COVER SA | B4 | |||
| 10 | N355619 | 1 | O RING | 1.5x34 | B4 | |
|
| 11 | N421361 | 1 | BRUSH PAIR 115V | EURO | B4 | ||
| 13 | N413349 | 2 | BRUSHBOX SA | B4 | |
||
| 14 | N396008 | 1 | SWITCH | B4 | |
||
| 15 | N194291 | 1 | CORD CLAMP | B4 | |
||
| 16 | 330065-06 | 1 | SCREW | B4 | |
||
| 19 | 593478-00 | 4 | SCREW | M3 X 8 | B4 | |
|
| 20 | N413352 | 1 | PADDLE | B4 | |
||
| 21 | N389438 | 3 | SCREW | M4x40 PLSTC THD FMG | B4 | |
|
| 22 | 330065-08 | 1 | SCREW | M4x18 T20 | B4 | |
|
| 23 | 330045-06 | 5 | SCREW | B4 | |
||
| 26 | N371839 | 4 | SCREW | B4 | |
||
| 27 | 401088-03 | 1 | CORD PROTECTOR | B4 | |
||
| 28 | N382232 | 1 | CORDSET | B4 | B4 | |
|
| 29 | 391969-00 | 1 | INNER FLANGE | B4 | |
||
| 30 | N419748 | 1 | OUTER FLANGE | M14 | B4 | |
|
| 37 | N400392 | 1 | BRAND LABEL | B4 | |
||
| 39 | N169018 | 1 | GUARD SA | B4 | |
||
| 41 | N513451 | 1 | RATING PLATE | B4 | B4 | |
|
| 44 | N213812 | 1 | WASHER | B4 | |
||
| 45 | N420261 | 1 | O RING | B4 | |
||
| 50 | N130031 | 1 | SCREW | B4 | |
||
| 51 | N401958 | 1 | DEFLECTOR | B4 | |
||
| 52 | N453031 | 1 | RETAINER | B4 | |
||
| 53 | N175104 | 1 | BEARING | B4 | |
||
| 54 | N119639 | 1 | O RING | B4 | |
||
| 55 | N278899 | 1 | BUTTON | SPINDLE | B4 | |
|
| 56 | N263579 | 1 | SPRING | B4 | |
||
| 57 | N263679 | 1 | SPINDLE LOCK | SPINDLE | B4 | ||
| 57 | N481683 | 1 | LOCK PIN | B4 | |
||
| 58 | N263699 | 1 | O RING | B4 | |
||
| 62 | N265479 | 1 | BAFFLE | B4 | |
||
| 63 | 949638-02 | 2 | DAMPER | B4 | |
||
| 64 | N409483 | 1 | FIELD 115V | 120V / PKG'D N271820 | B4 | ||
| 65 | N369341 | 1 | FIELDCASE | B4 | |
||
| 78 | 099204-14 | 1 | ROLL PIN | B4 | |
||
| 79 | 150264-01 | 1 | SPRING | B4 | |
||
| 80 | 397657-00 | 1 | LEVER LOCK-OFF | Lock Off | B4 | |
|
| 85 | 444793-00 | 1 | CIRCLIP | B4 | |
||
| 86 | N409481 | 1 | GEAR | 38T /PKG'D N375319 | B4 | |
|
| 87 | N163702 | 1 | SPINDLE | M14 | B4 | |
|
| 88 | 605040-24 | 1 | BEARING | B4 | |
||
| 89 | N400478 | 1 | WASHER | B4 | |
||
| 90 | N481950 | 1 | RETAINER | B4 | |
||
| 91 | N307625 | 1 | O RING | B4 | |
||
| 92 | N482578 | 1 | GEARCASE COVER | B4 | |||
| 95 | 641823-00 | 1 | SLEEVE | B4 | |
||
| 96 | N130916 | 1 | BEARING | B4 | |
||
| 97 | N324400 | 1 | WASHER | B4 | |
||
| 99 | N273780 | 2 | SPRING | B4 | |
||
| 101 | N382311 | 1 | SIDE HANDLE | B4 | |
||
| 102 | N107295 | 1 | HEX KEY | 6 mm | B4 | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | B4 | |
