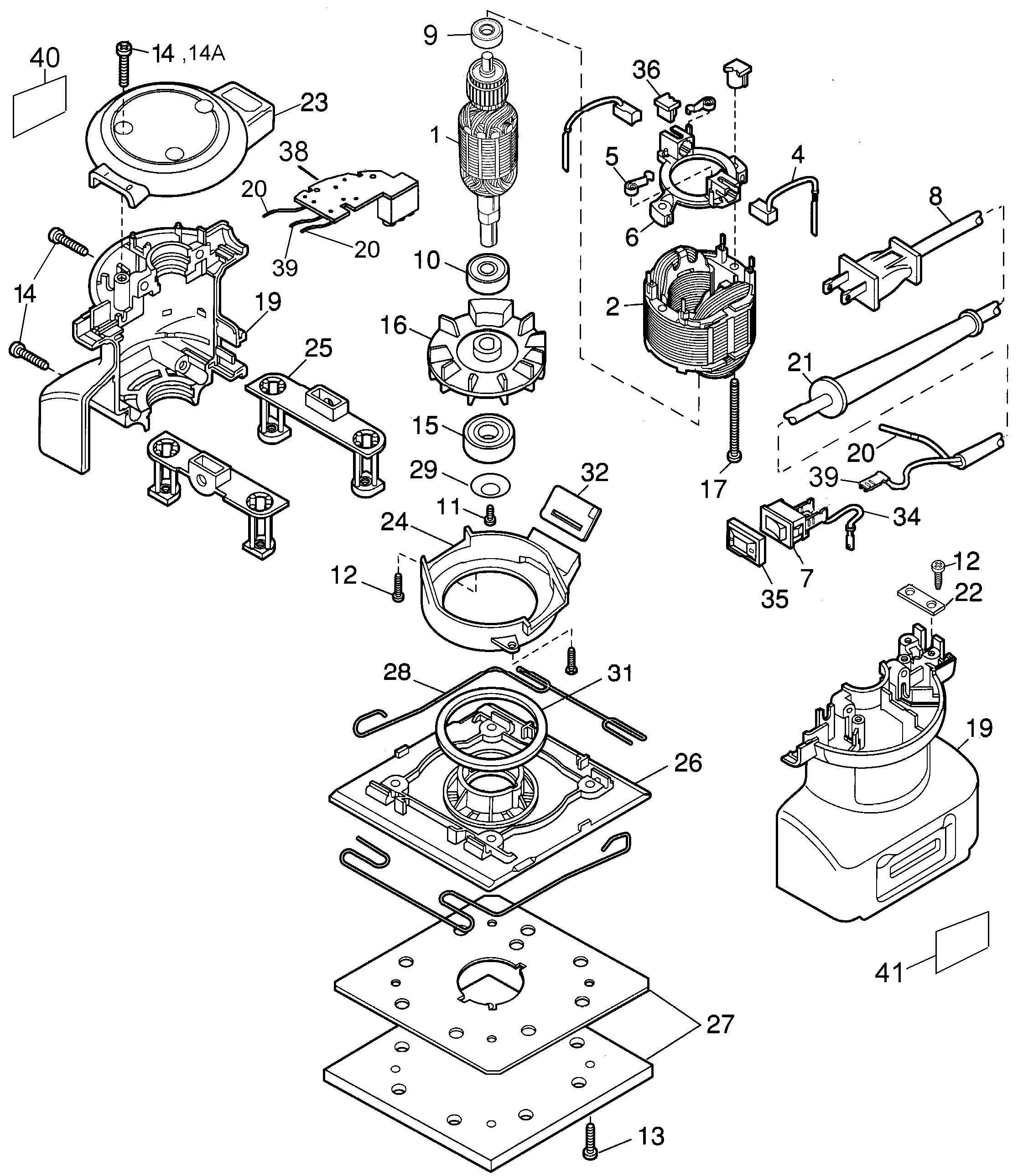

4011-40 PALM GRIP SANDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 578863-02 | 1 | ARMATURE 240V | INC 9, 10 | B5 |  |
|
| 2 | 807254-09 | 1 | FIELD 230V | B5 | |
||
| 4 | 445861-19 | 2 | BRUSH | B5 | |||
| 5 | 445860-00 | 2 | BRUSH SPRING | B5 |  |
||
| 6 | 449899-05 | 1 | RING | INC 5 | B5 | |
|
| 7 | 144960-00 | 1 | SWITCH | B5 | |||
| 8 | 93548-13 | 1 | CORDSET | B5 | |
||
| 9 | 605040-05 | 1 | BEARING | B5 | |
||
| 10 | 330003-17 | 1 | BEARING | B5 | |||
| 11 | 098012-11 | 1 | SCREW | B5 | |
||
| 12 | 330019-02 | 4 | SCREW | B5 | |
||
| 13 | 464285-00 | 4 | SCREW | B5 | |
||
| 14 | 330019-13 | 7 | SCREW | M4X19 T20 | B5 | |
|
| 15 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | B5 | |
|
| 16 | 464281-00 | 1 | FAN | B5 | |
||
| 17 | 330019-08 | 2 | SCREW | B5 | |
||
| 19 | 464279-12 | 1 | CLAMSHELL PAIR | B5 | |
||
| 20 | 825209-00 | 2 | CONNECTOR | B5 | |
||
| 21 | 330005-01 | 1 | CORD PROTECTOR | B5 | |
||
| 22 | 380414-00 | 1 | CORD CLAMP | B5 | |
||
| 23 | 151670-00 | 1 | CAP | NLS | B5 | ||
| 24 | 144964-00 | 1 | COVER | B5 | |
||
| 25 | 144988-02 | 2 | FOOT | B5 | |
||
| 26 | N073798 | 1 | BASE | 1/4 SHEET | B5 | |
|
| 27 | 151284-00SV | 1 | PAD | B5 | |
||
| 28 | 151288-00 | 2 | CLAMP | B5 | |
||
| 29 | 151652-00 | 1 | WASHER | B5 | |
||
| 31 | 144974-00 | 1 | SEAL | B5 | |||
| 32 | 144975-01 | 1 | DOOR | B5 | |
||
| 34 | 144989-00 | 1 | TERMINAL & LEAD | BLACK, 20GA | INC 20, 39 | B5 | |
| 35 | 144983-07 | 1 | COVER | B5 | |
||
| 36 | 144956-00 | 2 | NUT | B5 | |
||
| 39 | 445964-00 | 1 | TERMINAL | B5 | |
||
| 40 | 148516-05 | 1 | NAMEPLATE | B5 | |||
| 41 | 144990-00 | 1 | LABEL,I.D. | B5 | |||
| 114 | 330019-11 | 3 | SCREW | M4.55x13 T20 | B5 | |
