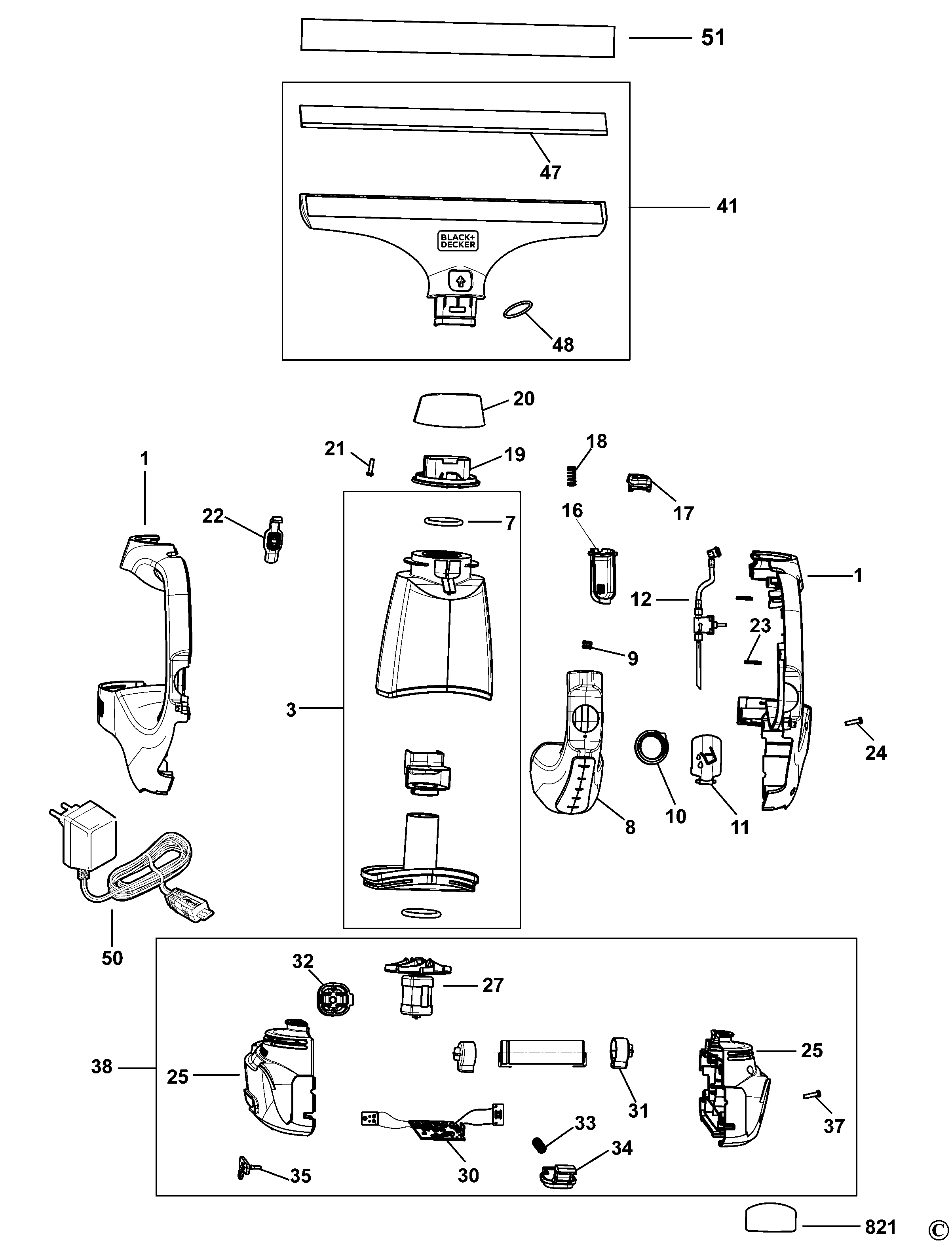

WW100 VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90617945 | 1 | HOUSING HANDLE | B1 |  |
||
| 3 | 90612756 | 1 | BOWL | B1 | |
||
| 7 | 90620207 | 1 | SEAL | B1 | |
||
| 8 | 90612582 | 1 | TANK | B1 | |
||
| 9 | 90614037 | 1 | GROMMET | B1 | |
||
| 10 | 90613214 | 1 | SEAL | B1 | |
||
| 11 | 90613215 | 1 | DOOR | B1 | |
||
| 12 | 90616716 | 1 | PUMP SA | B1 | |
||
| 16 | 90612590 | 1 | TRIGGER | B1 | |
||
| 17 | 90612589 | 1 | LATCH | B1 | |
||
| 18 | 90614281 | 1 | SPRING | B1 | |
||
| 19 | 90612703 | 1 | RING | B1 | |
||
| 20 | 90612574 | 1 | COVER | B1 | |
||
| 21 | 143062-02 | 1 | SCREW | B1 | |||
| 22 | 90607965 | 1 | PLUG | B1 | |
||
| 23 | 90578162-01 | 2 | PIN | B1 | |||
| 24 | 90595772-01 | 4 | SCREW | B1 | |
||
| 25 | 90618172 | 1 | HOUSING MOTOR | B1 | |
||
| 27 | 90612532SV | 1 | MOTOR & FAN | B1 | |
||
| 30 | 90617060 | 1 | SWITCH & PCB SA | B1 | |
||
| 31 | 90608766 | 2 | STRAP | B1 | |
||
| 32 | 90607973 | 1 | RUBBER SEAL | B1 | |
||
| 33 | 90614275 | 1 | SPRING | B1 | |
||
| 34 | 90607971 | 1 | LATCH | B1 | |
||
| 35 | 90612942 | 1 | COVER | B1 | |
||
| 37 | 90595772-01 | 1 | SCREW | B1 | |
||
| 38 | N905815 | 1 | MOTOR SA | B1 | |
||
| 41 | 90607711 | 1 | HEAD SA | B1 |  |
||
| 47 | 90607717 | 1 | RUBBER STRIP | B1 | |
||
| 48 | 90614339 | 1 | O RING | B1 | |
||
| 50 | 90635738 | 1 | CHARGER SA | B1 | |
||
| 51 | 90615639 | 1 | PAD | B1 | |||
| 821 | 90635732 | 1 | RATING LABEL | B1 | |
