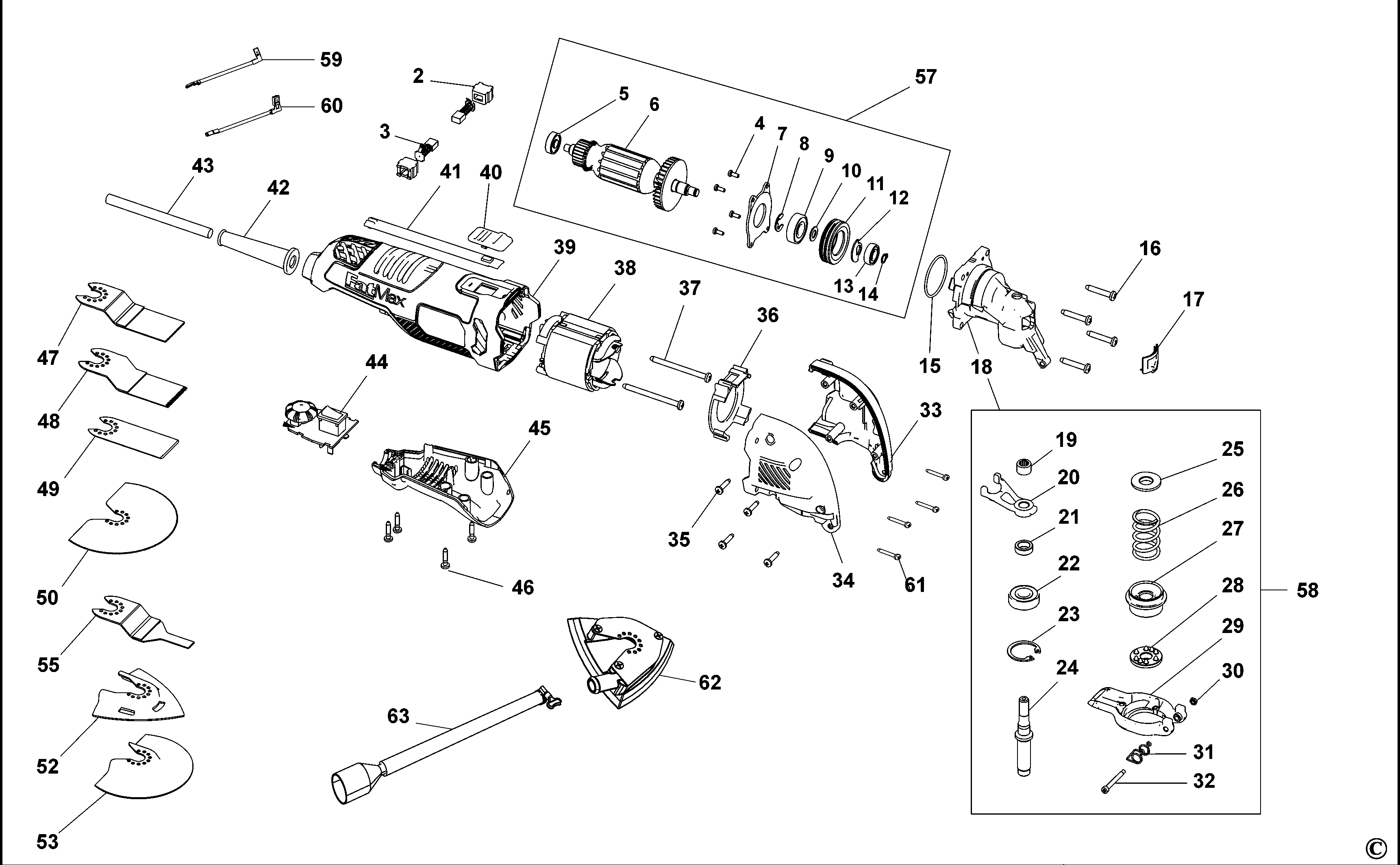

FME600 OSCILLATING TOOL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 5140108-91 | 2 | BRUSH HOLDER | GB |  |
||
| 3 | 5140108-92 | 1 | BRUSH LEAD SA | GB | |
||
| 4 | 5140108-96 | 4 | SCREW | GB | |
||
| 5 | 5140108-98 | 1 | BEARING | GB | |
||
| 6 | 1004556-23 | 1 | ARMATURE | GB | |
||
| 7 | 5140109-00 | 1 | CLAMP | GB | |
||
| 8 | 5140109-01 | 1 | CIRCLIP | GB | |
||
| 9 | 1004587-01 | 1 | BEARING | GB | |
||
| 10 | 5140109-04 | 1 | WASHER | GB | |
||
| 11 | 5140109-02 | 1 | SUPPORT BRACKET | GB | |
||
| 12 | 5140109-03 | 1 | COUNTERWEIGHT | GB | |
||
| 13 | 5140109-05 | 1 | BEARING | GB | |
||
| 14 | 5140109-06 | 1 | CIRCLIP | GB | |
||
| 15 | 5140109-07 | 1 | O RING | GB | |
||
| 16 | 1004556-17 | 4 | SCREW | GB | |
||
| 17 | 5140108-90 | 1 | COVER | GB | |
||
| 18 | 1004587-02 | 1 | HOUSING | GB | |
||
| 19 | 1004587-03 | 1 | BEARING | GB | |
||
| 20 | 5140109-11 | 1 | LEVER | GB | |
||
| 21 | 5140109-12 | 1 | BUSH | GB | |
||
| 22 | 1004556-19 | 1 | BEARING | GB | |
||
| 23 | 5140109-13 | 1 | CIRCLIP | GB | |
||
| 24 | 5140109-14 | 1 | SPINDLE | GB | |
||
| 25 | 5140109-15 | 1 | WASHER | GB | |
||
| 26 | 5140109-16 | 1 | SPRING COMPRESSION | GB | |
||
| 27 | 5140109-17 | 1 | CLAMP | GB | |
||
| 28 | 5140109-18 | 1 | WASHER | GB | |
||
| 29 | 5140108-88 | 1 | SPANNER | GB | |
||
| 30 | 5140108-89 | 1 | NUT | GB | |
||
| 31 | 5140108-86 | 1 | SPRING | GB | |
||
| 32 | 5140108-87 | 1 | SCREW | GB | |
||
| 33 | 1004587-04 | 1 | HOUSING LH | GB | |
||
| 34 | 1004587-05 | 1 | HOUSING RH | GB | |
||
| 35 | 5140108-85 | 4 | SCREW | GB | |
||
| 36 | 5140108-82 | 1 | BAFFLE FAN | GB | |
||
| 37 | 1004556-15 | 2 | SCREW | GB | |
||
| 38 | 1004556-22 | 1 | FIELD | GB | |
||
| 39 | 1004587-06 | 1 | MOTOR HOUSING SA | GB | |
||
| 40 | 1004587-12 | 1 | BUTTON | GB | |
||
| 41 | 5140108-79 | 1 | ACTUATOR | GB | |
||
| 42 | 5140108-77 | 1 | CORD PROTECTOR | GB | |
||
| 43 | 1004587-08 | 1 | CORDSET | GB | |
||
| 44 | 1004587-09 | 1 | PCB SA | GB | |
||
| 45 | 1004587-10 | 1 | HOUSING LOWER | GB | |
||
| 46 | 5140108-95 | 4 | SCREW | GB | |
||
| 47 | 1004556-09 | 1 | BLADE | X26110 | GB | |
|
| 48 | 5140109-24 | 1 | BLADE | Precision Cut (HCS) | GB | |
|
| 49 | 5140109-25 | 1 | BLADE | GB | |
||
| 50 | 5140109-26 | 1 | BLADE | (HSS) | GB | |
|
| 52 | 1004556-08 | 1 | BLADE | X26130 | GB | |
|
| 53 | 1004556-11 | 1 | BLADE | X26125 | GB | |
|
| 55 | 1004556-10 | 1 | BLADE | X26115 | GB | |
|
| 57 | 5140108-97 | 1 | MOTOR SA | GB | |
||
| 58 | 5140109-08 | 1 | SPINDLE | SA | GB | |
|
| 59 | 1004556-20 | 1 | LEAD BROWN | GB | |
||
| 60 | 1004556-21 | 1 | LEAD BLUE | GB | |
||
| 61 | 1004556-17 | 4 | SCREW | GB | |
||
| 62 | 6010352-13 | 1 | PLATEN | GB | |
||
| 63 | 6010352-14 | 1 | HOSE SA | GB | |
