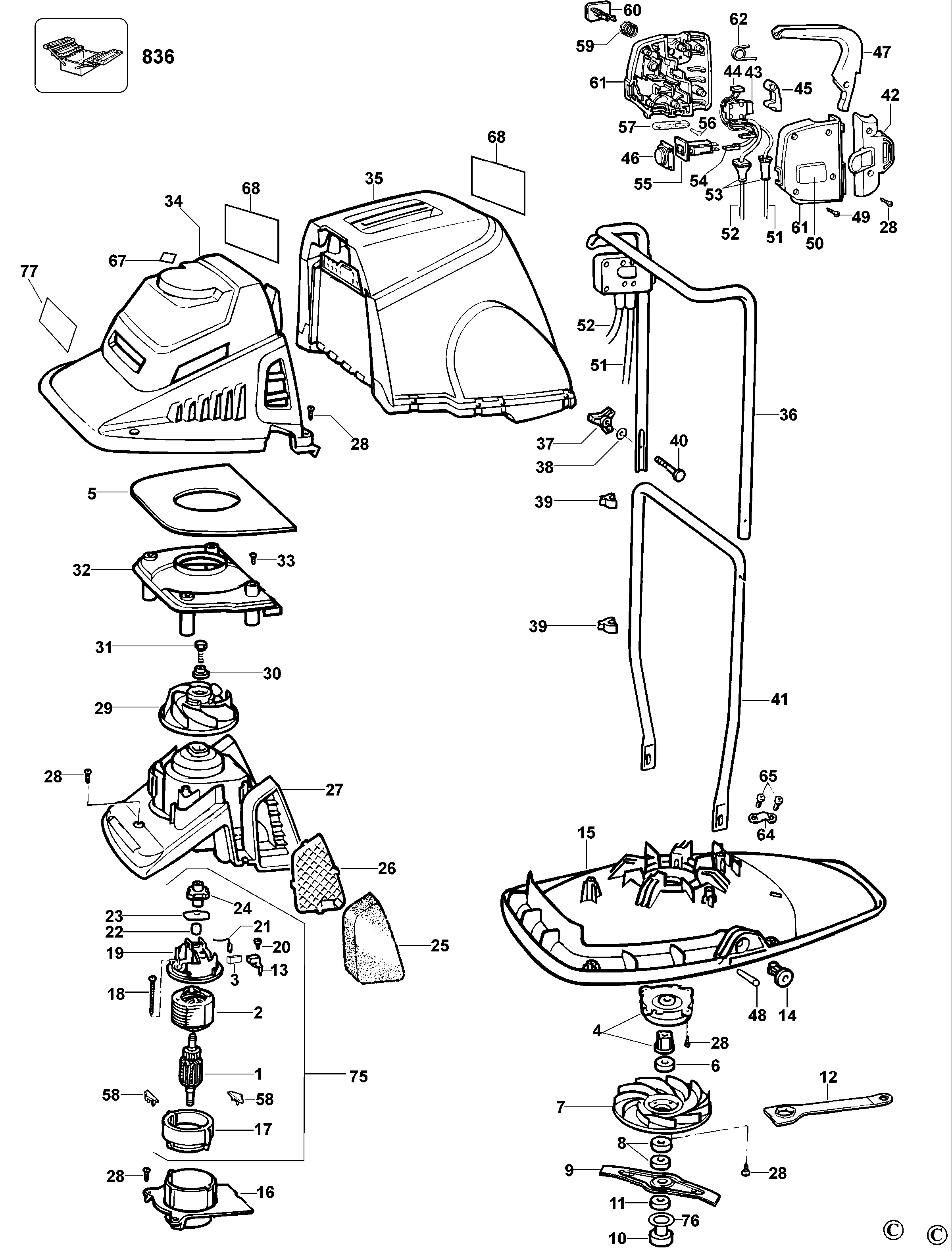

GX530 HOVER MOWER Type 8 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 806303-01 | 1 | ARMATURE 240V | GB |  |
||
| 2 | 806165-03 | 1 | FIELD | GB | |
||
| 3 | 797059-01 | 2 | BRUSH | GB | |
||
| 4 | 807987-49 | 1 | BRAKE SA | GB | |
||
| 5 | 807850 | 1 | GASKET | GB | |
||
| 6 | 798068 | 1 | SPACER | GB | |
||
| 7 | 797661 | 1 | IMPELLOR | GB | |
||
| 8 | 808317 | 2 | SPACER | GB | |
||
| 9 | 368901 | 1 | BLADE 12" | UPGRADE | GB | |
|
| 10 | 748760 | 1 | NUT | GB | |
||
| 11 | 808318 | 1 | SPACER | GB | |
||
| 12 | 844249 | 1 | SPANNER | GB | |
||
| 13 | 796135-01 | 2 | BRUSH HOLDER | GB | |
||
| 14 | 373155-01 | 2 | PIN | GB | |
||
| 15 | 375035 | 1 | CUTTER DECK | GB | |
||
| 16 | 374180 | 1 | BAFFLE | GB | |
||
| 17 | 805950 | 1 | HOUSING SA | GB | |
||
| 18 | 844217-01 | 2 | SCREW.TEMP | GB | |
||
| 19 | 807849-49 | 1 | HOUSING SA | GB | |
||
| 20 | 894748 | 2 | O RING | GB | |
||
| 21 | 792996 | 2 | SPRING | GB | |
||
| 22 | 890075 | 1 | BEARING | GB | |
||
| 23 | 854155 | 1 | RETAINER | GB | |
||
| 24 | 798054 | 1 | MOUNT | GB | |
||
| 25 | 798067 | 2 | FILTER | GB | |
||
| 26 | 805617 | 2 | GRILL | GB | |
||
| 27 | 798085-01 | 1 | HOUSING MOTOR | GB | |
||
| 28 | 809961 | 18 | SCREW | GB | |||
| 29 | 798053 | 1 | IMPELLOR | GB | |
||
| 30 | 806114 | 1 | WASHER | GB | |
||
| 31 | 824606 | 1 | SCREW | GB | |
||
| 32 | 374179 | 1 | BAFFLE | GB | |
||
| 33 | 810269 | 4 | SCREW | GB | |
||
| 34 | 577787-00 | 1 | MOTOR COVER | GB | |
||
| 35 | 798086-02 | 1 | GRASSBOX SA | GB | |
||
| 36 | 798108 | 1 | HANDLE UPPER | GB | |
||
| 37 | 830657 | 2 | NUT WING | GB | |
||
| 38 | 830832 | 2 | WASHER M6 | GB | |
||
| 39 | 915859 | 2 | CLIP CABLE | GB | |||
| 40 | 830664 | 2 | BOLT | GB | |
||
| 41 | 798083 | 1 | HANDLE TUBE LOWER | GB | |
||
| 42 | 799364-01 | 1 | COVERPLATE | GB | |
||
| 43 | 794164 | 1 | SWITCH | GB | |
||
| 44 | 807285-06 | 1 | CAPACITOR | GB | |
||
| 45 | 797929 | 1 | ACTUATOR | GB | |
||
| 46 | 799174 | 1 | SEAL | WITH CUT OUT | GB | |
|
| 47 | 373094 | 1 | LEVER | GB | |
||
| 48 | 805871 | 2 | ROLLPIN | GB | |
||
| 49 | 809961 | 4 | SCREW | GB | |||
| 51 | 805032-07 | 1 | CABLE SA | GB WITH CUT OUT | GB | |
|
| 51 | 805032-11 | 1 | CABLE SA | GB-B1 NON CUT OUT | GB | |
|
| 52 | 799370-09 | 1 | CABLE M/PLUG 16M | GB | |
||
| 53 | 770235 | 2 | PROTECTOR | GB |  |
||
| 54 | 799289 | 1 | LEAD | WITH CUT OUT | GB | |
|
| 55 | 805262-05 | 1 | CUT OUT SA | WITH CUT OUT | GB | |
|
| 56 | 810269 | 3 | SCREW | GB | |
||
| 57 | 827140 | 1 | CABLE CLAMP | GB | |
||
| 58 | 805710 | 2 | PLUG | GB | |
||
| 59 | 827137 | 1 | SPRING | GB | |
||
| 60 | 373092 | 1 | BUTTON LOCK-OFF | GB | |
||
| 61 | 799361-03 | 1 | CLAMSHELL | GB | |
||
| 62 | 827135 | 1 | SPRING | GB | |
||
| 64 | 821070 | 1 | CORD CLAMP | GB | |
||
| 65 | 821057 | 2 | SCREW | No 6 x 12.7mm | GB | |
|
| 67 | 373147-01 | 1 | LABEL | GB | |
||
| 68 | 376079-01 | 1 | WARNING LABEL | GB | |
||
| 75 | 806167-01 | 1 | MOTOR SA | GB | |
||
| 76 | 368028 | 1 | WASHER PLASTIC | UPGRADE | GB | |
|
| 77 | 577789-00 | 1 | BRAND LABEL | GB | |
||
| 836 | 559503-99 | 1 | S.T.WRENCH | GB | |
