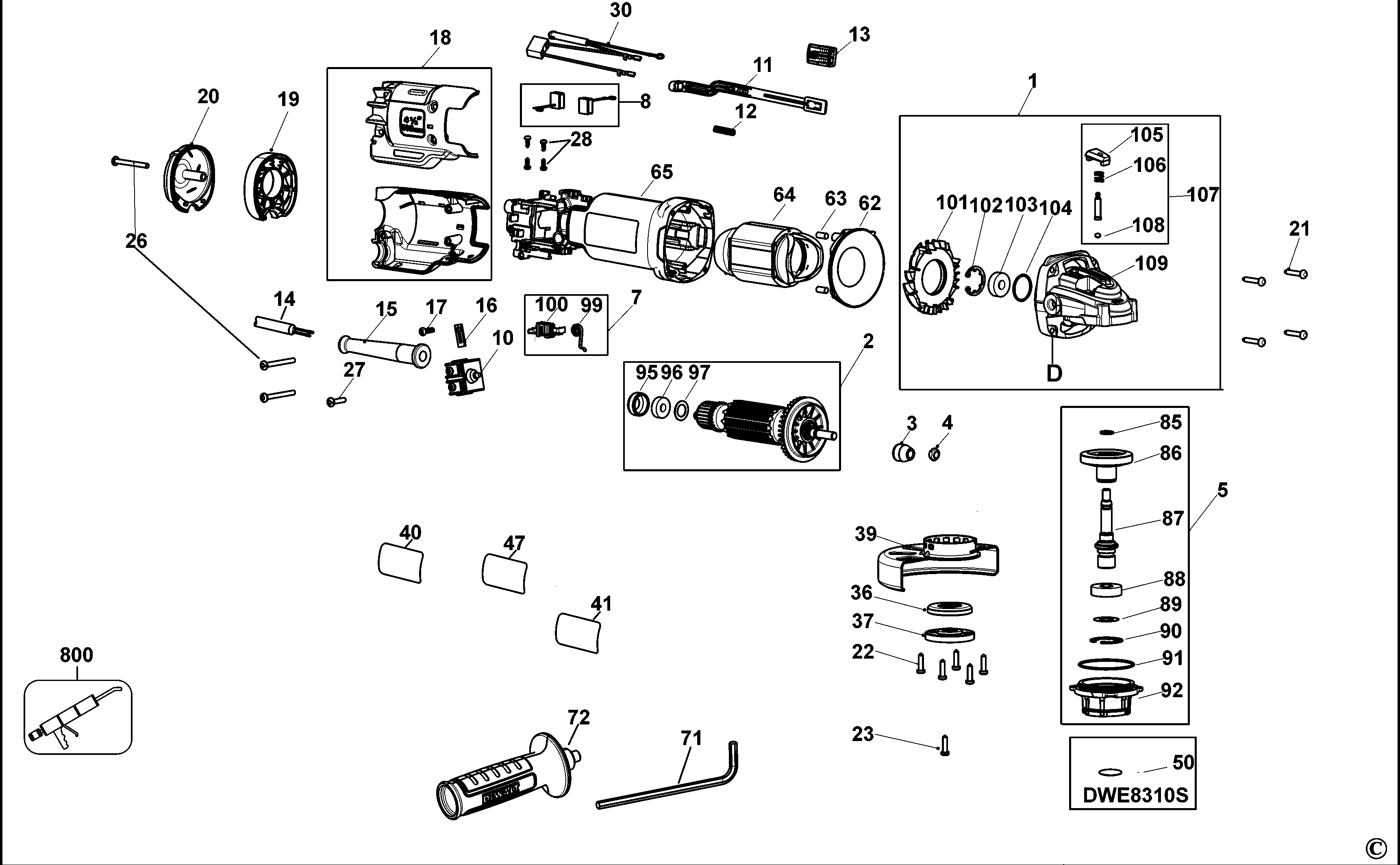

DWE8300S SMALL ANGLE GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N540296 | 1 | GEARCASE SA | B1 | |||
| 2 | N421409 | 1 | ARMATURE SA | 230V | B1 | ||
| 3 | N423537 | 1 | PINION | 10T | B1 |  |
|
| 4 | N372039 | 1 | NUT | M7 | B1 | |
|
| 5 | N547046 | 1 | SPINDLE SA | B1 | |||
| 7 | N413349 | 2 | BRUSHBOX SA | B1 |  |
||
| 8 | N422682 | 1 | BRUSH PAIR | B1 | |||
| 10 | N396008 | 1 | SWITCH | B1 | |
||
| 11 | N298583 | 1 | LINKAGE SA | B1 | |
||
| 12 | N093410 | 1 | SPRING | B1 | |
||
| 13 | N097844 | 1 | BUTTON | B1 | |
||
| 14 | N392662 | 1 | CORDSET | B1 | |||
| 15 | 330005-01 | 1 | CORD PROTECTOR | B1 | |
||
| 16 | 619328-00 | 1 | CORD CLAMP | B1 | |
||
| 17 | 330065-06 | 1 | SCREW | B1 | |
||
| 18 | N419604 | 1 | HOUSING SA | B1 | |
||
| 19 | N563707 | 1 | DUST PORT | B1 | |
||
| 20 | N400902 | 1 | END CAP | B1 | |
||
| 21 | N371839 | 4 | SCREW | B1 | |
||
| 22 | 330045-06 | 5 | SCREW | B1 | |
||
| 23 | N130031 | 1 | SCREW | B1 | |
||
| 26 | N389438 | 3 | SCREW | M4x40 PLSTC THD FMG | B1 | |
|
| 27 | 330065-09 | 1 | SCREW | B1 | |
||
| 28 | 593478-00 | 4 | SCREW | M3 X 8 | B1 | |
|
| 39 | N115343 | 1 | GUARD SA | B1 | |
||
| 40 | N403730 | 1 | BRAND LABEL | B1 | |
||
| 41 | N513459 | 1 | RATING LABEL | B1 | |||
| 62 | N399419 | 1 | BAFFLE FAN | B1 | |
||
| 63 | 949638-02 | 2 | DAMPER | B1 | |
||
| 64 | N421413 | 1 | FIELD 230V | 230V | B1 | ||
| 65 | N390640 | 1 | FIELDCASE | B1 | |
||
| 71 | 401253-00 | 1 | WRENCH ROUND-PINS | B1 | |
||
| 72 | N383283 | 1 | HANDLE SIDE SA | B1 | |
||
| 85 | 444793-00 | 1 | CIRCLIP | B1 | |
||
| 86 | N409481 | 1 | GEAR | 38T /PKG'D N375319 | B1 | |
|
| 87 | N375692 | 1 | SPINDLE | B1 | |
||
| 88 | 605040-24 | 1 | BEARING | B1 | |
||
| 89 | N400478 | 1 | WASHER | B1 | |
||
| 90 | N481950 | 1 | RETAINER | B1 | |
||
| 91 | N307625 | 1 | O RING | B1 | |
||
| 92 | N482578 | 1 | GEARCASE COVER | B1 | |||
| 95 | 641823-00 | 1 | SLEEVE | B1 | |
||
| 96 | N130916 | 1 | BEARING | B1 | |
||
| 97 | N324400 | 1 | WASHER | B1 | |
||
| 99 | N273780 | 2 | SPRING | B1 | |
||
| 100 | N335560 | 2 | BRUSHBOX | B1 | |
||
| 101 | N401958 | 1 | DEFLECTOR | B1 | |
||
| 102 | N453031 | 1 | RETAINER | B1 | |
||
| 103 | N175104 | 1 | BEARING | B1 | |
||
| 104 | N119639 | 1 | O RING | B1 | |
||
| 105 | N278899 | 1 | BUTTON | SPINDLE | B1 | |
|
| 106 | N263579 | 1 | SPRING | B1 | |
||
| 107 | N422684 | 1 | BUTTON SA | B1 | |||
| 108 | N263699 | 1 | O RING | B1 | |
||
| 109 | N547047 | 1 | GEARCASE SA | B1 | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | B1 | |
