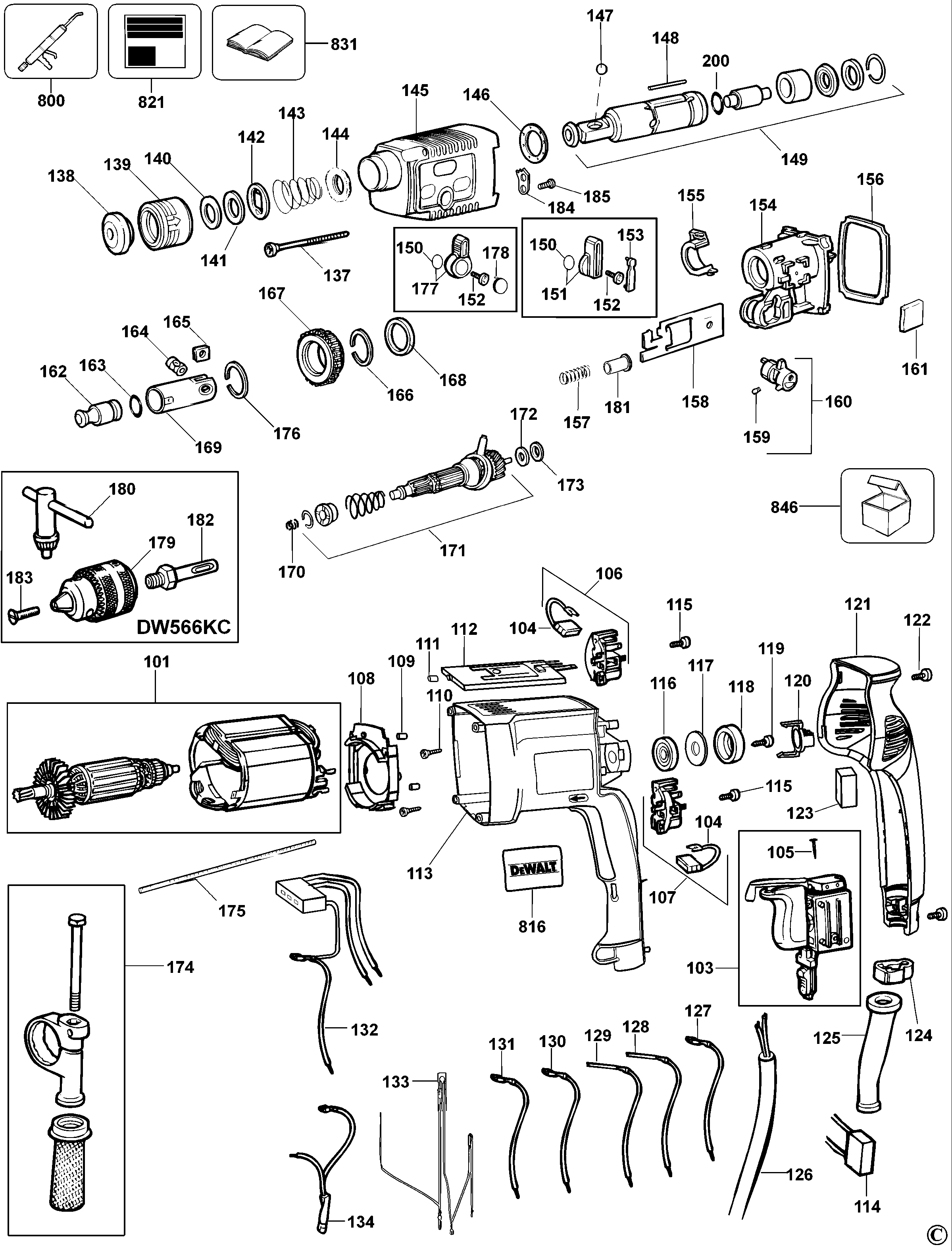

DW566 ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 377809-02 | 1 | ARMATURE SA | 120V | XD | ||
| 101 | 1005202-00 | 1 | MOTOR SA | 230V | XD |  |
|
| 101 | 1005200-00 | 1 | MOTOR SA | 115V | XD |  |
|
| 102 | 328961-03 | 1 | FIELD 115V | 120V | XD | |
|
| 102 | 1005202-00 | 1 | MOTOR SA | 230V | XD | |
|
| 102 | 1005200-00 | 1 | MOTOR SA | 115V | XD | |
|
| 103 | 176830-35 | 1 | SWITCH | 115V / 120V | XD | |
|
| 103 | 329854-49 | 1 | SWITCH KIT | Tyco | 230V | XD | |
| 104 | 401853-00 | 2 | BRUSH 115V | 115V / 120V | XD | |
|
| 104 | 401853-01 | 2 | BRUSH 230V | 230V | XD | |
|
| 105 | 402760-01 | 1 | PIN | FROM DC 40-97 | XD | |
|
| 105 | 402760-00 | 1 | PIN | UPTO DC 39-97 | XD | |
|
| 106 | 403222-02 | 1 | BRUSH HOLDER | 115V / 120V | XD | |
|
| 106 | 401845-06 | 1 | BRUSH HOLDER SA | 230V | XD | |
|
| 107 | 401845-00 | 1 | BRUSH HOLDER SA | 230V | XD | |
|
| 107 | 403222-05 | 1 | BRUSH HOLDER | 115V / 120V | XD | |
|
| 108 | 327293-00 | 1 | BAFFLE FAN | XD | |
||
| 109 | 949638-01 | 2 | BUFFER | XD | |
||
| 110 | 390198-00 | 2 | SCREW | XD | |
||
| 111 | 949638-02 | 1 | DAMPER | XD | |
||
| 112 | 328649-00 | 1 | ELECTRONIC 115V | 115V | XD | ||
| 112 | 577857-02 | 1 | SWITCH KIT 230V | 230V | XD | |
|
| 112 | 577857-03 | 1 | SWITCH KIT 115V | Tyco | 120V | XD | |
| 113 | 327290-05 | 1 | HOUSING SA | Yellow | XD | |
|
| 115 | 330065-06 | 2 | SCREW | XD | |
||
| 116 | 330003-19 | 1 | BEARING | XD | |
||
| 117 | 949876-25 | 1 | WASHER | XD | |
||
| 118 | 870052 | 1 | SLEEVE | XD | |
||
| 119 | 329794-00 | 1 | SCREW | XD | |
||
| 120 | 327296-00 | 1 | CAP | XD | |
||
| 121 | 327298-01 | 1 | SWITCH COVER | XD | |
||
| 122 | 330065-07 | 3 | SCREW | XD | |
||
| 123 | 930026-01 | 1 | BUMPER | XD | |
||
| 124 | 402648-00 | 1 | CORD CLAMP | XD | |
||
| 125 | 401088-00 | 1 | PROTECTOR | XD | |
||
| 126 | 330060-65 | 1 | CORDSET | XD | |
||
| 127 | 949801-86 | 1 | LEAD BLACK 90MM | XD | |
||
| 128 | 949801-85 | 1 | LEAD BLACK 90MM | XD | |
||
| 129 | 949801-87 | 1 | LEAD BLUE | XD | |
||
| 130 | 329645-00 | 1 | LEAD RED | XD | |
||
| 131 | 329645-01 | 1 | LEAD BROWN | XD | |
||
| 132 | 328101-00 | 1 | LEAD & SOCKET SA | XD | |
||
| 137 | 324044-02 | 4 | SCREW | XD | |
||
| 138 | 323489-00 | 1 | CAP | XD | |
||
| 139 | 576756-00 | 1 | COLLAR | XD | |
||
| 140 | 323480-00 | 1 | SPACER | XD | |
||
| 141 | 323492-00 | 1 | WASHER | XD | |
||
| 142 | 578387-00 | 1 | WASHER | XD | |
||
| 143 | 871690 | 1 | SPRING | XD | |
||
| 144 | 324432-00 | 1 | SEAL SA | XD | |
||
| 145 | 329968-03 | 1 | GEARCASE SA | XD | |
||
| 146 | 329907-00 | 1 | WASHER | XD | |
||
| 147 | 583890-00 | 1 | BALL | XD | |
||
| 148 | 325880-03 | 1 | PIN | XD | |
||
| 149 | 577080-01 | 1 | SPINDLE SA | XD | |
||
| 150 | 916323 | 1 | O RING | XD | |
||
| 151 | 327104-00 | 1 | LEVER | XD | |
||
| 152 | 323924-08 | 1 | SCREW | XD | |||
| 153 | 327092-00 | 1 | COVER | XD | |
||
| 154 | 327100-00 | 1 | CASTING SA | XD | |
||
| 155 | 328507-00 | 1 | SHIELD | XD | |
||
| 156 | 323572-00 | 1 | SEAL | XD | |
||
| 157 | 323395-17 | 1 | SPRING | XD | |
||
| 158 | 487047-49 | 1 | REPAIR KIT | XD | |
||
| 159 | 326467-00 | 1 | DETENT | XD | |
||
| 160 | 487047-49 | 1 | REPAIR KIT | XD | |
||
| 161 | 327093-00 | 1 | FILTER | XD | |
||
| 162 | 327070-00 | 1 | RAM | XD | |
||
| 163 | 323711-25 | 1 | O RING | XD | |
||
| 164 | 487143-00 | 1 | AXLE | XD | |||
| 165 | 327072-00 | 1 | SHIM | XD | |
||
| 166 | 323762-02 | 1 | CIRCLIP | XD | |
||
| 167 | 487401-01 | 1 | CLUTCH SA | XD | |
||
| 168 | 327074-00 | 1 | RING | XD | |
||
| 169 | 327071-00 | 1 | PISTON | XD | |
||
| 170 | 323395-33 | 1 | SPRING | XD | |
||
| 171 | 327101-01 | 1 | INTERSHAFT SA | XD | |
||
| 172 | 324430-03 | 1 | BEARING AXIAL | XD | |
||
| 173 | 324431-03 | 1 | WASHER 7 | XD | |
||
| 174 | 939794-02 | 1 | HANDLE SIDE SA | XD | |
||
| 175 | 580787-00 | 1 | DEPTH STOP | XD | |
||
| 176 | 323762-08 | 1 | CIRCLIP | XD | |
||
| 179 | 5140071-68 | 1 | CHUCK 13MM | DW566KC | XD | |
|
| 180 | 330034-07 | 1 | CHUCK KEY | DW566KC | XD | |
|
| 181 | 329211-00 | 1 | SLEEVE | XD | |
||
| 182 | 352065 | 1 | ADAPTOR | DW566KC | XD | |
|
| 183 | 945013-00 | 1 | SCREW | DW566KC | XD | |
|
| 184 | 577058-00 | 1 | PLATE | XD | |
||
| 185 | 930553 | 2 | SCREW | XD | |
||
| 200 | 323711-02 | 1 | O RING | XD | |
||
| 800 | 870889-02 | 1 | GREASE | XD | |
||
| 816 | 395047-00 | 1 | BRAND LABEL | XD | |
||
| 846 | 487046-49 | 1 | REPAIR KIT | UP TO DC 97-52 | XD | |
