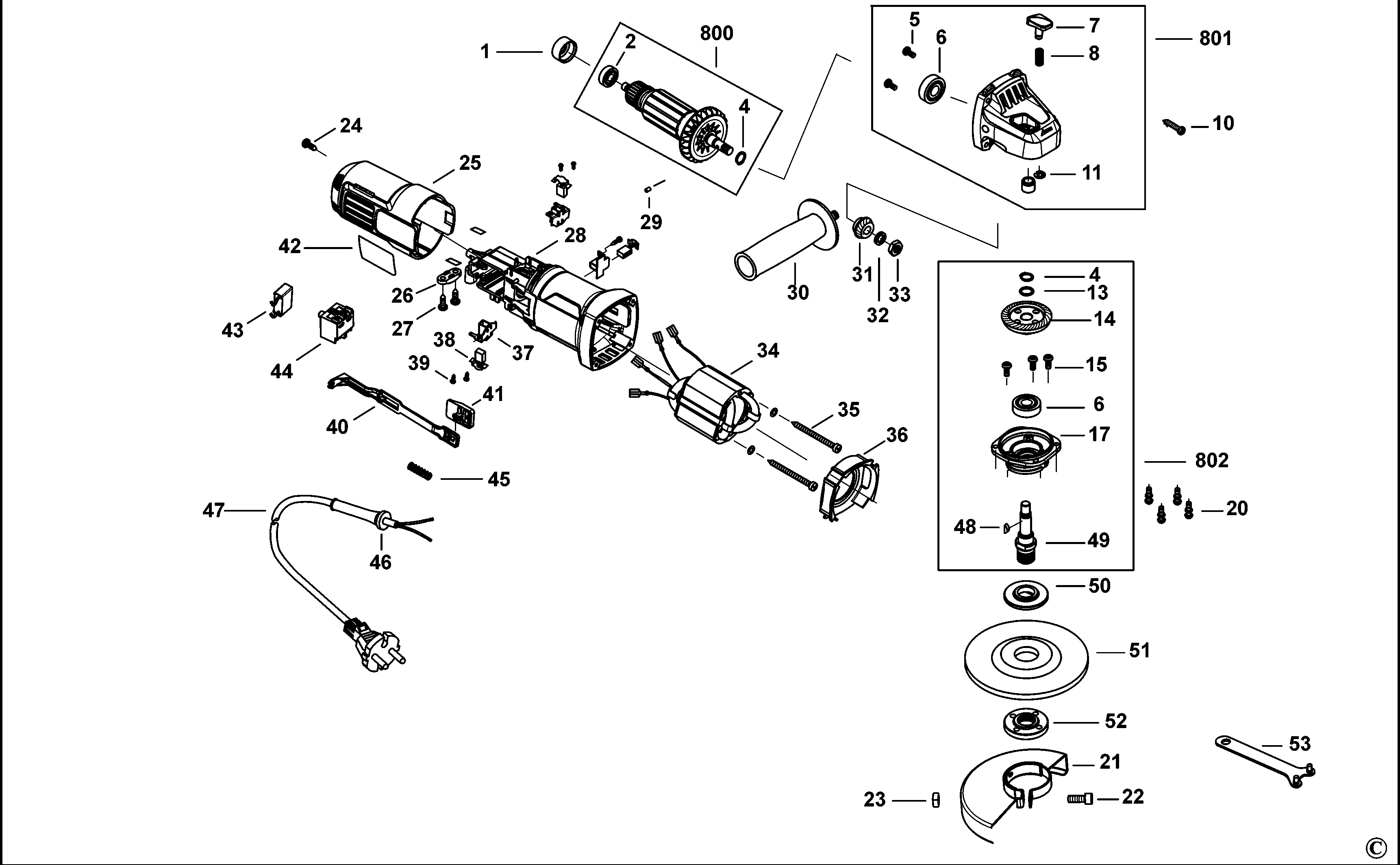

G650 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140003-59 | 1 | BEARING HOLDER | XD |  |
||
| 2 | 5140003-60 | 1 | BEARING | XD | |
||
| 4 | 5140003-64 | 1 | LOCKING RING | XD | |
||
| 5 | 5140003-89 | 1 | SCREW | XD | |
||
| 6 | 5140003-66 | 1 | BEARING | XD | |
||
| 7 | 5170024-69 | 1 | PIN | XD | |
||
| 8 | 5140065-70 | 1 | SPRING | XD | |
||
| 10 | 5140065-72 | 1 | SCREW | XD | |
||
| 11 | 5140003-64 | 1 | LOCKING RING | XD | |
||
| 13 | 5140003-73 | 1 | WASHER | XD |  |
||
| 14 | 5170024-71 | 1 | GEAR | XD | |
||
| 15 | 5140003-94 | 1 | SCREW | XD | |
||
| 17 | 5170024-72 | 1 | CAP | XD | |
||
| 20 | 5170024-73 | 1 | SCREW | XD | |
||
| 21 | 5170024-75 | 1 | GUARD | XD | |
||
| 21 | 5170024-74 | 1 | GUARD | XD | |
||
| 22 | 5170024-76 | 1 | SCREW | XD | |
||
| 23 | 5170024-77 | 1 | NUT | XD | |
||
| 24 | 5140003-99 | 1 | SCREW | XD | |
||
| 25 | 5170024-78 | 1 | END CAP | XD | |
||
| 26 | 5140002-48 | 1 | CORD CLAMP | XD | |
||
| 27 | 5140003-99 | 1 | SCREW | XD | |
||
| 28 | 5170024-79 | 1 | HOUSING | XD | |
||
| 29 | 5140003-88 | 1 | LOCK SCREW | XD | |
||
| 30 | 5140003-90 | 1 | HANDLE | XD | |
||
| 31 | 5170024-80 | 1 | PINION | XD | |
||
| 32 | 5140003-92 | 1 | WASHER SPRING | XD | |
||
| 33 | 5140003-93 | 1 | NUT | XD | |
||
| 34 | 5170024-82 | 1 | FIELD 220V | XD | |
||
| 35 | 5140004-04 | 1 | SCREW | XD | |
||
| 36 | 5170024-83 | 1 | MOUNT | XD | |
||
| 37 | 5140002-37 | 1 | BRUSH HOLDER | XD | |
||
| 38 | 5170024-84 | 1 | BRUSH PAIR | XD | |
||
| 39 | 5140003-86 | 1 | SCREW | XD | |||
| 40 | 5170024-85 | 1 | BAR | XD | |
||
| 41 | 5170024-86 | 1 | BUTTON | XD | |
||
| 42 | 5170024-91 | 1 | RATING LABEL | XD | |
||
| 44 | 5170024-93 | 1 | SWITCH | XD | |
||
| 45 | 5170024-94 | 1 | SPRING | XD | |
||
| 46 | 5140002-29 | 1 | SLEEVE | XD | |
||
| 47 | 5170024-95 | 1 | CORDSET | XD | |
||
| 48 | 5140004-05 | 1 | WOODRUFF KEY | XD | |
||
| 49 | 5170024-99 | 1 | SPINDLE | XD | |
||
| 50 | 5170025-02 | 1 | INNER FLANGE | XD | |
||
| 52 | 5170025-06 | 1 | OUTER FLANGE | XD | |
||
| 53 | 5170040-03 | 1 | SPANNER | XD | |||
| 800 | 5170031-58 | 1 | ARMATURE 220V | XD | |
||
| 801 | 5170031-59 | 1 | GEARCASE SA | XD | |
||
| 802 | 5170031-60 | 1 | GEAR & SPINDLE SA | XD | |
