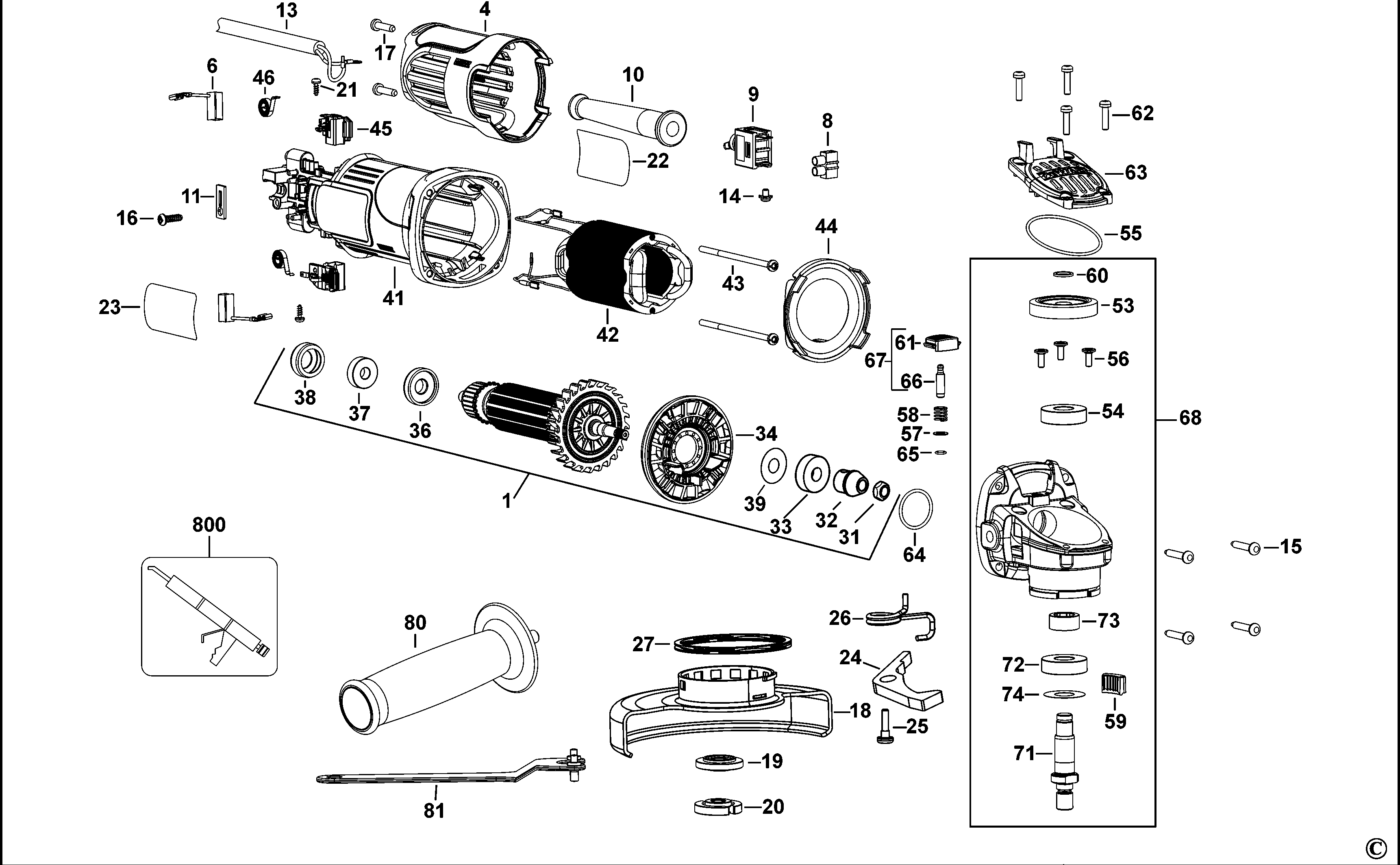

DWE4001 SMALL ANGLE GRINDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N419588 | 1 | ARMATURE SA | Incl. 31-38 | B4 |  |
|
| 4 | N092819-01 | 1 | HOUSING | B4 | |
||
| 6 | N183726 | 1 | BRUSH PAIR | 120V | B4 | ||
| 8 | 655417-00 | 1 | TERMINAL BLOCK | B4 | |||
| 9 | N016260 | 1 | SWITCH | ON/OFF, TOGGLE | B4 | |
|
| 10 | N542553 | 1 | CORD PROTECTOR | B4 |  |
||
| 10 | N542553 | 1 | CORD PROTECTOR | B4 | |
||
| 11 | 619328-00 | 1 | CORD CLAMP | B4 | |
||
| 13 | N137917 | 1 | CORDSET | B4 | B4 | |
|
| 14 | 627647-00 | 1 | SCREW | B4 | |
||
| 15 | 330065-31 | 4 | PLASTIC SCREW | B4 | |
||
| 16 | 562097-00 | 1 | SCREW | B4 | |
||
| 17 | N017839 | 2 | SCREW | B4 | |
||
| 18 | N205292 | 1 | GUARD | 100MM | B4 | |
|
| 19 | N039245 | 1 | INNER FLANGE | M10 | B4 | |
|
| 20 | 659109-00 | 1 | OUTER FLANGE | M10 | B4 | |
|
| 21 | 593478-00 | 1 | SCREW | M3 X 8 | B4 | |
|
| 22 | N149175 | 1 | BRAND LABEL | B4 | |
||
| 23 | N231536 | 1 | RATING PLATE | B4 TYP2 | B4 | |
|
| 24 | N136731 | 1 | LEVER | B4 | |
||
| 25 | N137733 | 1 | SCREW | B4 | |
||
| 26 | N105579 | 1 | SPRING | B4 | |
||
| 27 | N135116 | 1 | WASHER SPRING | B4 | |
||
| 31 | 604484-00 | 1 | NUT | B4 | |
||
| 32 | N095840 | 1 | PINION | B4 | |
||
| 33 | N214432 | 1 | BEARING | B4 | |
||
| 34 | N132042 | 1 | BAFFLE | B4 | |
||
| 36 | N118549 | 1 | SPACER | B4 | |
||
| 37 | N130916 | 1 | BEARING | B4 | |
||
| 38 | 641823-00 | 1 | SLEEVE | B4 | |
||
| 39 | N213812 | 1 | WASHER | B4 | |
||
| 41 | N092818-01 | 1 | FIELDCASE | B4 | |
||
| 42 | N185685 | 1 | FIELD 120V | B4 | |
||
| 43 | N098351 | 2 | SCREW | B4 | |
||
| 44 | N129051 | 1 | BAFFLE | B4 | |
||
| 45 | N097702 | 2 | BRUSHBOX | B4 | |
||
| 46 | N097703 | 2 | SPRING | B4 | |
||
| 53 | N097361 | 1 | GEAR | B4 | |
||
| 54 | N150961 | 1 | BEARING | B4 | |
||
| 55 | N094024 | 1 | O RING | B4 | |
||
| 56 | N118088 | 3 | SCREW | B4 | |
||
| 57 | N447838 | 1 | WASHER | B4 | |
||
| 58 | N092954 | 1 | SPRING | B4 | |
||
| 59 | N126708 | 1 | INSERT | B4 | |
||
| 60 | 444793-00 | 1 | CIRCLIP | B4 | |
||
| 61 | N126105 | 1 | BUTTON | B4 | |
||
| 62 | N122904 | 4 | SCREW | B4 | |
||
| 63 | N116180 | 1 | GEARCASE COVER | B4 | |
||
| 64 | N119639 | 1 | O RING | B4 | |
||
| 65 | N094012 | 1 | O RING | B4 | |
||
| 66 | N114592 | 1 | SPINDLE LOCK | B4 | |
||
| 67 | N181767 | 1 | SPINDLE LOCK | B4 | |
||
| 68 | N235319 | 1 | GEARCASE SA | M10 | B4 | ||
| 71 | N095421 | 1 | SPINDLE | M10 | B4 | |
|
| 72 | N150961 | 1 | BEARING | B4 | |
||
| 73 | N095815 | 1 | SLEEVE | B4 | |
||
| 74 | 638229-00 | 1 | WASHER | B4 | |
||
| 80 | 562211-00 | 1 | HANDLE SIDE SA | B4 | |
||
| 81 | 401253-00 | 1 | WRENCH ROUND-PINS | B4 | |
||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | B4 | |
