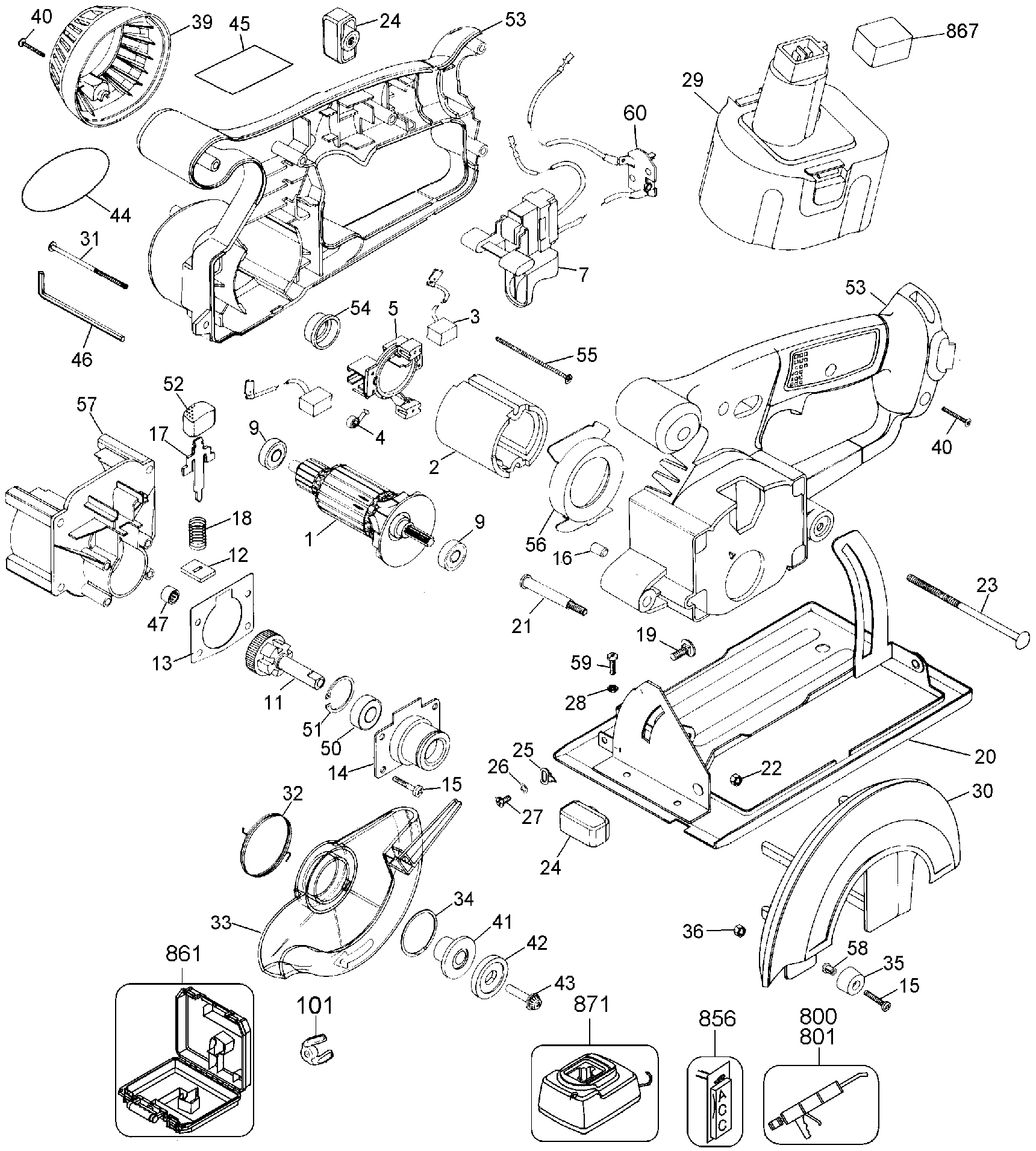

DW935K TRIM SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 429906-00 | 1 | MOTOR SA | B4 |  |
||
| 2 | 388232-01SV | 1 | MAGNET | B4 | |
||
| 3 | 387558-01 | 2 | BRUSH & LEAD | B4 | |||
| 4 | 445860-00 | 2 | BRUSH SPRING | B4 |  |
||
| 5 | 382178-01 | 1 | BRUSH FRAME | B4 | |
||
| 7 | N062230 | 1 | SWITCH,TRIGGER | INC 60 | B4 | ||
| 9 | 330003-04 | 2 | BEARING | B4 | |||
| 11 | 384936-00SV | 1 | GEARSHAFT SA | 44 TEETH | B4 | |
|
| 12 | 393004-00 | 1 | WIPER | B4 | |
||
| 13 | 150181-00 | 1 | GASKET | B4 | |
||
| 14 | 150392-01 | 1 | GEARCASE COVER | B4 | |
||
| 15 | 330045-06 | 5 | SCREW | B4 | |
||
| 16 | 032731-00 | 1 | PLUG | B4 | |||
| 17 | 150389-00 | 1 | SPINDLE LOCK | B4 | |
||
| 18 | 058698-00 | 1 | SPRING | B4 | |
||
| 19 | N091970 | 1 | CARRIAGE BOLT | M6x1.0x15mm NYLOK | B4 | |
|
| 20 | 150371-02 | 1 | SHOE ASSY | B4 | |||
| 21 | 396631-00 | 1 | SCREW | B4 | |||
| 22 | 148641-00 | 1 | LOCK-NUT | B4 | |
||
| 23 | 098128-97 | 1 | BOLT | B4 | |
||
| 24 | 395889-00 | 2 | KNOB | B4 | |
||
| 25 | 145341-00 | 1 | POINTER | B4 | |
||
| 26 | 098197-03 | 1 | WASHER LOCK | B4 | |||
| 27 | 98093-06 | 1 | SCREW | B4 | |
||
| 28 | 330015-01 | 1 | NUT | B4 | |
||
| 29 | DE9091 | 1 | BATTERY 14.4V - 2.0AH | Ni-Cad | ACC | B4 | |
| 30 | 150083-02 | 1 | GUARD UPPER | B4 | |
||
| 31 | 398987-00 | 4 | SCREW | B4 | |
||
| 32 | 605014-00 | 1 | SPRING | B4 | |||
| 33 | 380969-00 | 1 | GUARD LOWER | B4 | |
||
| 34 | 150383-00 | 1 | RETAINER | B4 | |
||
| 35 | 445625-01 | 1 | BUMPER | B4 | |
||
| 36 | 330021-00 | 1 | STOP NUT | B4 | |
||
| 39 | 150386-00 | 1 | END CAP | B4 | |
||
| 40 | 330019-04 | 7 | SCREW | B4 | |
||
| 41 | 150369-02 | 1 | WASHER INNER CLAMP | B4 | |
||
| 42 | 150376-00 | 1 | WASHER OUTER CLAMP | B4 | |||
| 43 | 150384-00 | 1 | BLADE BOLT | L. H. | B4 | ||
| 44 | 396062-00 | 1 | IDENTITY LABEL | B4 | |
||
| 45 | 380583-01 | 1 | NAMEPLATE | B4 | |||
| 46 | 497570-02 | 1 | KEY | 4mm | B4 | |
|
| 47 | 093128-00 | 1 | BEARING NEEDLE | B4 | |
||
| 50 | 605040-15 | 1 | BEARING,BALL | NPP | B4 | |
|
| 51 | 037464-00 | 1 | RETAINING RING | B4 | |||
| 52 | 145350-00 | 1 | BUTTON | B4 | |
||
| 53 | 380968-01 | 1 | CLAMSHELL PAIR | B4 | |
||
| 54 | 445217-02 | 1 | SLEEVE | B4 | |
||
| 55 | 448269-00 | 2 | SCREW | B4 | |
||
| 56 | 150370-00 | 1 | FAN | B4 | |
||
| 57 | 150374-00 | 1 | GEARCASE | INC 9, 47 | B4 | |
|
| 58 | 091963-13 | 1 | EYELET | B4 | |||
| 59 | 330045-05 | 1 | SCREW | B4 | |
||
| 60 | 285371-00 | 1 | TERMINAL BLOCK | B4 | |
||
| 101 | 084317-00 | 1 | NUT,WING | B4 | |||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | CVJ GREASE | B4 | |
| 801 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | B4 | ||
| 856 | DW9054 | 1 | 5-3/8 TRIMSAW BL | ACC | B4 | ||
| 861 | 395328-00 | 1 | KIT BOX | B4 | |||
| 861 | 637475-00 | 2 | LATCH ASSEMBLY | B4 | |||
| 861 | 380865-02 | 1 | HANDLE FRAME KIT | B4 | |||
| 867 | 645221-00 | 1 | CAP | B4 | |
||
| 871 | DE9106-B4 | 1 | XR CHARGER | 24 TEETH ; ACC | B4 |
