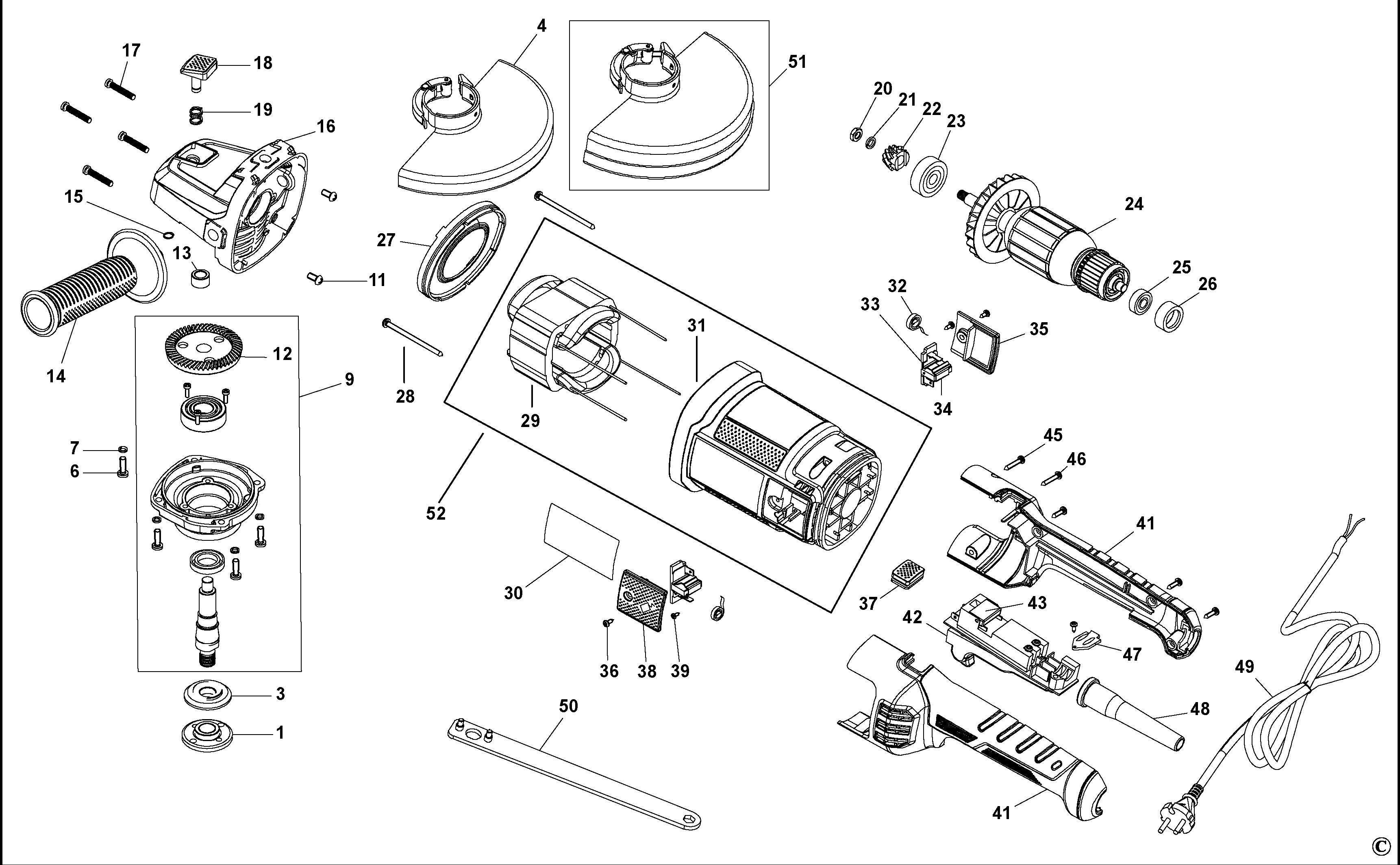

BPGL2207 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004684-04 | 1 | FLANGE | B9 |  |
||
| 3 | 1004684-05 | 1 | NUT | B9 | |
||
| 4 | 1004684-56 | 1 | GUARD 7" | B9 | |
||
| 6 | 1004684-07 | 4 | SCREW | M5 x 18mm | B9 | |
|
| 7 | 1004684-08 | 4 | WASHER | B9 | |
||
| 9 | 1004684-09 | 1 | GEARCASE SA | B9 | |
||
| 11 | 1004684-10 | 2 | SCREW | B9 | |
||
| 12 | 1004684-57 | 1 | GEAR | B9 | |
||
| 13 | 1004684-16 | 1 | BEARING | B9 | |
||
| 14 | 1004684-58 | 1 | HANDLE | B9 | |
||
| 15 | 1004684-18 | 1 | RING | B9 | |
||
| 16 | 1004684-19 | 1 | GEARBOX | B9 |  |
||
| 17 | 1004684-20 | 4 | SCREW | B9 | |
||
| 18 | 1004684-21 | 1 | BUTTON STOP | B9 | |
||
| 19 | 1004684-22 | 1 | SPRING | B9 | |
||
| 20 | 1004684-23 | 1 | NUT | B9 | |
||
| 21 | 1004684-24 | 1 | WASHER SPRING | ø8 | B9 | |
|
| 22 | 1004684-25 | 1 | PINION | B9 | |
||
| 23 | 1004684-26 | 1 | BEARING | B9 | |
||
| 24 | 1004684-27 | 1 | ARMATURE | B9 | |
||
| 25 | 1004684-28 | 1 | BEARING | B9 | |
||
| 26 | 1004684-29 | 1 | BEARING SET | B9 | |
||
| 27 | 1004684-30 | 1 | BAFFLE FAN | B9 | |
||
| 28 | 1004684-31 | 2 | SCREW | B9 | |
||
| 29 | 1004684-32 | 1 | STATOR | B9 | |
||
| 30 | 6010355-12 | 1 | RATING LABEL | B9 | |
||
| 31 | 1004684-34 | 1 | HOUSING | B9 | |
||
| 32 | 1004684-35 | 2 | SPRING BRUSH | B9 | |
||
| 33 | 1004684-36 | 2 | BRUSH HOLDER | B9 | |
||
| 34 | 1004684-37 | 1 | BRUSH PAIR | B9 | |
||
| 35 | 1004684-38 | 1 | BRUSH CAP | B9 | |
||
| 36 | 1004684-39 | 2 | SCREW | B9 | |
||
| 37 | 1004684-40 | 1 | RUBBER | B9 | |
||
| 38 | 1004684-41 | 1 | BRUSH CAP | B9 | |
||
| 39 | 1004684-42 | 2 | SCREW | ST2.9 x 6mm | B9 | |
|
| 41 | 1004684-44 | 1 | HANDLE SA | B9 | |
||
| 42 | 1004449-03 | 1 | SWITCH | B9 | |
||
| 43 | 1004684-46 | 1 | CAPACITOR | B9 | |
||
| 45 | 1004684-47 | 2 | SCREW | ST4.0 x 38mm | B9 | |
|
| 46 | 1004684-48 | 3 | SCREW | ST4.0 x 16mm | B9 | |
|
| 47 | 1004684-49 | 1 | CORD CLAMP | B9 | |
||
| 48 | 1004684-50 | 1 | CORD PROTECTOR | B9 | |
||
| 49 | 1004684-51 | 1 | CORDSET | B9 | |
||
| 50 | 1004684-53 | 1 | WRENCH SPECIAL | B9 | |
||
| 51 | 1004684-00 | 1 | GUARD 7" | B9 | |
||
| 52 | 1004732-38 | 1 | FIELD SA | Inc. HOUSING | B9 | |
