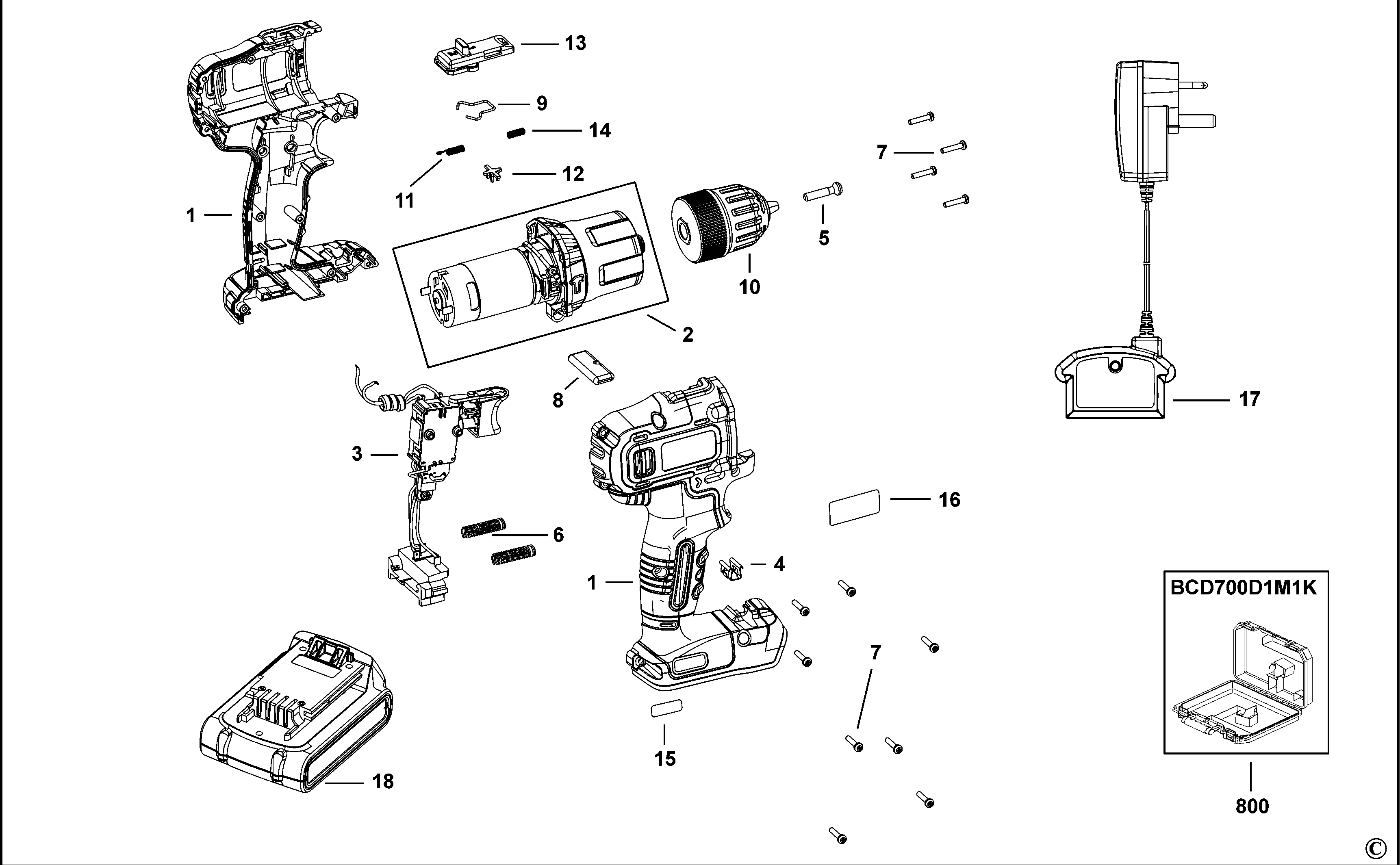

BCD700S HAMMER DRILL Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N536770 | 1 | CLAMSHELL PAIR | GB |  |
||
| 2 | N703544 | 1 | MOTOR SA | GB | |||
| 3 | N536766 | 1 | SWITCH SA | GB | |
||
| 4 | 148354-03 | 1 | HOLDER | GB |  |
||
| 5 | 149518-01 | 1 | SCREW | GB | |
||
| 6 | 5100035-03 | 2 | SPRING | GB | |
||
| 7 | 5101046-00 | 12 | SCREW | GB | |
||
| 8 | 90554689 | 1 | ACTUATOR FWD/REV | GB | |
||
| 9 | 90556568 | 1 | LEAF SPRING | GB | |
||
| 10 | 90569039 | 1 | CHUCK | GB | |
||
| 11 | 90625101 | 1 | SPRING | GB | |
||
| 12 | 90625102 | 1 | HOLDER | GB | |
||
| 13 | 90625515 | 1 | SELECTOR | GB | |
||
| 14 | 90626849 | 1 | SPRING | GB | |
||
| 15 | 90632035 | 1 | LABEL | GB | |
||
| 16 | N536787 | 1 | RATING PLATE | GB | |||
| 17 | N494099 | 1 | CHARGER SA | 0.4A | BCD700S2K | GB | |
| 17 | N543224 | 1 | CHARGER SA | 0.4A | BCD700S | GB | |
| 18 | 90641356 | 1 | BATTERY 18V - 1.5AH - 27WH | Li-Ion - BL1518-XJ | BCD700S | GB | |
| 18 | N703441 | 1 | BATTERY 18V - 1.5AH - 27WH | Li-Ion - BL1518 | BCD700S2K | GB | |
