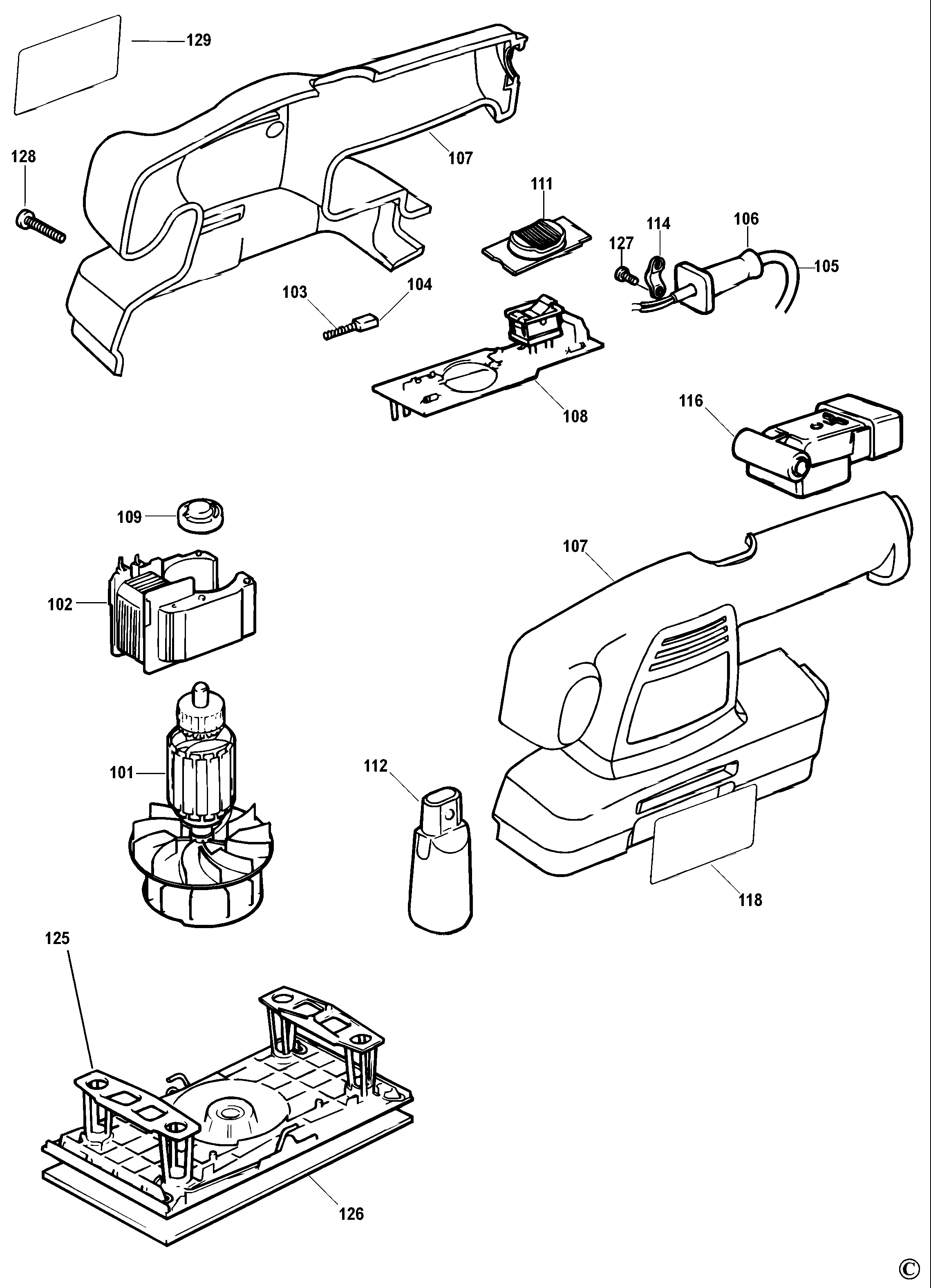

KA175 SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 794109 | 1 | ARMATURE SA | B1 |  |
||
| 102 | 732470 | 1 | FIELD | B1 | |
||
| 103 | 830501 | 2 | SPRING | B1 | |
||
| 104 | 736703 | 2 | BRUSH | B1 | |
||
| 105 | 330080-03 | 1 | CORDSET | B1 | |
||
| 106 | 770235 | 1 | PROTECTOR | B1 |  |
||
| 107 | 375042-01 | 1 | CLAMSHELL PAIR | TYPE 1 | B1 | |
|
| 107 | 375042-01 | 1 | CLAMSHELL PAIR | TYPE 2 | B1 | |
|
| 107 | 375042-01 | 1 | CLAMSHELL PAIR | TYPE 1 | B1 | |
|
| 107 | 375042-01 | 1 | CLAMSHELL PAIR | TYPE 2 | B1 | |
|
| 108 | 575152-00 | 1 | PCB | B1 | |||
| 108 | 808496 | 1 | PCB | B1 | |
||
| 109 | 732460 | 1 | BEARING REAR | B1 | |
||
| 111 | 373519-01 | 1 | ACTUATOR | B1 | |
||
| 112 | 368608 | 1 | VACUUM ADAPTOR | B1 | |
||
| 114 | 821070 | 1 | CORD CLAMP | B1 | |
||
| 116 | 374742 | 1 | VACUUM ADAPTOR | B1 | |
||
| 118 | 808499-04 | 1 | BRAND LABEL | B1 | |
||
| 125 | 90541001 | 1 | SHOE SA | B1 | |
||
| 126 | 90541001 | 1 | SHOE SA | B1 | |
||
| 127 | 373158 | 2 | SCREW | B1 | |
||
| 128 | 747329 | 5 | SCREW | TYPE 2 | B1 | |
|
| 128 | 849256 | 5 | SCREW | TYPE 1 | B1 | |
|
| 857 | 815149 | 1 | SANDING SHEET | B1 |
