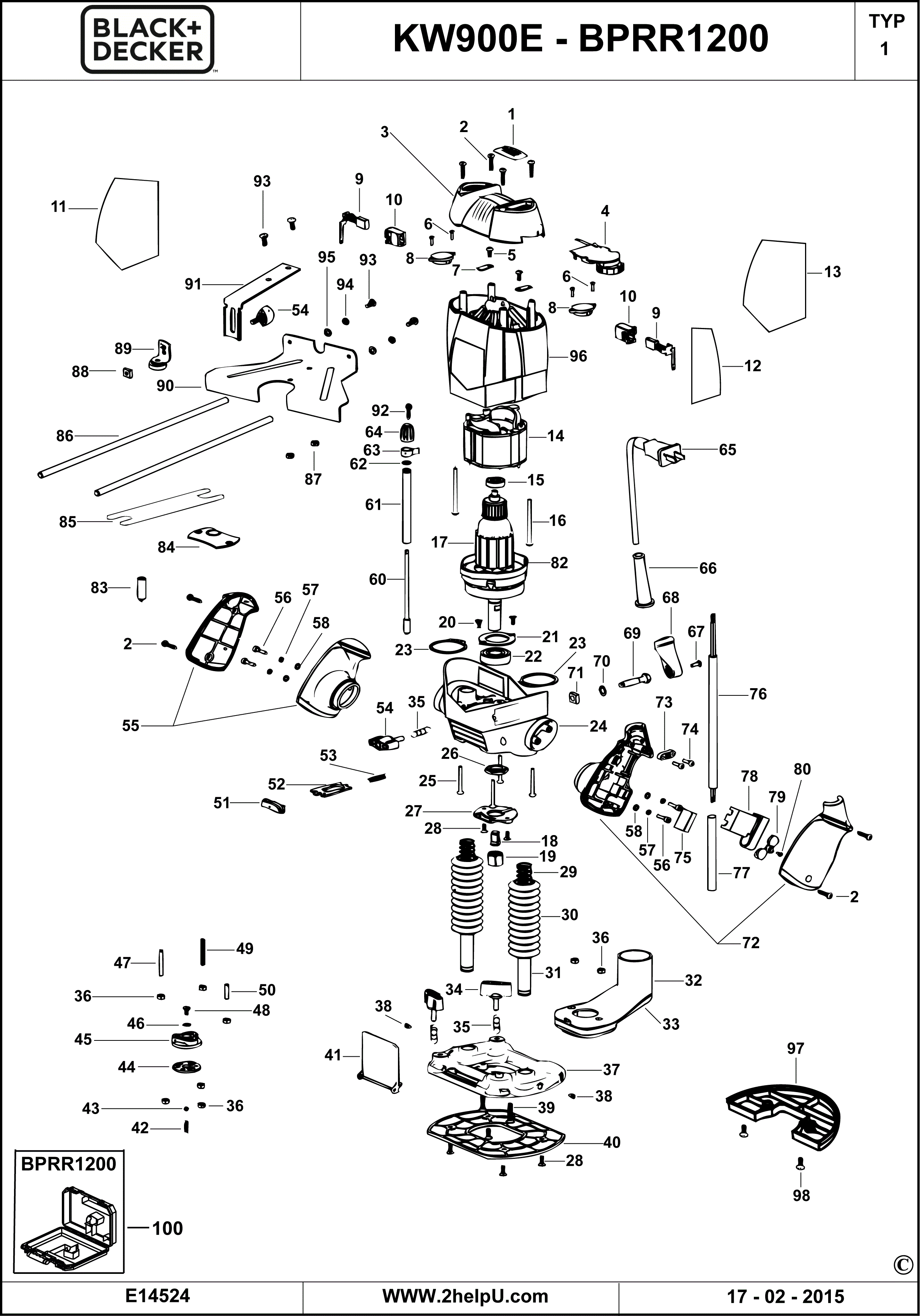

BPRR1200 ROUTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 597739-00 | 1 | IDENTITY LABEL | B9 |  |
||
| 2 | 597740-00 | 8 | SCREW | B9 | |
||
| 3 | 597741-00 | 1 | END CAP | B9 | |
||
| 4 | 597742-00 | 1 | SPEED REGULATOR | B9 | |||
| 5 | 597743-00 | 2 | SCREW | 4.2 x 9.5mm | B9 | |
|
| 6 | 597744-00 | 6 | SCREW | B9 | |
||
| 7 | 597745-00 | 2 | CLAMP | B9 | |||
| 8 | 597746-00 | 2 | COVER | B9 | |
||
| 9 | 597747-00 | 2 | BRUSH | B9 |  |
||
| 10 | 597748-00 | 2 | BRUSH HOLDER | B9 | |
||
| 11 | 6010385-00 | 1 | BRAND LABEL | B9 | |
||
| 12 | 597750-00 | 1 | LABEL | B9 | |
||
| 13 | 6010387-00 | 1 | RATING PLATE | B9 | |
||
| 14 | 597752-00 | 1 | FIELD SA 230V | B9 | |
||
| 15 | 597753-00 | 1 | BEARING | B9 | |
||
| 16 | 597754-00 | 2 | SCREW | B9 | |
||
| 17 | 597755-00 | 1 | ARMATURE SA | 230V | B9 | |
|
| 18 | 597756-00 | 1 | COLLET 6.35MM | B9 | |
||
| 18 | 597757-00 | 1 | COLLET 8MM | B9 | |
||
| 19 | 597758-00 | 1 | NUT | B9 | |
||
| 20 | 597759-00 | 2 | SCREW | B9 | |
||
| 21 | 597760-00 | 1 | BEARING PLATE | B9 | |
||
| 22 | 597761-00 | 1 | BEARING | B9 | |
||
| 23 | 597762-00 | 1 | CIRCLIP | B9 | |
||
| 24 | 597763-00 | 1 | CASTING | B9 | |||
| 25 | 597764-00 | 4 | SCREW | 4.2 x 55mm | B9 | |
|
| 26 | 597765-00 | 1 | NUT | B9 | |
||
| 27 | 597766-00 | 1 | COVER | B9 | |
||
| 28 | 597767-00 | 6 | SCREW | B9 | |
||
| 29 | 597768-00 | 2 | SPRING | B9 | |
||
| 30 | 597769-00 | 2 | PIPE | B9 | |
||
| 31 | 597770-00 | 2 | TUBE GUIDE | B9 | |
||
| 32 | 597771-00 | 1 | DUST PORT | B9 | |
||
| 33 | 597772-00 | 1 | DUST PORT | B9 | |
||
| 34 | 597773-00 | 2 | LOCKING SCREW | B9 | |
||
| 35 | 597774-00 | 3 | SPRING | B9 | |
||
| 36 | 597775-00 | 8 | NUT | B9 | |
||
| 37 | 597776-00 | 1 | BASE | B9 | |
||
| 38 | 1004491-00 | 2 | PIN | B9 | |
||
| 39 | 597778-00 | 2 | SCREW | B9 | |
||
| 40 | 597779-00 | 1 | BASEPLATE | B9 | |
||
| 41 | 597780-00 | 1 | SHIELD | B9 | |
||
| 42 | 597781-00 | 1 | SPRING | B9 | |
||
| 43 | 597782-00 | 1 | BALL STEEL | B9 | |
||
| 44 | 597783-00 | 1 | DEPTH STOP | B9 | |
||
| 45 | 597784-00 | 1 | KNOB | B9 | |
||
| 46 | 597785-00 | 1 | WASHER BOW | B9 | |
||
| 47 | 597786-00 | 1 | SCREW | B9 | |
||
| 48 | 597787-00 | 1 | SCREW | B9 | |
||
| 49 | 597788-00 | 1 | SCREW | B9 | |
||
| 50 | 597789-00 | 1 | SCREW | B9 | |
||
| 51 | 597790-00 | 1 | SPINDLE LOCK | B9 | |
||
| 52 | 597791-00 | 1 | LOCKING DEVICE | B9 | |
||
| 53 | 597792-00 | 1 | SPRING | B9 | |
||
| 54 | 597793-00 | 1 | LOCKING SCREW | B9 | |
||
| 55 | 597794-00 | 1 | HANDLE LH | B9 | |||
| 56 | 597795-00 | 4 | SCREW | B9 | |
||
| 57 | 597796-00 | 1 | WASHER SPRING | 4mm | B9 | |
|
| 58 | 597797-00 | 4 | WASHER | B9 | |
||
| 60 | 597798-00 | 1 | POLE PIECE | B9 | |
||
| 61 | 597799-00 | 1 | TUBE METAL | B9 | |
||
| 62 | 597800-00 | 1 | O RING | B9 | |
||
| 63 | 597801-00 | 1 | POINTER | B9 | |
||
| 64 | 597802-00 | 1 | ADJUSTER | B9 | |
||
| 65 | 597804-00 | 1 | CORDSET (EURO) | B9 | |
||
| 66 | 597805-00 | 1 | CORD PROTECTOR | B9 | |
||
| 67 | 597806-00 | 1 | SCREW | B9 | |
||
| 68 | 597807-00 | 1 | LOCKING DEVICE | B9 | |
||
| 69 | 597808-00 | 1 | BOLT | B9 | |
||
| 70 | 597809-00 | 1 | WASHER BOW | B9 | |||
| 71 | 597810-00 | 1 | NUT | B9 | |
||
| 72 | 1003207-00 | 1 | HANDLE SA RH | B9 | |
||
| 73 | 597812-00 | 1 | CORD CLAMP | B9 | |
||
| 74 | 597813-00 | 2 | SCREW | B9 | |
||
| 75 | 597814-00 | 1 | CAPACITOR | B9 | |
||
| 76 | 597815-00 | 1 | LED | B9 | |
||
| 77 | 597816-00 | 1 | TUBE | B9 | |
||
| 78 | 1003205-00 | 1 | SWITCH KIT | + 56-57-58-72-79 | B9 | |
|
| 79 | 597818-00 | 1 | CAP | B9 | |
||
| 80 | 597744-00 | 5 | SCREW | B9 | |
||
| 82 | 597820-00 | 1 | FAN COVER | B9 | |
||
| 83 | 597821-00 | 1 | PIN | B9 | |
||
| 84 | 597822-00 | 1 | GUIDE BUSH | B9 | |
||
| 85 | 597823-00 | 1 | SPANNER | B9 | |
||
| 86 | 597824-00 | 2 | TUBE SUPPORT | B9 | |
||
| 87 | 597825-00 | 2 | NUT | B9 | |
||
| 88 | 597826-00 | 1 | NUT | B9 | |
||
| 89 | 597827-00 | 1 | WHEEL SA | B9 | |
||
| 90 | 597828-00 | 1 | GUIDE | B9 | |||
| 91 | 597829-00 | 1 | BRACKET | B9 | |
||
| 92 | 597830-00 | 1 | SCREW | B9 | |
||
| 93 | 597831-00 | 4 | SCREW | B9 | |
||
| 94 | 597832-00 | 2 | WASHER SPRING | B9 | |
||
| 95 | 597833-00 | 2 | WASHER | B9 | |
||
| 96 | 597834-00 | 1 | HOUSING MOTOR | B9 | |
||
| 97 | 597835-00 | 1 | FENCE | B9 | |
||
| 98 | 597869-00 | 2 | SCREW | B9 | |
||
| 100 | 6010388-00 | 1 | KITBOX | B9 |
