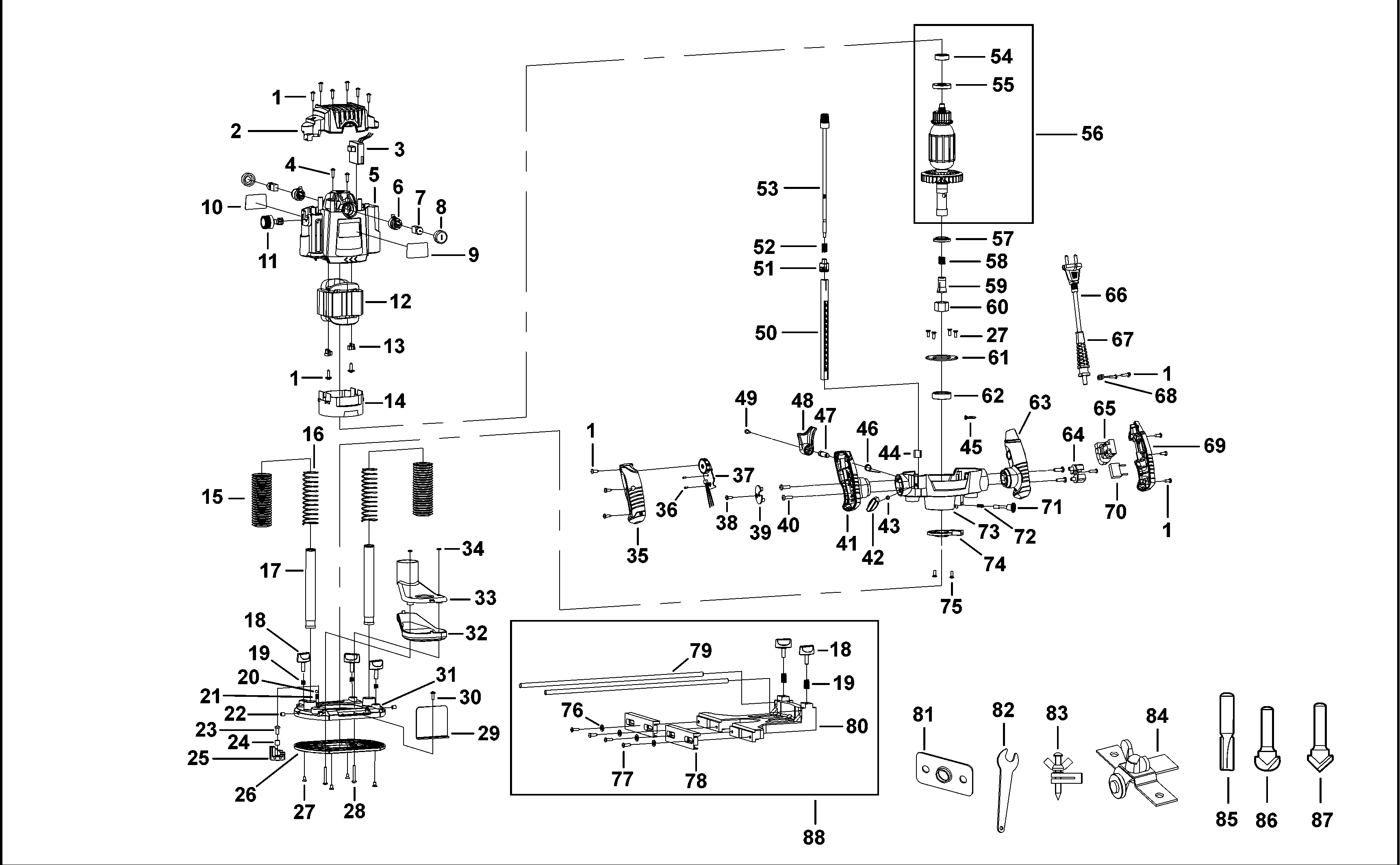

BDROUT127 ROUTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5170025-19 | 15 | SCREW | ST4.2×16 | B5 |  |
|
| 2 | 6010401-57 | 1 | COVER-TOP | B5 | |
||
| 3 | 6010401-58 | 1 | SWITCH VARIABLE | SPEED | B5 | |
|
| 4 | 6010401-59 | 2 | SCREW | B5 | |
||
| 5 | 6010401-60 | 1 | HOUSING MOTOR | B5 | |
||
| 6 | 6010401-61 | 2 | BRUSH HOLDER | B5 | |
||
| 7 | 6010401-62 | 1 | BRUSH PAIR | B5 |  |
||
| 8 | 6010401-63 | 2 | BRUSH CAP | B5 | |
||
| 9 | 6010401-64 | 1 | BRAND LABEL | B5 | |
||
| 10 | 6010401-65 | 1 | RATING PLATE | B5 | |
||
| 11 | 6010401-66 | 1 | KNOB | RULER | B5 | |
|
| 12 | 6010401-67 | 1 | FIELD | B5 | |
||
| 13 | 6010401-68 | 2 | CLAMP | B5 | |
||
| 14 | 6010401-69 | 1 | BAFFLE | B5 | |
||
| 15 | 5170025-78 | 2 | SLEEVE | B5 | |
||
| 16 | 6010401-70 | 2 | SPRING | B5 | |
||
| 17 | 6010401-71 | 2 | GUIDE | B5 | |
||
| 18 | 5170025-91 | 5 | KNOB | B5 | |
||
| 19 | 5170025-90 | 5 | SPRING | B5 | |
||
| 20 | 6010401-72 | 1 | BALL | B5 | |
||
| 21 | 5170025-76 | 1 | SPRING | B5 | |
||
| 22 | 6010401-73 | 1 | SCREW | M6×15 | B5 | |
|
| 23 | 5170025-72 | 1 | SCREW | B5 | |
||
| 24 | 5170025-73 | 1 | SLEEVE | B5 | |
||
| 25 | 6010401-74 | 1 | DEPTH STOP | B5 | |
||
| 26 | 6010401-75 | 1 | BASE PLATE | B5 | |
||
| 27 | 6010401-76 | 8 | SCREW | M4×10 | B5 | |
|
| 28 | 6010401-77 | 2 | SCREW | M4×30 | B5 | |
|
| 29 | 6010401-78 | 1 | SCREEN | B5 | |
||
| 30 | 6010401-79 | 1 | SCREW | M4×8 | B5 | |
|
| 31 | 6010401-80 | 1 | BASE | B5 | |
||
| 32 | 6010401-81 | 1 | COVER | B5 | |
||
| 33 | 6010401-82 | 1 | COVER | B5 | |
||
| 34 | 6010401-83 | 1 | NUT | M4 | B5 | |
|
| 35 | 6010401-84 | 1 | COVER LH | B5 | |
||
| 36 | 6010401-85 | 1 | SCREW | 2.9×8 | B5 | |
|
| 37 | 6010401-86 | 1 | SPEED REGULATOR | B5 | |
||
| 38 | 5170025-22 | 2 | SCREW | ST4.2×13 | B5 | |
|
| 39 | 5170025-49 | 1 | BOARD | B5 | |
||
| 40 | 6010401-87 | 4 | SCREW | M5×16 | B5 | |
|
| 41 | 6010401-88 | 1 | HANDLE LH | B5 | |
||
| 42 | 1004730-96 | 1 | KNOB | B5 | |
||
| 43 | 6010401-89 | 1 | BUSH | B5 | |
||
| 44 | 5170025-46 | 1 | SPRING | B5 | |
||
| 45 | 6010401-90 | 1 | CIRCLIP | B5 | |
||
| 46 | 5170025-44 | 1 | SPRING | B5 | |
||
| 47 | 6010401-91 | 1 | LOCKING SCREW | B5 | |
||
| 48 | 6010401-92 | 1 | LOCKING KNOB | B5 | |
||
| 49 | 5170025-40 | 1 | SCREW | B5 | |
||
| 50 | 6010401-93 | 1 | DEPTH ROD | B5 | |
||
| 51 | 6010401-94 | 1 | ADJUSTER | B5 | |
||
| 52 | 6010401-95 | 1 | SPRING | B5 | |
||
| 53 | 6010401-96 | 1 | ADJUSTER | B5 | |
||
| 54 | 6010401-97 | 1 | BEARING | B5 | |
||
| 55 | 6010401-98 | 1 | INDUCTOR | RING | B5 | |
|
| 56 | 6010402-00 | 1 | ARMATURE SA | B5 | |
||
| 57 | 6010402-01 | 1 | NUT | LOCATING | B5 | |
|
| 58 | 6010402-02 | 1 | SPRING | B5 | |
||
| 59 | 6010402-05 | 1 | COLLET 8MM | B5 | |
||
| 59 | 6010402-04 | 1 | COLLET 12MM | B5 | |
||
| 59 | 6010402-03 | 1 | COLLET | 12.7MM | B5 | |
|
| 60 | 6010402-06 | 1 | COLLET NUT | B5 | |
||
| 61 | 6010402-07 | 1 | BEARING PLATE | B5 | |
||
| 62 | 6010402-08 | 1 | BEARING | B5 | |
||
| 63 | 6010402-09 | 1 | HANDLE RH | B5 | |
||
| 64 | 5170025-24 | 1 | BOARD | B5 | |
||
| 65 | 5170025-27 | 1 | SWITCH | B5 | |
||
| 66 | 6010402-10 | 1 | CORDSET | B5 | |
||
| 67 | 5170025-18 | 1 | CORD PROTECTOR | B5 | |
||
| 68 | 6010402-11 | 1 | CABLE CLAMP | B5 | |
||
| 69 | 6010402-12 | 1 | HANDLE COVER | RIGHT | B5 | |
|
| 70 | 5170025-21 | 1 | CAPACITOR | B5 | |
||
| 71 | 6010402-13 | 1 | SPINDLE LOCK | B5 | |
||
| 72 | 6010402-14 | 1 | SPRING | B5 | |
||
| 73 | 6010402-15 | 1 | GEARBOX | B5 | |
||
| 74 | 6010402-16 | 1 | COVER | B5 | |
||
| 75 | 6010402-17 | 2 | SCREW | M4x12 | B5 | |
|
| 76 | 6010402-18 | 6 | WASHER | B5 | |
||
| 77 | 6010402-19 | 4 | SCREW | M6x12 | B5 | |
|
| 78 | 6010402-20 | 2 | PAD | B5 | |
||
| 79 | 6010402-21 | 2 | GUIDE ROD | B5 | |
||
| 80 | 6010402-22 | 1 | GUIDE | B5 | |
||
| 81 | 6010402-23 | 1 | GUIDE | B5 | |
||
| 82 | 6010402-24 | 1 | SPANNER | B5 | |
||
| 83 | 5170025-98 | 1 | PIN | B5 | |
||
| 84 | 6010402-25 | 1 | FOLLOWER | B5 | |
||
| 85 | 5170026-03 | 1 | BIT | 1/4 STRAIGHT BIT; 1/4" straight bit | 1/4" straight bit | B5 | |
| 86 | 5170026-05 | 1 | BIT | 1/2" COVE BOX BIT; 1/2"cove box bit | 1/2"cove box bit | B5 | |
| 87 | 5170026-06 | 1 | BIT | 1/2" GROOVE BIT | 1/2" groove bit | B5 | |
| 88 | 6010402-52 | 1 | GUIDE SA | B5 | |
