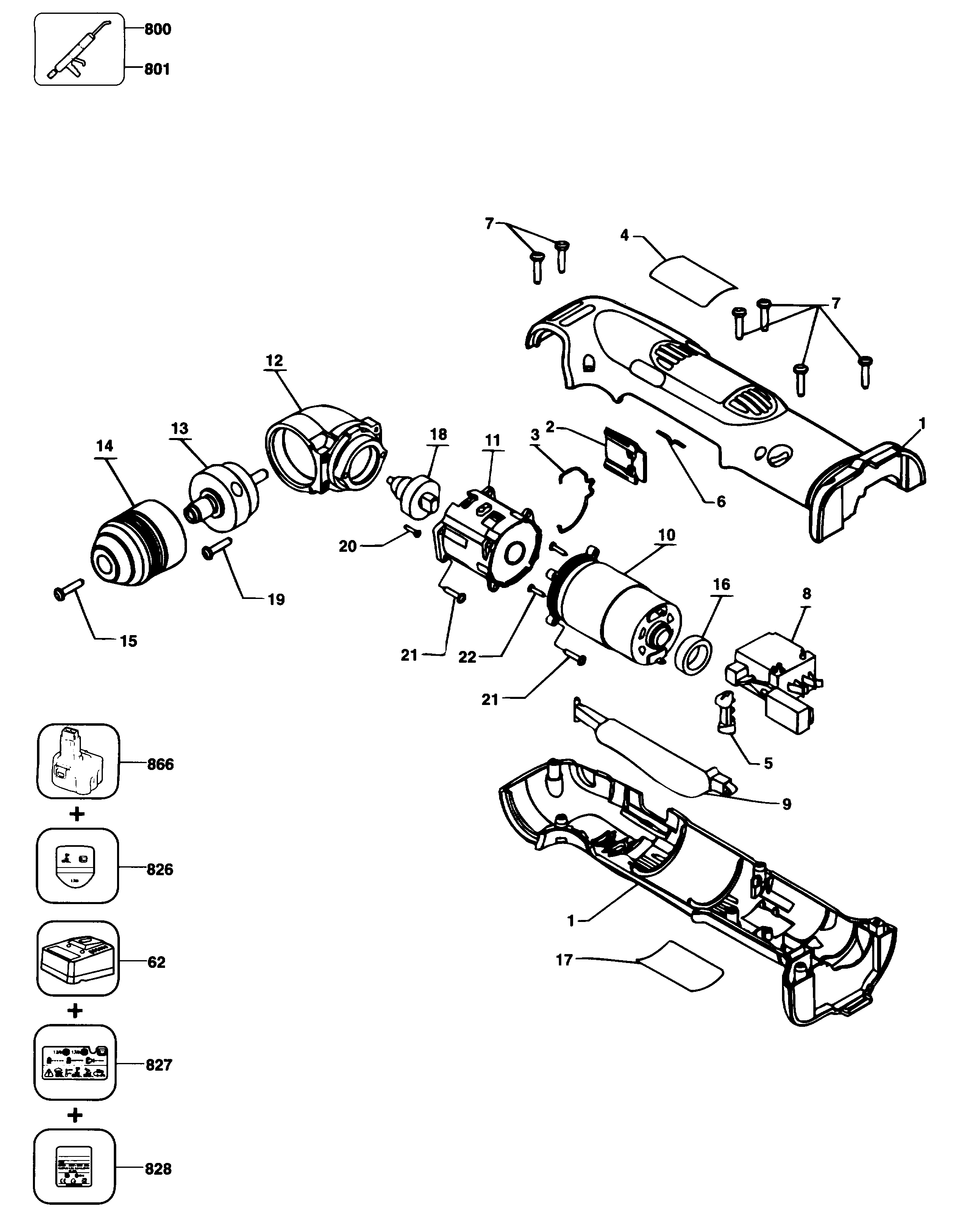

DW965 RIGHT ANGLE DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 383841-07 | 1 | CLAMSHELL SA | GB |  |
||
| 2 | 383842-00 | 1 | ACTUATOR | GB | |
||
| 3 | 383184-00 | 1 | SPRING | GB |  |
||
| 4 | 149490-00 | 1 | BRAND LABEL | GB | |
||
| 5 | 383843-00 | 1 | SLIDER | GB | |
||
| 6 | 144658-00 | 1 | SPRING | GB | |||
| 7 | 682211-00 | 6 | SCREW | GB | |
||
| 8 | 152274-13 | 1 | SWITCH | GB | |
||
| 9 | 383844-00 | 1 | PADDLE | GB | |
||
| 10 | 391886-00 | 1 | MOTOR & PINION | GB | |
||
| 11 | 383839-00 | 1 | GEARBOX SA | GB | |
||
| 12 | 383837-00 | 1 | GEARCASE | GB | |
||
| 13 | 383840-00 | 1 | SPINDLE & GEAR | GB | |
||
| 14 | 330075-46 | 1 | CHUCK KEYLESS | GB | |
||
| 15 | 605256-02 | 1 | SCREW | GB | |
||
| 16 | 387740-00 | 1 | DAMPER | GB | |
||
| 16 | 391564-00 | 1 | SPACER | For Mabuchi motor | GB | |
|
| 17 | 386125-00 | 1 | NAMEPLATE | GB | |
||
| 18 | 604790-00SV | 1 | GEARCASE SA | GB | |
||
| 19 | 80164-00 | 2 | SCREW | GB | |
||
| 20 | 55206-00 | 2 | SCREW | GB | |
||
| 21 | 98091-10 | 8 | SCREW | GB | |||
| 22 | 156179-00 | 2 | SCREW | GB | |
||
| 62 | 572576-00 | 1 | CHARGER 7.2V - 18V | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 801 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | GB | |
|
| 826 | 578763-02 | 1 | IDENTITY LABEL | GB | |
||
| 827 | 643500-00 | 1 | WARNING LABEL | GB | |
||
| 828 | 583471-05 | 1 | NAMEPLATE | GB | |
||
| 866 | 582806-00 | 1 | BATTERY 12V - 2.0AH | GB | |
