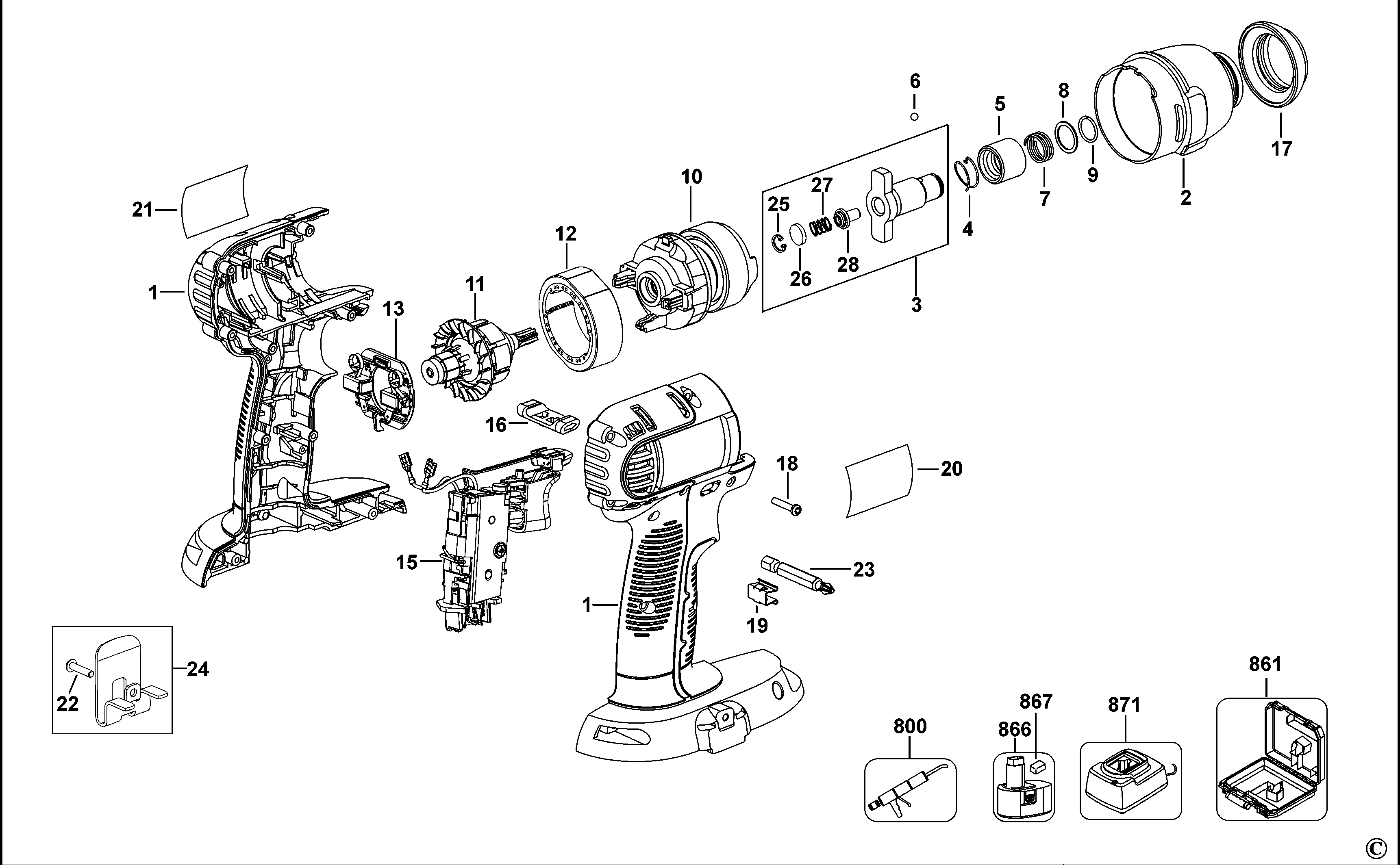

DC827 IMPACT DRIVER Type 11 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N031528 | 1 | HOUSING PAIR | 18V Ni-Cd | GB |  |
|
| 2 | 646693-00SV | 1 | NOSE RING | GB | |
||
| 3 | N114621 | 1 | ANVIL ASSEMBLY | GB |  |
||
| 4 | N078434 | 1 | SPRING | GB | |
||
| 5 | N078437 | 1 | SLEEVE | GB | |
||
| 6 | N089668 | 1 | BALL STEEL | GB | |
||
| 7 | N019351 | 1 | SPRING | GB | |
||
| 8 | N016823 | 1 | WASHER | GB | |
||
| 9 | N053863 | 1 | RING | GB | |
||
| 10 | N166478 | 1 | CLUTCH SA | GB | |
||
| 11 | 646694-03SV | 1 | ARMATURE | GB | |
||
| 12 | N109432 | 1 | MAGNET | GB | |
||
| 13 | N109434 | 1 | BRUSH PLATE SA | GB | |
||
| 15 | N167658 | 1 | SWITCH SA | EMI | >182012 | GB | |
| 15 | N167658 | 1 | SWITCH SA | EMI | <182012 | GB | |
| 16 | 659201-00 | 1 | REVERSER | GB | |
||
| 17 | 642886-00 | 1 | NOSE RING | Rubber | GB | |
|
| 18 | 682211-00 | 9 | SCREW | GB | |
||
| 19 | 148354-03 | 1 | HOLDER | GB | |
||
| 20 | N110977 | 1 | RATING PLATE | GB | |
||
| 21 | 646763-00 | 1 | BRAND LABEL | GB | |
||
| 22 | 330019-66 | 1 | SCREW | GB | |
||
| 23 | 607906-22 | 1 | BIT PHILLIPS | Phillips #2 | GB | |
|
| 24 | N022723 | 1 | CLIP | GB | |
||
| 25 | N019354 | 1 | LOCKING RING | GB | |
||
| 26 | N019339 | 1 | Seat | GB | |
||
| 27 | N089667 | 1 | SPRING | GB | |
||
| 28 | N089666 | 1 | PLUNGER | GB | |
||
| 861 | 652211-01 | 1 | KITBOX | GB | |
||
| 866 | N425667 | 2 | BATTERY 18V - 2.0AH - 36WH | DC827KL | GB | |
|
| 866 | N425667 | 2 | BATTERY 18V - 2.0AH - 36WH | DC827C2 | GB | |
|
| 867 | 645221-00 | 1 | CAP | GB | |
||
| 867 | 650912-00 | 1 | SAFETY CAP | Li-Ion - Nano | GB | |
|
| 871 | N015877 | 1 | CHARGER 7.2V - 18V | GB | |
