DWE4010 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page

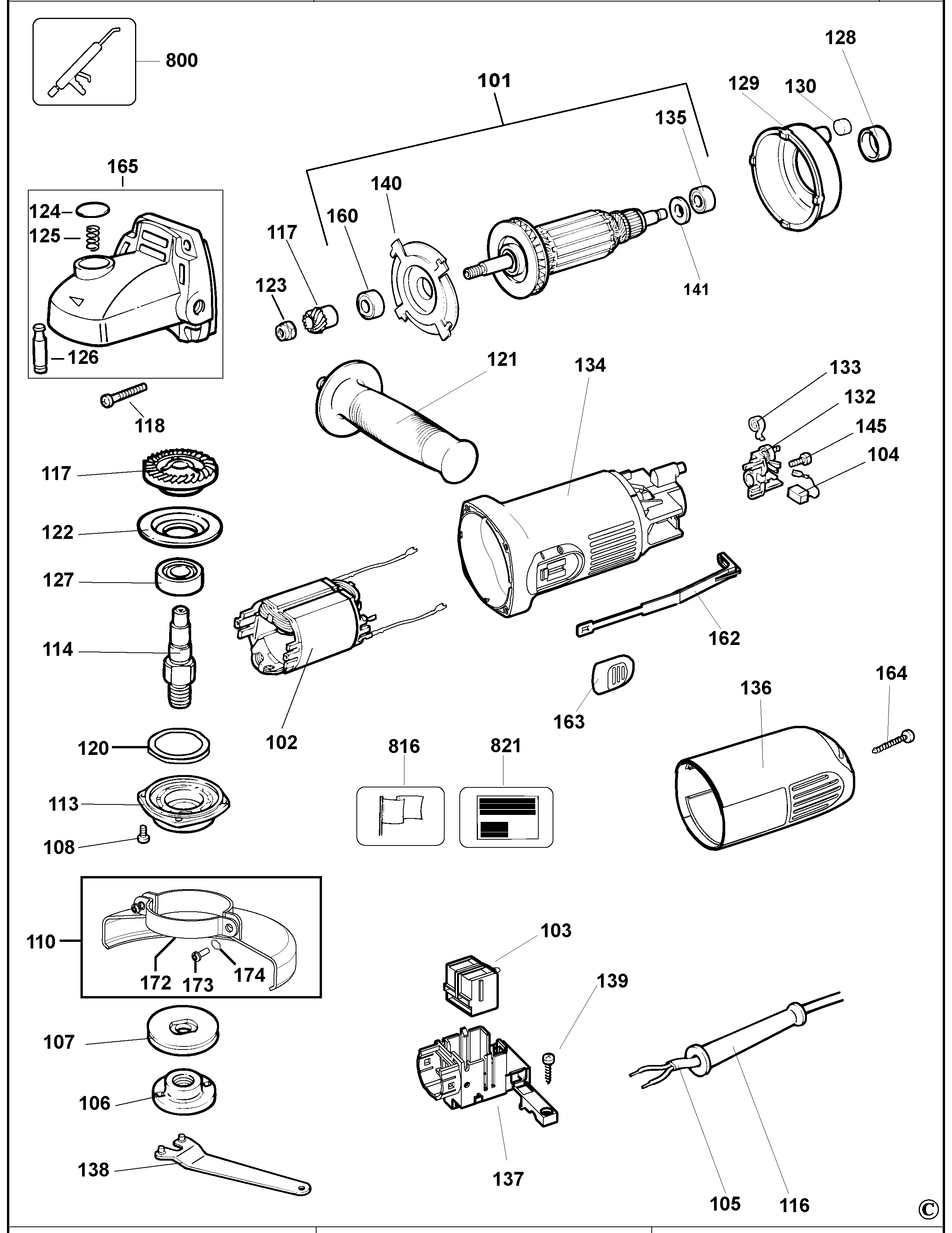

| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | N358499 | 1 | ARMATURE SA | B5 |  |
||
| 102 | N336120 | 1 | FIELD SA | B5 | |
||
| 103 | 945614-01 | 1 | SWITCH | B5 | |
||
| 104 | N035676 | 1 | BRUSH PAIR 230V | B5 | |
||
| 105 | N344339 | 1 | CORDSET | B5 |  |
||
| 106 | 401678-05 | 1 | OUTER FLANGE | B5 | |
||
| 107 | 391969-00 | 1 | INNER FLANGE | B5 | |
||
| 108 | 330045-46 | 4 | SCREW | B5 | |
||
| 110 | N309548 | 1 | GUARD SA | B5 | |
||
| 113 | N308541 | 1 | GEARCASE COVER | B5 | |
||
| 114 | N318739 | 1 | SPINDLE | B5 | |
||
| 116 | N542553 | 1 | CORD PROTECTOR | B5 | |
||
| 116 | N542553 | 1 | CORD PROTECTOR | B5 | |
||
| 117 | 661244-00 | 1 | GEAR & PINION | B5 | |
||
| 118 | 562097-01 | 4 | SCREW | B5 | |
||
| 120 | 641893-00 | 1 | FELT SEAL | B5 | |
||
| 121 | 562211-00 | 1 | HANDLE SIDE SA | B5 | |
||
| 122 | 945299-00 | 1 | FLANGE | B5 | |
||
| 123 | 945292-00 | 1 | NUT | B5 | |
||
| 124 | 944575-00 | 1 | BUTTON | B5 | |
||
| 125 | 562210-00 | 1 | SPRING | B5 | |
||
| 126 | 944571-00 | 1 | SPINDLE LOCK | B5 | |
||
| 127 | 605040-22 | 1 | BEARING | B5 | |
||
| 128 | 641823-00 | 1 | SLEEVE | B5 | |
||
| 129 | 401623-00 | 1 | BAFFLE | B5 | |
||
| 130 | 949638-01 | 2 | BUFFER | B5 | |
||
| 132 | 606574-01 | 2 | BRUSH HOLDER | B5 | |
||
| 133 | 562204-00 | 2 | SPRING | B5 | |
||
| 134 | N375853 | 1 | FIELDCASE | B5 | |
||
| 135 | 605040-03 | 1 | BEARING BALL | B5 | |
||
| 136 | 394938-06 | 1 | END CAP | B5 | |
||
| 137 | N312079 | 1 | SWITCH SUPPORT | B5 | |
||
| 138 | 401253-00 | 1 | WRENCH ROUND-PINS | B5 | |
||
| 139 | 562097-05 | 1 | SCREW | B5 | |
||
| 140 | 401622-01 | 1 | FLANGE | B5 | |
||
| 141 | 398906-00 | 1 | SPACER INSULATING | B5 | |
||
| 145 | 562097-00 | 2 | SCREW | B5 | |
||
| 160 | N110359 | 1 | BEARING | B5 | |
||
| 162 | 611737-01 | 1 | LINK | B5 | |
||
| 163 | 569624-01 | 1 | BUTTON | B5 | |
||
| 164 | 562097-13 | 1 | SCREW | B5 | |
||
| 165 | N358559 | 1 | GEARCASE SA | B5 | |
||
| 172 | N288581 | 1 | STRAP | B5 | |
||
| 173 | 562160-02 | 2 | SCREW | M4 x 14mm | B5 | |
|
| 174 | 569639-00 | 2 | WASHER SPRING | B5 | |
||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | B5 | |
|
| 816 | 946194-00 | 1 | BRAND LABEL | B5 | |
||
| 821 | N338232 | 1 | RATING PLATE | B5 | B5 | |
