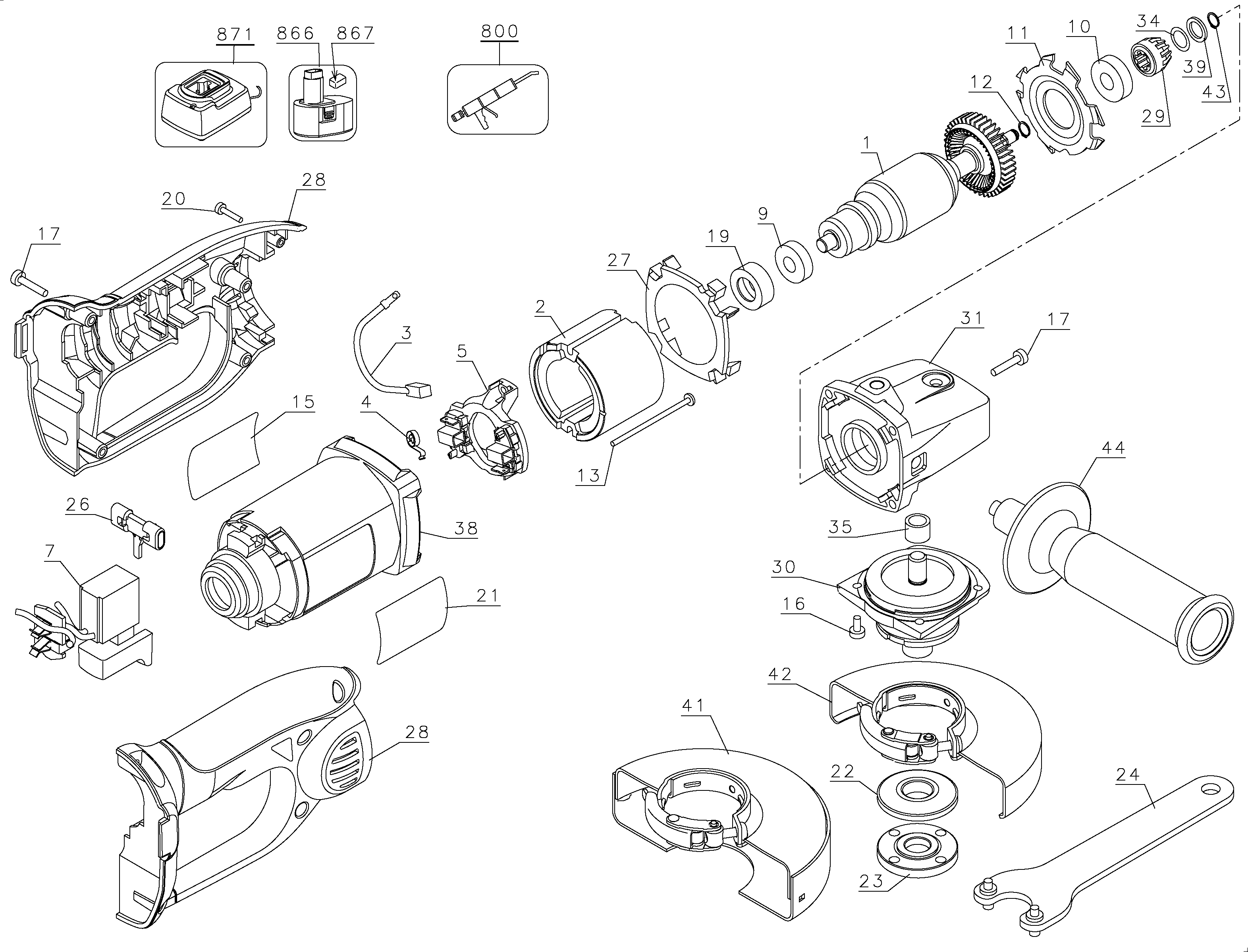

DC410KA 4-1/2 CUT OFF TOOL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 389823-01SV | 1 | ARMATURE & FAN | GB |  |
||
| 2 | 388232-01SV | 1 | MAGNET | GB | |
||
| 3 | 387558-02 | 2 | BRUSH & LEAD | GB | |
||
| 4 | 445860-00 | 2 | BRUSH SPRING | GB |  |
||
| 5 | 382178-01 | 1 | BRUSH FRAME | GB | |
||
| 7 | 620508-00 | 1 | SWITCH SA | GB | |
||
| 9 | 330003-04 | 1 | BEARING | GB | |||
| 10 | 605040-15 | 1 | BEARING,BALL | NPP | GB | |
|
| 11 | 150057-00 | 1 | RETAINER | GB | |
||
| 12 | 444793-00 | 1 | CIRCLIP | GB | |
||
| 13 | 448269-00 | 2 | SCREW | GB | |
||
| 15 | 395047-00 | 1 | BRAND LABEL | GB | |
||
| 16 | 146929-00 | 4 | SCREW | 8-32x5/8 W/LOCK WSHR | GB | |
|
| 17 | 330019-13 | 8 | SCREW | M4X19 T20 | GB | |
|
| 19 | 445217-02 | 1 | SLEEVE | GB | |
||
| 20 | 682211-00 | 1 | SCREW | GB | |
||
| 21 | 650945-00 | 1 | RATING PLATE | DC410 | GB | |
|
| 22 | 391969-00 | 1 | INNER FLANGE | GB | |
||
| 23 | 401678-05 | 1 | OUTER FLANGE | GB | |
||
| 24 | 401680-00 | 1 | WRENCH | GB | |
||
| 26 | 617327-00 | 1 | LOCK BUTTON | GB | |
||
| 27 | 390181-00 | 1 | BAFFLE | GB | |
||
| 28 | 617400-00 | 1 | CLAMSHELL SET | HANDLE HOUSING | GB | |
|
| 29 | 152487-01 | 1 | PINION | 12 TEETH | GB | |
|
| 30 | 617601-01SV | 1 | GEAR CASE COVER | GB | |||
| 31 | 150323-00SV | 1 | GEARCASE COVER | GB | |||
| 34 | 050050-00 | 1 | RING | GB | |
||
| 35 | 036826-00 | 1 | SLEEVE BEARING | GB | |
||
| 38 | 445857-08 | 1 | FIELDCASE | GB | |
||
| 39 | 449559-00 | 1 | WASHER | GB | |
||
| 41 | 643772-00 | 1 | GUARD SA | 4.5IN CUTOFF (TYPE1) | GB | ||
| 42 | 397661-01 | 1 | GUARD SA | 4.5 IN TYPE 27 | GB | |
|
| 43 | 38751-00 | 1 | RING | GB | |
||
| 44 | N239381 | 1 | SIDE HANDLE | GB | |||
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | GB | ||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | 6 OZ | CVJ GREASE | GB | |
| 866 | DE9095 | 2 | BATTERY 18V - 2.0AH - 36WH | Ni-Cad | GB | ||
| 867 | 645221-00 | 2 | CAP | GB | |
||
| 871 | DE9116 | 1 | CHARGER 7.2V - 18V | Ni-Cad - NiMH - 1 hr | GB |
