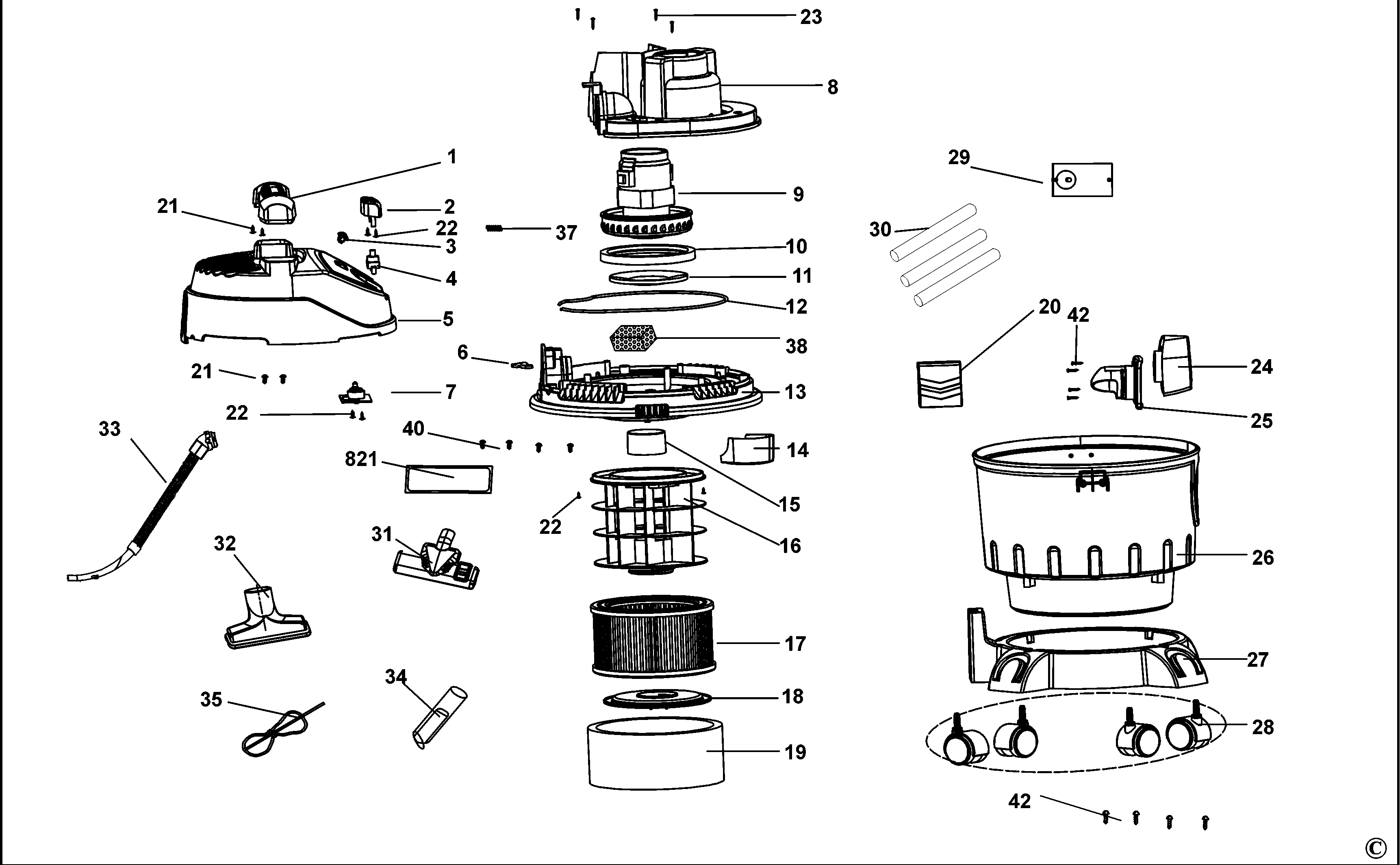

BDWD10 VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5170033-66 | 1 | HANDLE | B1 |  |
||
| 2 | 5170033-67 | 1 | BUTTON | B1 | |
||
| 3 | 5170033-68 | 1 | COVER | B1 | |
||
| 4 | 5170033-28 | 1 | SWITCH | B1 |  |
||
| 5 | 5170033-69 | 1 | COVER | B1 | |
||
| 6 | 5170033-30 | 1 | BOARD | B1 | |
||
| 7 | 5170033-70 | 1 | PCB SA | B1 | |
||
| 8 | 5170033-71 | 1 | COVER | B1 | |
||
| 9 | 5170033-72 | 1 | MOTOR | B1 | |
||
| 10 | 5170033-73 | 1 | SEAL | B1 | |
||
| 11 | 5170033-74 | 1 | SEAL | B1 | |
||
| 12 | 5170033-75 | 1 | COVER | B1 | |
||
| 13 | 5170033-76 | 1 | COVER | B1 | |
||
| 14 | 5170033-77 | 1 | COVER | B1 | |
||
| 15 | 5170033-78 | 1 | FLOAT | B1 | |
||
| 16 | 5170033-79 | 1 | HOLDER | B1 | |
||
| 17 | HF10 | 1 | FILTER SA | B1 | |||
| 18 | 5170033-81 | 1 | COVER | B1 | |
||
| 19 | 5170033-50 | 1 | FILTER | B1 | |
||
| 20 | 5170033-82 | 2 | DRUM SA | B1 | |
||
| 21 | 5170033-57 | 2 | SCREW | B1 | |
||
| 22 | 5170033-55 | 6 | SCREW | B1 | |
||
| 23 | 5170033-56 | 4 | SCREW | B1 | |
||
| 24 | 5170033-47 | 1 | TUBE | B1 | |
||
| 25 | 5170033-46 | 1 | DEFLECTOR | B1 | |
||
| 26 | 5170033-85 | 1 | DRUM | B1 | |
||
| 27 | 5170033-86 | 1 | BASE | B1 | |
||
| 28 | 5170033-49 | 4 | WHEEL | B1 | |
||
| 29 | WB10 | 1 | BAG DUST SA | CLOTH | B1 | ||
| 30 | 5170033-88 | 3 | TUBE | B1 | |
||
| 31 | 5170033-59 | 1 | BRUSH | B1 | |
||
| 32 | 5170033-58 | 1 | BRUSH | B1 | |
||
| 33 | 5170033-60 | 1 | HOSE | B1 | |
||
| 34 | 5170033-61 | 1 | NOZZLE | B1 | |
||
| 35 | 5170033-89 | 1 | CORDSET | B1 | |
||
| 37 | 5170033-31 | 1 | SPRING | B1 | |
||
| 38 | 5170033-91 | 1 | REDUCER | B1 | |
||
| 40 | 5170034-55 | 4 | SCREW | B1 | |
||
| 42 | 5170034-58 | 8 | SCREW | B1 | |
||
| 821 | 5170033-90 | 1 | RATING LABEL | B1 | |
