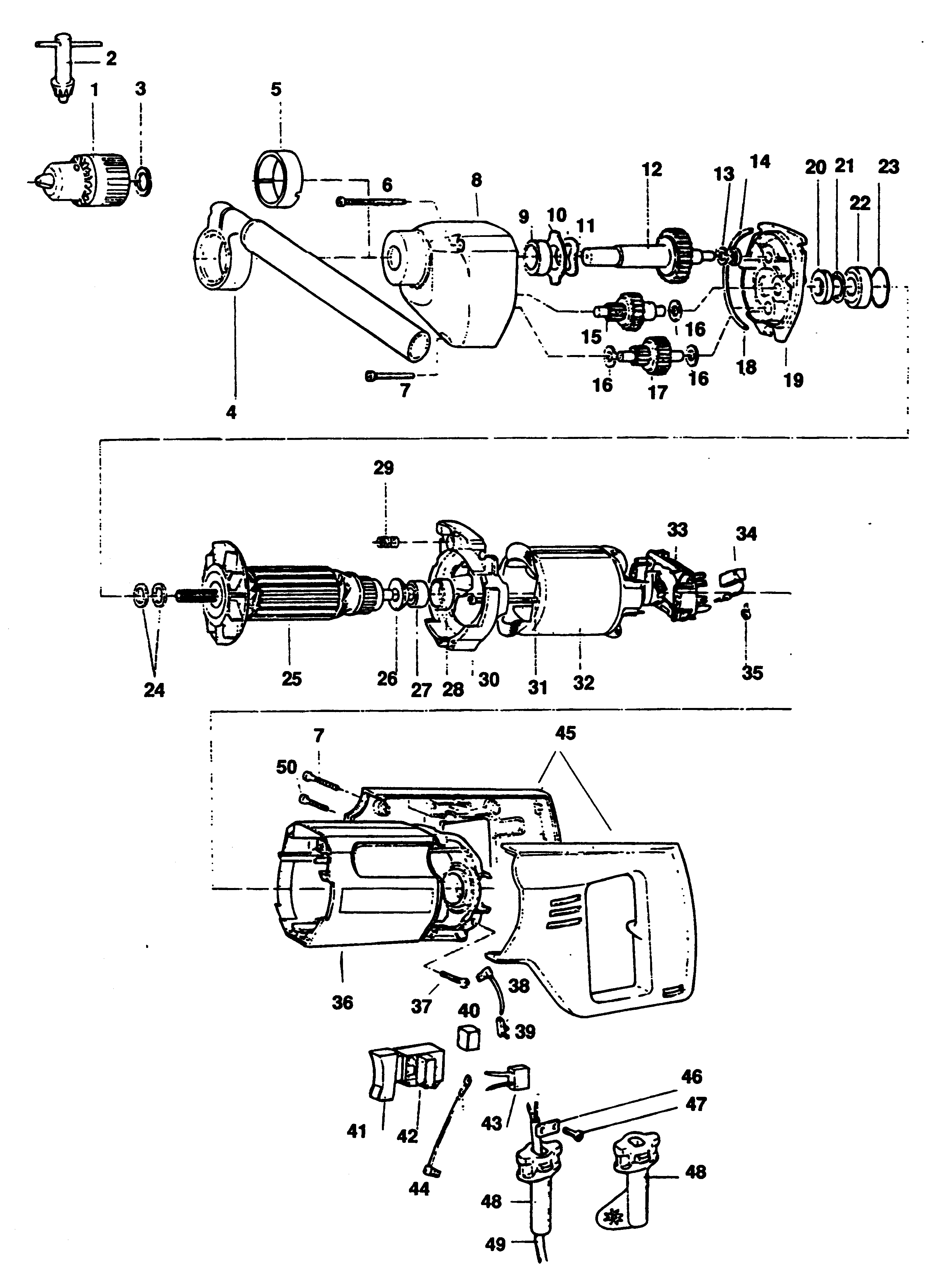

P1512 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 930837 | 1 | CHUCK | ZA |  |
||
| 2 | 932850 | 1 | CHUCK KEY | ZA | |
||
| 3 | 930856 | 1 | WASHER | ZA | |
||
| 5 | 930647 | 1 | RING | ZA | |
||
| 6 | 930082-01 | 2 | SCREW | ZA | |
||
| 7 | 931297-00 | 2 | SCREW | ZA | |
||
| 8 | 930199 | 1 | GEARCASE | ZA | |
||
| 9 | 930041 | 1 | BEARING | ZA | |
||
| 10 | 930113 | 1 | RETAINING PLATE | ZA | |
||
| 11 | 930114 | 1 | WASHER SPRING | ZA | |
||
| 12 | 930493 | 1 | CHUCK & SPINDLE SA | ZA | |
||
| 13 | 930115 | 1 | WASHER | ZA | |
||
| 14 | 930017-00 | 1 | WASHER | ZA | |
||
| 15 | 930203 | 1 | GEAR | ZA | |
||
| 16 | 930102-00 | 3 | WASHER | ZA | |
||
| 18 | 930032 | 1 | SEAL | ZA | |
||
| 19 | 930202 | 1 | COVER | ZA | |
||
| 20 | 930033 | 1 | WASHER | ZA | |
||
| 21 | 930104 | 1 | WASHER | ZA | |
||
| 22 | 330003-07 | 1 | BEARING | ZA | |
||
| 23 | 930039 | 1 | SEAL | ZA | |
||
| 24 | 930106 | 2 | WASHER | ZA | |
||
| 25 | 930154 | 1 | ARMATURE | ZA | |
||
| 25 | 930154 | 1 | ARMATURE | GB 240V | ZA | |
|
| 25 | 930434 | 1 | ARMATURE | KP-SG 100V | ZA | |
|
| 25 | 930434 | 1 | ARMATURE | GB 115V | ZA | |
|
| 25 | 930434 | 1 | ARMATURE | AE-MX-PA 120V | ZA | |
|
| 25 | 930434 | 1 | ARMATURE | SG-TW-VE 120V | ZA | |
|
| 26 | 930051 | 1 | SPACER | ZA | |
||
| 27 | 330003-02 | 1 | BEARING | ZA |  |
||
| 28 | 930275-00 | 1 | SLEEVE | ZA | |
||
| 29 | 932757 | 1 | SPRING | ZA | |
||
| 30 | 930806 | 1 | BAFFLE | ZA | |
||
| 31 | 930077-00 | 2 | SCREW | ZA | |
||
| 32 | 868629-02 | 1 | FIELD | ZA | |
||
| 32 | 937382 | 1 | FIELD 120V | KP-SG 100V | ZA | |
|
| 32 | 930441-00 | 1 | FIELD 240V | GB 240V | ZA | |
|
| 32 | 930436-00 | 1 | FIELD 115V | GB 115V | ZA | |
|
| 32 | 930436-00 | 1 | FIELD 115V | AE-MX-PA 120V | ZA | |
|
| 32 | 930436-00 | 1 | FIELD 115V | SG-TW-VE 120V | ZA | |
|
| 33 | 930482 | 1 | BRUSHPLATE | ZA | |
||
| 34 | 939539-01 | 2 | BRUSH CUT OFF | ZA | |
||
| 34 | 939539-01 | 2 | BRUSH CUT OFF | GB 240V | ZA | |
|
| 34 | 939539-00 | 2 | BRUSH CUT OFF | KP-SG 100V | ZA | |
|
| 34 | 939539-00 | 2 | BRUSH CUT OFF | GB 115V | ZA | |
|
| 34 | 939539-00 | 2 | BRUSH CUT OFF | AE-MX-PA 120V | ZA | |
|
| 34 | 939539-00 | 2 | BRUSH CUT OFF | SG-TW-VE 120V | ZA | |
|
| 35 | 930090-00 | 2 | BRUSH SPRING | ZA | |||
| 37 | 930284-01 | 1 | SCREW | ZA | |
||
| 38 | 930467 | 1 | LEAD | ZA | |
||
| 39 | 930187 | 1 | CONNECTOR | ZA | |
||
| 40 | 930439 | 1 | SHOCK ABSORBER | ZA | |
||
| 42 | 930026 | 1 | FOAM | ZA | |
||
| 43 | 949877-02 | 1 | CAPACITOR | GB 115V | ZA | ||
| 43 | 930030 | 1 | CAPACITOR | ZA | |
||
| 43 | 930030 | 1 | CAPACITOR | GB 240V | ZA | |
|
| 43 | 930030 | 1 | CAPACITOR | KP-SG 100V | ZA | |
|
| 44 | 930468 | 1 | LEAD | ZA | |
||
| 45 | 930215 | 1 | HANDLE SA | ZA | |
||
| 46 | 930103-00 | 1 | CORD CLAMP | ZA | |
||
| 47 | 930276 | 2 | SCREW | ZA | |
||
| 48 | 938498 | 1 | CORD PROTECTOR | ZA | |
||
| 48 | 938498 | 1 | CORD PROTECTOR | KP-SG 100V | ZA | |
|
| 48 | 938498 | 1 | CORD PROTECTOR | AE-MX-PA 120V | ZA | |
|
| 48 | 938498 | 1 | CORD PROTECTOR | SG-TW-VE 120V | ZA | |
|
| 48 | 732456 | 1 | CORD PROTECTOR | GB 240V | ZA | |
|
| 48 | 732456 | 1 | CORD PROTECTOR | GB 115V | ZA | |
|
| 49 | 330061-04 | 1 | CORDSET (M/PLUG) | GB 115V | ZA | |
|
| 49 | 949843-34 | 1 | CABLE | KP-SG 100V | ZA | ||
| 49 | 330060-45 | 1 | CORDSET (M/PLUG) | GB 240V | ZA | |
|
| 49 | 934459 | 1 | CABLE | AE-MX-PA 120V | ZA | |
|
| 49 | 934459 | 1 | CABLE | SG-TW-VE 120V | ZA | |
|
| 49 | 949843-03 | 1 | CABLE | ZA | |
||
| 50 | 930079-01 | 3 | SCREW | ZA | |
||
| 51 | 933657-00 | 2 | CAP | ZA | |
