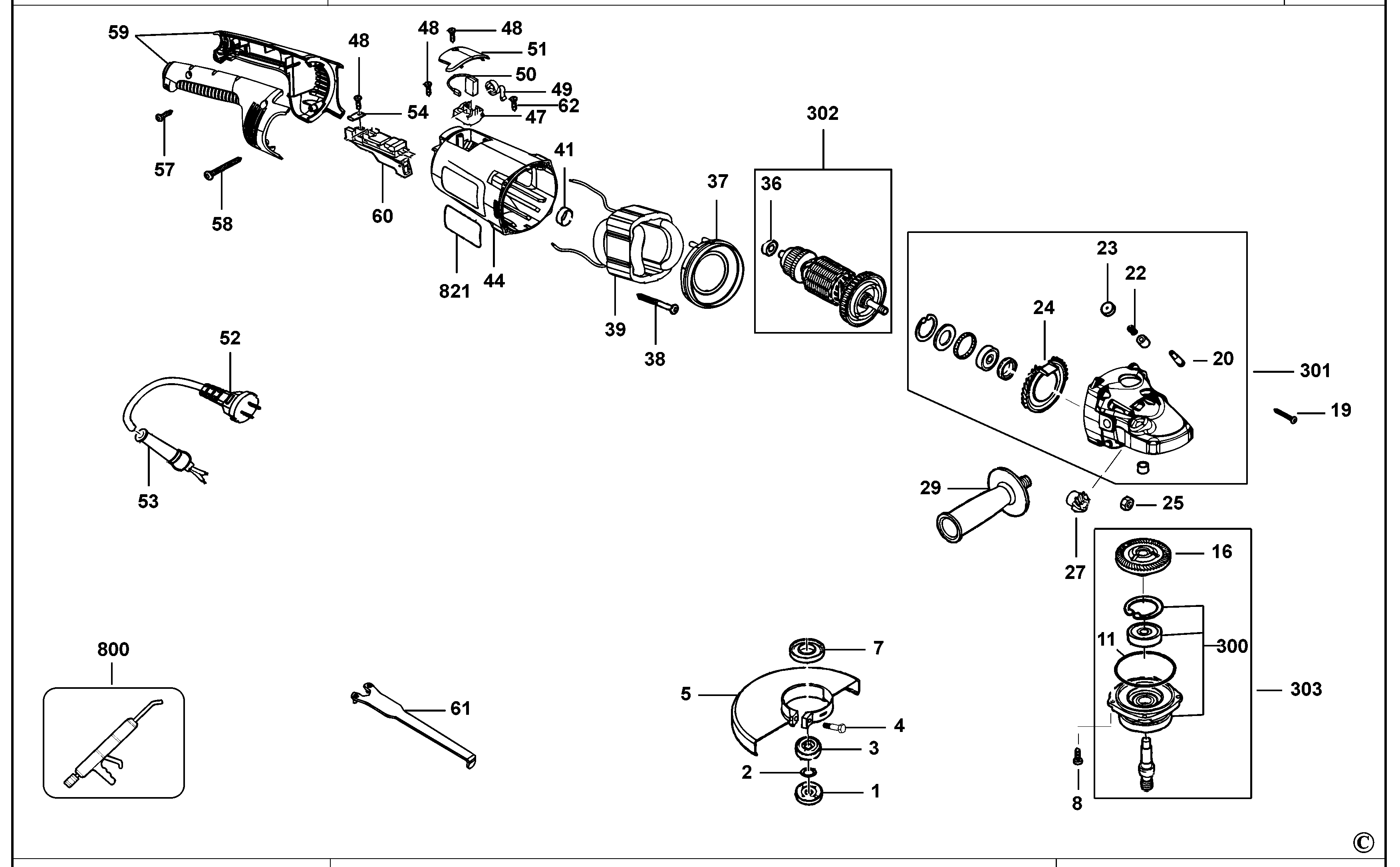

SL227 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 4145104008 | 1 | OUTER FLANGE | B1 |  |
||
| 2 | 4240203001 | 1 | O RING | B1 | |
||
| 4 | N688666 | 1 | SCREW | B1 |  |
||
| 5 | 4148004005 | 1 | GUARD | B1 | |
||
| 7 | 4149101605 | 1 | SEAL | B1 | |
||
| 8 | 49203009 | 4 | SCREW | B1 | |
||
| 11 | 4148003001 | 1 | O RING | B1 | |
||
| 16 | N642052 | 1 | GEAR | B1 | |||
| 19 | 49206048 | 4 | SCREW | B1 | |
||
| 20 | 4148004007 | 1 | LOCKING PIN | B1 | |
||
| 22 | 4148008003 | 1 | SPRING | B1 | |
||
| 23 | 4149101606 | 1 | CAP | B1 | |
||
| 24 | 4149101607 | 1 | DEFLECTOR | B1 | |
||
| 25 | 49205025 | 1 | NUT | B1 | |
||
| 27 | N642053 | 1 | PINION | B1 | |
||
| 29 | 4148001001 | 1 | SIDE HANDLE | B1 | |
||
| 36 | 49111010 | 1 | BEARING | B1 | |
||
| 37 | 4149101604 | 1 | DEFLECTOR | B1 | |
||
| 38 | 49206039 | 2 | SCREW | SELF-TAPPING | B1 | |
|
| 39 | N642071 | 1 | FIELD SA | B1 | |
||
| 41 | N644168 | 1 | SLEEVE BEARING | B1 | |
||
| 44 | N820652 | 1 | FIELDCASE | B1 | |
||
| 47 | N652422 | 1 | BRUSH HOLDER PAIR | B1 | |
||
| 48 | 49206019 | 5 | SCREW | B1 | |
||
| 49 | N659145 | 2 | SPRING TORSION | B1 | |
||
| 50 | N652424 | 1 | BRUSH PAIR | B1 | |||
| 51 | N512367 | 1 | BRUSH COVER | B1 | |
||
| 52 | N640356 | 1 | CORDSET | B1 | |||
| 53 | 49303609 | 1 | CORD PROTECTOR | B1 | |
||
| 54 | N632811 | 1 | CORD CLAMP | B1 | |
||
| 57 | 49206020 | 2 | SCREW | self-tapping 4*18; self-tapping 4x18 mm | B1 | |
|
| 58 | 49206004 | 2 | SCREW | B1 | |
||
| 59 | 4149101602 | 1 | HOUSING PAIR | B1 | |
||
| 60 | N680260 | 1 | SWITCH | B1 | |
||
| 61 | 4148004004 | 1 | WRENCH SET | B1 | |
||
| 62 | 49203006 | 2 | SCREW | 4 x 10 mm; 4*10 | B1 | ||
| 300 | N688894 | 1 | GEARCASE COVER | B1 | |
||
| 301 | N688866 | 1 | GEARCASE SA | B1 | |
||
| 302 | N688857 | 1 | ARMATURE SA | B1 | |
||
| 303 | N688855 | 1 | GEAR & SPINDLE SA | B1 | |
||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | B1 | |
|
| 821 | N812008 | 1 | RATING LABEL | B1 |
