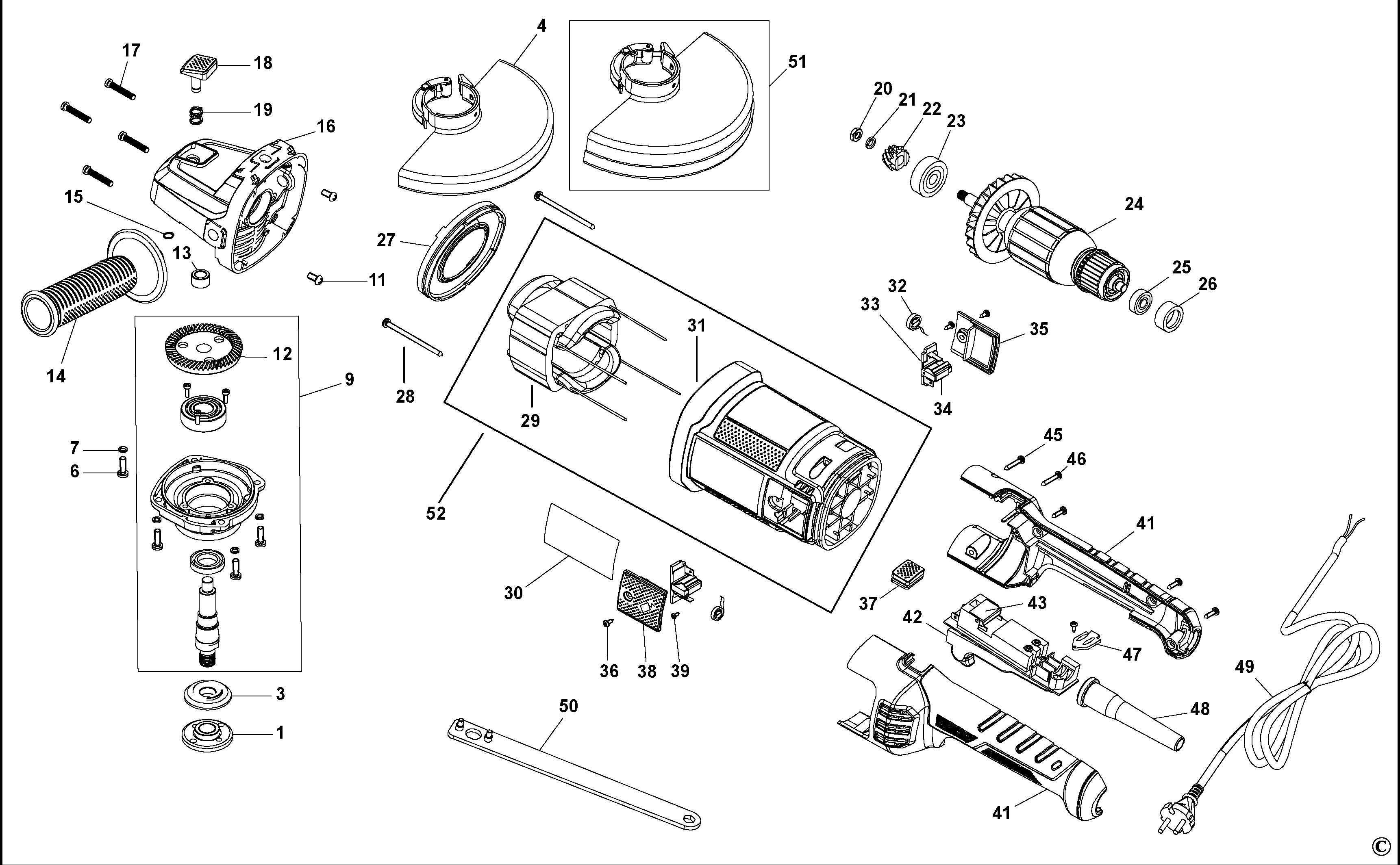

FME841 ANGLE GRINDER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Markets
1	1004684-04	1	FLANGE		B5
3	1004684-05	1	NUT		B5
4	1004684-06	1	GUARD 9"		B5
6	1004684-07	4	SCREW	M5 x 18mm	B5
7	1004684-08	4	WASHER		B5
9	1004684-09	1	GEARCASE SA		B5
11	1004684-10	2	SCREW		B5
13	1004684-16	1	BEARING		B5
14	1004684-17	1	HANDLE		B5
15	1004684-18	1	RING		B5
16	1004684-19	1	GEARBOX		B5
17	1004684-20	4	SCREW		B5
18	1004684-21	1	BUTTON STOP		B5
19	1004684-22	1	SPRING		B5
20	1004684-23	1	NUT		B5
21	1004684-24	1	WASHER SPRING	ø8	B5
22	1004684-25	1	PINION		B5
23	1004684-26	1	BEARING		B5
24	1004684-27	1	ARMATURE		B5
25	1004684-28	1	BEARING		B5
26	1004684-29	1	BEARING SET		B5
27	1004684-30	1	BAFFLE FAN		B5
28	1004684-31	2	SCREW		B5
29	1004684-32	1	STATOR		B5
31	1004684-34	1	HOUSING		B5
31	1004684-76	1	HOUSING		B5
32	1004684-35	2	SPRING BRUSH		B5
33	1004684-36	2	BRUSH HOLDER		B5
34	1004684-43	2	BRUSH CUT OFF	QTY 1	B5
35	1004684-38	1	BRUSH CAP		B5
36	1004684-39	2	SCREW		B5
37	1004684-40	1	RUBBER		B5
38	1004684-41	1	BRUSH CAP		B5
39	1004684-42	2	SCREW	ST2.9 x 6mm	B5
41	1004684-75	1	HANDLE SA		B5
42	1004684-45	1	SWITCH LOCK OFF		B5
43	1004684-46	1	CAPACITOR		B5
45	1004684-47	2	SCREW	ST4.0 x 38mm	B5
46	1004684-48	3	SCREW	ST4.0 x 16mm	B5
47	1004684-49	1	CORD CLAMP		B5
48	1004684-50	1	CORD PROTECTOR		B5
49	1004684-51	1	CORDSET		B5
50	1004684-53	1	WRENCH SPECIAL		B5
51	1004684-54	1	GUARD 9"		B5
52	1004732-39	1	FIELD SA	Inc. HOUSING	B5
