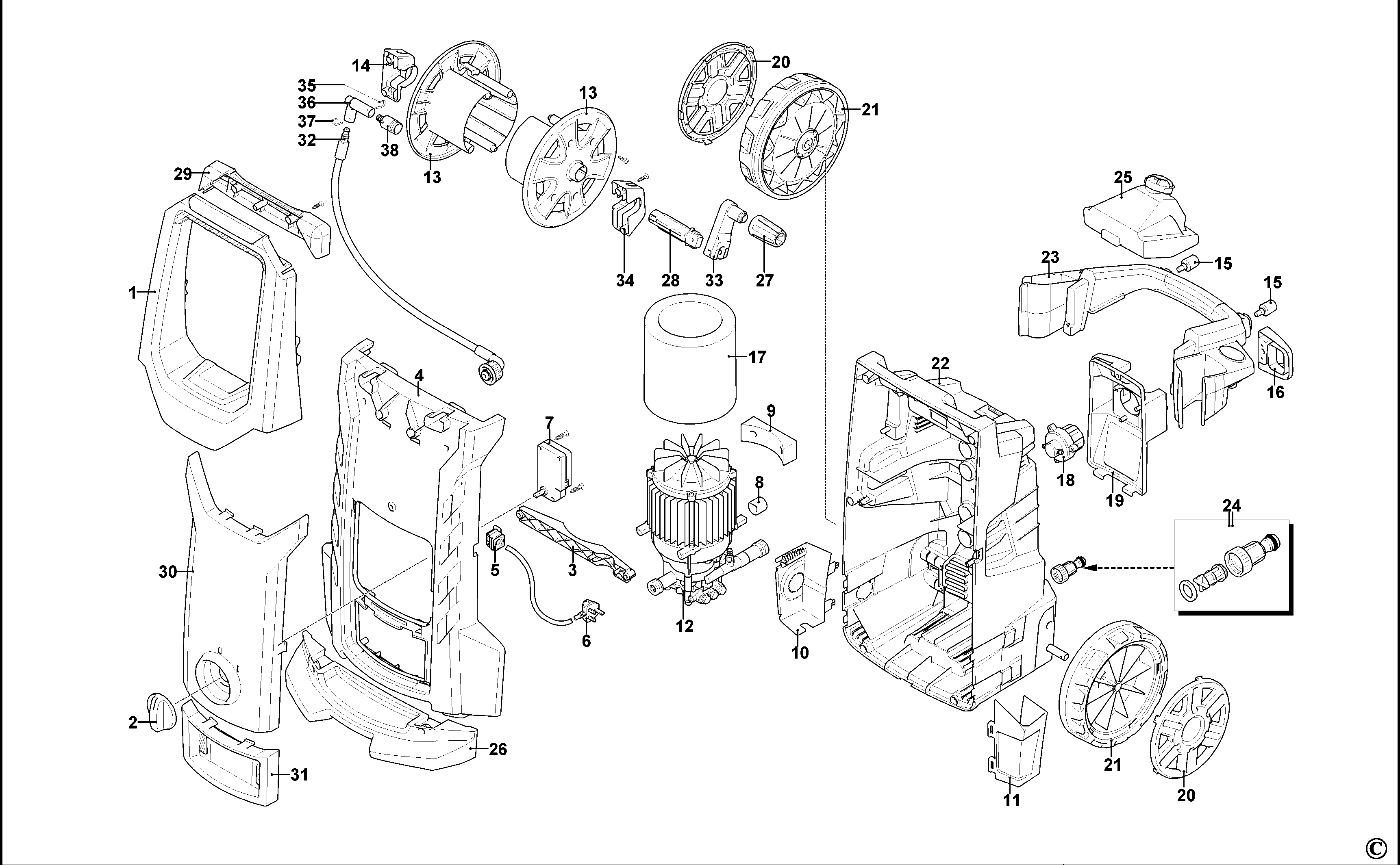

SW21 PRESSURE WASHER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Markets
1	4381020	1	HANDLE UPPER		B5
2	4381120	1	KNOB		B5
3	4381010	1	SUPPORT		B5
4	4380970	1	COVER		B5
5	1004455-07	1	GLAND		B5
6	1004701-02	1	CORDSET	GB Plug	B5
7	4381740	1	SWITCHBOX		B5
8	4381890	2	FOOT		B5
9	4381000	1	GUARD		B5
10	4381070	1	CARRIER		B5
11	4381060	1	CARRIER		B5
12	4381560	1	PUMP SA		B5
13	4381840	2	PLATE		B5
14	4381170	1	BRACKET		B5
15	1004712-16	2	FOOT		B5
16	4381050	1	HANDLE		B5
17	3440130	1	FAN COVER		B5
18	1004512-37	1	REGULATOR		B5
19	4381040	1	COVER		B5
20	4381110	2	GUARD		B5
21	4381100	2	WHEEL		B5
22	4380960	1	BASE SA		B5
23	4380230	1	CARRIER		B5
24	1004700-77	1	COUPLING SA		B5
25	4381080	1	TANK		B5
26	4381230	1	FOOT		B5
27	4381180	1	KNOB		B5
28	4381200	1	PIN		B5
29	4381030	1	HANDLE		B5
30	4380980	1	GUARD		B5
31	4381690	1	GUARD		B5
32	4382140	1	HOSE SA, REINFORCED		B5
33	4381190	1	LEVER		B5
34	4381160	1	BRACKET		B5
35	3081650	1	FORK		B5
36	4101250	1	COUPLING		B5
37	4101520	1	FORK		B5
38	4101030	1	PLUG		B5
39	3083210	3	PLUG		B5
40	3081730	1	SCREW		B5
41	3083220	1	HEAD SA		B5
42	3081760	4	WASHER		B5
43	3081750	4	WASHER		B5
44	3081740	4	SCREW		B5
45	3084870	1	PUMP SA	Body	B5
45	3083230	1	PUMP SA	Body	B5
46	3440560	1	KIT	TSS	B5
47	3440570	1	PISTONS & SEALS KIT		B5
48	1004455-19	1	SERVICE KIT		B5
49	3440610	1	REPAIR KIT	Detergent Suction	B5
50	3081750	1	WASHER		B5
51	3081950	1	SCREW		B5
52	4382090	1	PLATE	Wobble	B5
53	3440370	1	FAN		B5
54	3441000	1	RING		B5
55	4382130	1	MOTOR 220/240		B5
56	4381480	1	HANDLE SA		B5
57	4381490	1	EXTENSION		B5
58	4100800	1	HEAD SA		B5
59	1004700-83	1	HEAD		B5
60	4381500	1	TANK		B5
61	4382250	1	HOSE		B5
62	3083700	2	O RING		B5
63	3083370	2	O RING		B5
64	3083400	2	O RING		B5
