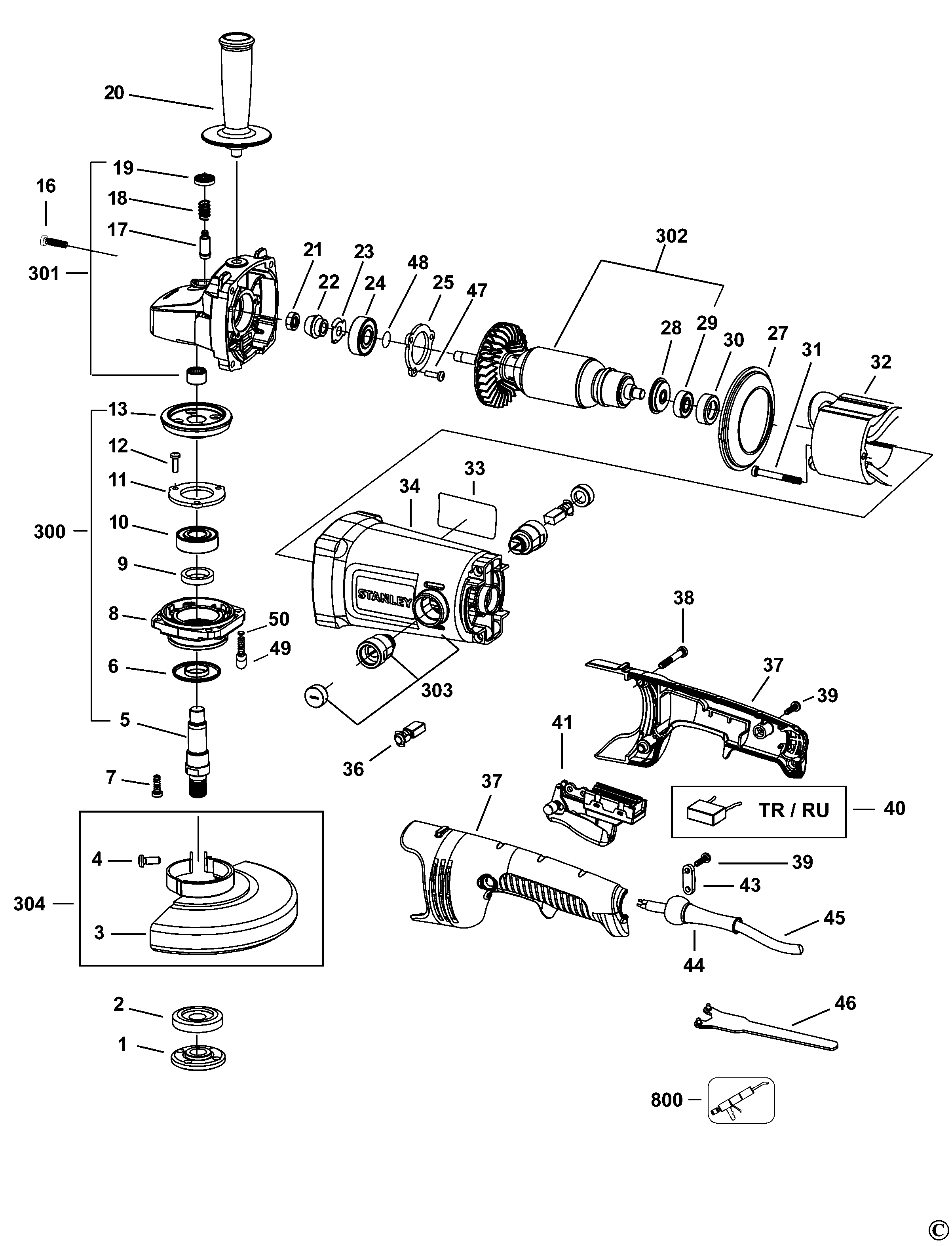

SGM146 ANGLE GRINDER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets
1	4145104008	1	OUTER FLANGE			B5
2	4145104002	1	INNER FLANGE			B5
3	N480752	1	GUARD			B5
4	49203052	1	SCREW			B5
5	N480754	1	SPINDLE			B5
6	4145504003	1	CAP			B5
7	49203009	3	SCREW			B5
8	N480758	1	GEARCASE COVER			B5
9	4145201009	1	FELT SEAL			B5
10	49111036	1	BEARING			B5
11	4145104009	1	BEARING PLATE			B5
12	49203006	3	SCREW	4 x 10 mm; 4*10		B5
13	N480763	1	GEAR			B5
16	N480766	4	SCREW			B5
17	4145204006	1	LOCK PIN			B5
18	4145208001	1	SPRING			B5
19	4145201012	1	CAP			B5
20	4145101001	1	SIDE HANDLE			B5
21	49205014	1	NUT			B5
22	N480772	1	PINION			B5
23	4145204005	1	WASHER			B5
24	N480774	1	BEARING			B5
25	N480776	1	BEARING PLATE			B5
27	N480777	1	BAFFLE			B5
28	N480779	1	WASHER			B5
29	49111013	1	BEARING			B5
30	4145203004	1	SLEEVE			B5
31	49206039	2	SCREW	SELF-TAPPING		B5
32	N480783	1	FIELD SA			B5
33	N505689	1	RATING PLATE			B5
34	N480784	1	FIELD CASE			B5
36	N480786	1	BRUSH PAIR			B5
37	N480787	1	HANDLE			B5
38	49206037	2	SCREW			B5
39	49206018	4	SCREW	SELF-TAPPING 4*15		B5
41	N498388	1	SWITCH			B5
43	4100301008	1	CORD CLAMP			B5
44	N480227	1	CORD PROTECTOR			B5
45	N531863	1	CORDSET			B5
46	4140304608	1	WRENCH SET			B5
47	49209042	3	SCREW			B5
48	N480230	1	O RING			B5
49	N480775	1	SCREW			B5
50	49209046	1	WASHER			B5
300	N521295	1	SHAFT SA			B5
301	N521296	1	GEARCASE SA			B5
302	N521297	1	ARMATURE SA			B5
303	N521298	1	COVER MOTOR SA			B5
304	N521615	1	GUARD SA			B5
800	N544389	1	GREASE		25g	B5
