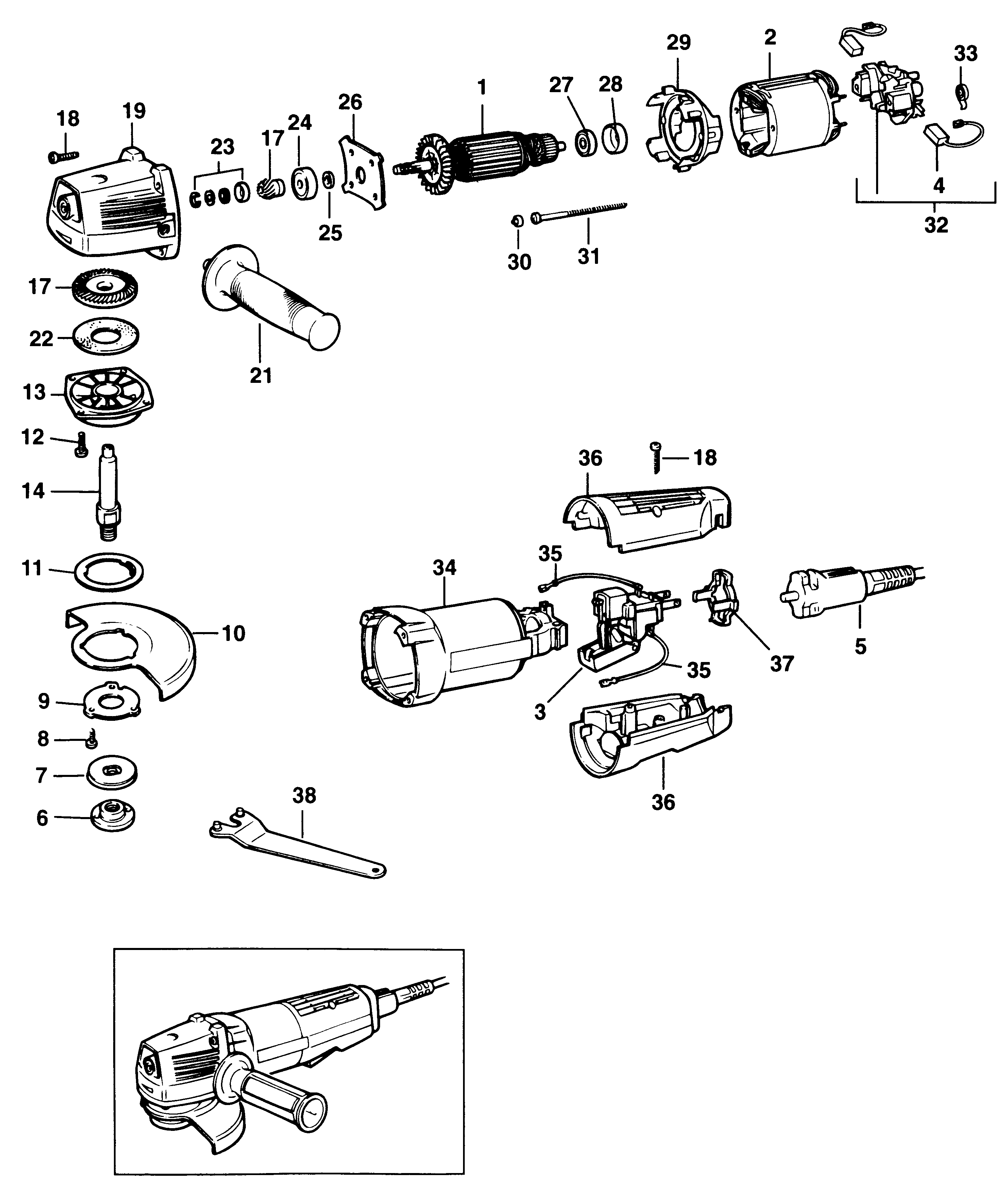

KG11 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 949846-07 | 1 | ARMATURE | AE |  |
||
| 1 | 949846-02 | 1 | ARMATURE | EUROPE | AE | |
|
| 2 | 868629-02 | 1 | FIELD | AE | |
||
| 3 | 930716 | 1 | SWITCH | AE | |
||
| 3 | 949822-01 | 1 | SWITCH LOCK OFF | AE | |
||
| 4 | 930151-00 | 2 | BRUSH 220V | AE |  |
||
| 5 | 949842-20 | 1 | CORDSET | AE | |
||
| 6 | 403430-00 | 1 | OUTER FLANGE | EUROPE | AE | |
|
| 6 | 947467-00 | 1 | OUTER FLANGE | AE | |
||
| 7 | 659110-00 | 1 | INNER FLANGE | AE | |
||
| 7 | 930771-00 | 1 | INNER FLANGE | EUROPE | AE | |
|
| 8 | 930251-00 | 3 | SCREW | AE | |
||
| 10 | 937411-00 | 1 | GUARD | EUROPE | AE | |
|
| 11 | 938272 | 1 | RING | AE | |
||
| 12 | 930770-00 | 4 | SCREW | AE | |
||
| 13 | 944055 | 1 | GEARCASE COVER SA | AE | |
||
| 14 | 946412-00 | 1 | SPINDLE | AE | |
||
| 14 | 946414-00 | 1 | SPINDLE | EUROPE | AE | |
|
| 17 | 932592 | 1 | GEAR & PINION | AE | |
||
| 18 | 930079-01 | 6 | SCREW | AE | |
||
| 19 | 946129-00 | 1 | GEARCASE | AE | |
||
| 21 | 940155 | 1 | HANDLE SIDE SA | AE | |
||
| 22 | 946418-00 | 1 | FELT | AE | |
||
| 23 | 937668 | 1 | CIRCLIP SA | AE | |
||
| 24 | 577745-00 | 1 | BEARING | AE | |
||
| 25 | 930753-00 | 1 | WASHER | AE | |
||
| 27 | 330003-34 | 1 | BEARING | AE | |
||
| 28 | 930029-00 | 1 | HOLDER BEARING | AE | |
||
| 29 | 946134-00 | 1 | BAFFLE | AE | |
||
| 30 | 933657-00 | 2 | CAP | AE | |
||
| 31 | 930077-00 | 2 | SCREW | AE | |
||
| 32 | 949860-11 | 1 | BRUSH HOLDER 240V | AE | |
||
| 33 | 930090-00 | 2 | BRUSH SPRING | AE | |||
| 34 | 930811-05 | 1 | FIELDCASE | AE | |
||
| 35 | 930728-00 | 2 | LEAD | AE | |
||
| 37 | 930761 | 1 | RING | AE | |
||
| 38 | 401253-00 | 1 | WRENCH ROUND-PINS | EUROPE | AE | |
|
| 38 | 401253-00 | 1 | WRENCH ROUND-PINS | EUROPE | AE | |
|
| 38 | 401253-00 | 1 | WRENCH ROUND-PINS | AE | |
