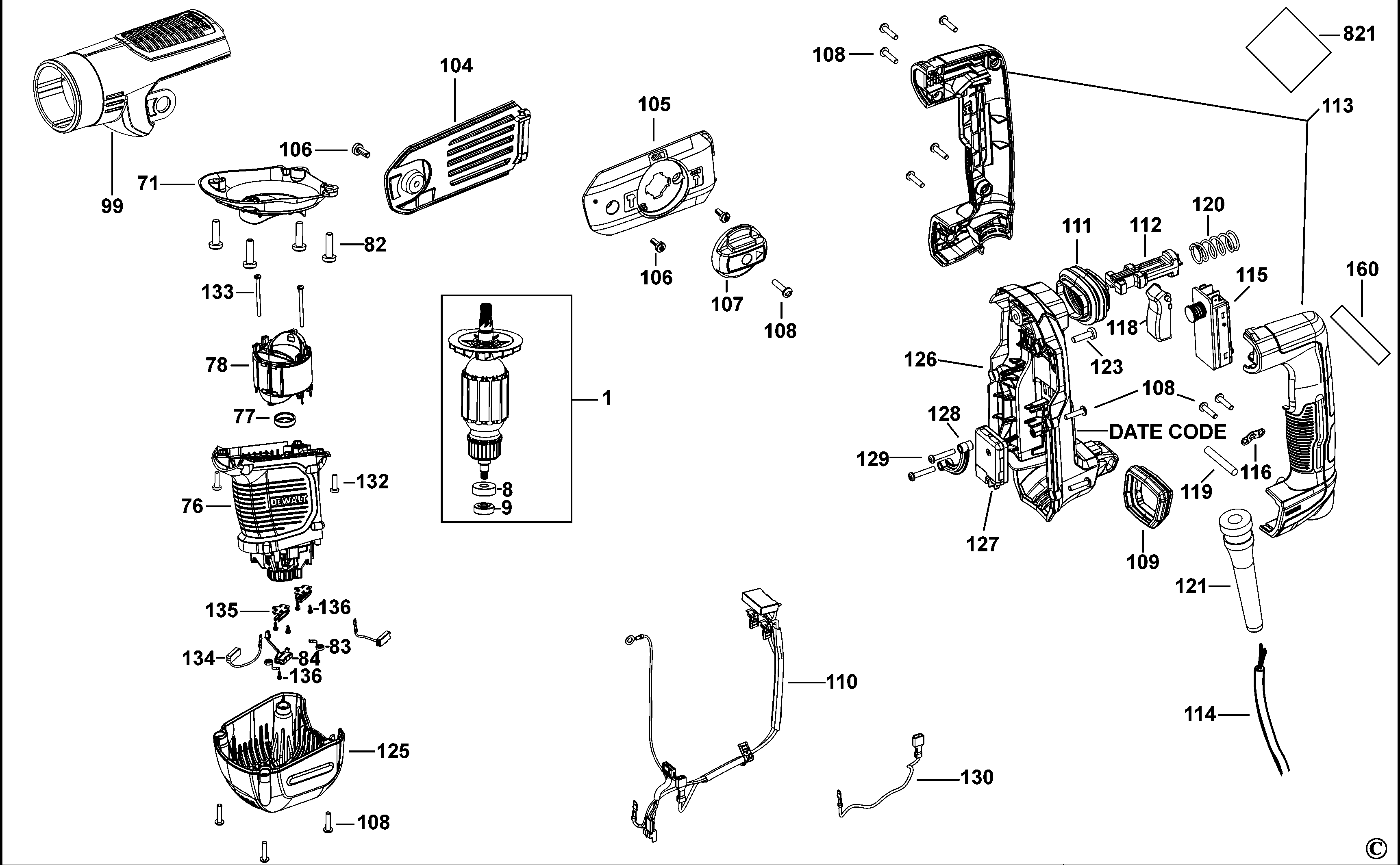

D25481 ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N491963 | 1 | ARMATURE 230V | XD |  |
||
| 2 | N491979 | 1 | PISTON SA | XD | |
||
| 8 | 330003-60 | 1 | BEARING | XD | |
||
| 9 | N466979 | 1 | MAGNET | XD | |
||
| 11 | 327575-00 | 1 | SLEEVE | XD | |
||
| 12 | N110358 | 2 | BEARING | XD | |
||
| 13 | N495599 | 1 | SEAL | XD | |
||
| 14 | 577745-01 | 1 | BEARING,BALL | XD | |
||
| 15 | 488147-01 | 1 | CIRCLIP | INTERNAL, 28MM | XD | |
|
| 23 | N406776 | 1 | PISTON | 5KG D26 | XD | |
|
| 24 | N406775 | 1 | CON ROD | 5KG | XD | ||
| 25 | N446699 | 1 | PIN | XD | |
||
| 26 | N446701 | 1 | PISTON RING | XD | |||
| 27 | N487314 | 1 | O RING | XD | |
||
| 28 | N491986 | 1 | RAM SA | 26MM | XD | |
|
| 29 | N487314 | 1 | O RING | XD | |
||
| 30 | N715601 | 1 | SPINDLE SA | | XD |
| ||
| 30 | N571895 | 1 | SPINDLE SA | 5KG SDS MAX | >=WK01 2018 | XD | |
| 31 | N410350 | 1 | O RING | XD |  |
||
| 32 | N431706 | 1 | BUSH | XD | |||
| 33 | N410349 | 1 | O RING | 16ID x 8 | XD | |
|
| 34 | N431708 | 1 | WASHER | REBOUND | XD | |
|
| 35 | N545367 | 1 | SPACER | >=WK01 2018 | XD | |
|
| 35 | N715601 | 2 | SPINDLE SA | | XD |
| ||
| 36 | N715601 | 1 | SPINDLE SA | | XD |
| ||
| 36 | N504457 | 1 | DAMPER | >=WK01 2018 | XD | |
|
| 37 | N536109 | 1 | BEARING | >=WK01 2018 | XD | |
|
| 37 | N715601 | 1 | SPINDLE SA | | XD |
| ||
| 38 | N492498 | 1 | BEAT PIECE | 5KG | XD | |
|
| 39 | N244259 | 1 | SEAL | XD | |
||
| 40 | N487314 | 1 | O RING | XD | |
||
| 41 | N715601 | 1 | SPINDLE SA | | XD |
| ||
| 41 | N571895 | 1 | SPINDLE SA | 5KG SDS MAX | >=WK01 2018 | XD | |
| 42 | N506088 | 1 | HOUSING SA | PKG'D N406216 | XD | |
|
| 44 | N410187 | 1 | BEVEL GEAR | XD | |
||
| 45 | N410188 | 1 | SLEEVE | XD | |
||
| 46 | N433094 | 1 | SLEEVE | LOCKING | XD | |
|
| 47 | N437808 | 1 | SPRING | SHIFTING SLEEVE | XD | |
|
| 48 | N437814 | 1 | SPRING | XD | |
||
| 49 | N460603 | 1 | SUPPORT | XD | |
||
| 51 | N432556 | 1 | O RING | 54x4 | XD | |
|
| 52 | N526257 | 1 | SLEEVE | >=WK01 2018 | XD | |
|
| 52 | N715601 | 1 | SPINDLE SA | | XD |
| ||
| 53 | 327141-00 | 1 | SEAL | >=WK01 2018 | XD | |
|
| 53 | N715601 | 1 | SPINDLE SA | | XD |
| ||
| 54 | N532870 | 1 | CIRCLIP | >=WK01 2018 | XD | |
|
| 54 | N715601 | 1 | SPINDLE SA | | XD |
| ||
| 55 | N439579 | 1 | CAP | XD | |
||
| 56 | N492496 | 1 | CRANKSHAFT | PKG'D N406217 | XD | |
|
| 57 | 323711-26 | 2 | O RING | XD | |
||
| 59 | N432869 | 1 | CIRCLIP | JS40 | XD | |
|
| 60 | N571701 | 1 | SPRING | XD | |
||
| 61 | N406228 | 1 | SLEEVE | CRANK | XD | |
|
| 62 | N450900 | 1 | PIN | 3x40 | XD | |
|
| 63 | N422799 | 1 | SELECTOR FORK | XD | |
||
| 64 | N553858 | 1 | O RING | 16 X 2.65 | XD | |
|
| 65 | N435997 | 1 | ECCENTRIC | XD | |
||
| 66 | N422798 | 1 | PLATE | DRILL MODE | XD | |
|
| 67 | N422797 | 1 | PLATE | GUIDING | XD | |
|
| 68 | N445171 | 1 | SCREW | XD | |
||
| 70 | N492837 | 1 | CLUTCH SA | PKG'D N410179 | XD | |
|
| 71 | N435623 | 1 | BAFFLE FAN | XD | |
||
| 76 | N433780 | 1 | HOUSING MOTOR | XD | |
||
| 77 | N449094 | 1 | COVER BEARING | XD | |
||
| 78 | N492847 | 1 | FIELD 230V | XD | |
||
| 79 | N492874 | 1 | GEAR | PKGD N406225 | XD | |
|
| 80 | N422796 | 1 | GASKET | MAIN HOUSING | XD | |
|
| 81 | N491766 | 1 | HOUSING GEAR SA | PKGD N410355 | XD | |
|
| 82 | 324007-11 | 8 | SCREW | M5 X 18 | XD | |
|
| 83 | N444425 | 2 | BRUSH SPRING | XD | |
||
| 84 | N448156 | 1 | COIL | XD | |
||
| 85 | N504436 | 1 | O RING | 18x4.5 | XD | |
|
| 86 | N452721 | 1 | CAP | XD | |
||
| 87 | N395554 | 1 | FELT | XD | |
||
| 89 | 325878-00 | 2 | ROLLER | XD | |
||
| 90 | N038151 | 1 | FELT | XD | |
||
| 91 | N465749 | 1 | WASHER | 29x55x1.8 | XD | |
|
| 92 | 323395-06 | 1 | SPRING | XD | |
||
| 93 | 487118-00 | 1 | SPRING | XD | |
||
| 94 | N464690 | 1 | GUIDE | GUIDE | XD | |
|
| 95 | N468172 | 2 | LOCKING PIN | XD | |
||
| 96 | N464913 | 1 | SLEEVE | INCL. WASHER | XD | |
|
| 97 | 326575-01 | 1 | COLLAR | XD | |
||
| 98 | N465586 | 1 | LIP SEAL | XD | |
||
| 99 | N429783 | 1 | COVER | XD | |
||
| 104 | N431333 | 1 | SIDE RH | XD | |
||
| 105 | N877353 | 1 | SIDE LH | XD | |
||
| 106 | N445171 | 3 | SCREW | XD | |
||
| 107 | N464282 | 1 | SELECTOR SA | MODE CHANGE | XD | |
|
| 108 | 330065-08 | 14 | SCREW | M4x18 T20 | XD | |
|
| 109 | N452043 | 1 | BELLOWS | LOWER | XD | |
|
| 110 | N452385 | 1 | SET OF LEAD WIRES | XD | |
||
| 111 | N452042 | 1 | BELLOWS | XD | |
||
| 112 | N152623 | 1 | STOP | XD | |
||
| 113 | N492860 | 1 | CLAMSHELL SET | XD | |
||
| 114 | N410113 | 1 | CORDSET | GB | XD | |
|
| 115 | N467530 | 1 | SWITCH | XD | |
||
| 116 | 821070 | 1 | CORD CLAMP | XD | |
||
| 118 | 587114-01 | 1 | TRIGGER | XD | |
||
| 119 | N159443 | 1 | AXIS | XD | |
||
| 120 | N106188 | 1 | SPRING COMPRESSION | XD | |
||
| 121 | 323091-01 | 1 | CORD PROTECTOR | XD | |
||
| 123 | 324007-11 | 2 | SCREW | M5 X 18 | XD | |
|
| 125 | N438602 | 1 | END CAP | XD | |
||
| 126 | N438601 | 1 | CLAMSHELL | XD | |
||
| 127 | N492852 | 1 | CONTROL MODULE SA | 230V | XD | |
|
| 128 | N449848 | 1 | BRACKET | XD | |
||
| 129 | N371839 | 2 | SCREW | M4x22 PLSTC THDFMG | XD | |
|
| 130 | N450546 | 1 | LEAD SA | XD | |
||
| 132 | 324007-11 | 4 | SCREW | M5 X 18 | XD | |
|
| 133 | 330065-10 | 2 | SCREW | XD | |
||
| 134 | N492849 | 1 | BRUSH PAIR 230V | XD | |
||
| 135 | N450097 | 2 | BRUSHBOX SA | XD | |
||
| 136 | N086775 | 5 | SCREW | XD | |||
| 150 | N535058 | 1 | HANDLE SA | XD | |
||
| 151 | N466673 | 1 | CLAMP | XD | |
||
| 152 | N505367 | 1 | HANDLE SA | XD | |||
| 153 | N466679 | 1 | CLAMP | XD | |
||
| 154 | N466678 | 1 | BOLT | XD | |
||
| 155 | N466677 | 1 | WASHER CLAMP | XD | |
||
| 160 | N196274 | 1 | LABEL | PERFORM & PROTECT | XD | |
|
| 800 | 578970-06 | 1 | GREASE 150 GMS | XD | |
||
| 821 | N495334 | 1 | RATING LABEL | XD | |||
| 847 | N680320 | 1 | SERVICE KIT 230V | HV | XD | |
|
| 861 | N469730 | 1 | KITBOX | XD | |
